Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

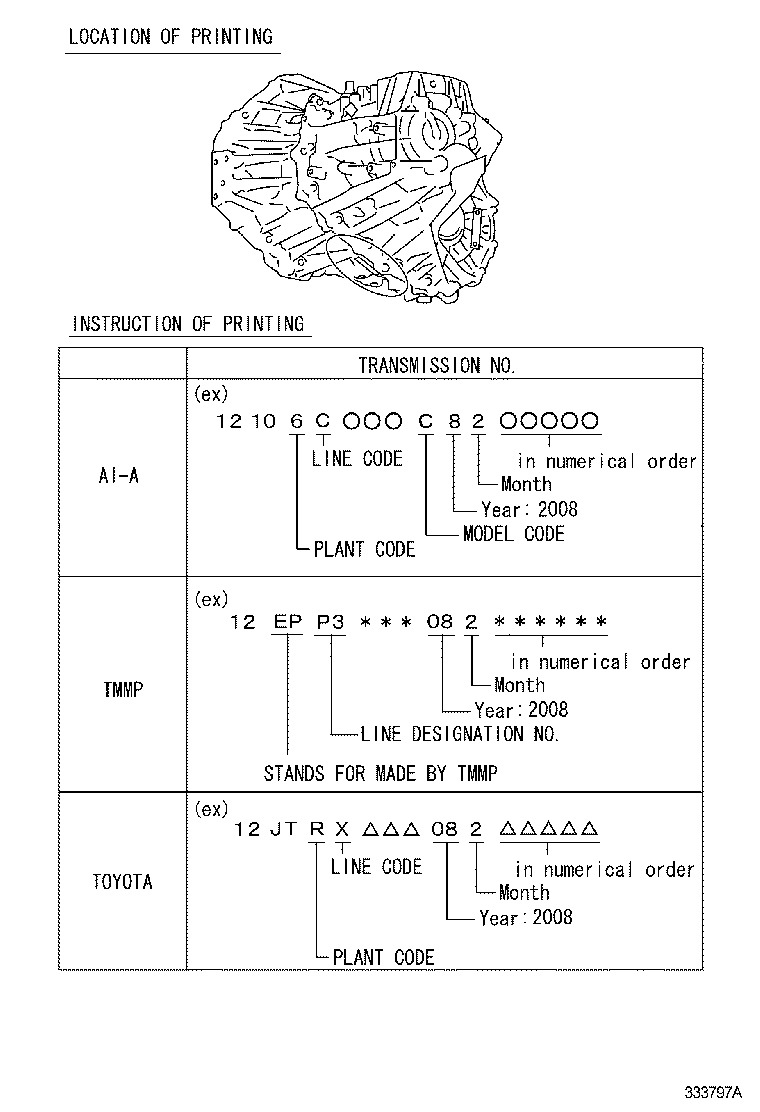

Figure 332775 332775 2005-11 → — Figure 332770 332770 2005-11 → — Figure 332774 332774 2005-11 → 2008-11 Figure 333742 333742 2008-11 → — Figure 333797A 333797A 2008-11 → — Figure 333881 333881 2009-02 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
