Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01
Transmission Gear (MTM)

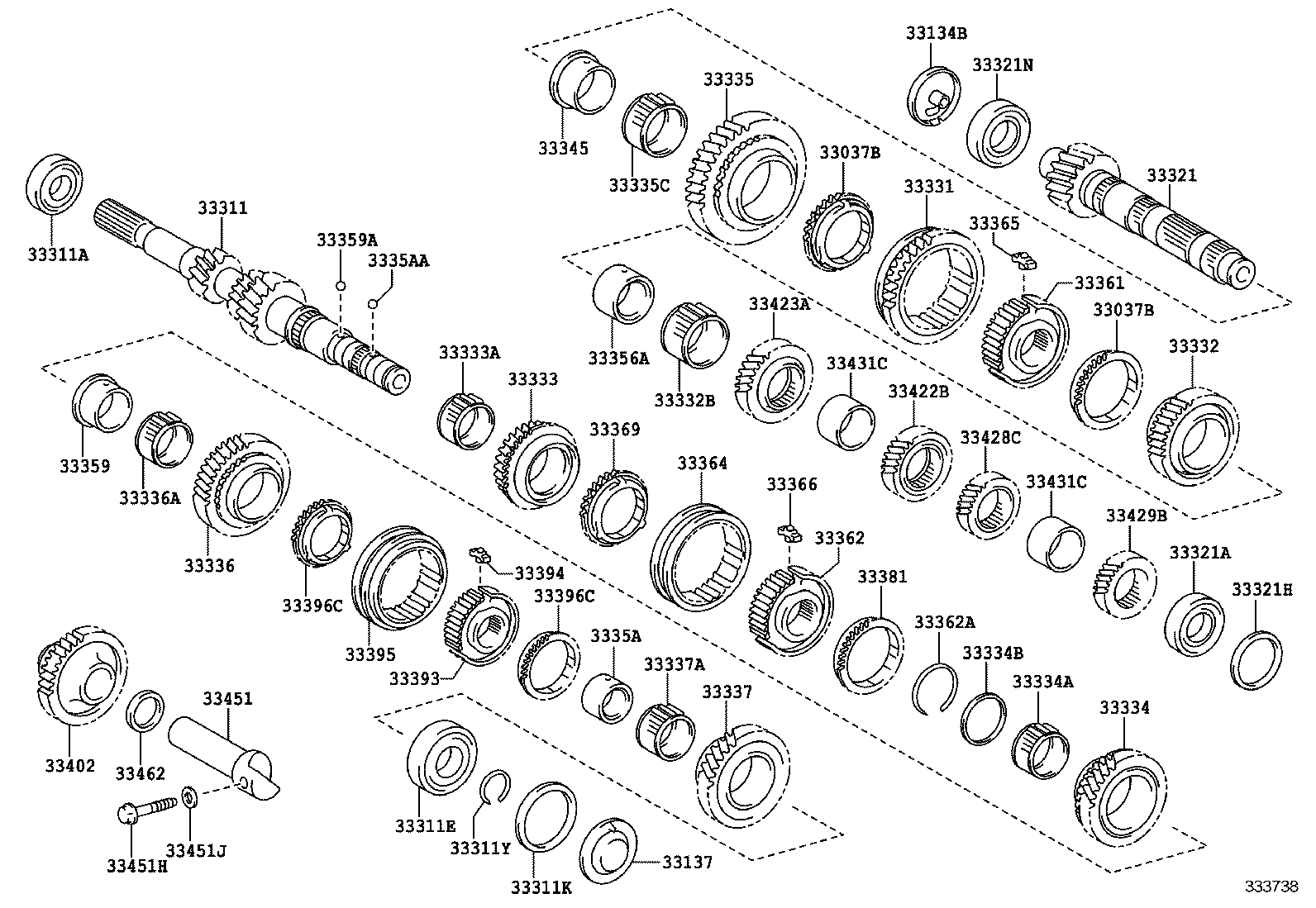

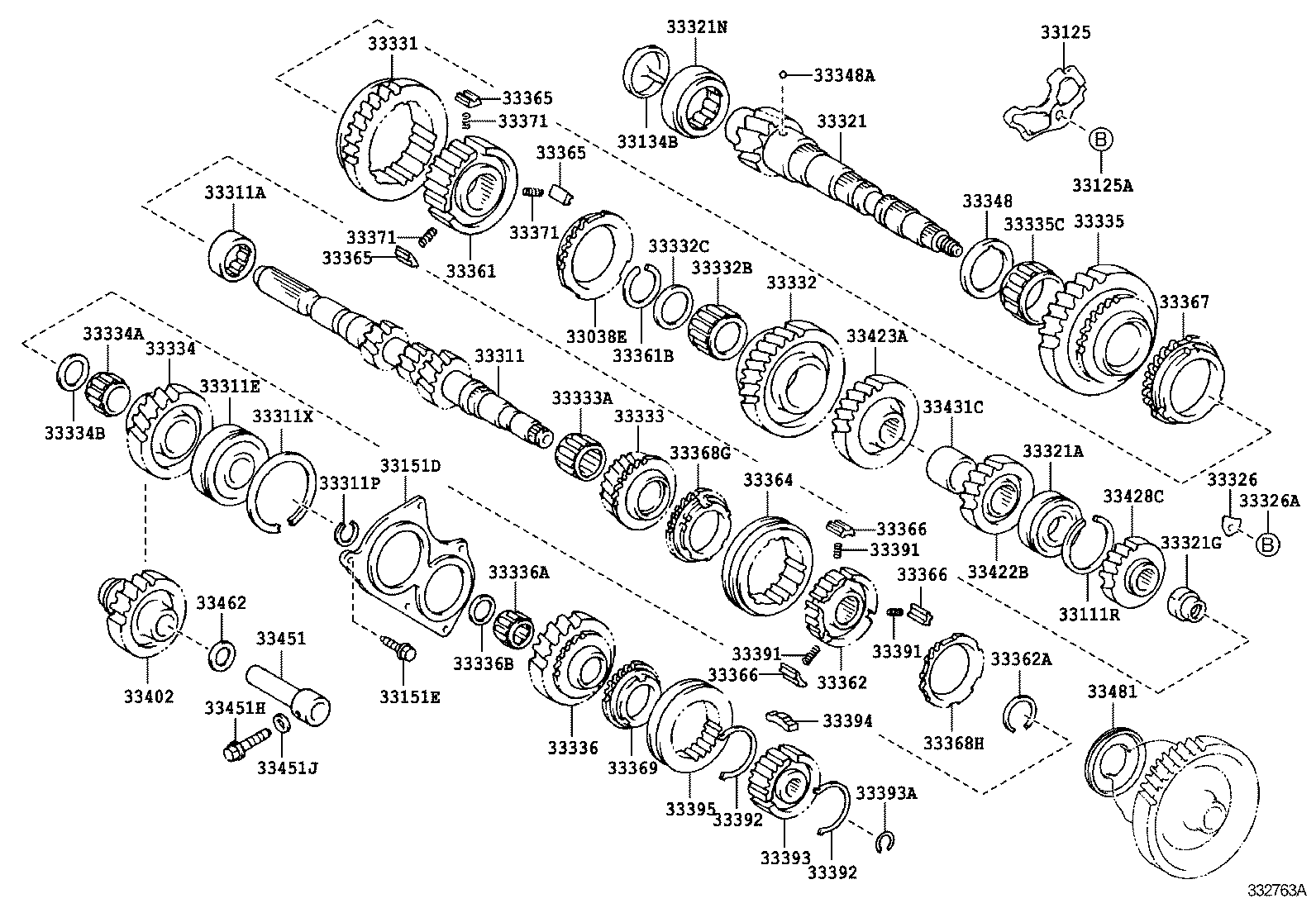

84 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33037B | Ring Set, Synchronizer, NO.1 |
| 33038E | Ring Set, Synchronizer, NO.2 |
| 33111R | Ring, Hole Snap(FOR OUTPUT SHAFT REAR BEARING) |
| 33125 | Receiver, Manual Transaxle Case |
| 33125A | Bolt(FOR TRANSAXLE CASE RECEIVER) |
| 33134B | Cover, Output Shaft(MTM) |
| 33137 | Cover, Input Shaft(MTM) |
| 33151D | Retainer, Bearing, Rear(MTM) |
| 33151E | Bolt(FOR REAR BEARING RETAINER) |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311E | Bearing, Radial Ball (FOR INPUT SHAFT REAR) |
| 33311K | Shim (FOR INPUT SHAFT REAR BEARING) |
| 33311P | Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING) |
| 33311X | Ring, Hole Snap (FOR INPUT SHAFT REAR BEARING) |
| 33311Y | Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING) |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321G | Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) |
| 33321H | Shim (FOR OUTPUT SHAFT REAR BEARING) |
| 33321N | Bearing (FOR OUTPUT SHAFT FRONT) |
| 33326 | Plate, Bearing Lock |
| 33326A | Bolt (FOR BEARING LOCK PLATE) |
| 33331 | Gear, Reverse |
| 33332 | Gear, 2ND |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33332C | Spacer (FOR 2ND GEAR BEARING) |
| 33333 | Gear, 3RD |
| 33333A | Bearing, Needle Roller (FOR 3RD GEAR) |
| 33334 | Gear, 4TH |
| 33334A | Bearing, Needle Roller (FOR 4TH GEAR) |
| 33334B | Spacer (FOR 4TH GEAR BEARING) |
| 33335 | Gear, 1ST |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33336A | Bearing, Needle Roller (FOR 5TH GEAR) |
| 33336B | Spacer (FOR 5TH GEAR BEARING) |
| 33336C | Ring, Shaft Snap (FOR 5TH GEAR) |
| 33337 | Gear Sub-assy, 6TH |
| 33337A | Bearing, Needle Roller (FOR 6TH GEAR) |
| 33345 | Bush, 1ST Gear |
| 33346B | Washer, 5TH Gear Thrust |
| 33346C | Ball (FOR 5TH GEAR THRUST WASHER) |
| 33348 | Washer, 1ST Gear Thrust |
| 33348A | Pin OR Ball (FOR 1ST GEAR THRUST WASHER) |
| 33356A | Race, 2ND Gear Bearing Inner |
| 33359 | Race, 5TH Gear Bearing Inner |
| 33359A | Ball, 5TH Gear Bearing Inner Race Lock |
| 3335A | Race, 6TH Gear Bearing, Inner(MTM) |
| 3335AA | Ball, 6TH Gear Bearing, Inner Race Rock(MTM) |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33361B | Ring, Shaft Snap (FOR CLUTCH HUB NO.1) |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33362A | Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33368G | Ring, Synchronizer (FOR 3RD GEAR) |
| 33368H | Ring, Synchronizer (FOR 4TH GEAR) |
| 33368J | Ring, Synchronizer (FOR 5TH GEAR) |
| 33369 | Ring, Synchronizer, NO.3 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33381 | Ring, 2ND Synchronizer Outer |
| 33391 | Spring, Synchromesh Shifting Key, NO.2 |
| 33392 | Spring, Synchromesh Shifting Key, NO.3 |
| 33393 | Hub, Transmission Clutch, NO.3 |
| 33393A | Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3) |
| 33394 | Key, Synchromesh Shifting, NO.3 |
| 33395 | Sleeve, Transmission Hub, NO.3 |
| 33396C | Ring, Synchronizer, NO.5(MTM) |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33422B | Gear, 4TH Driven |
| 33423A | Gear, 3RD Driven |
| 33428A | Ring, Shaft Snap (FOR COUNTER 5TH GEAR) |
| 33428C | Gear, 5TH Driven |
| 33429B | Gear, 6TH Driven |
| 33431B | Spacer, Output Shaft |
| 33431C | Spacer, Output Gear |
| 33451 | Shaft, Reverse Idler Gear |
| 33451H | Bolt (FOR REVERSE IDLER GEAR SHAFT) |
| 33451J | Gasket (FOR REVERSE IDLER GEAR SHAFT) |
| 33462 | Washer, Reverse Idler Thrust |
| 33481 | Gear, Speedometer Drive (MTM) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
