Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 3 illustrations

Illustrations

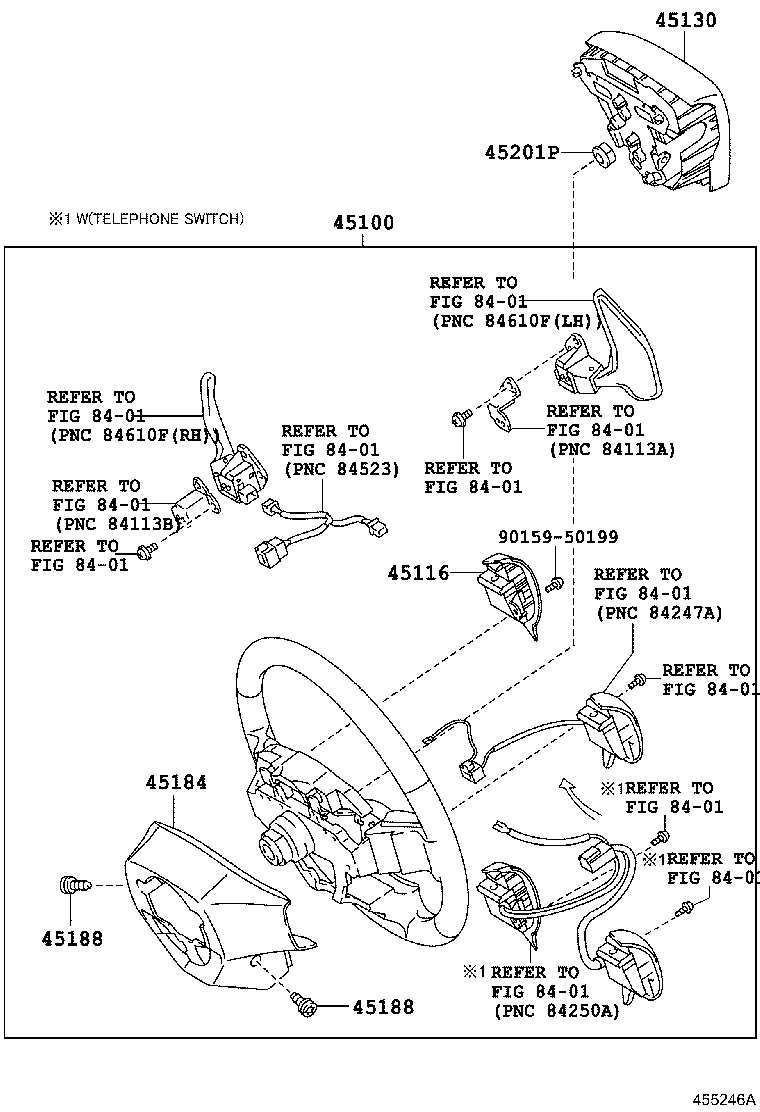

Figure 454338A 454338A 2005-11 → — Figure 454351E 454351E 2005-11 → — Figure 455246A 455246A 2008-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45116 Ornament, Steering Wheel, NO.1
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
