Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 3 illustrations

Illustrations

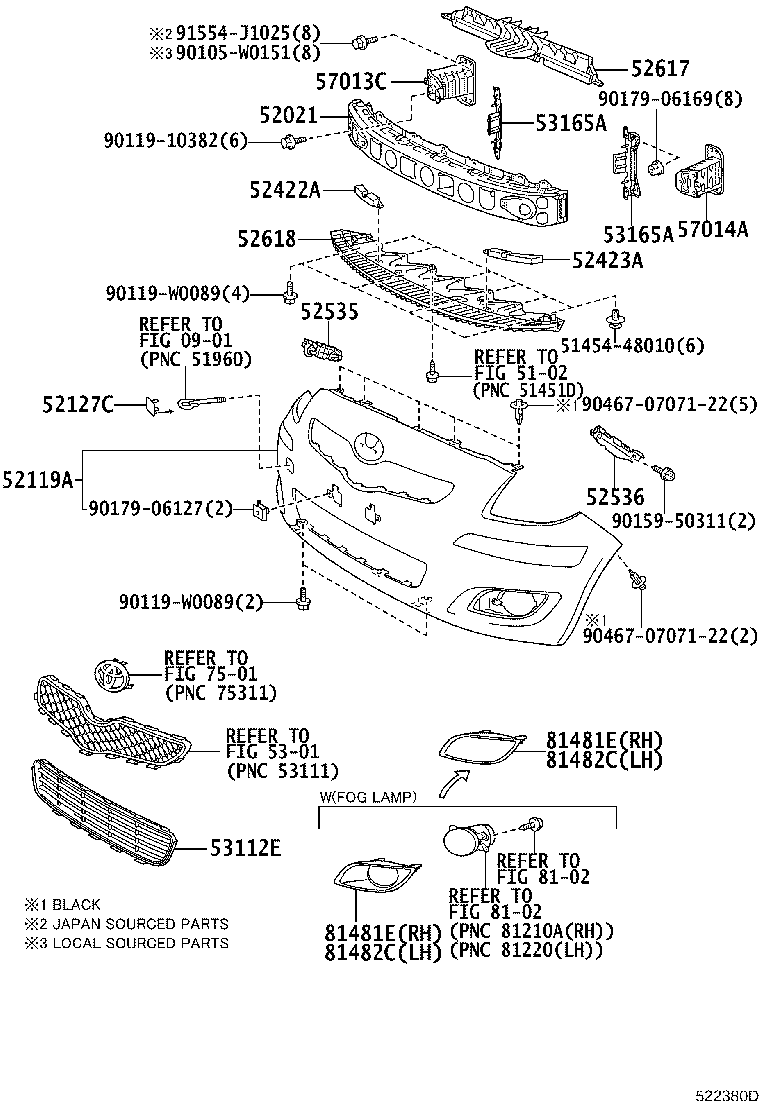

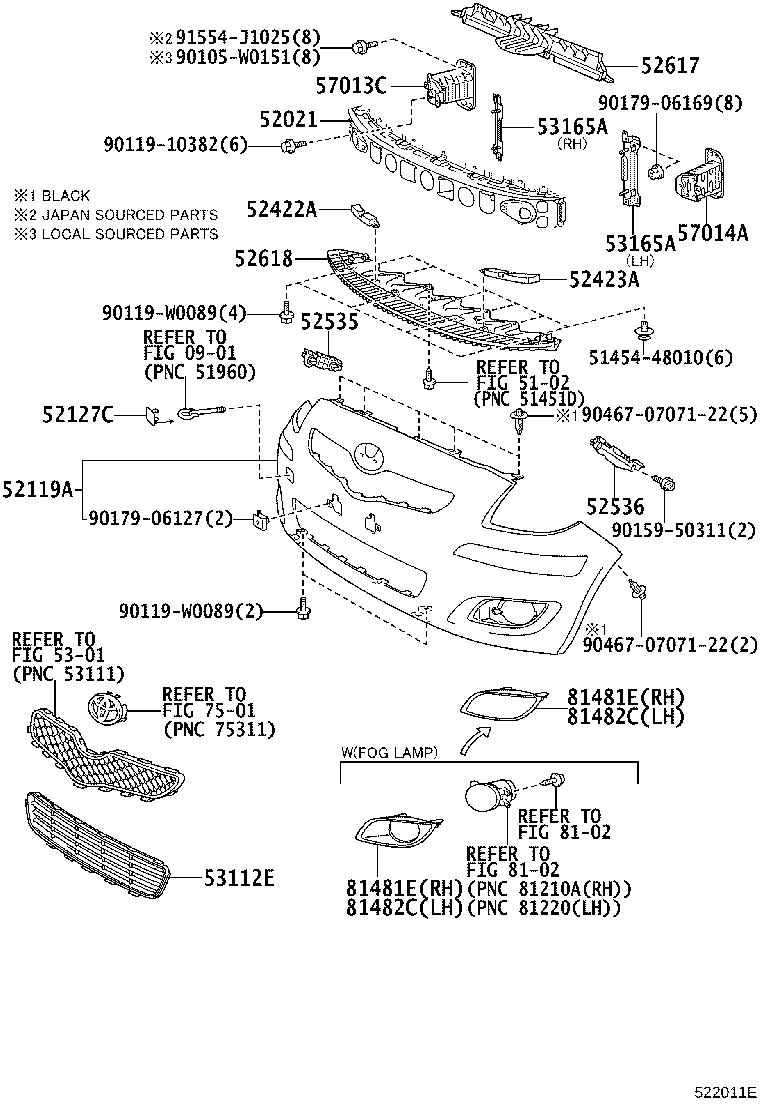

Figure 521461I 521461I 2005-11 → 2008-11 Figure 522011E 522011E 2008-11 → 2010-11 Figure 522380D 522380D 2010-11 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52617 Absorber, Radiator Support, Upper
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
