Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

31 part groups · 4 illustrations

Illustrations

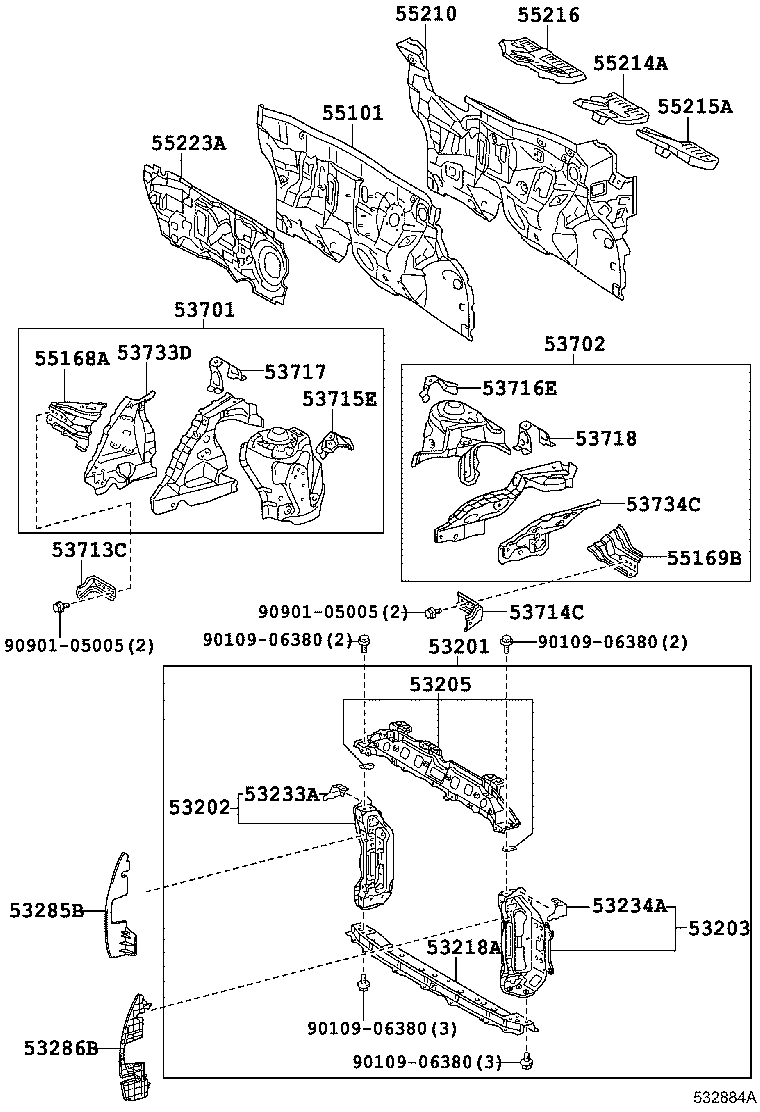

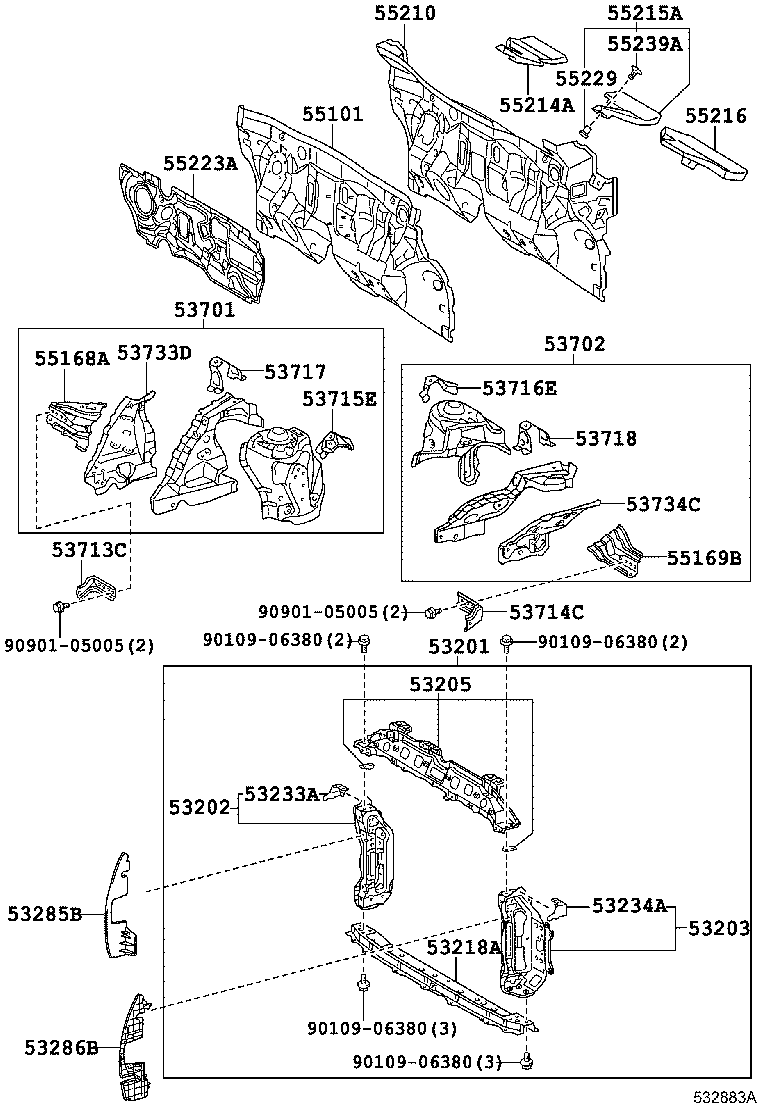

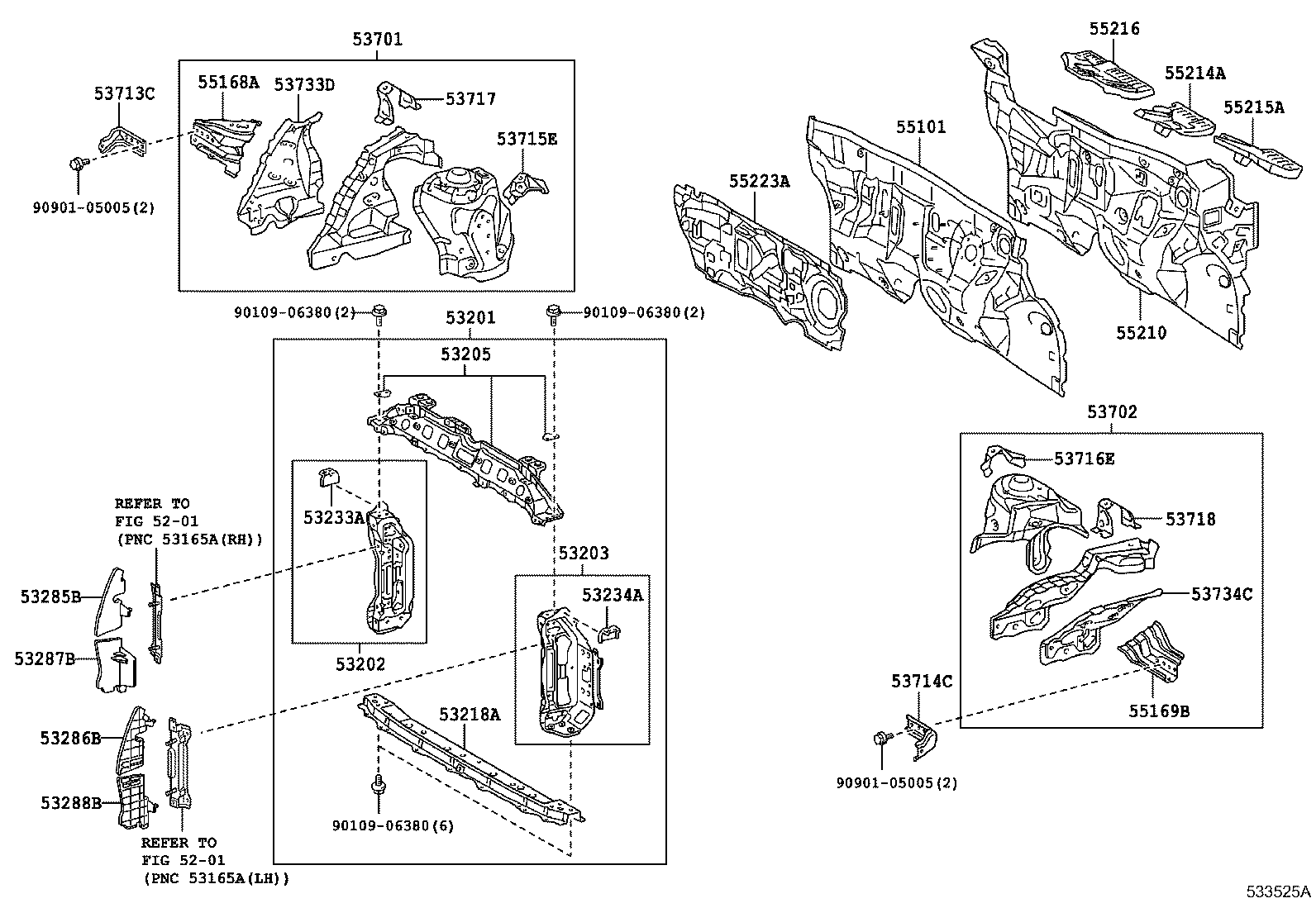

Figure 533524A 533524A 2005-11 → 2008-11 Figure 533525A 533525A 2005-11 → 2008-11 Figure 532883A 532883A 2008-11 → — Figure 532884A 532884A 2008-11 → —

Part groups

PNCDescription
53201 Support Sub-assy, Radiator
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53218A Support, Radiator, Lower
53233A Bracket, Headlamp, NO.1 RH
53234A Bracket, Headlamp, NO.1 LH
53285B Seal, Radiator Side Air, NO.1
53286B Seal, Radiator Side Air, NO.2
53287B Extension, Radiator Support, RH
53288B Extension, Radiator Support, LH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53713C Extension, Front Fender Apron, Front RH
53714C Extension, Front Fender Apron, Front LH
53715E Extension, Front Fender Apron, Rear RH
53716E Extension, Front Fender Apron, Rear LH
53717 Plate, Fender Apron, RH
53718 Plate, Fender Apron, LH
53733D Member, Front Apron TO Cowl Side, Lower Front RH
53734C Member, Front Apron TO Cowl Side, Lower Front LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55214A Pad, Dash Panel Insulator, NO.2
55215A Pad, Dash Panel Insulator, NO.3
55216 Pad, Dash Panel Insulator, NO.4
55223A Insulator, Dash Panel, Outer
55229 Plate, Dash Panel Insulator, NO.4
55239A Plate, Dash Panel Insulator, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
