Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

17 part groups · 2 illustrations

Illustrations

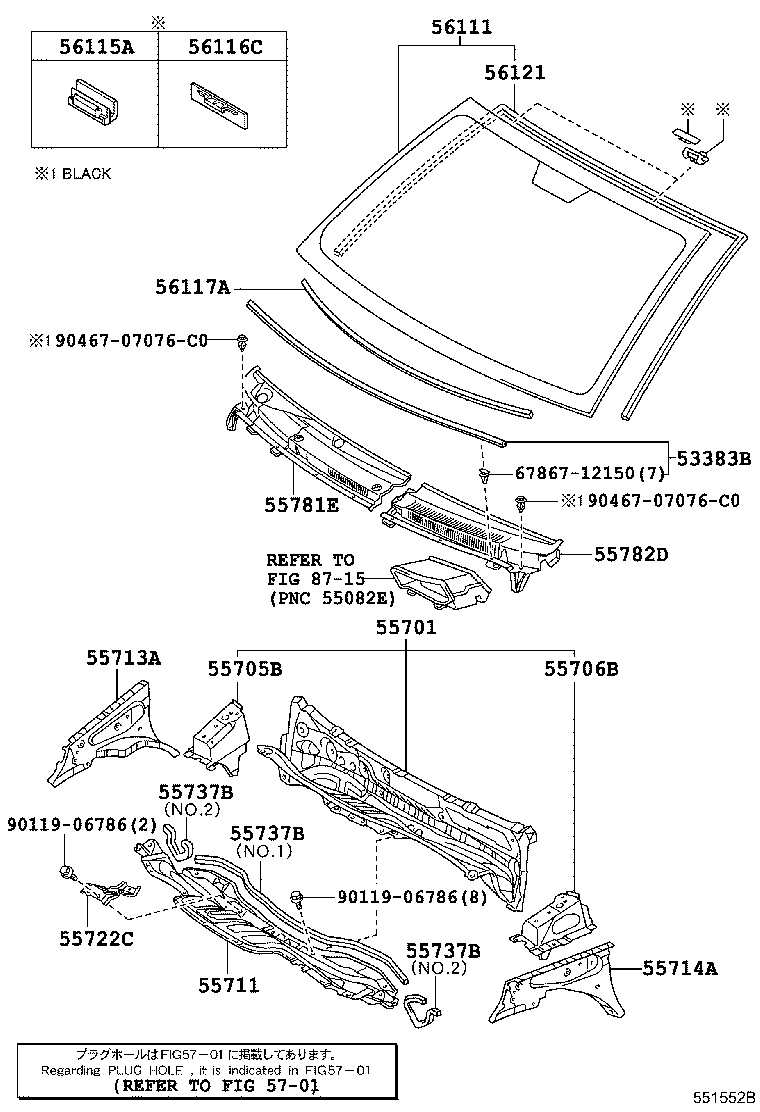

Figure 551553C 551553C 2005-11 → — Figure 551552B 551552B 2005-11 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55722C Brace, Cowl Top TO Cowl, Inner
55737B Seal, Heater Air Duct Splash Shield, NO.1
55781E Louver Sub-assy, Cowl Top Ventilator
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56121 Weatherstrip, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
