Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 3 illustrations

Illustrations

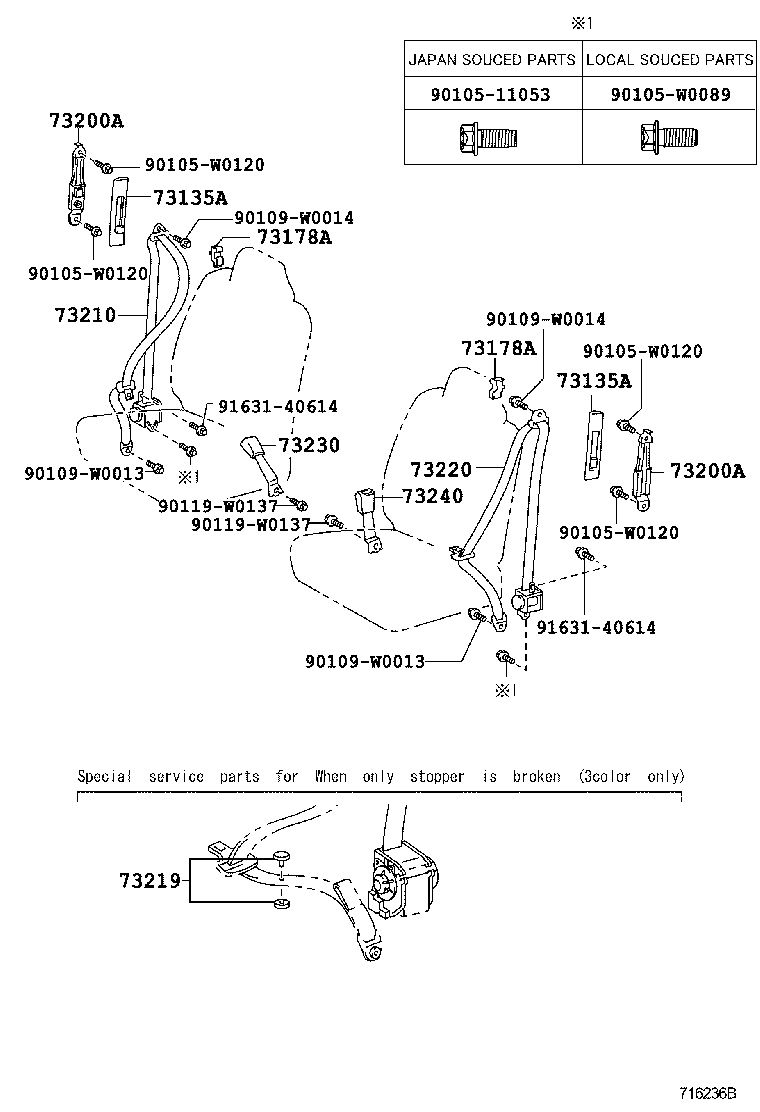

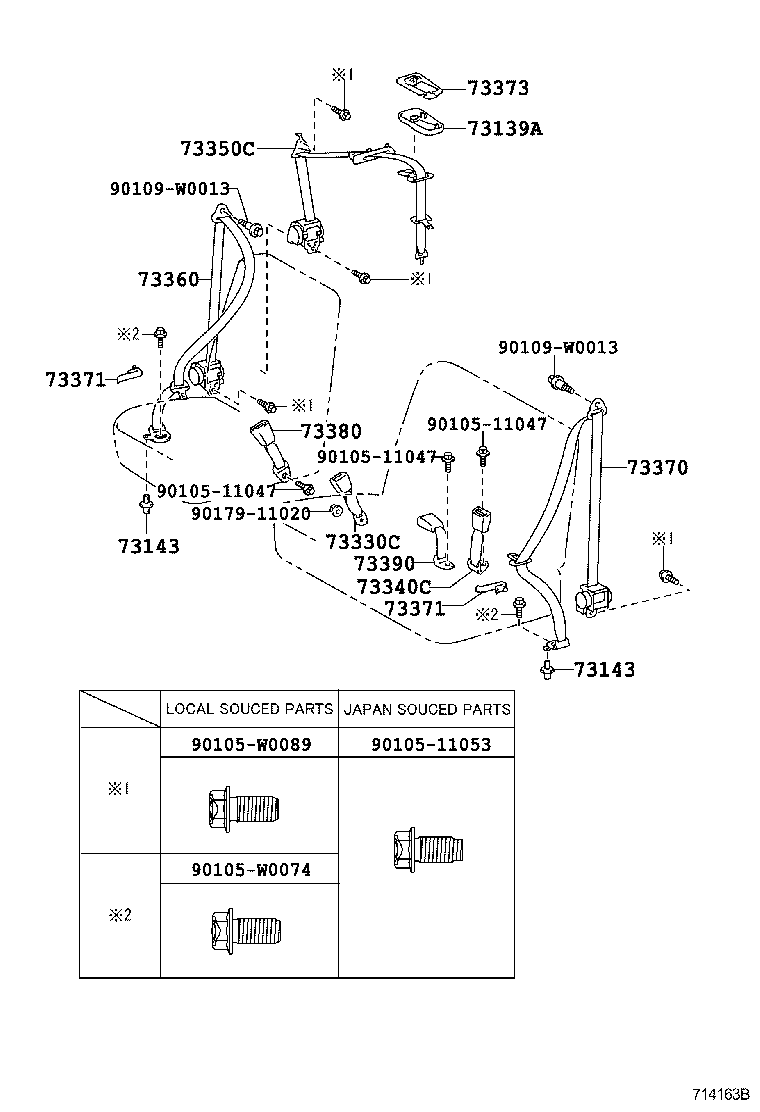

Figure 714162E 714162E 2005-11 → — Figure 716236B 716236B 2005-11 → — Figure 714163B 714163B 2005-11 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73139A Cover, Seat Belt Anchor
73143 Seal, Seat Belt Hole
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73201C Bar Sub-assy, Front Seat Belt, Outer RH
73202B Bar Sub-assy, Front Seat Belt, Outer LH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73373 Cover, Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
