Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01

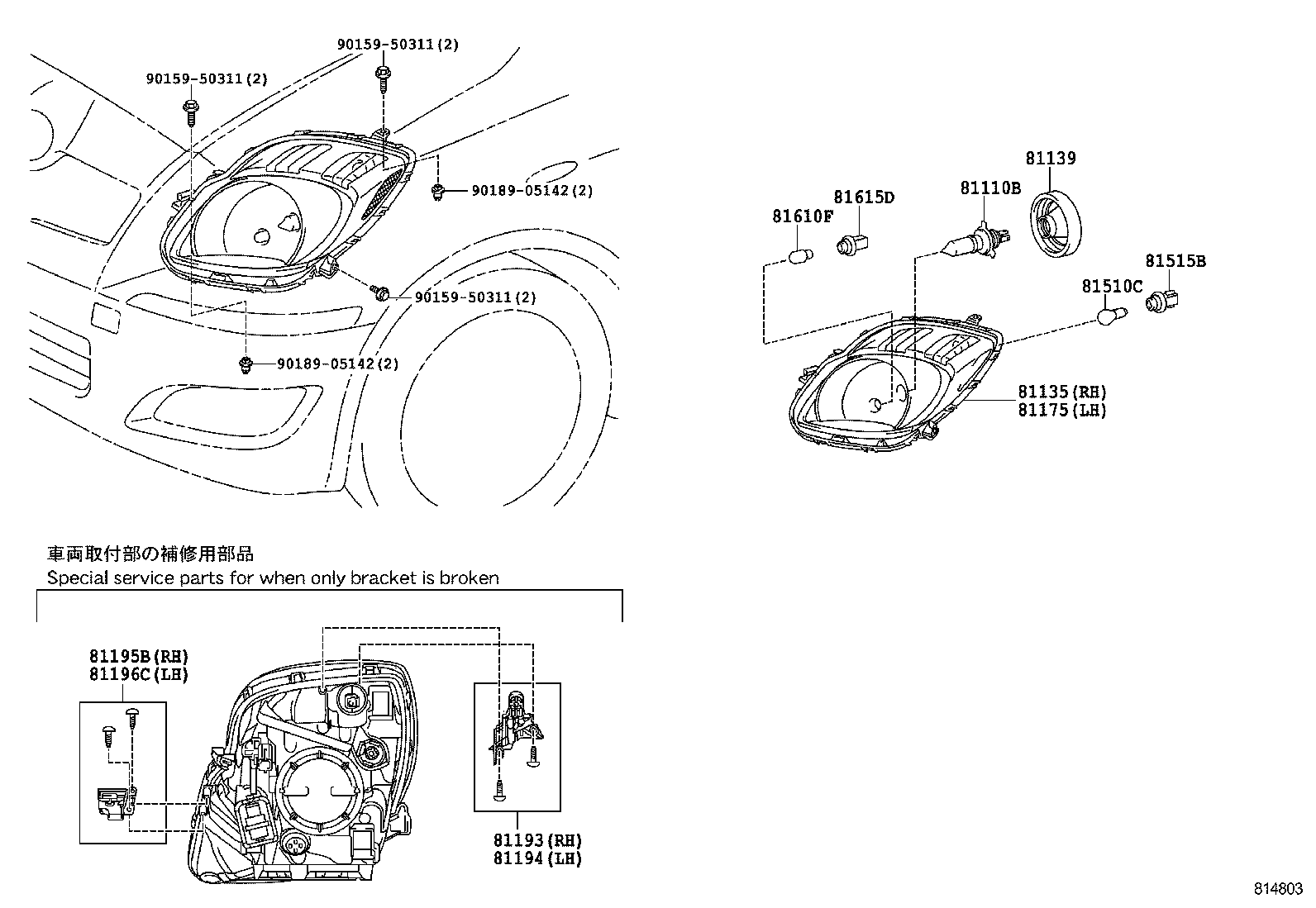

Headlamp
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195B | Retainer, RH Headlamp Protector, Lower RH |
| 81196C | Retainer, LH Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
