Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01

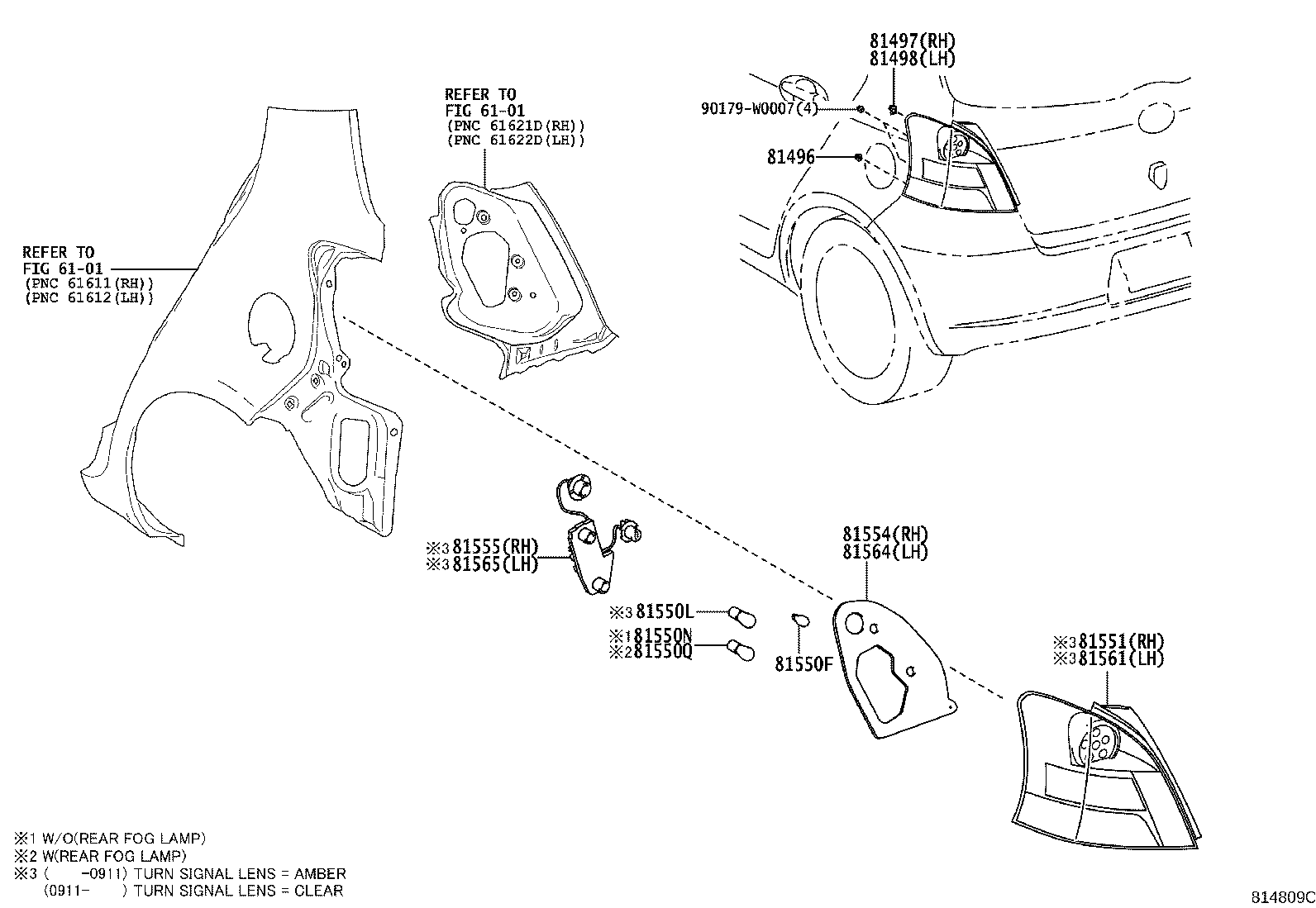

Rear Combination Lamp
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550F | Bulb, Taillamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81550U | Bulb, Stop Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
