Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 21 illustrations

Illustrations

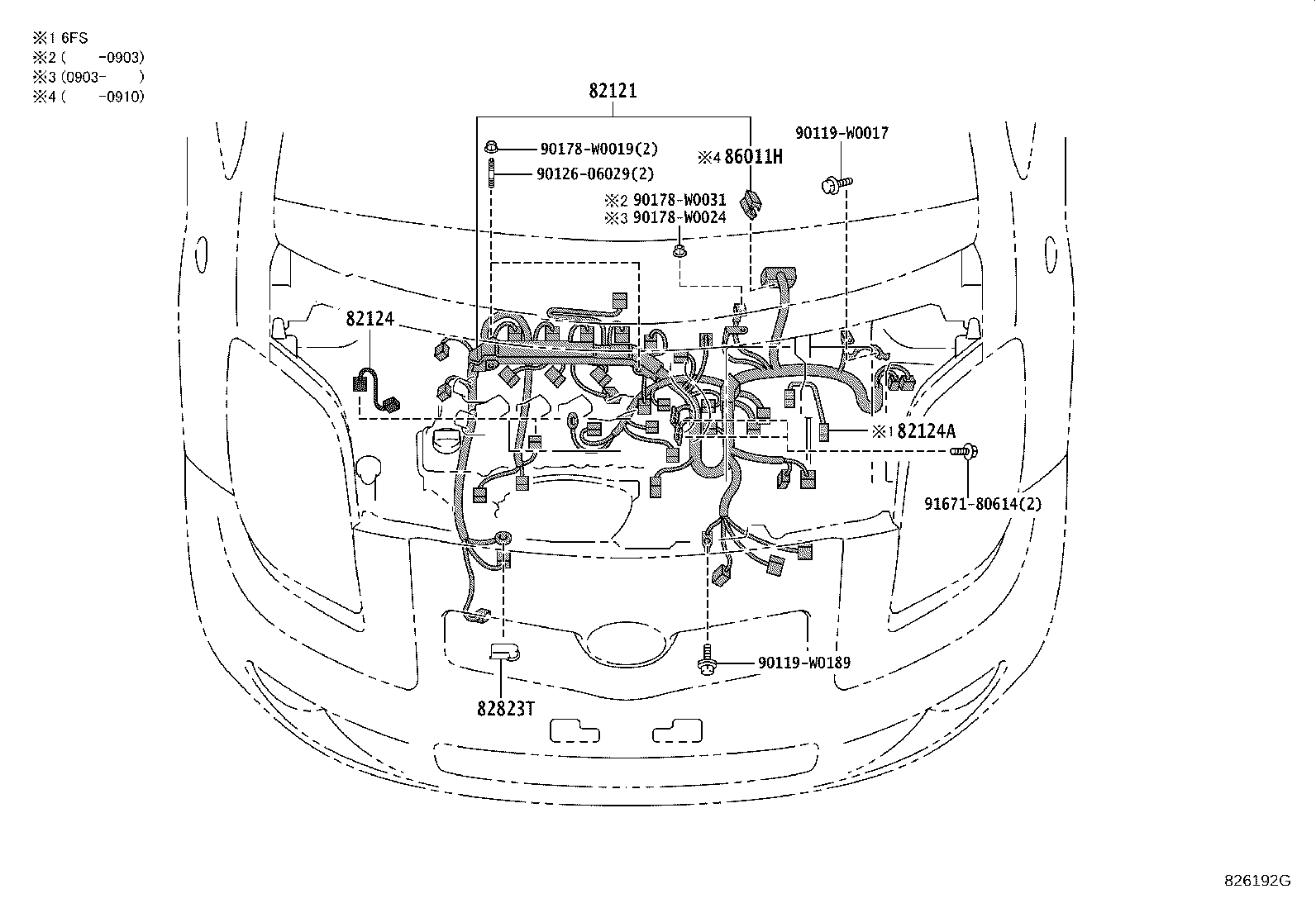

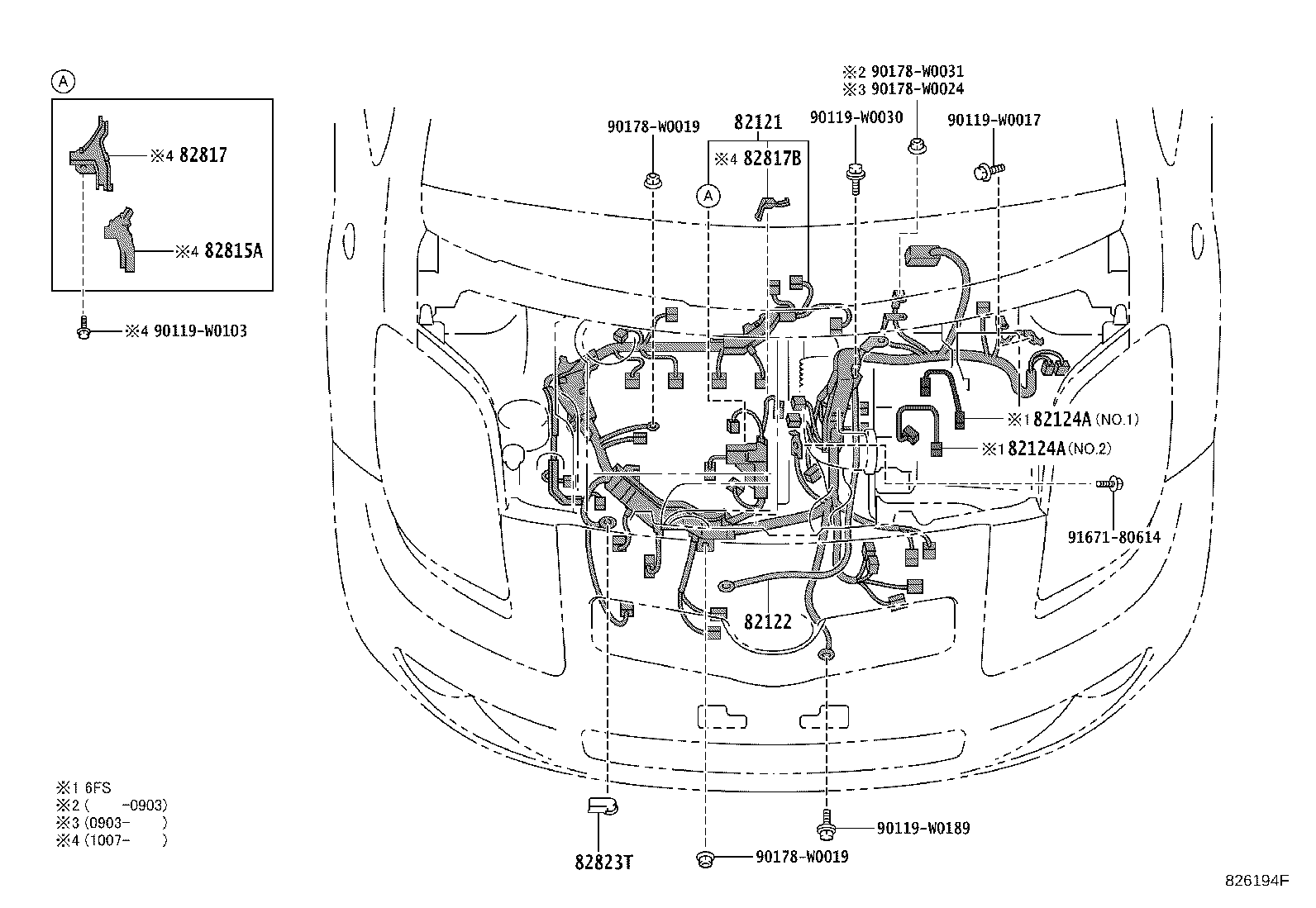

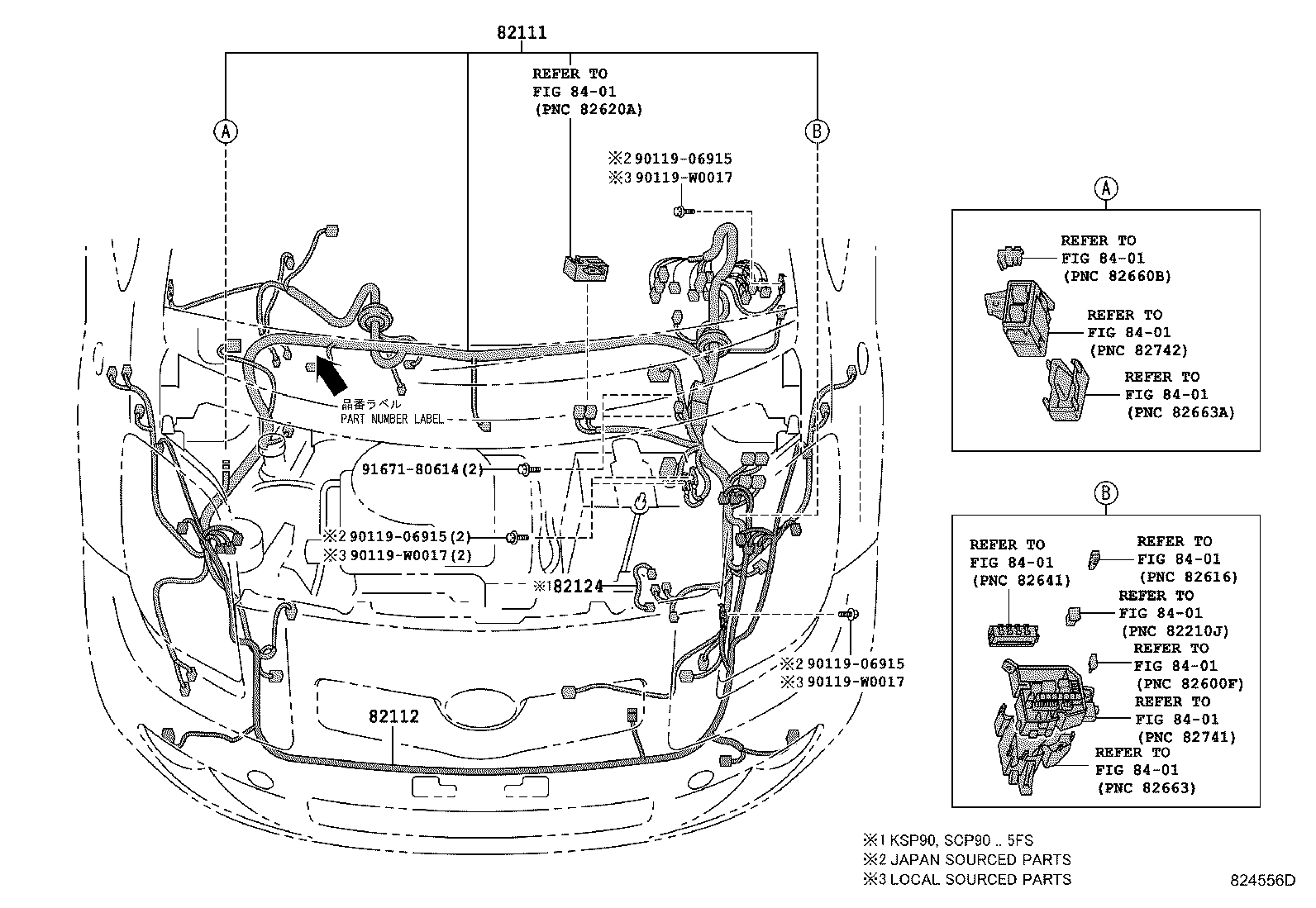

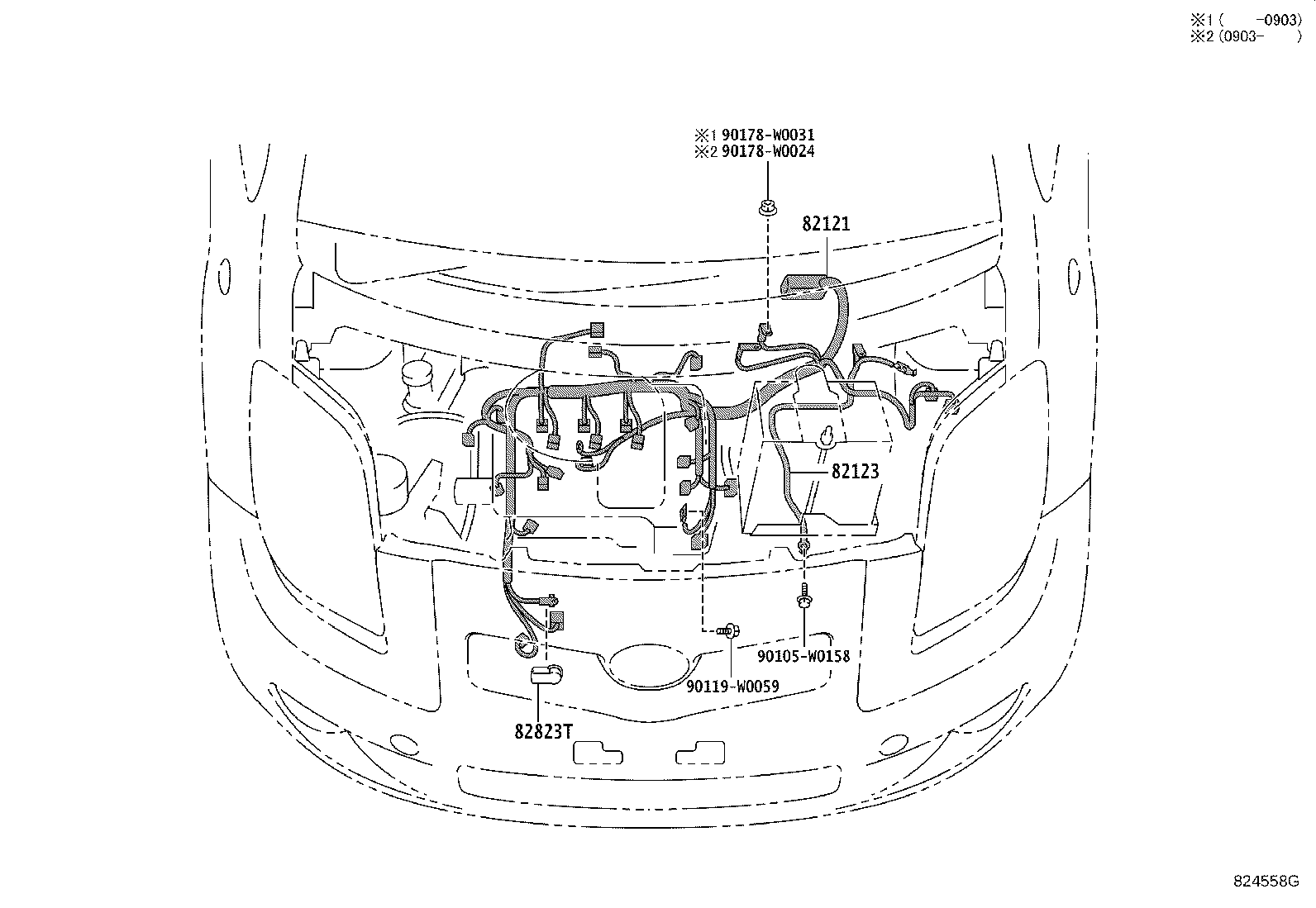

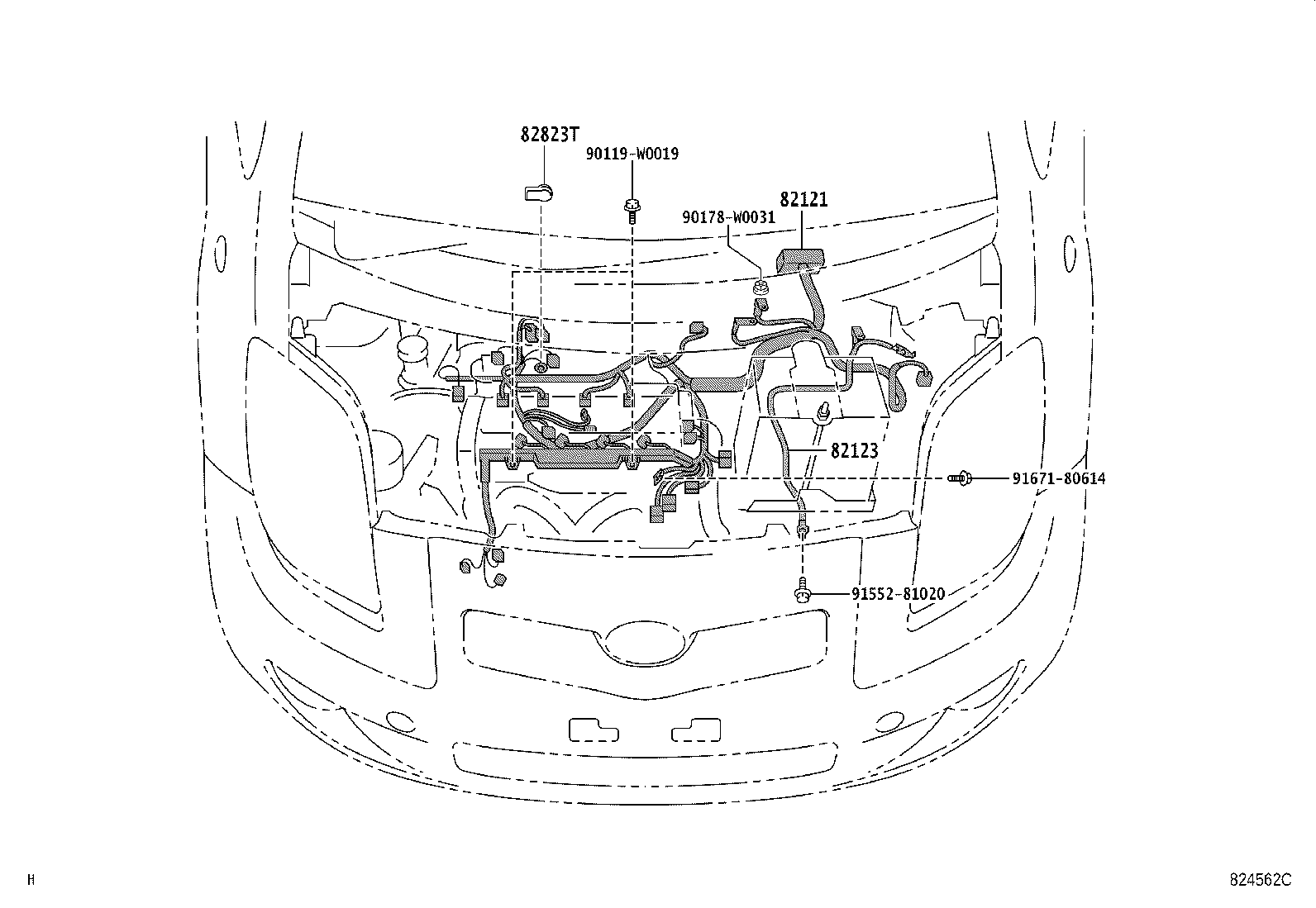

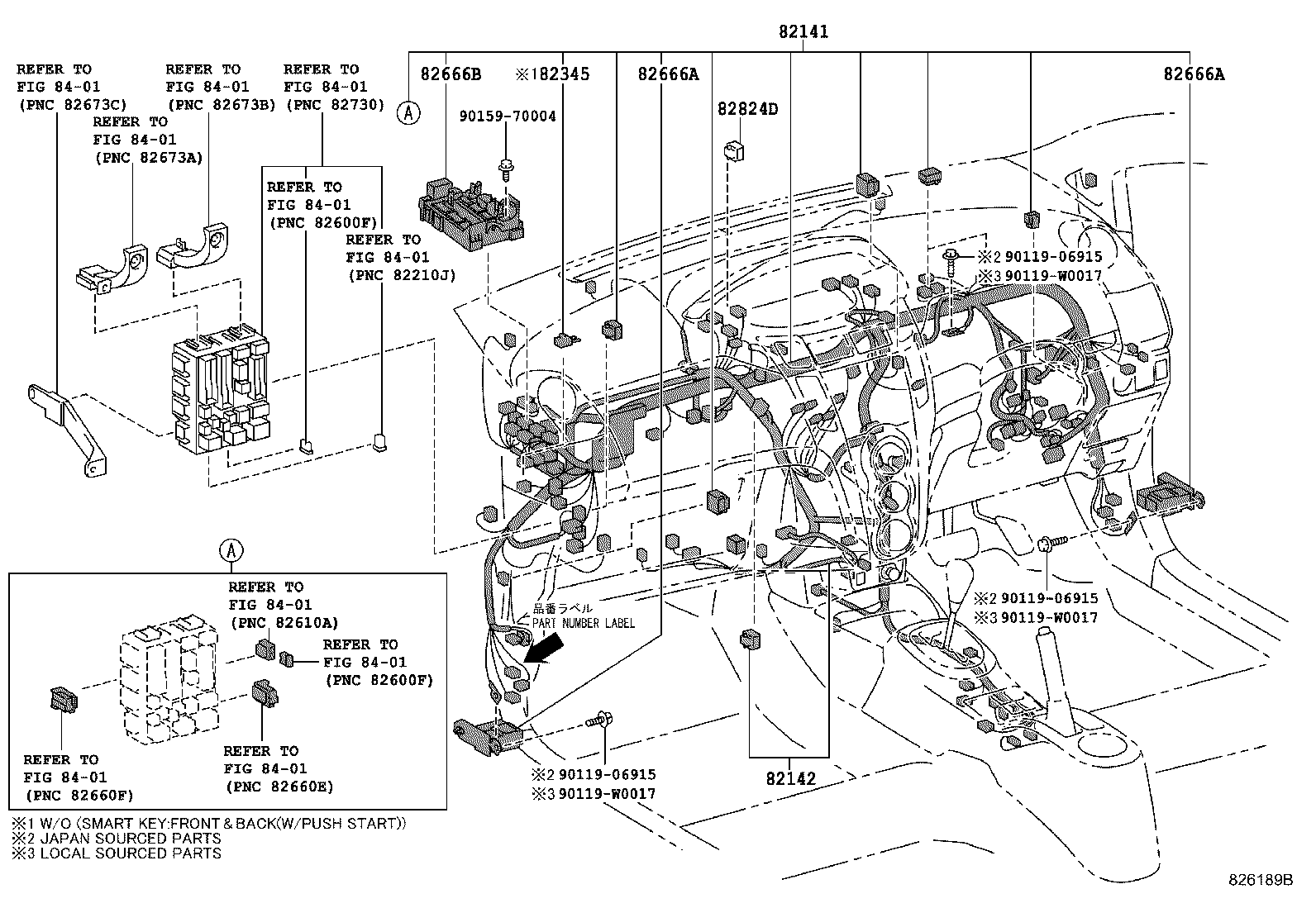

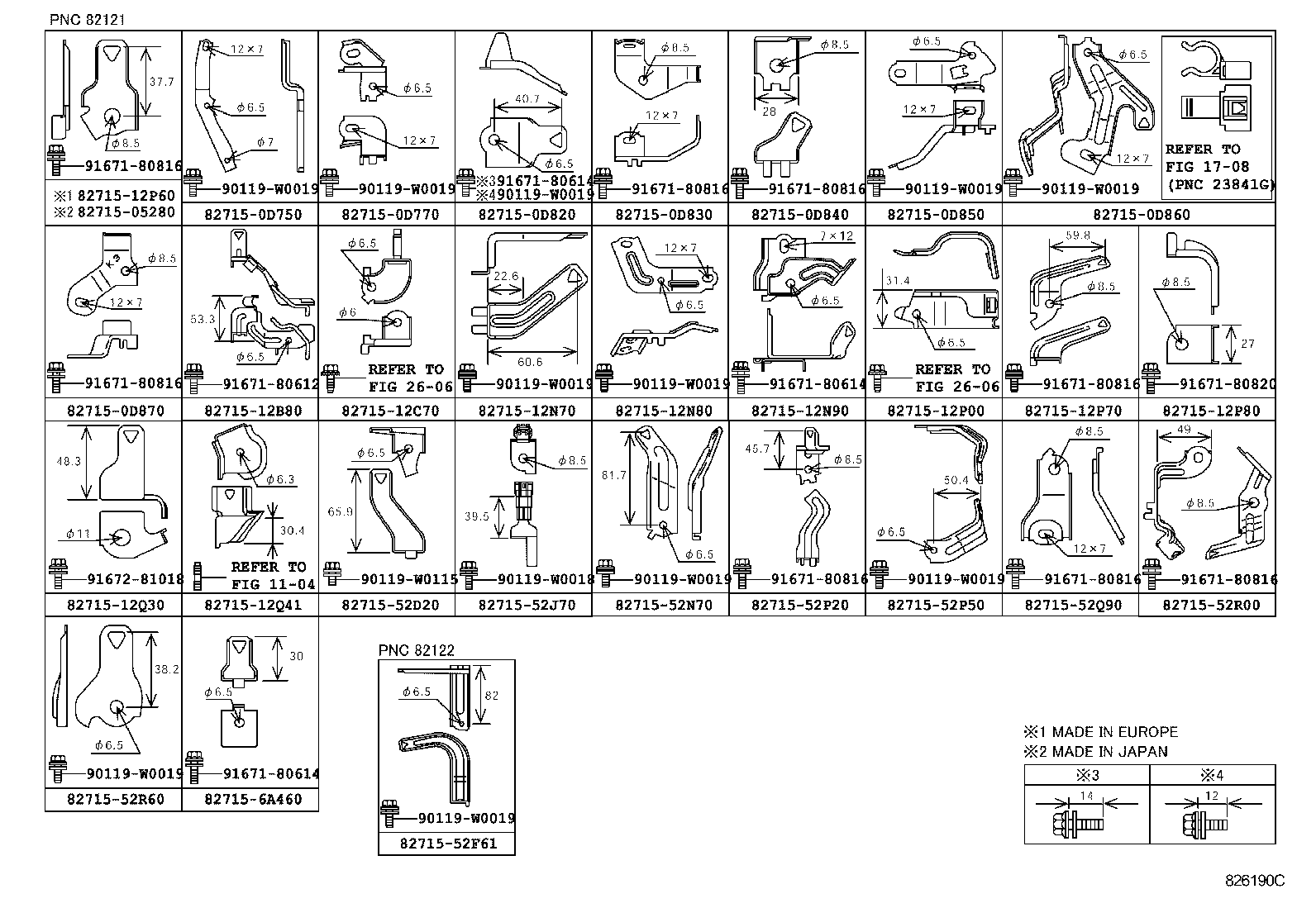

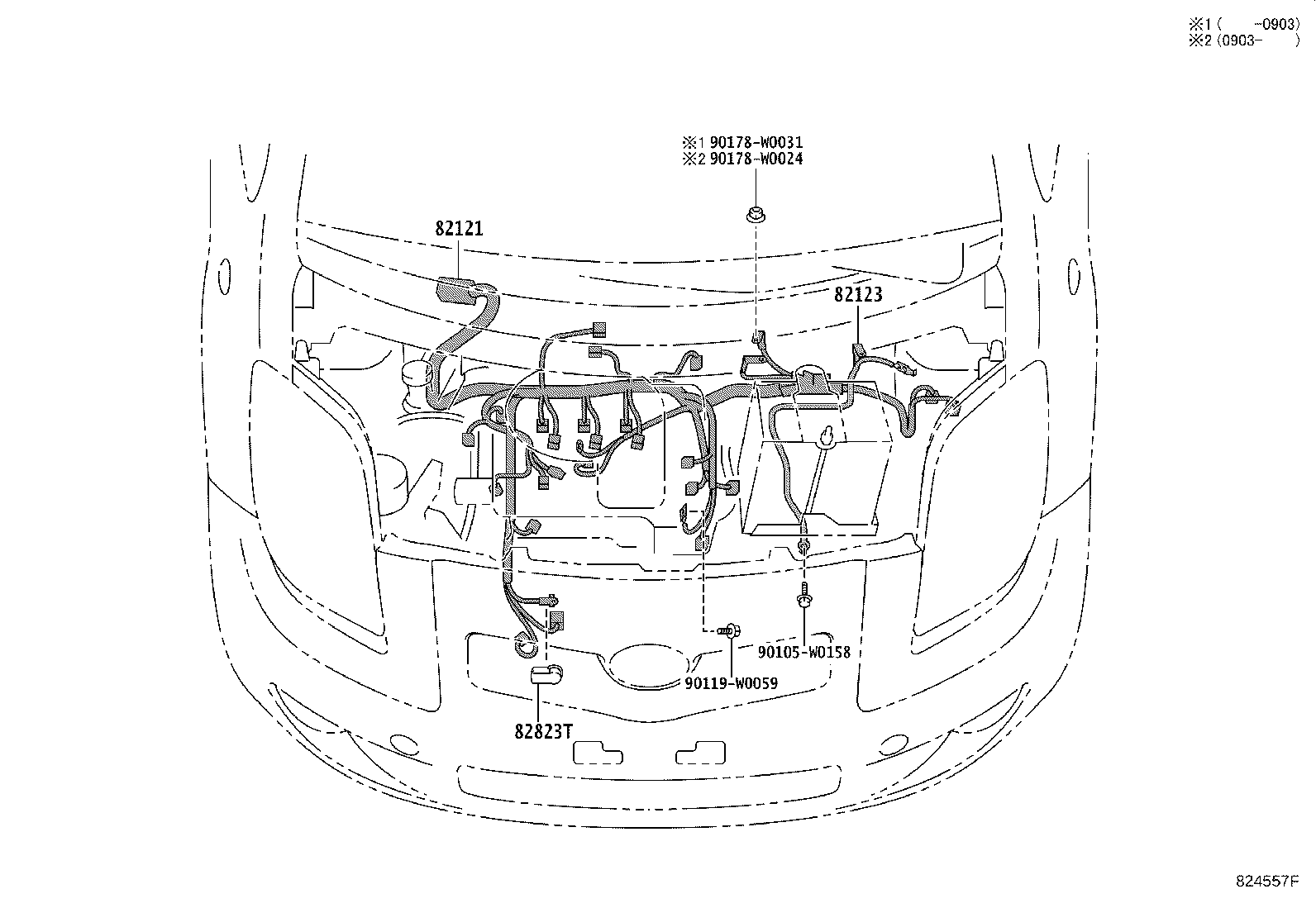

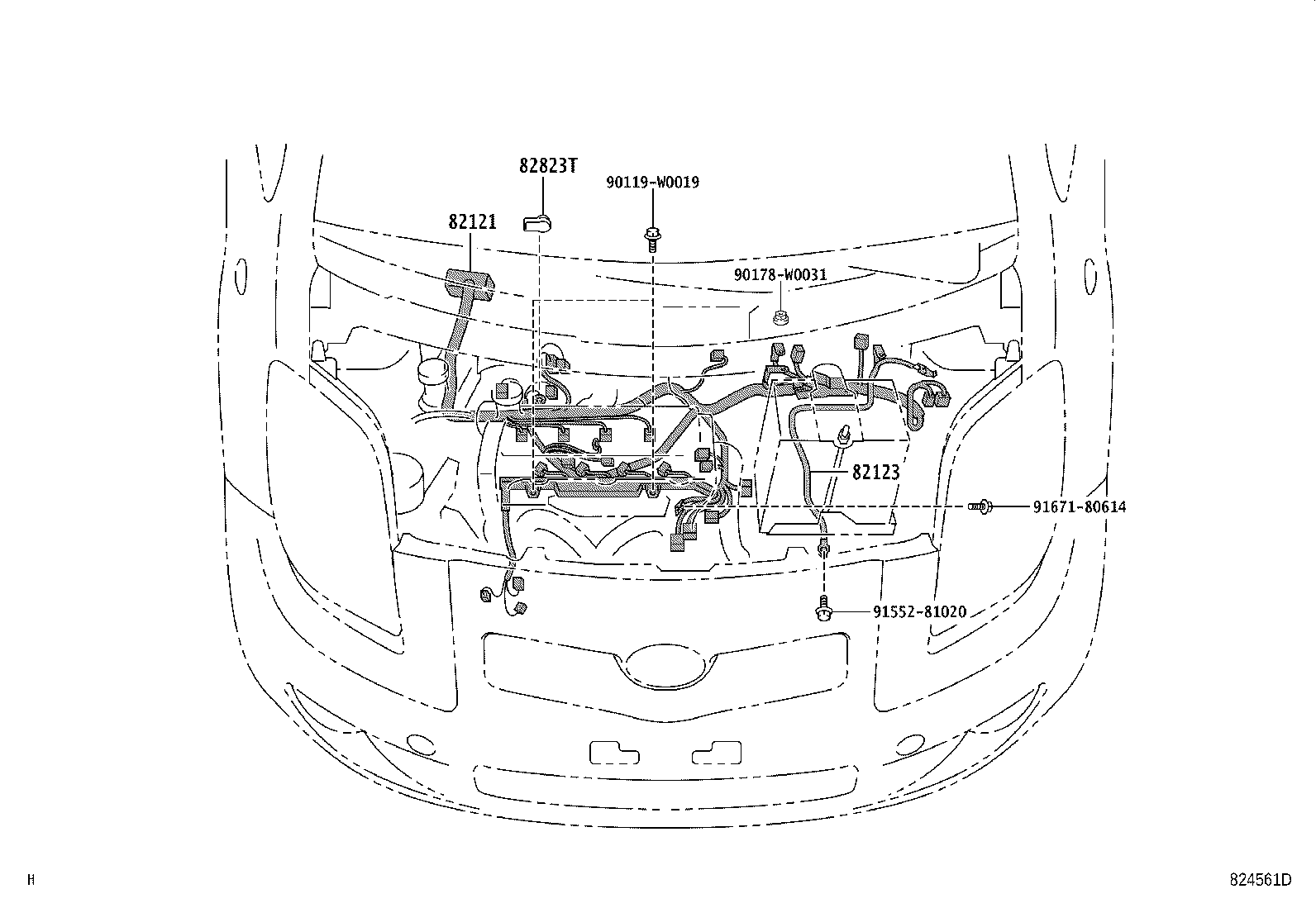

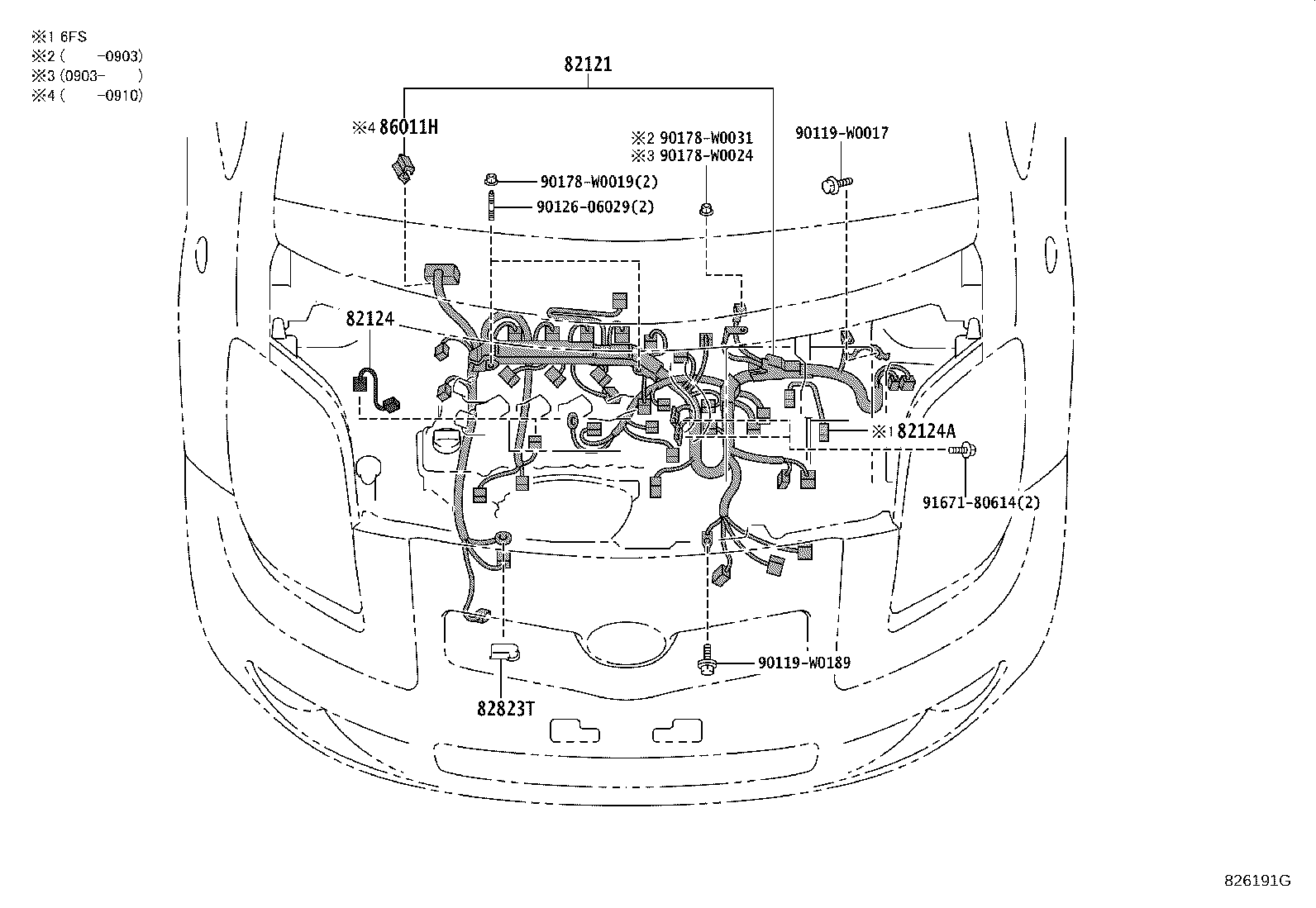

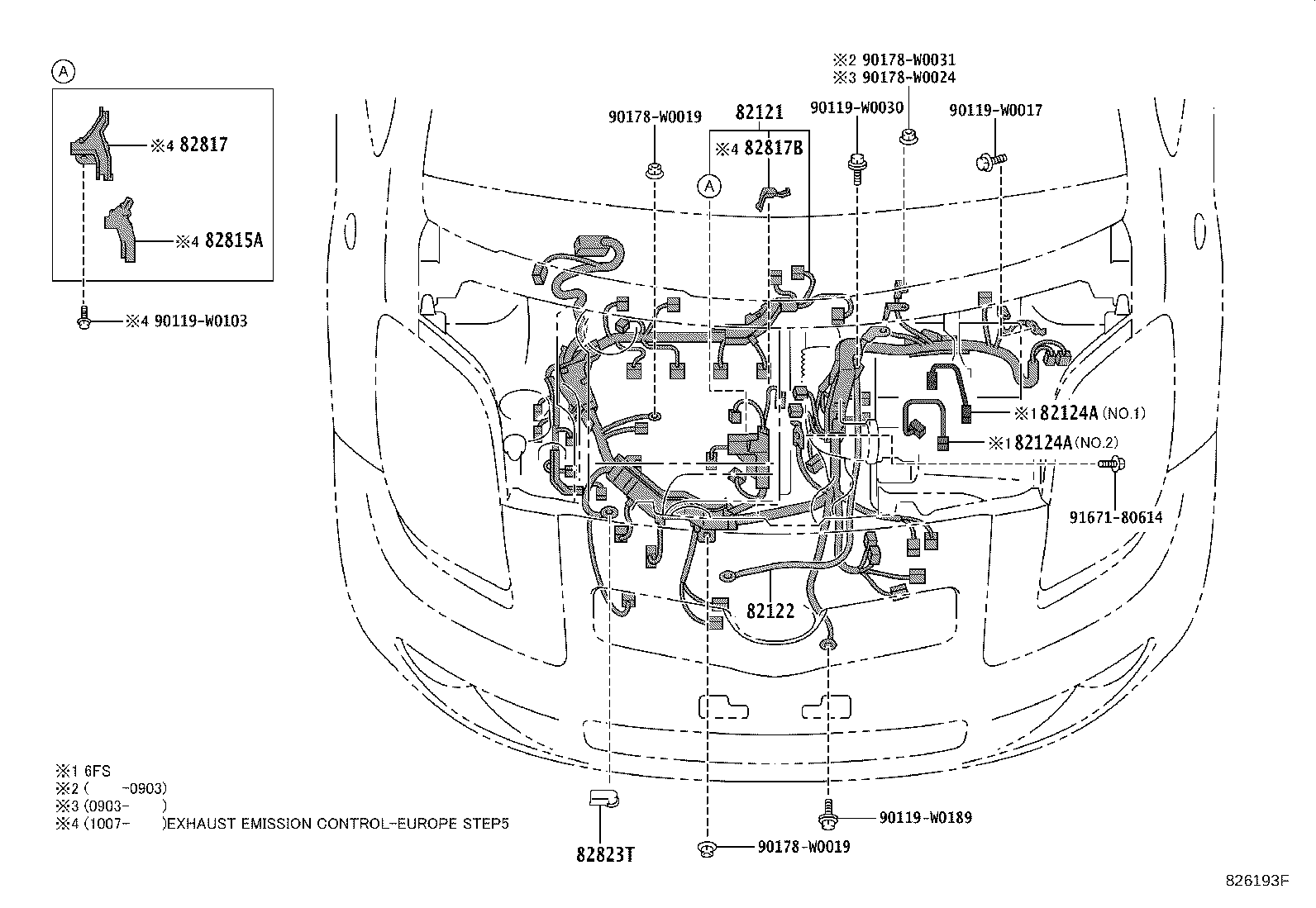

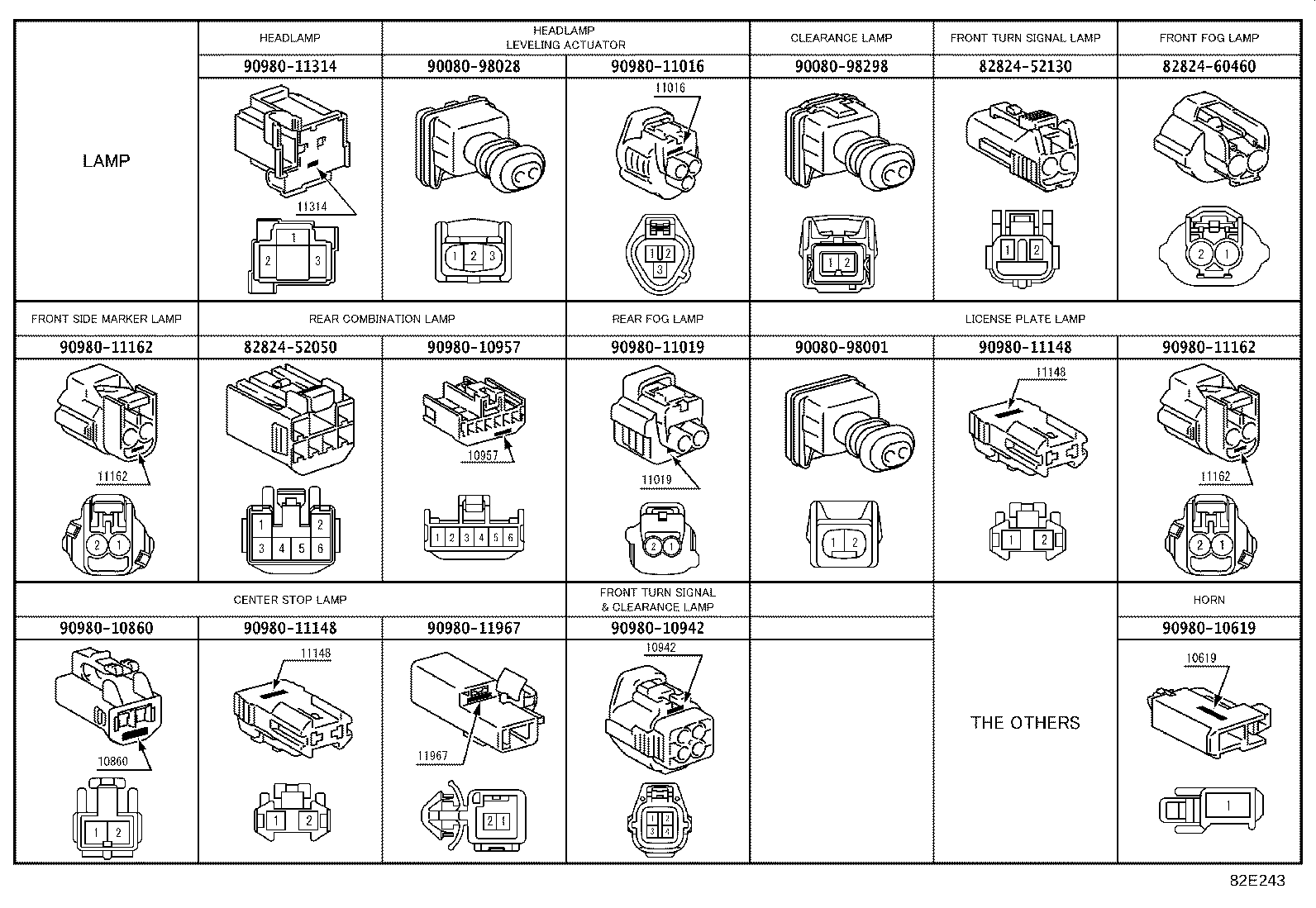

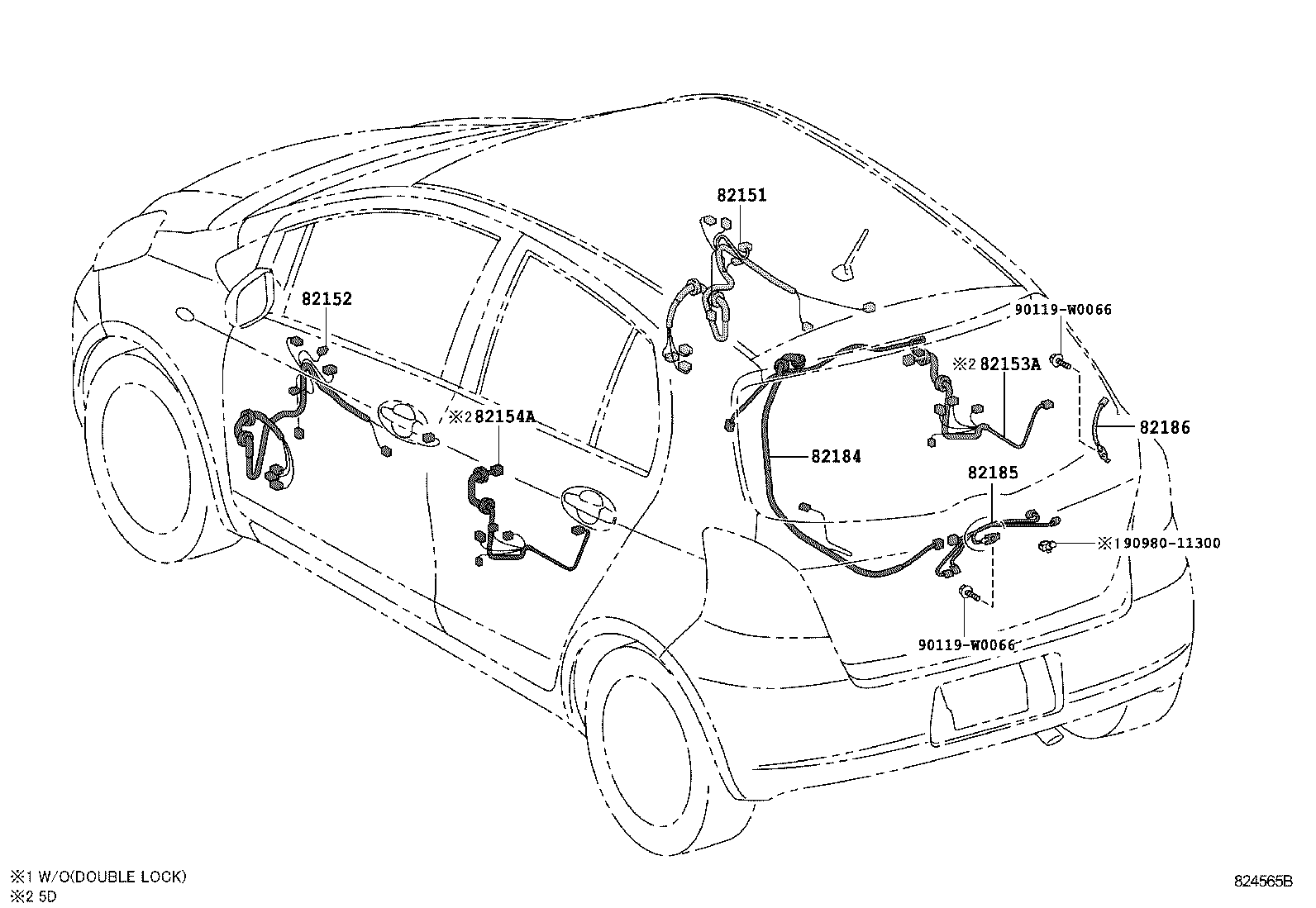

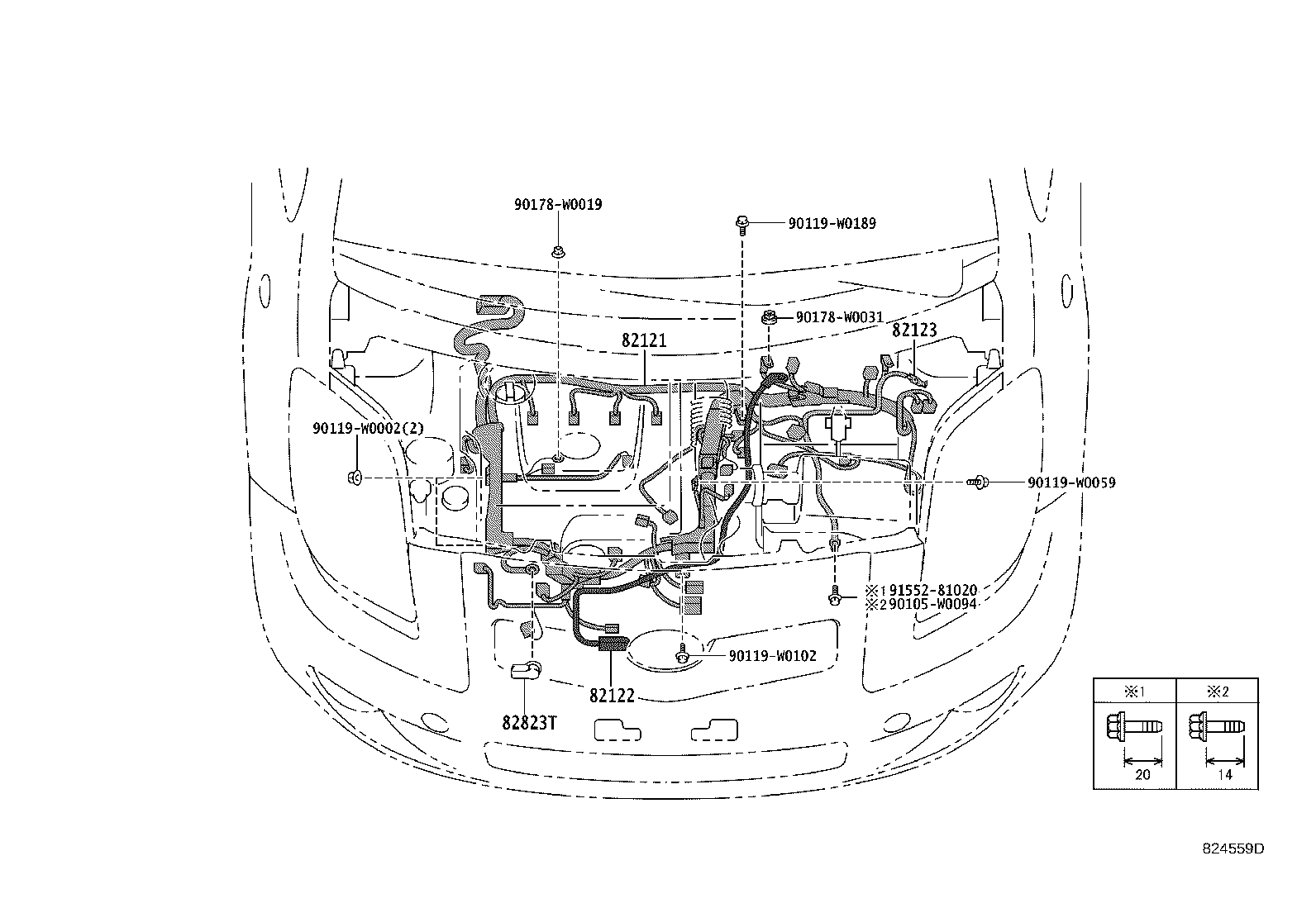

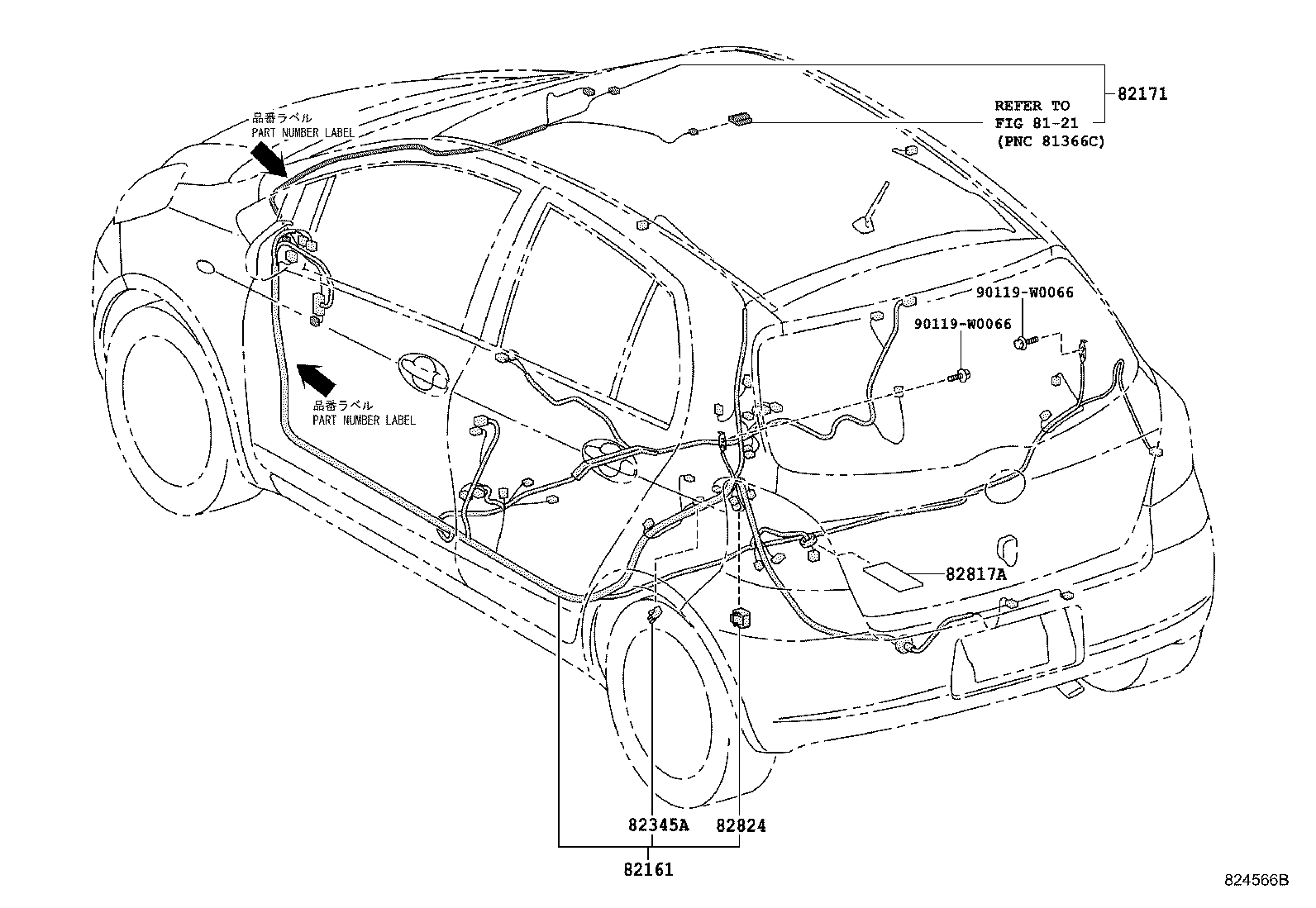

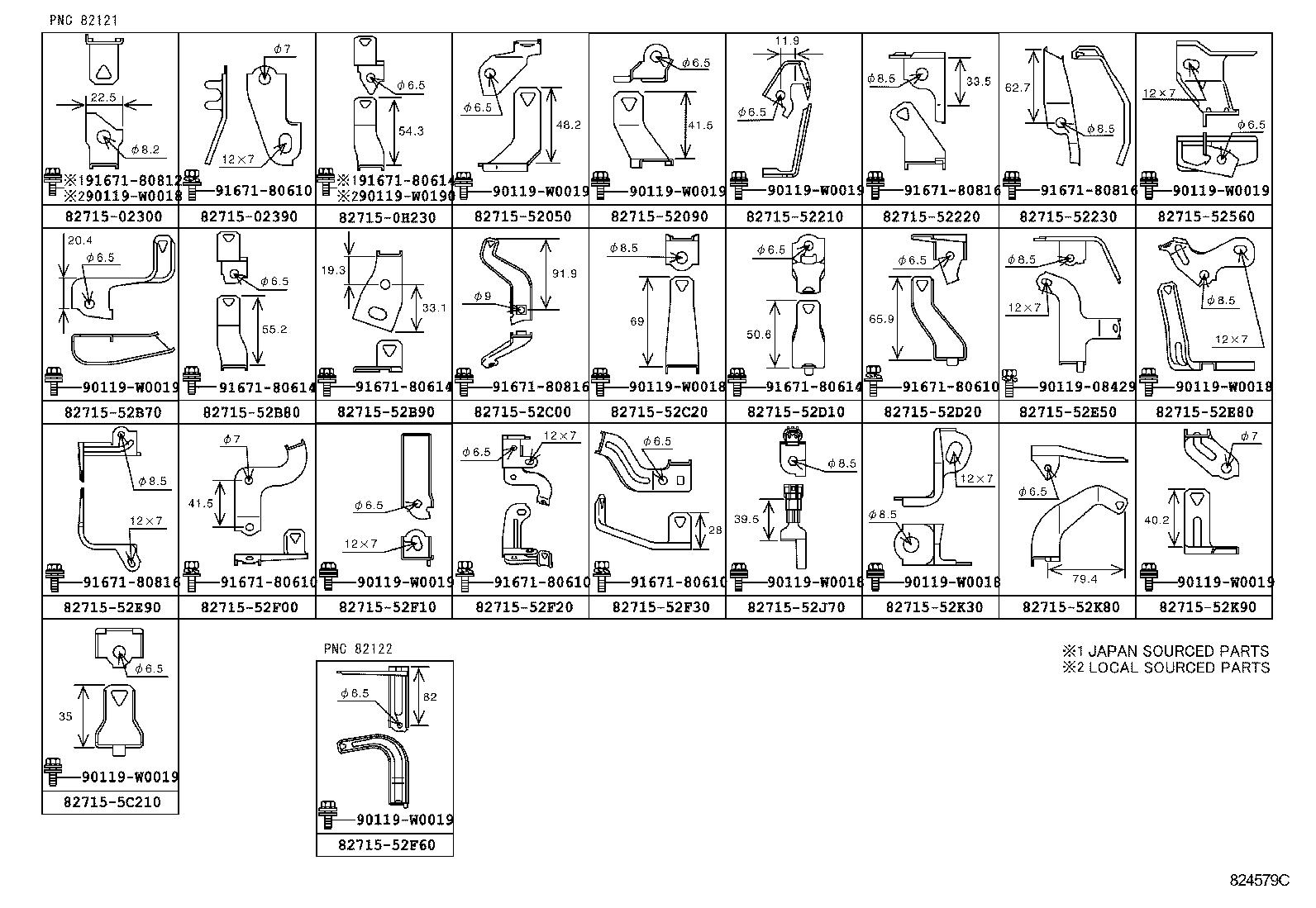

Figure 824555E 824555E 2005-11 → — Figure 824556D 824556D 2005-11 → — Figure 824557F 824557F 2005-11 → — Figure 824558G 824558G 2005-11 → — Figure 824559D 824559D 2005-11 → 2008-11 Figure 824560D 824560D 2005-11 → 2008-11 Figure 824561C 824561C 2005-11 → — Figure 824562C 824562C 2005-11 → — Figure 826193F 826193F 2008-11 → — Figure 826194F 826194F 2008-11 → — Figure 826191G 826191G 2008-11 → — Figure 826192G 826192G 2008-11 → — Figure 826188C 826188C 2005-11 → — Figure 826189B 826189B 2005-11 → — Figure 824565B 824565B 2005-11 → — Figure 824566B 824566B 2005-11 → — Figure 824567B 824567B 2005-11 → — Figure 824579C 824579C 2005-11 → 2008-11 Figure 824579C 824579C 2008-11 → — Figure 826190C 826190C 2008-11 → — Figure 82E243 82E243 2005-11 → —

Part groups

PNCDescription

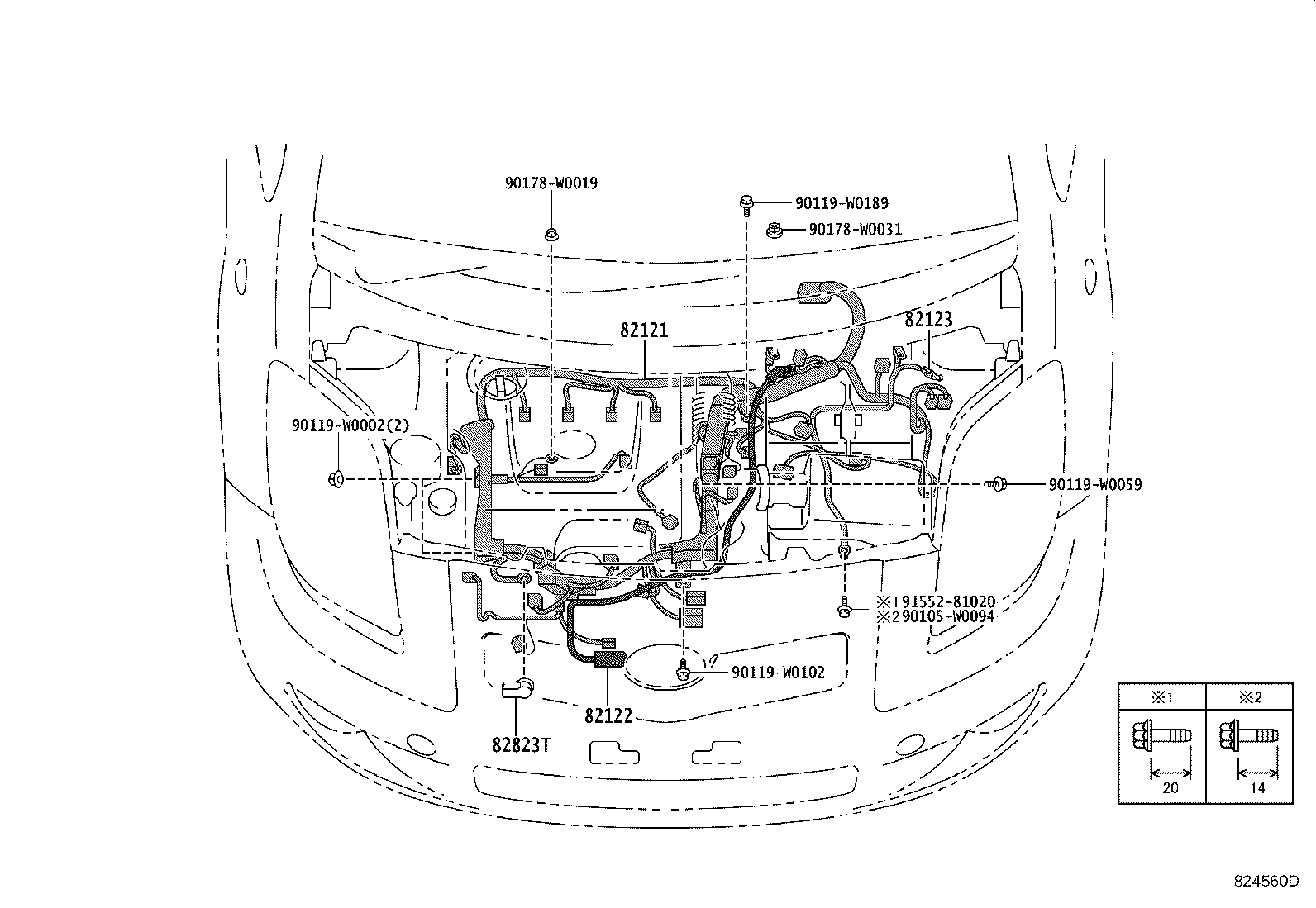

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5

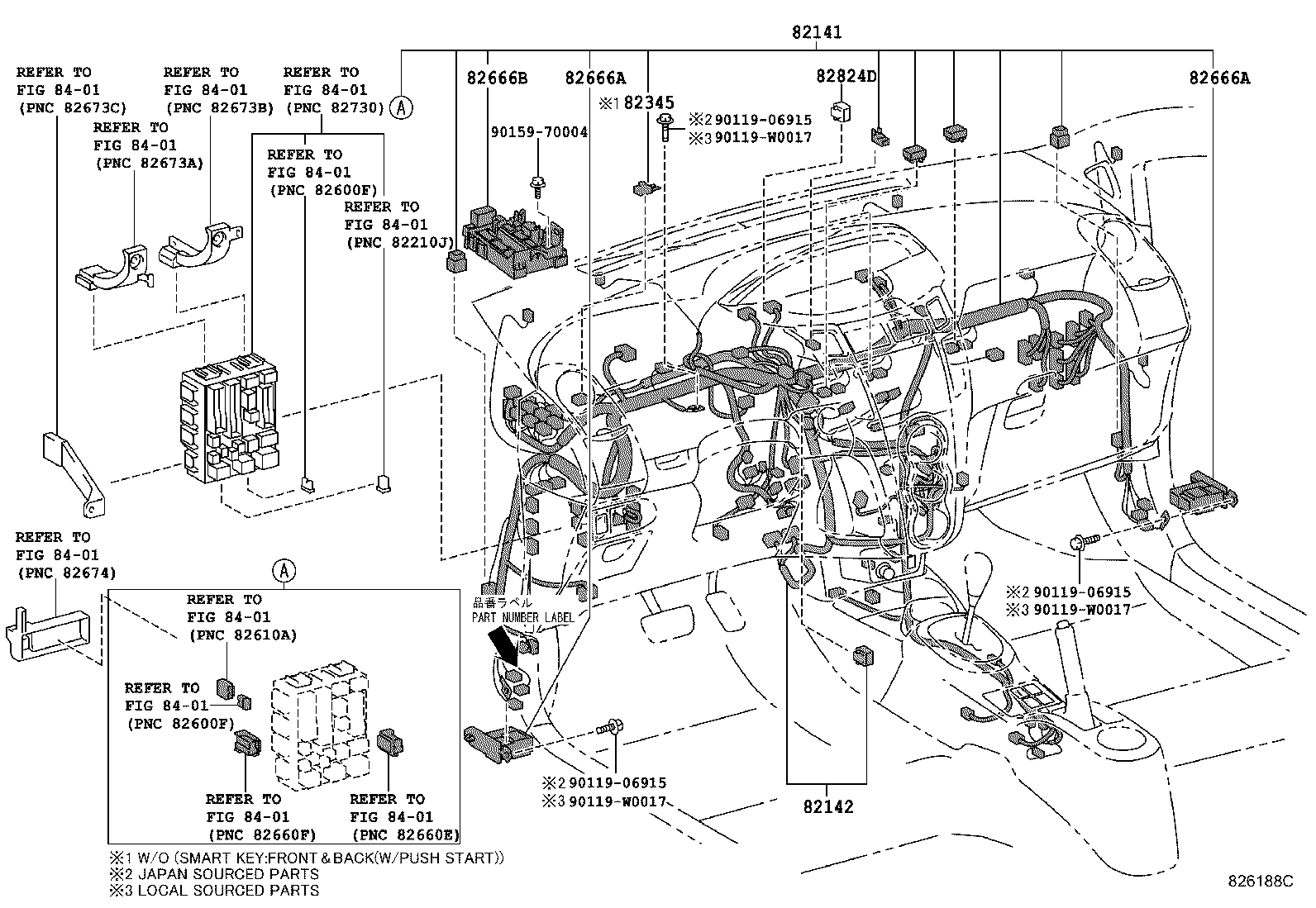

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3

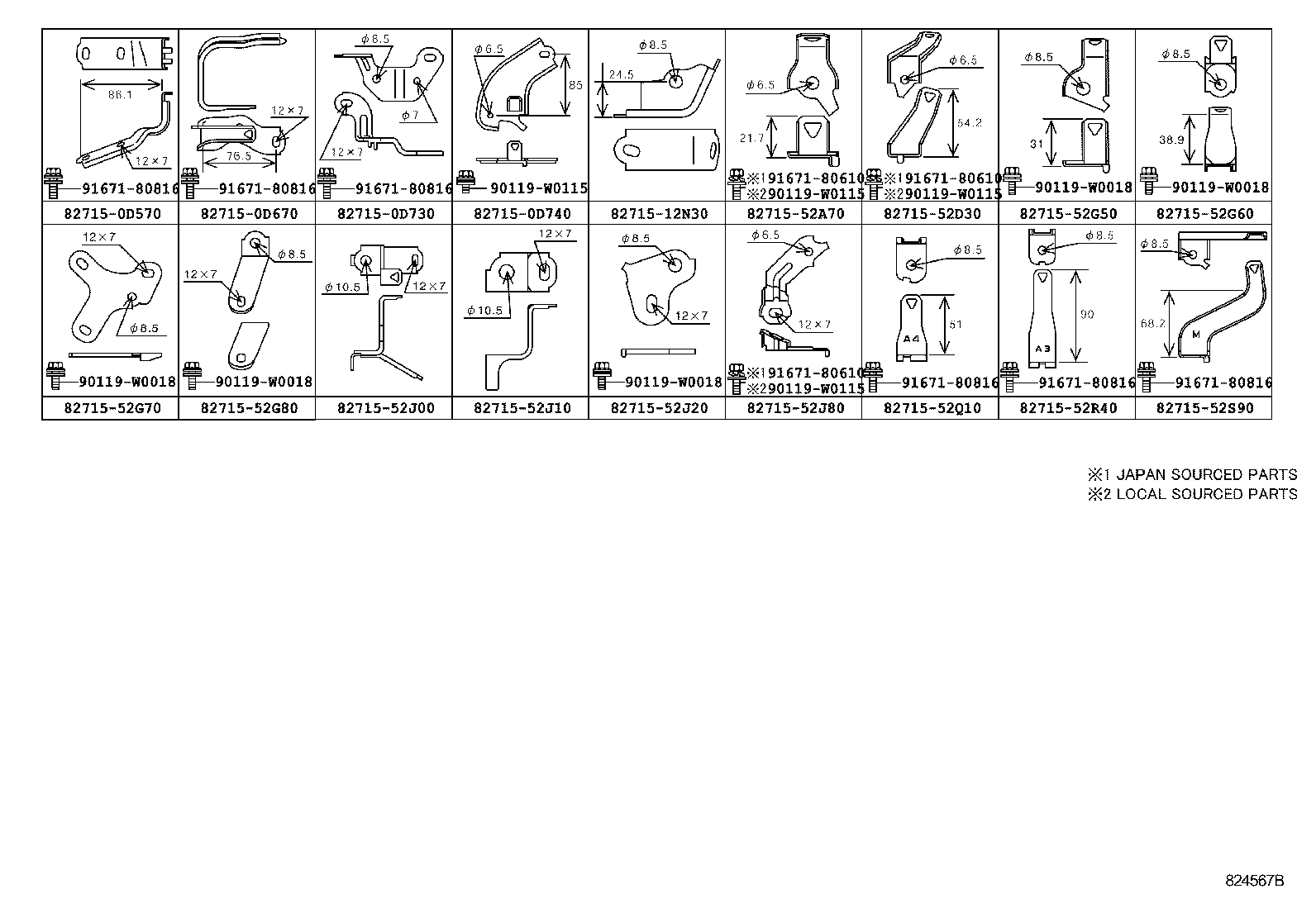

82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
86011H Filter, Noise
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
