Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

101 part groups · 22 illustrations

Illustrations

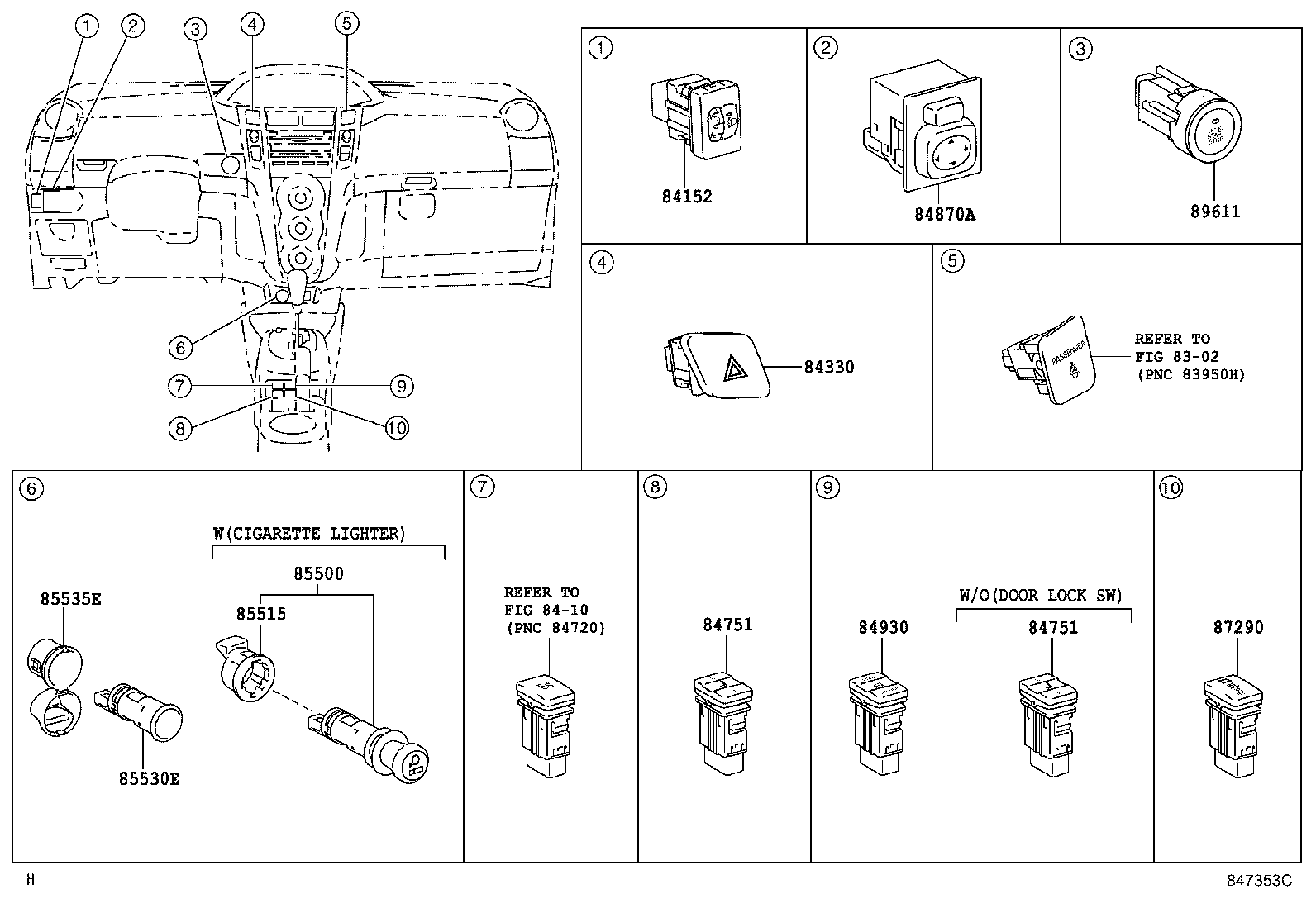

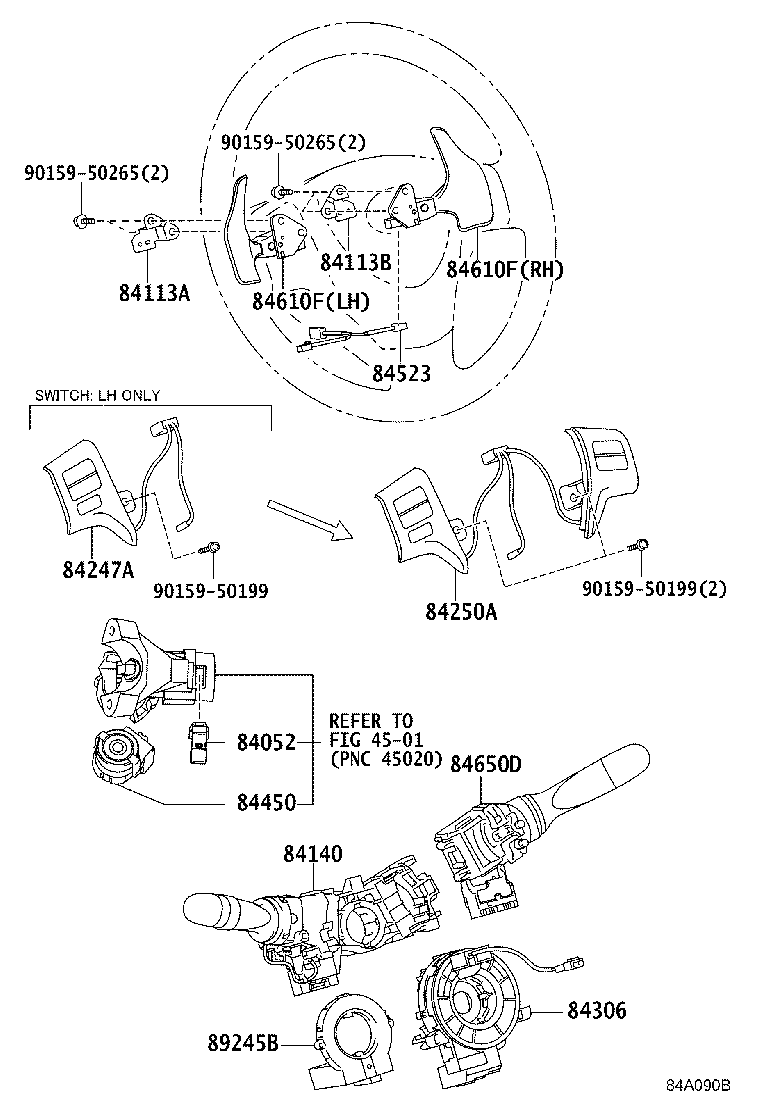

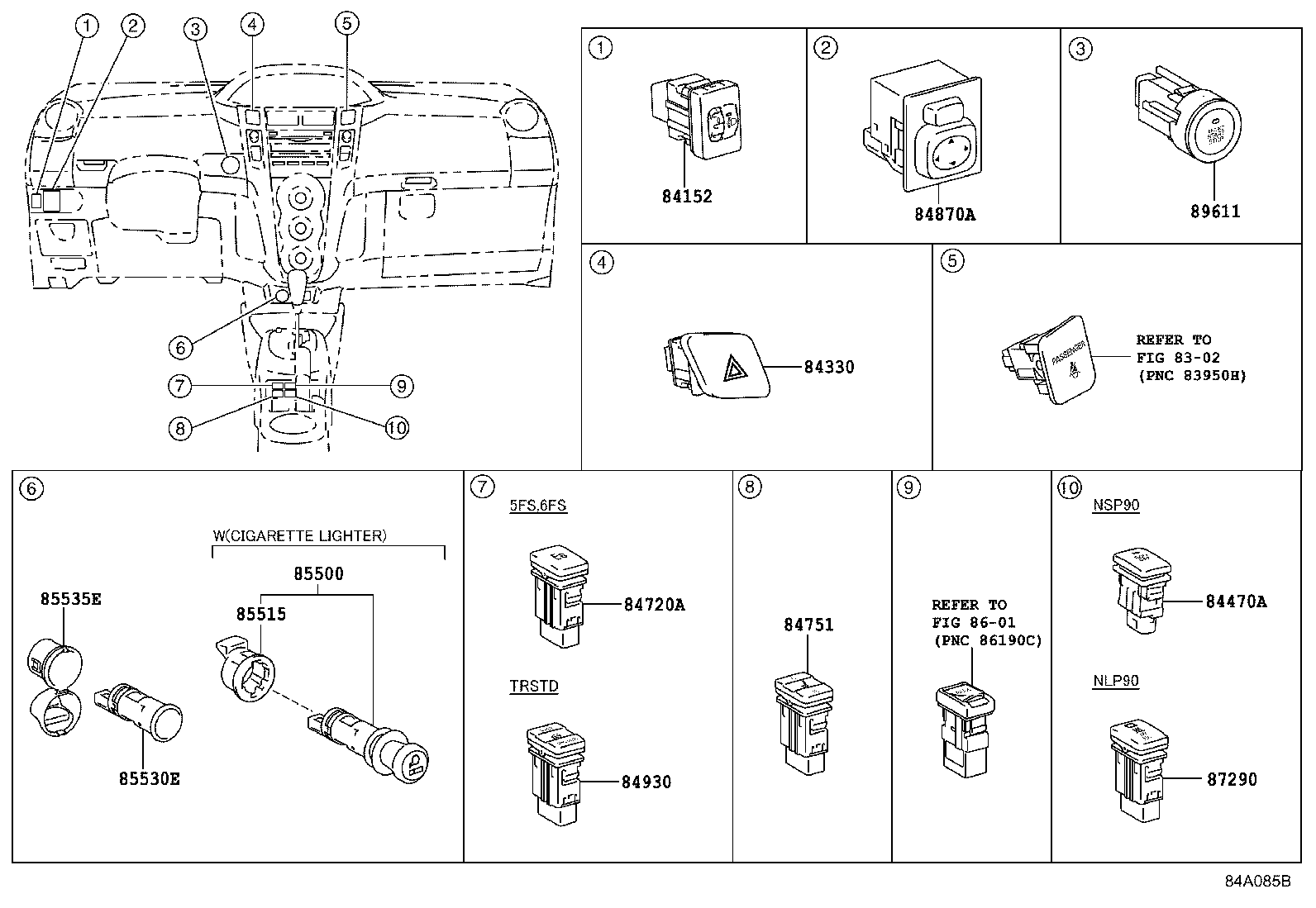

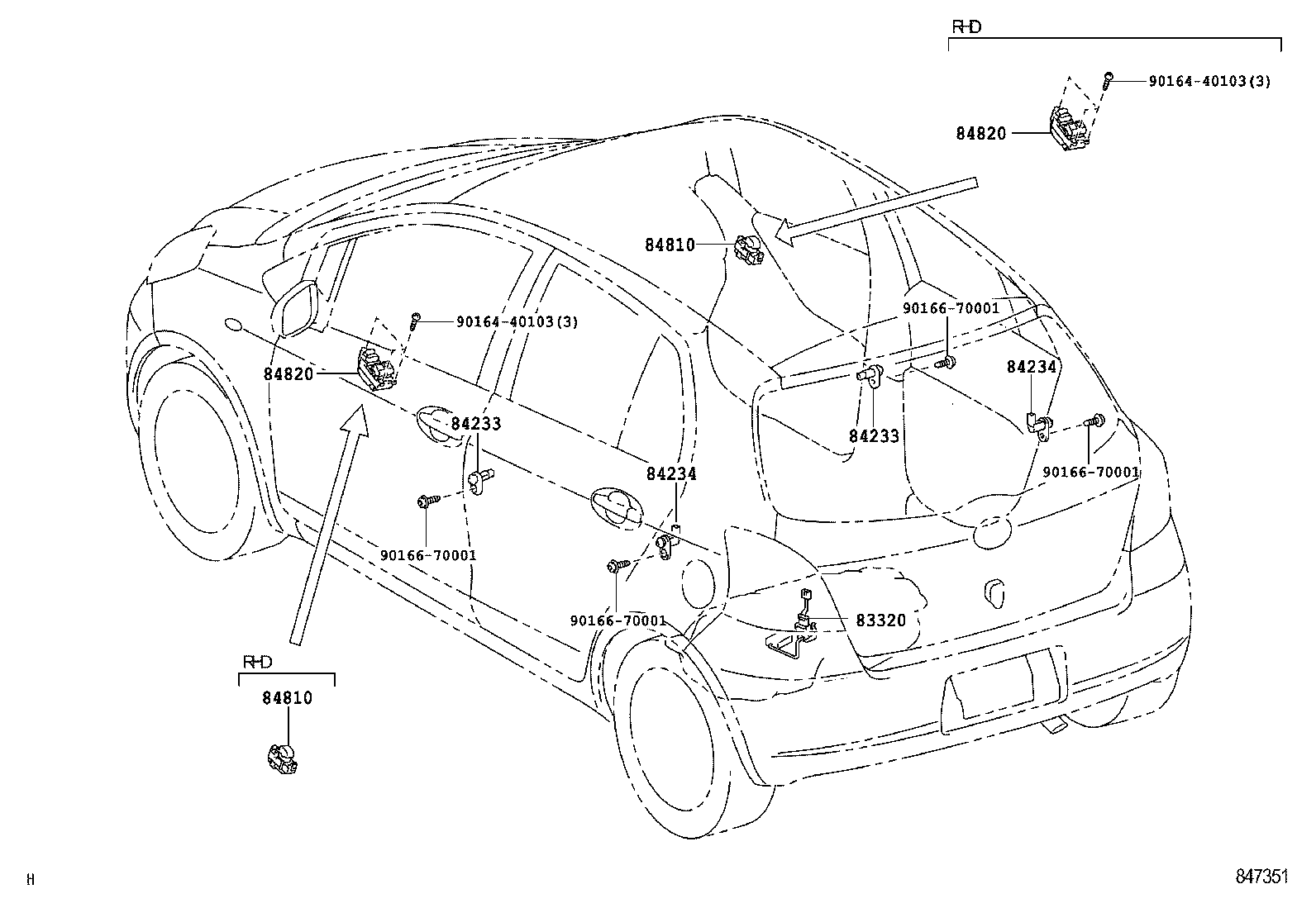

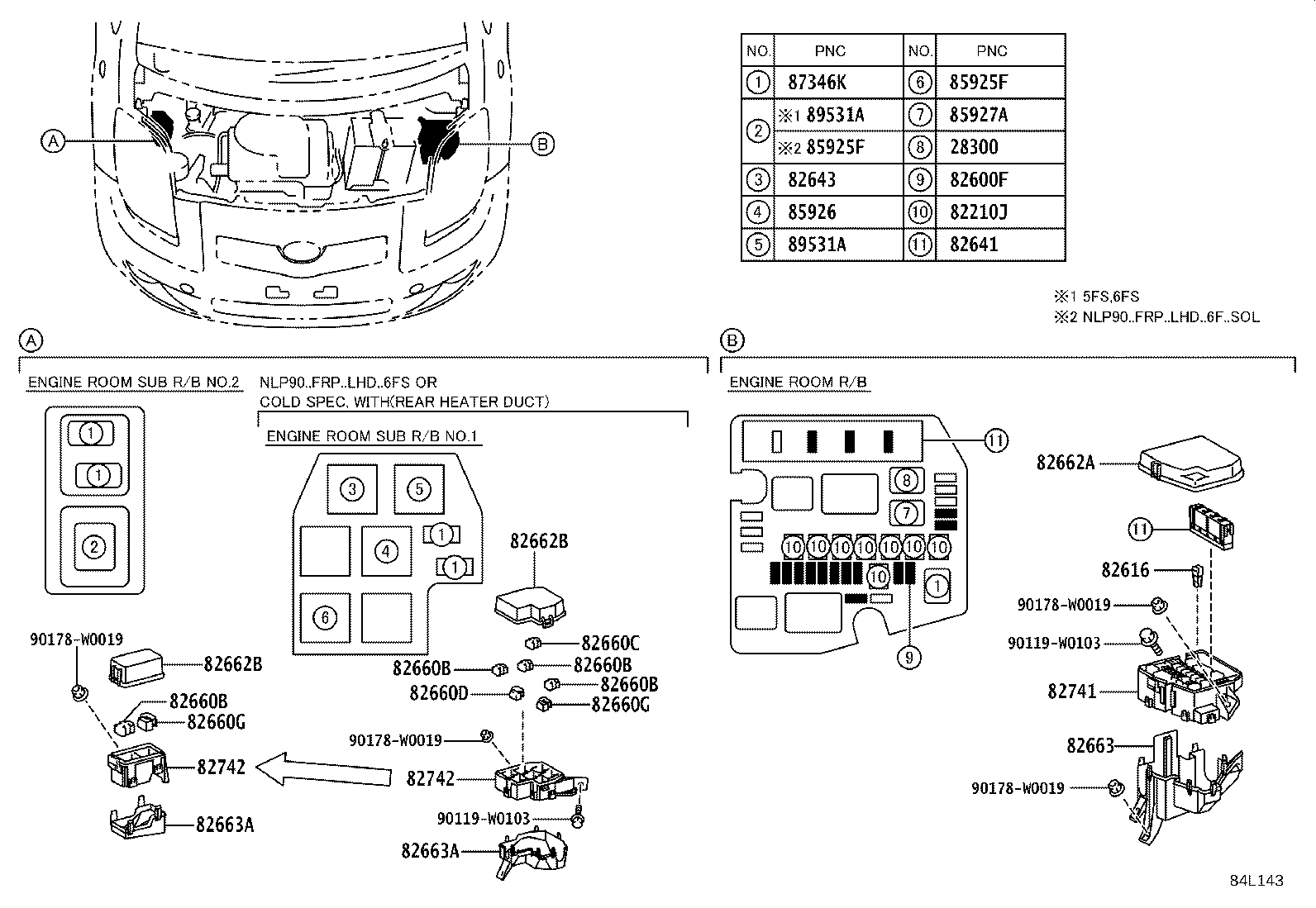

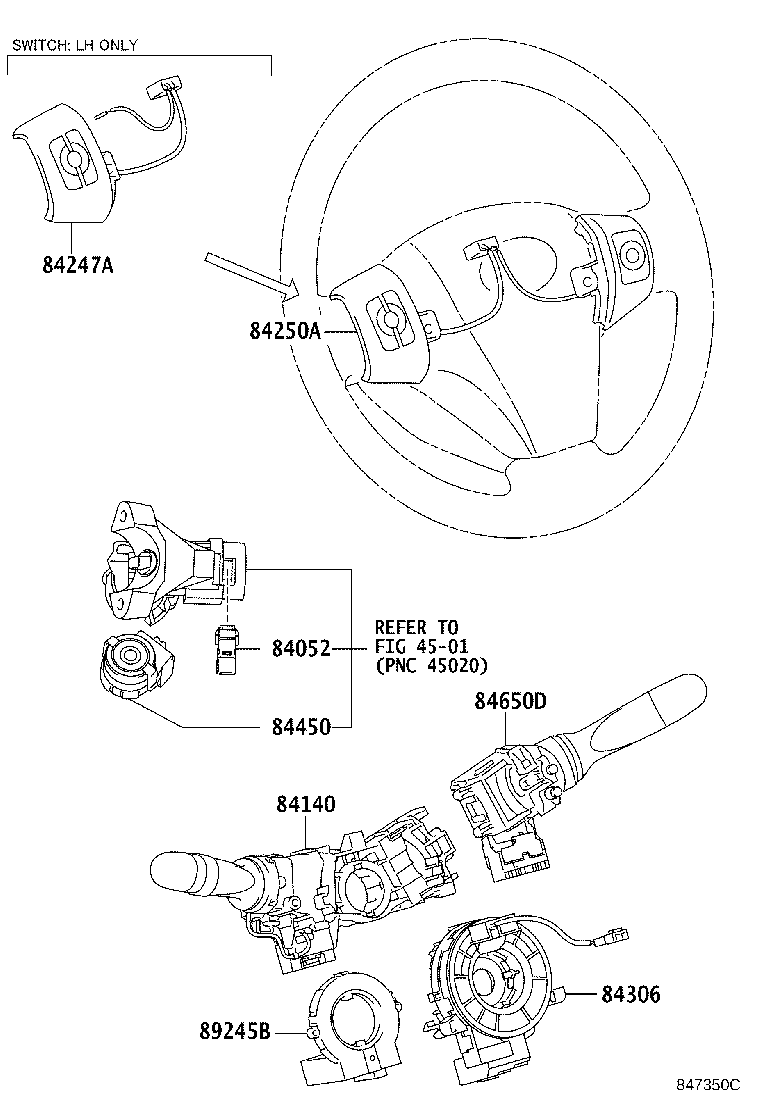

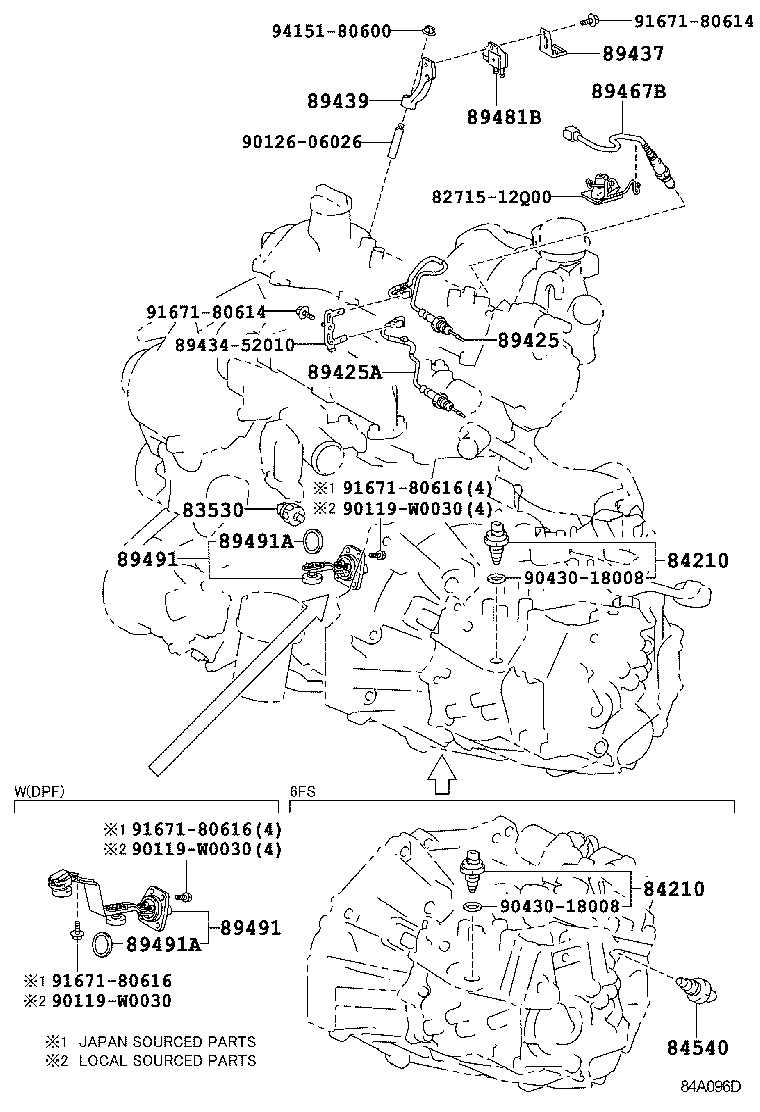

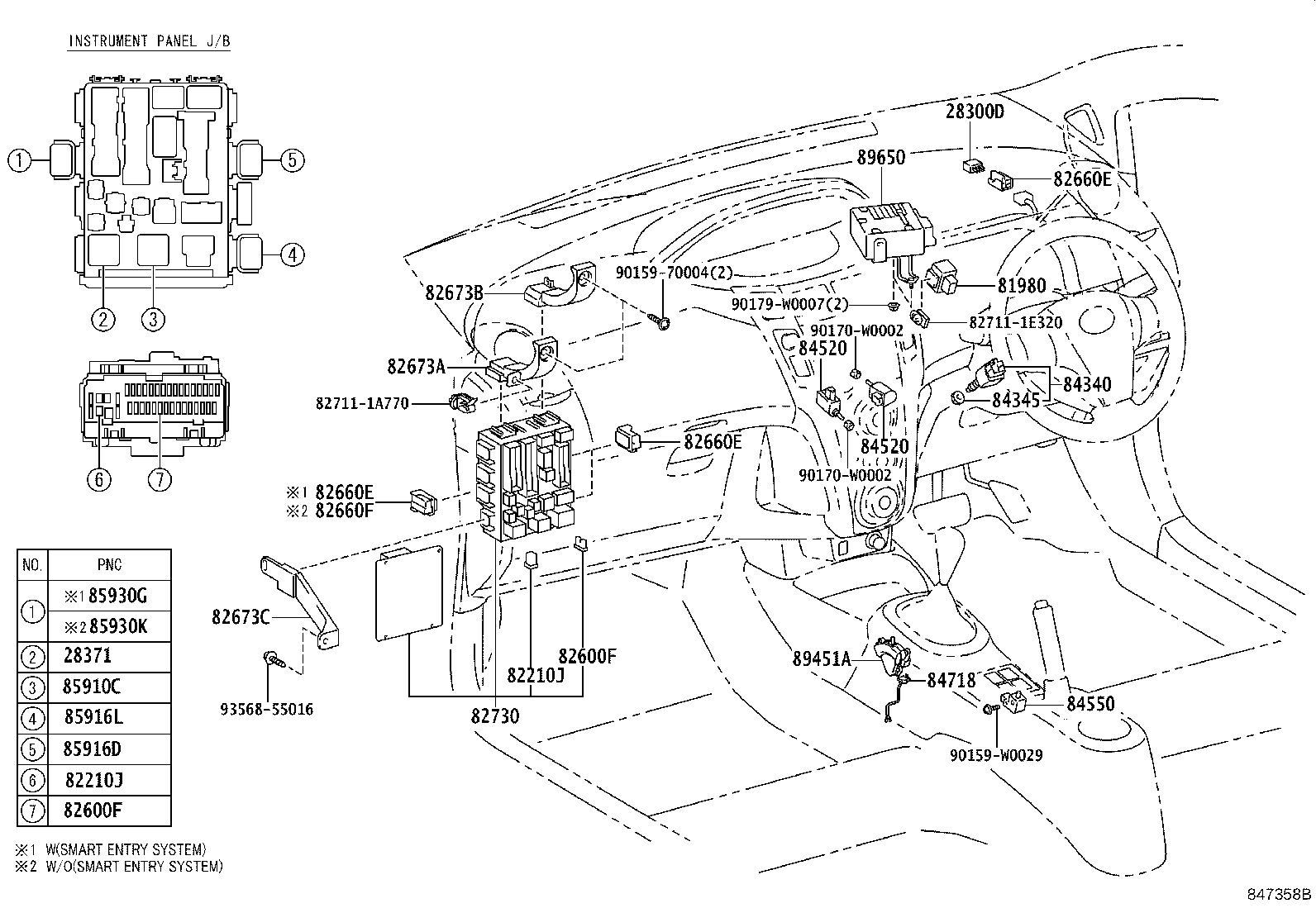

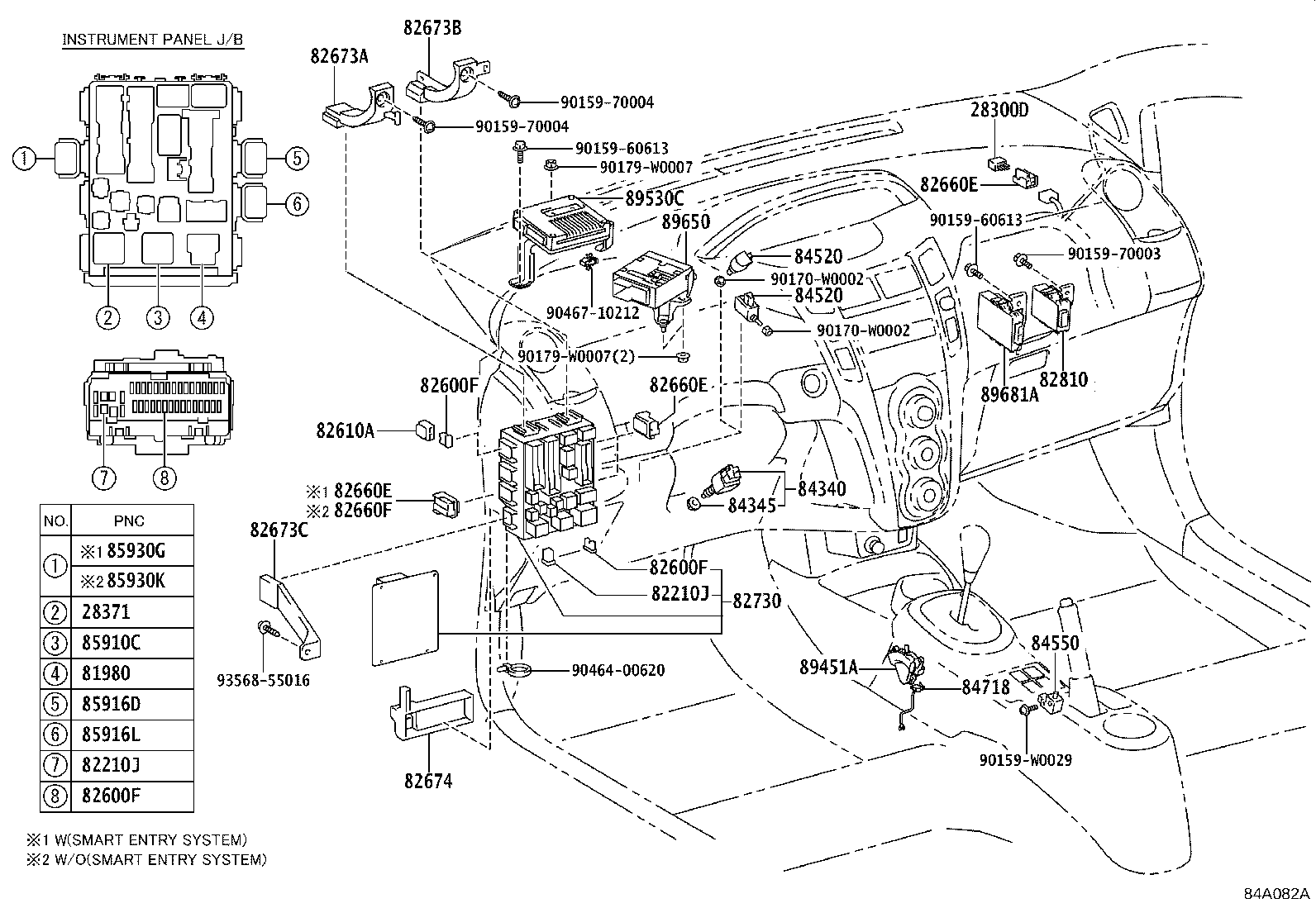

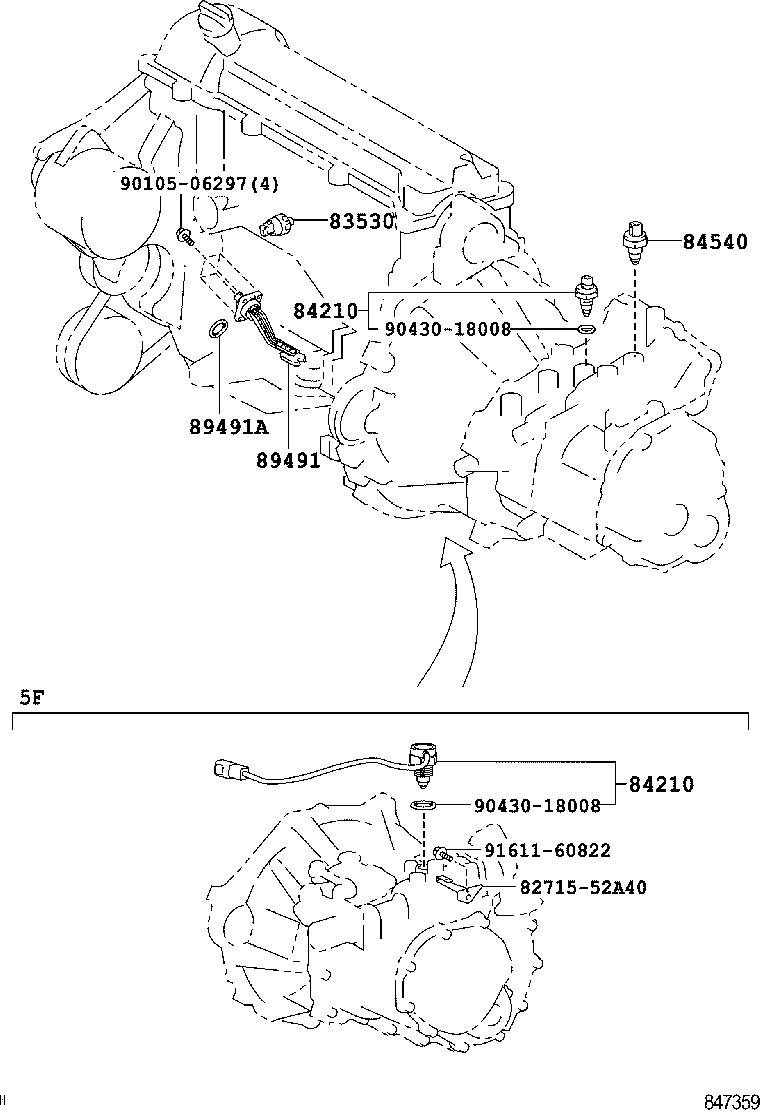

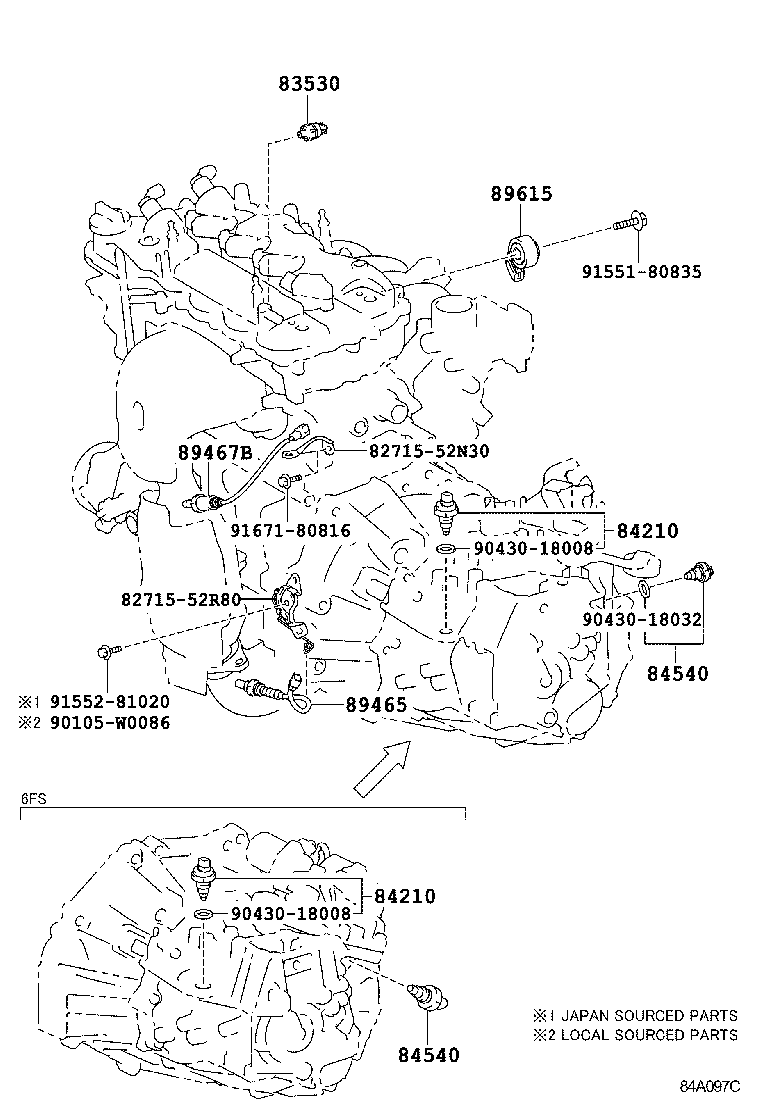

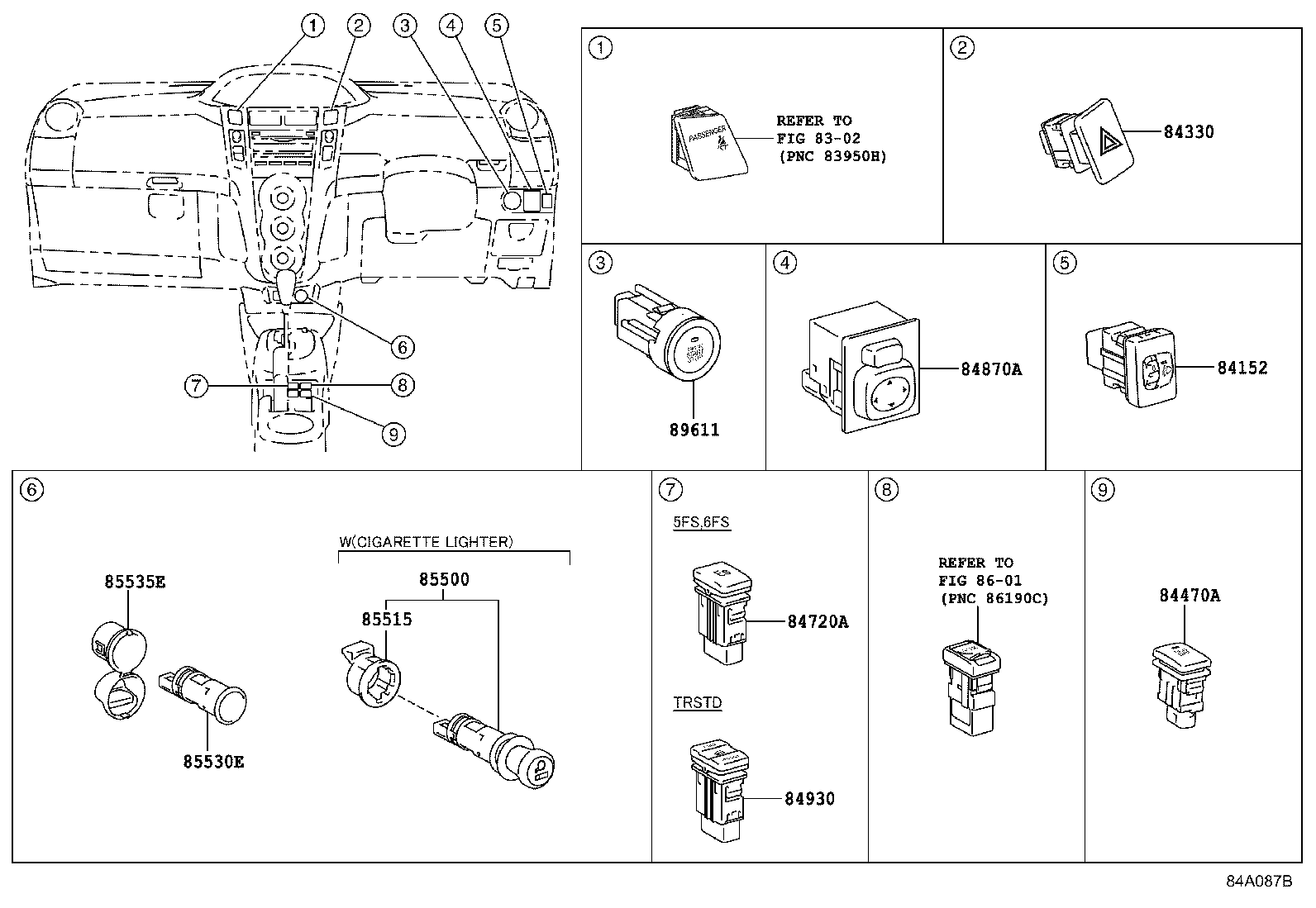

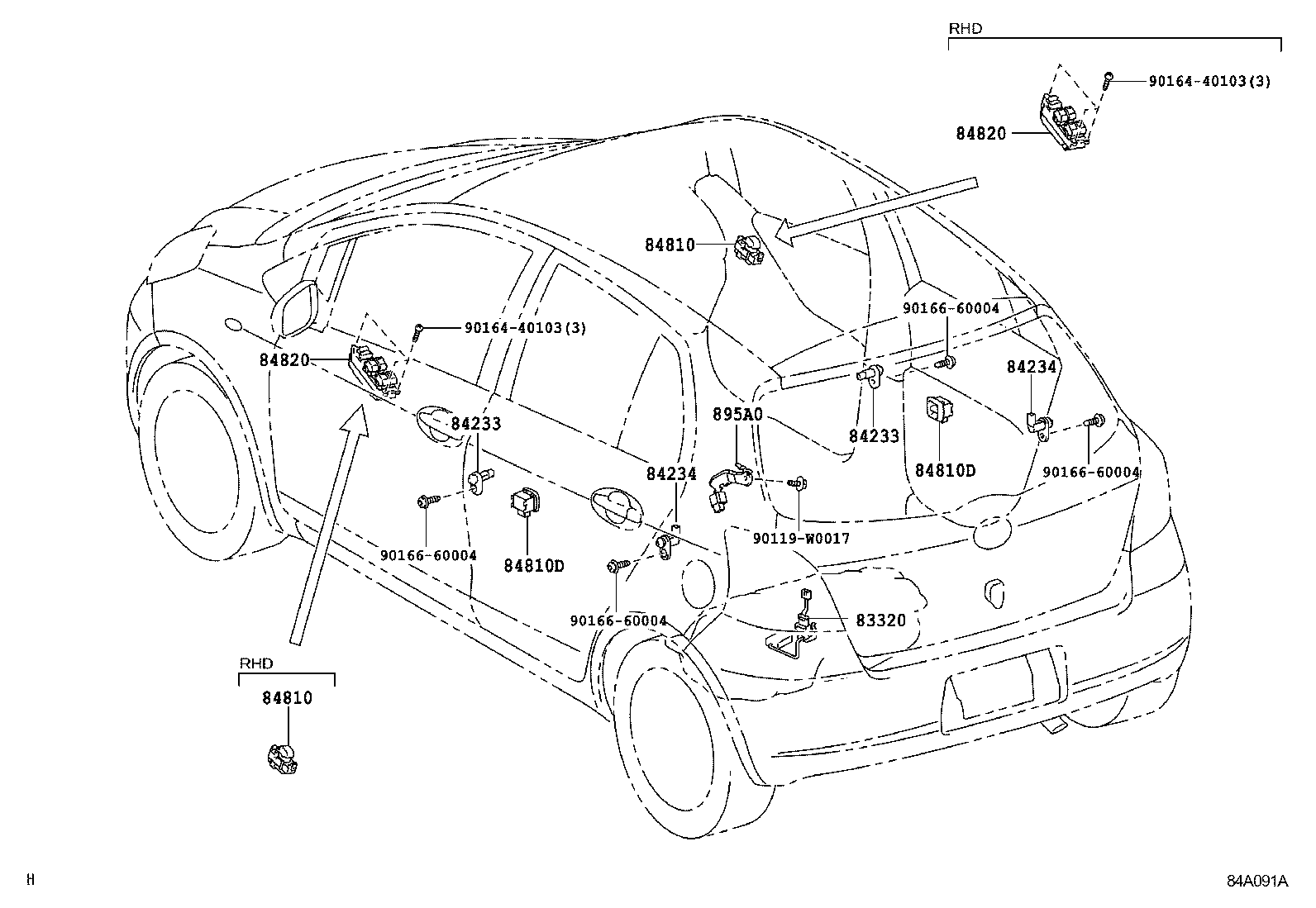

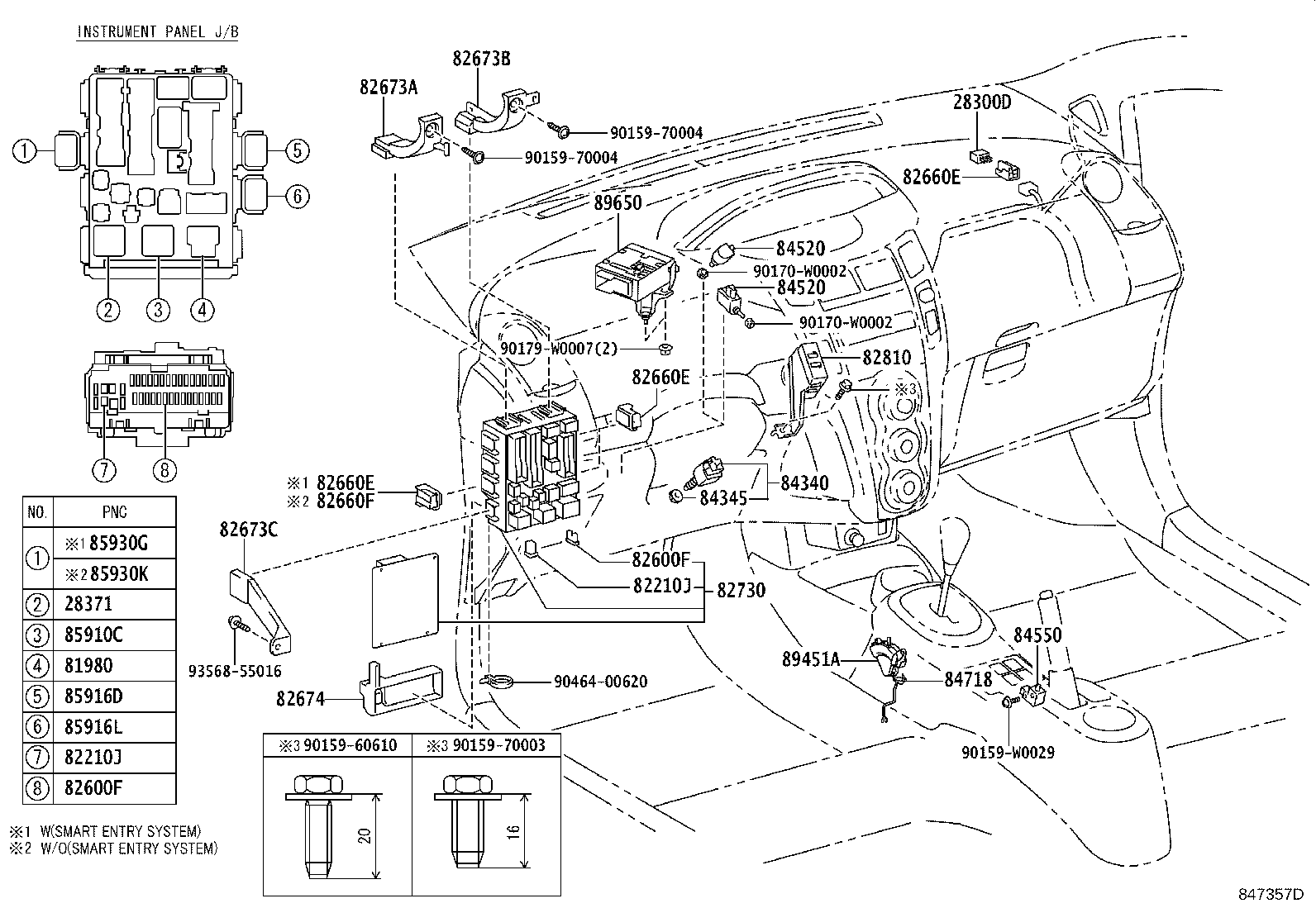

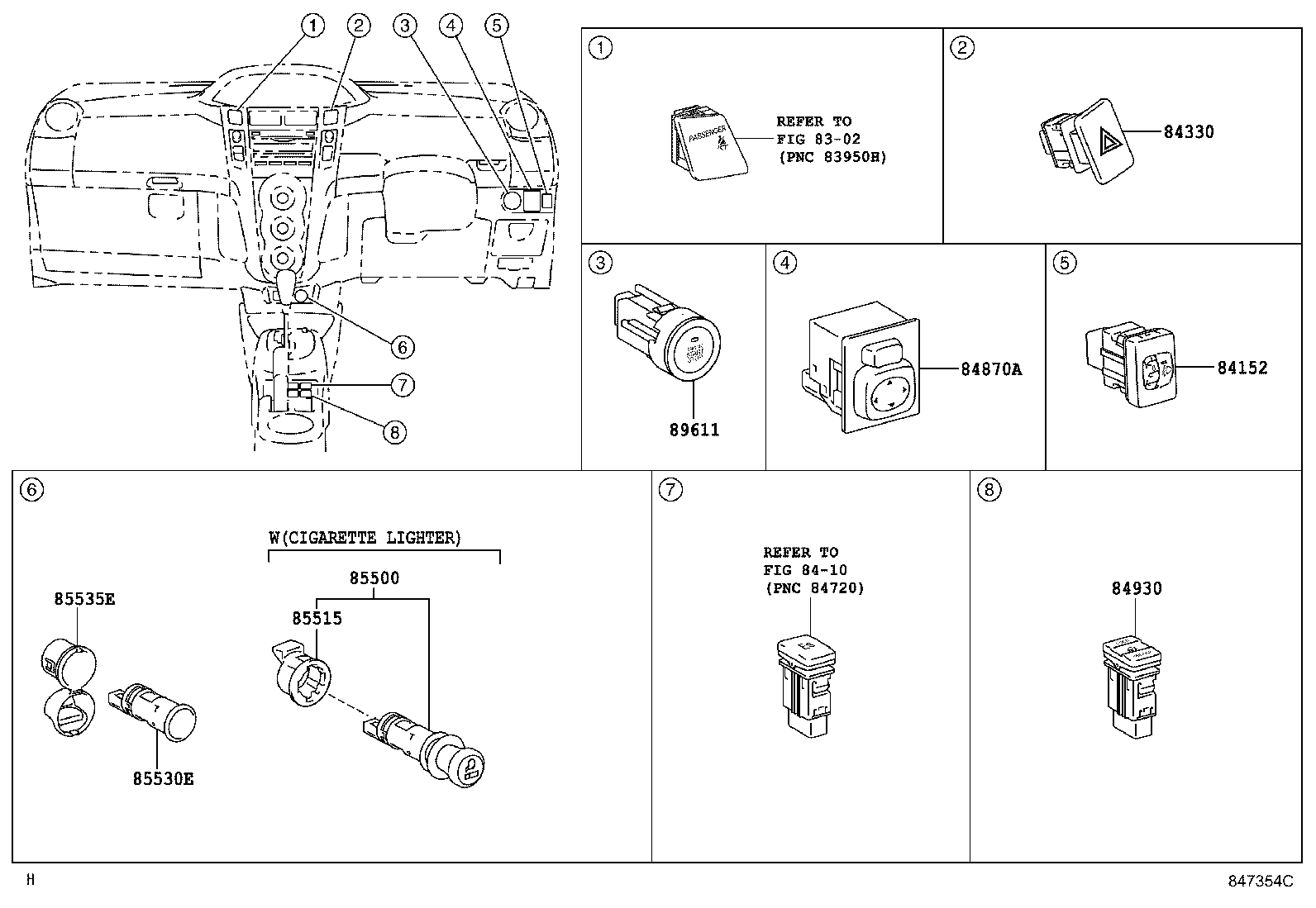

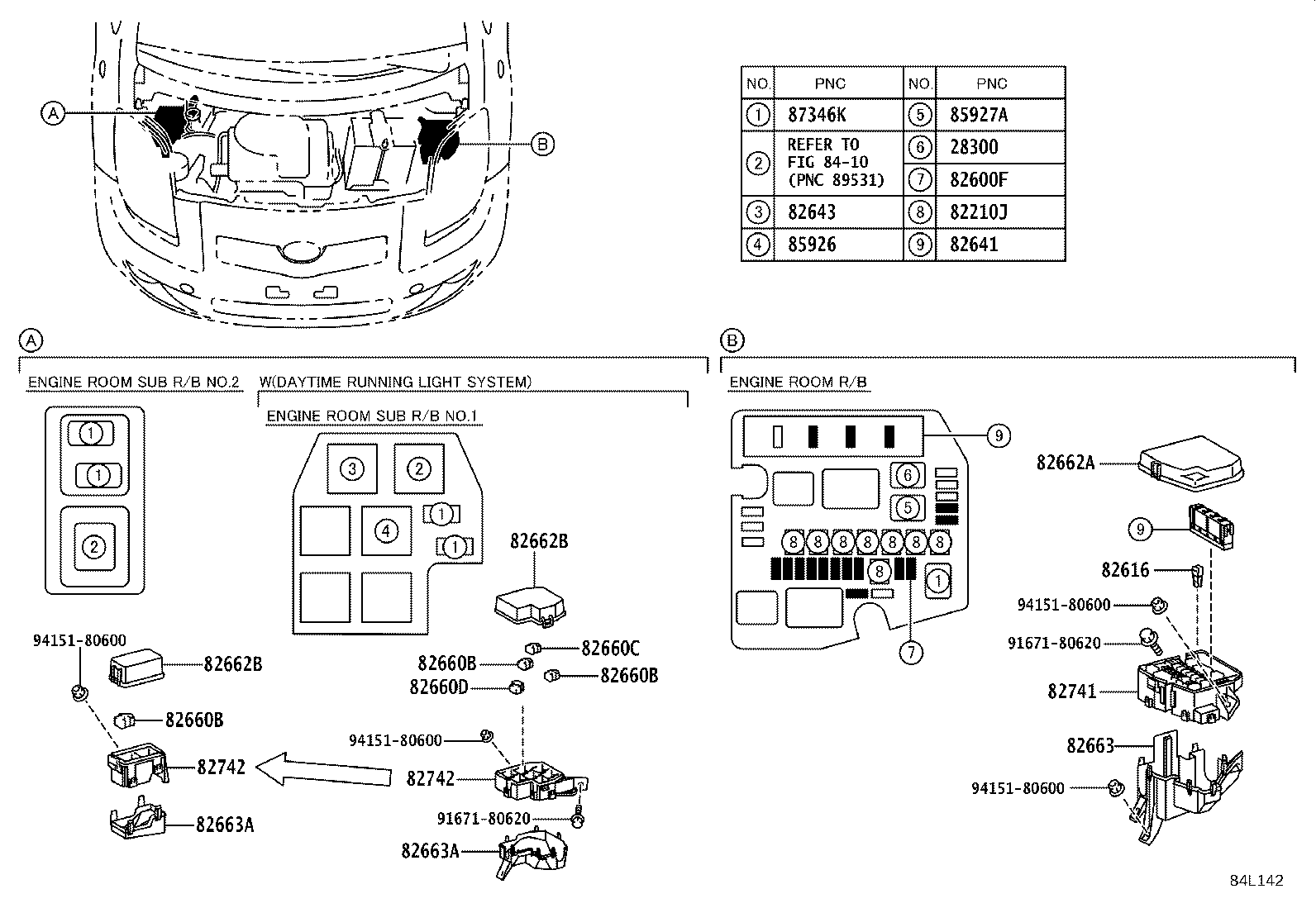

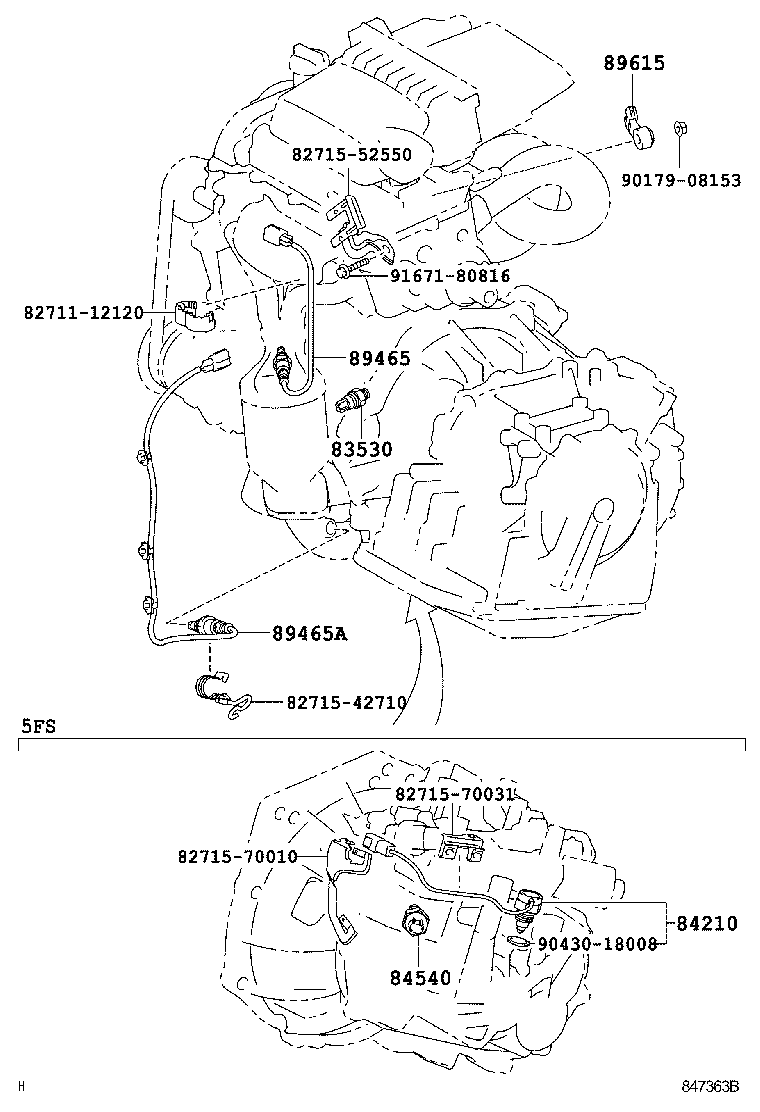

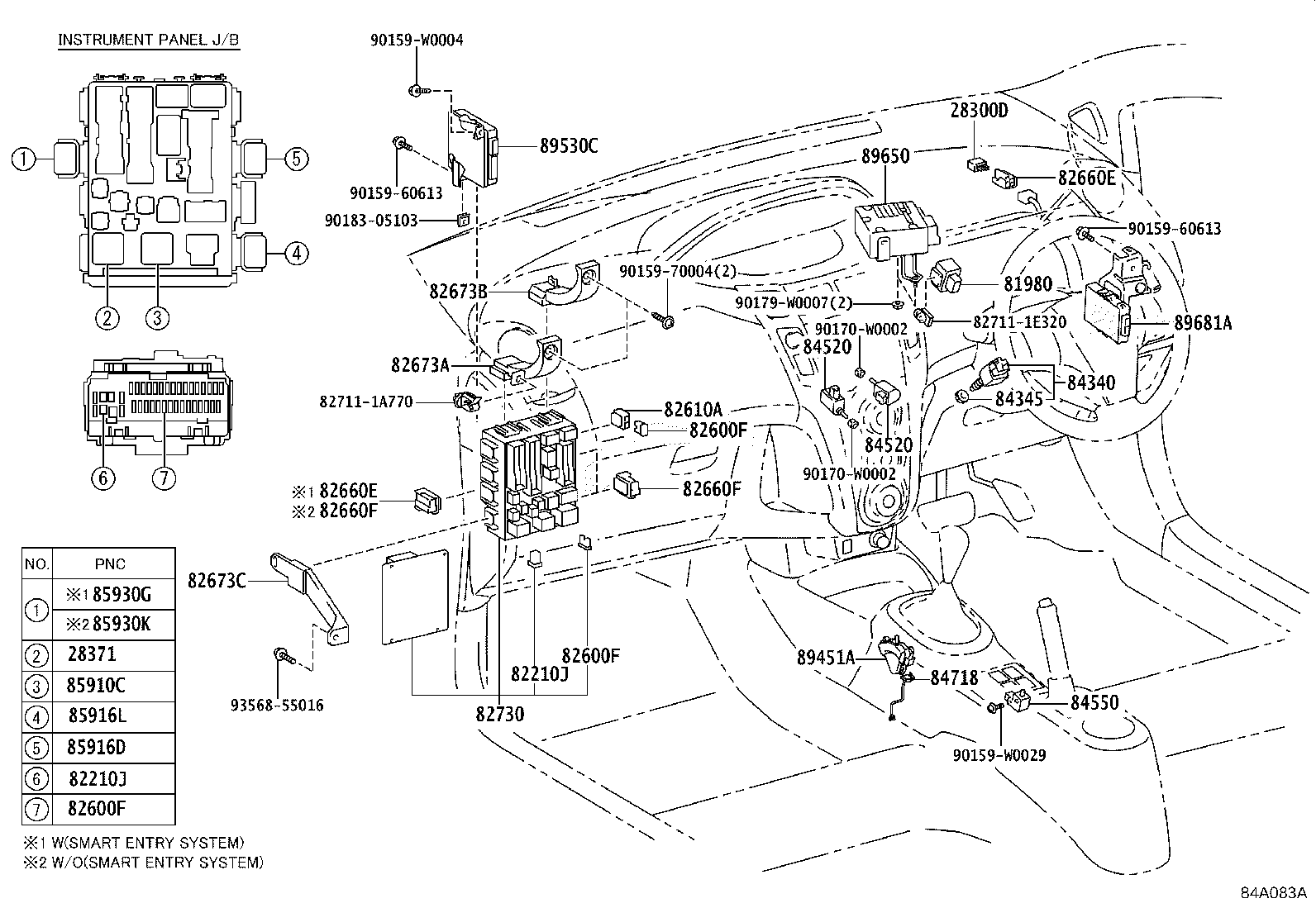

Figure 847360B 847360B 2005-11 → — Figure 847359 847359 2005-11 → 2008-11 Figure 847363B 847363B 2005-11 → 2008-11 Figure 84A096D 84A096D 2008-11 → — Figure 84A097C 84A097C 2008-11 → — Figure 847364F 847364F 2005-11 → 2008-11 Figure 84A081D 84A081D 2008-11 → — Figure 84L142 84L142 2005-11 → 2008-11 Figure 84L143 84L143 2008-11 → — Figure 847357D 847357D 2005-11 → 2008-11 Figure 847358B 847358B 2005-11 → 2008-11 Figure 84A082A 84A082A 2008-11 → — Figure 84A083A 84A083A 2008-11 → — Figure 847353C 847353C 2005-11 → 2008-11 Figure 847354C 847354C 2005-11 → 2008-11 Figure 84A085B 84A085B 2008-11 → — Figure 84A087B 84A087B 2008-11 → — Figure 847350C 847350C 2005-01 → 2008-11 Figure 847350C 847350C 2008-11 → — Figure 84A090B 84A090B 2008-11 → — Figure 847351 847351 2005-11 → 2008-11 Figure 84A091 84A091 2008-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82643 Relay, Dim-dip Lamp
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84720A Switch Assy, Pattern Select, NO.1
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
85500 Lighter Assy, Cigarette
85515 Stay, Cigarette Lighter Bezel
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85925F Relay, Ptc Heater NO.2
85926 Relay, Headlamp Dimmer
85927A Relay, Cooling Fan, NO.2
85927G Relay, Air Conditioner Water Pump
85928B Resistor, Cooling Fan
85930G Relay, Acc
85930K Relay, Acc, NO.2
85959A Holder, Relay
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
89245B Sensor, Steering
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89437 Cover, Sensor
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89531A Relay, Transmission Control
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
