Toyota Yaris (FRP)
2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe
Supported model
Data version 2012-01
Electronic Controled Diesel (ECD)

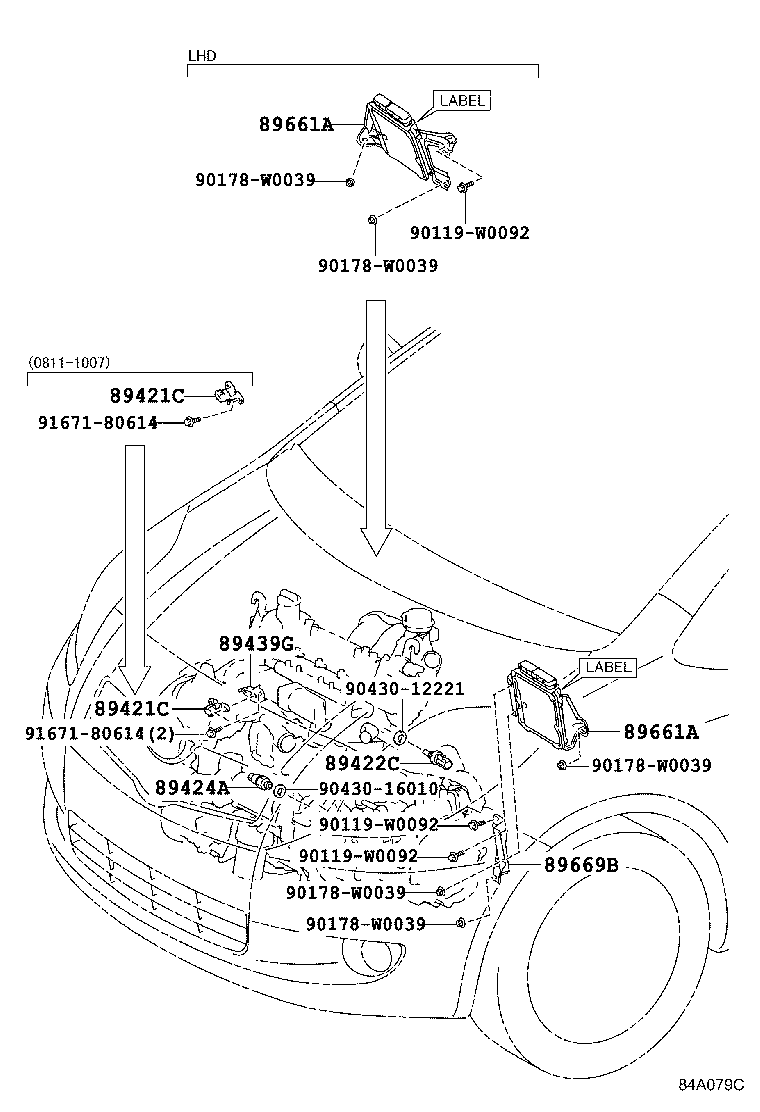

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89421C | Sensor, Turbo Pressure (FOR DIESEL TURBO) |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89424A | Sensor, Inlet Air Temperature (FOR DIESEL TURBO) |
| 89439G | Bracket, Sensor |
| 89661A | Computer, Engine Control |
| 89669B | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
