Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 6 illustrations

Illustrations

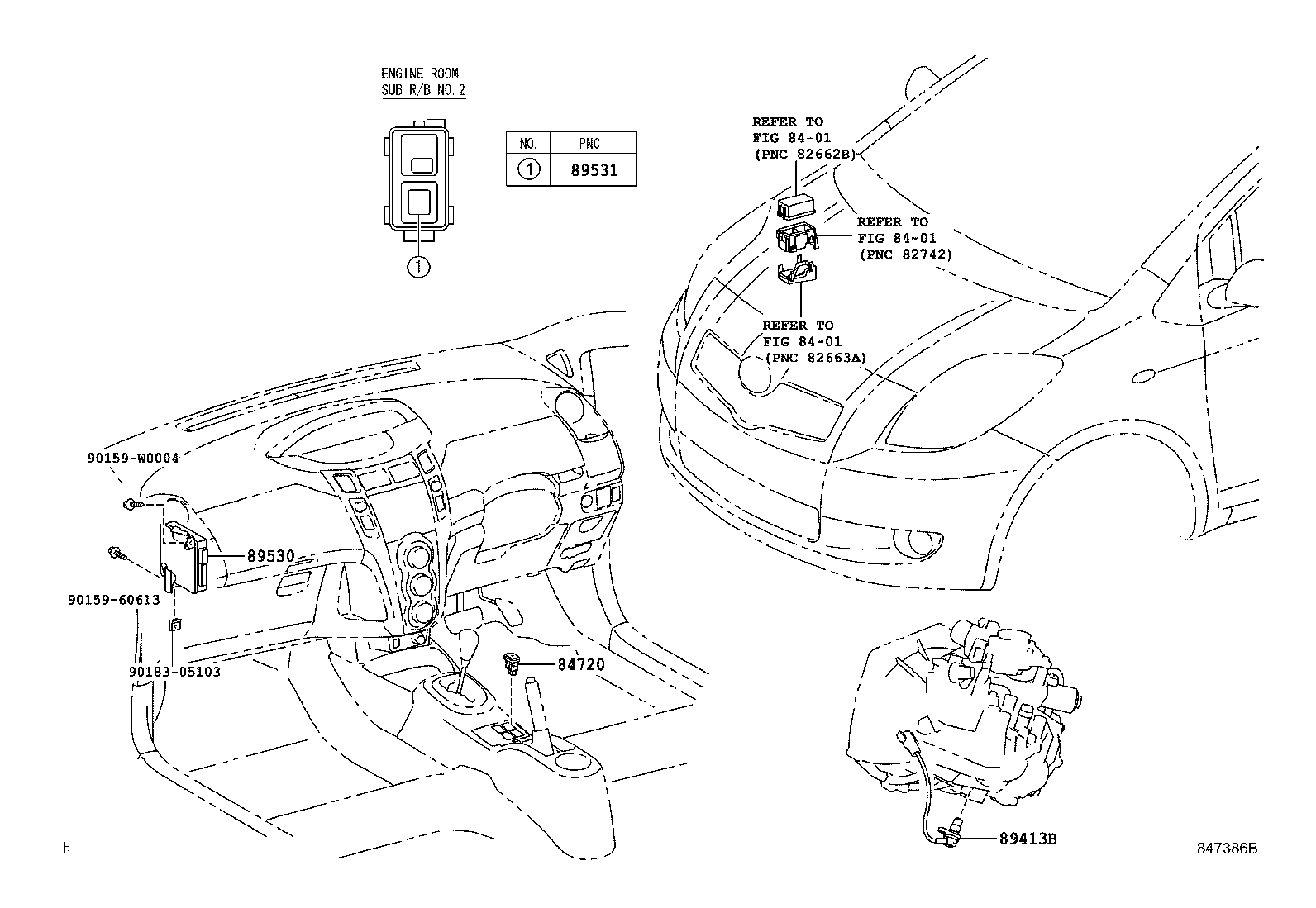

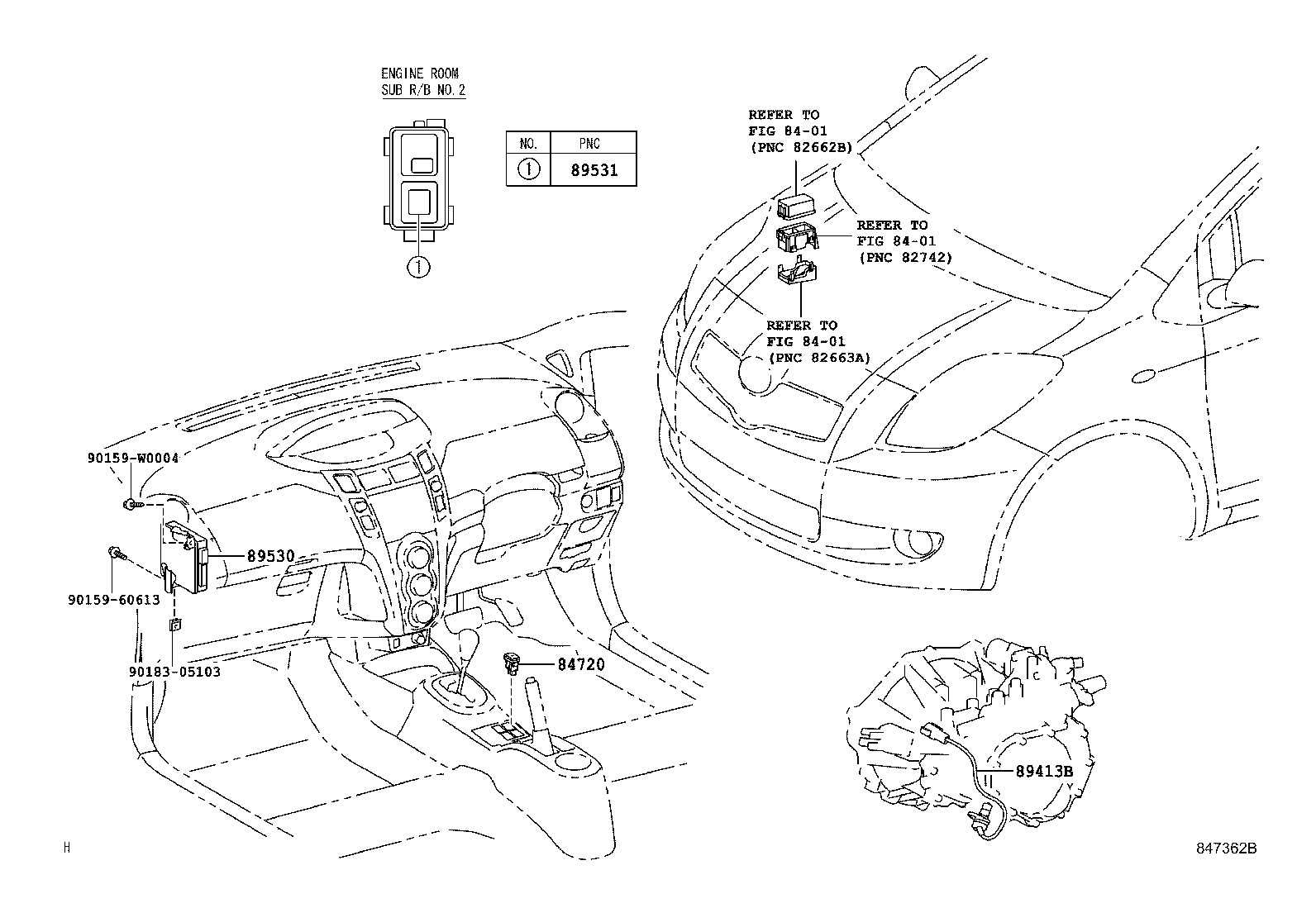

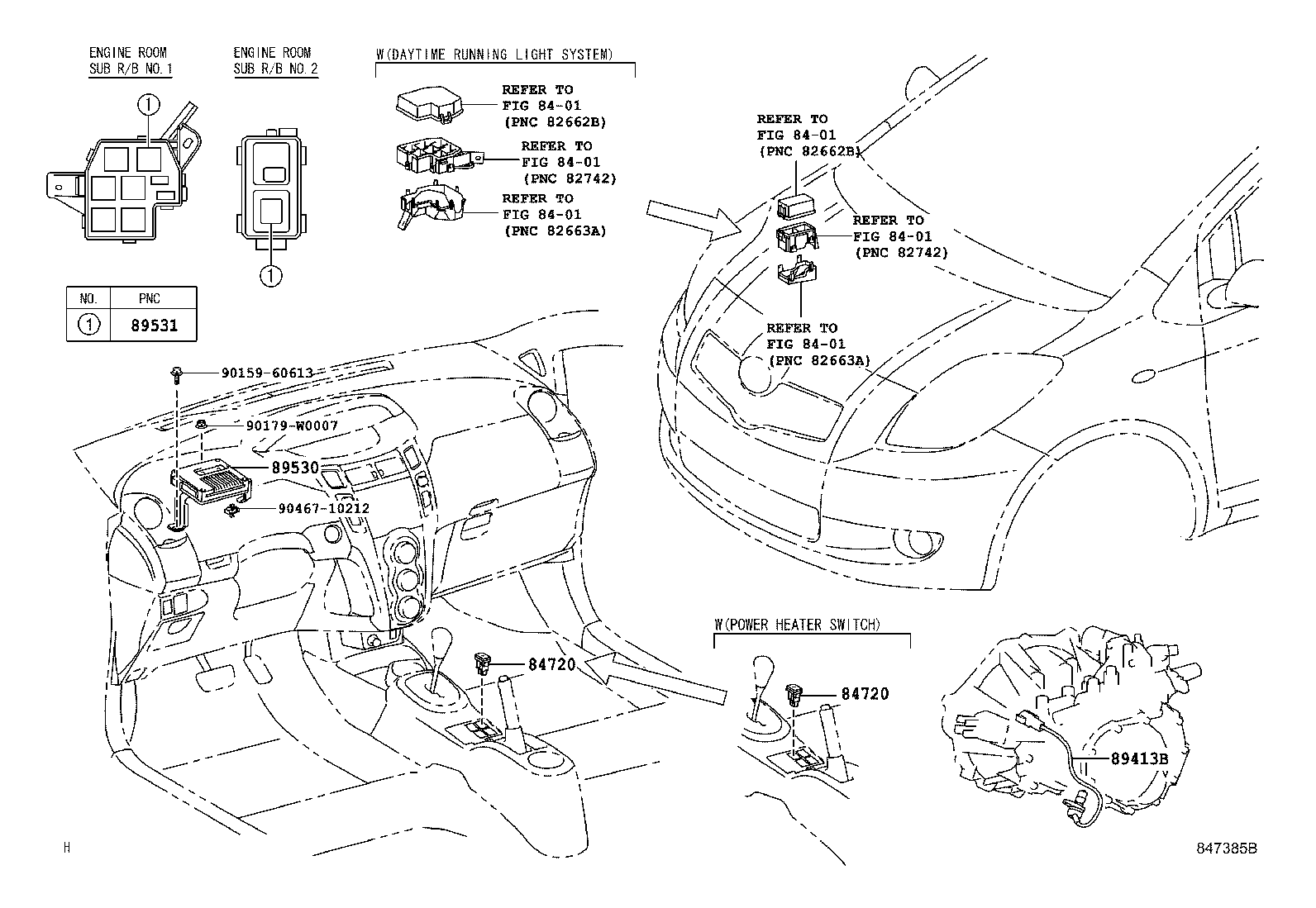

Figure 847361B 847361B 2005-11 → 2008-11 Figure 847385B 847385B 2005-11 → 2008-11 Figure 847386B 847386B 2005-11 → 2008-11 Figure 847362B 847362B 2005-11 → 2008-11 Figure 84A074 84A074 2008-11 → — Figure 84A397 84A397 2008-11 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89530 Computer Assy, Transmission Control
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
