Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

22 part groups · 12 illustrations

Illustrations

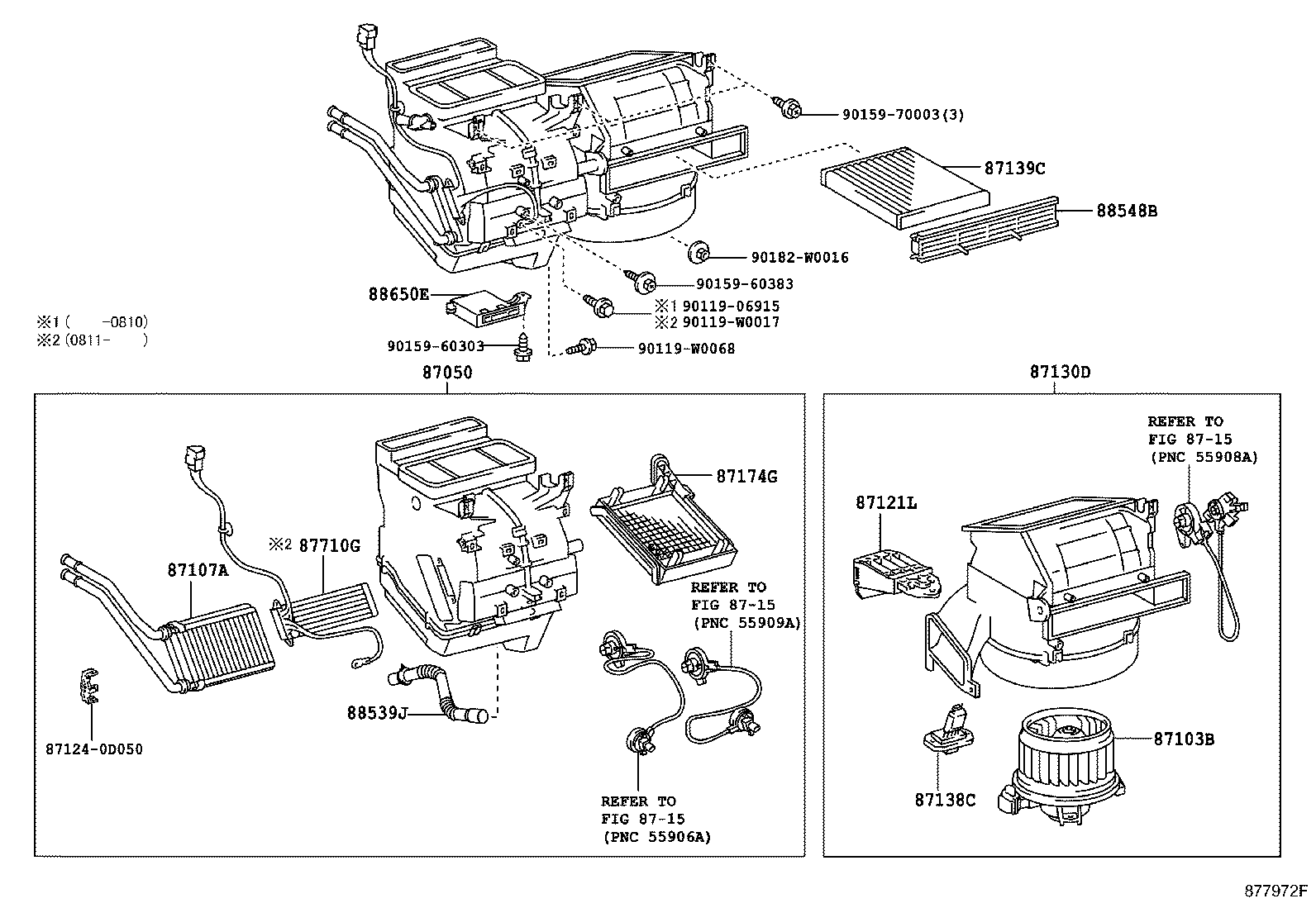

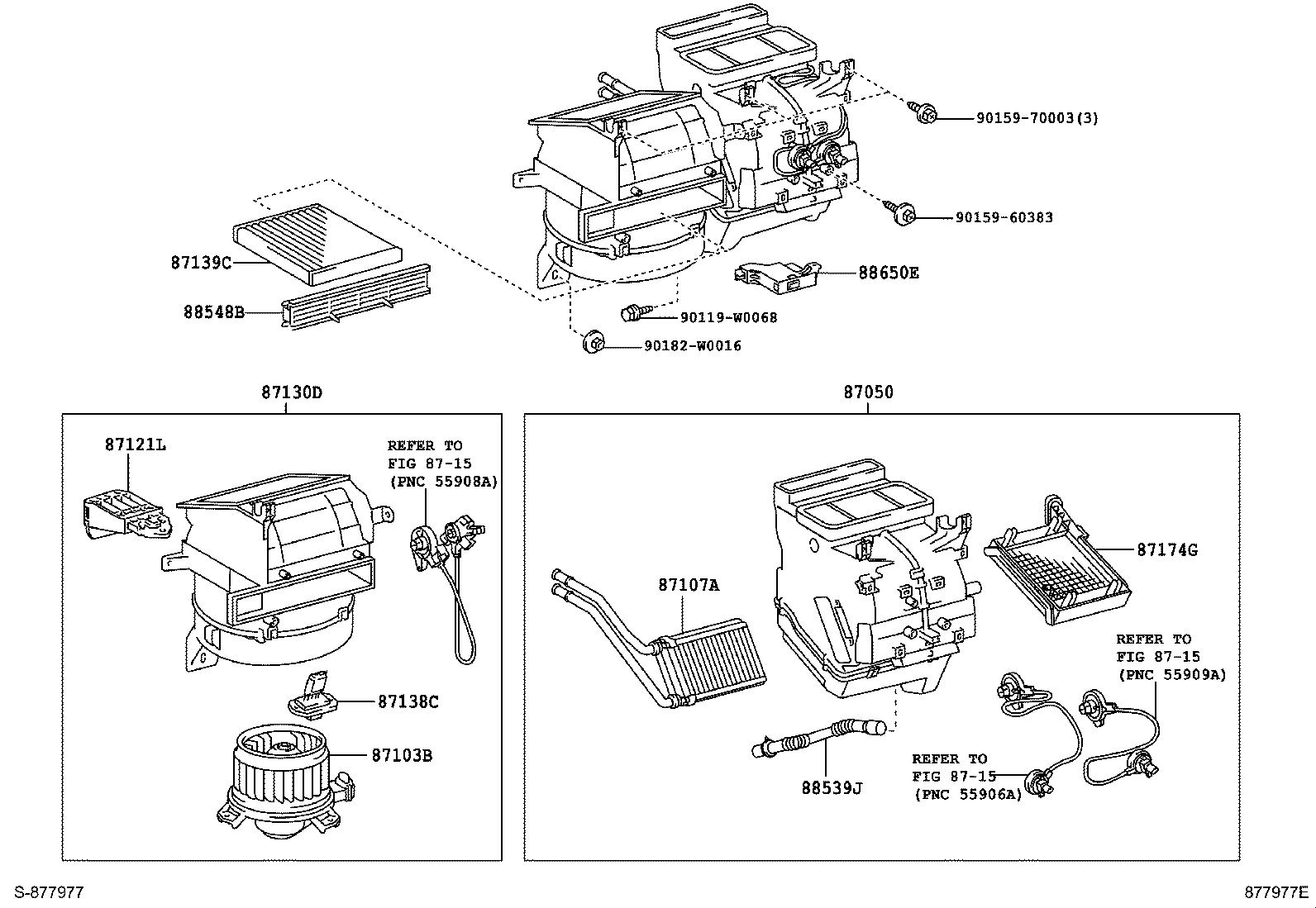

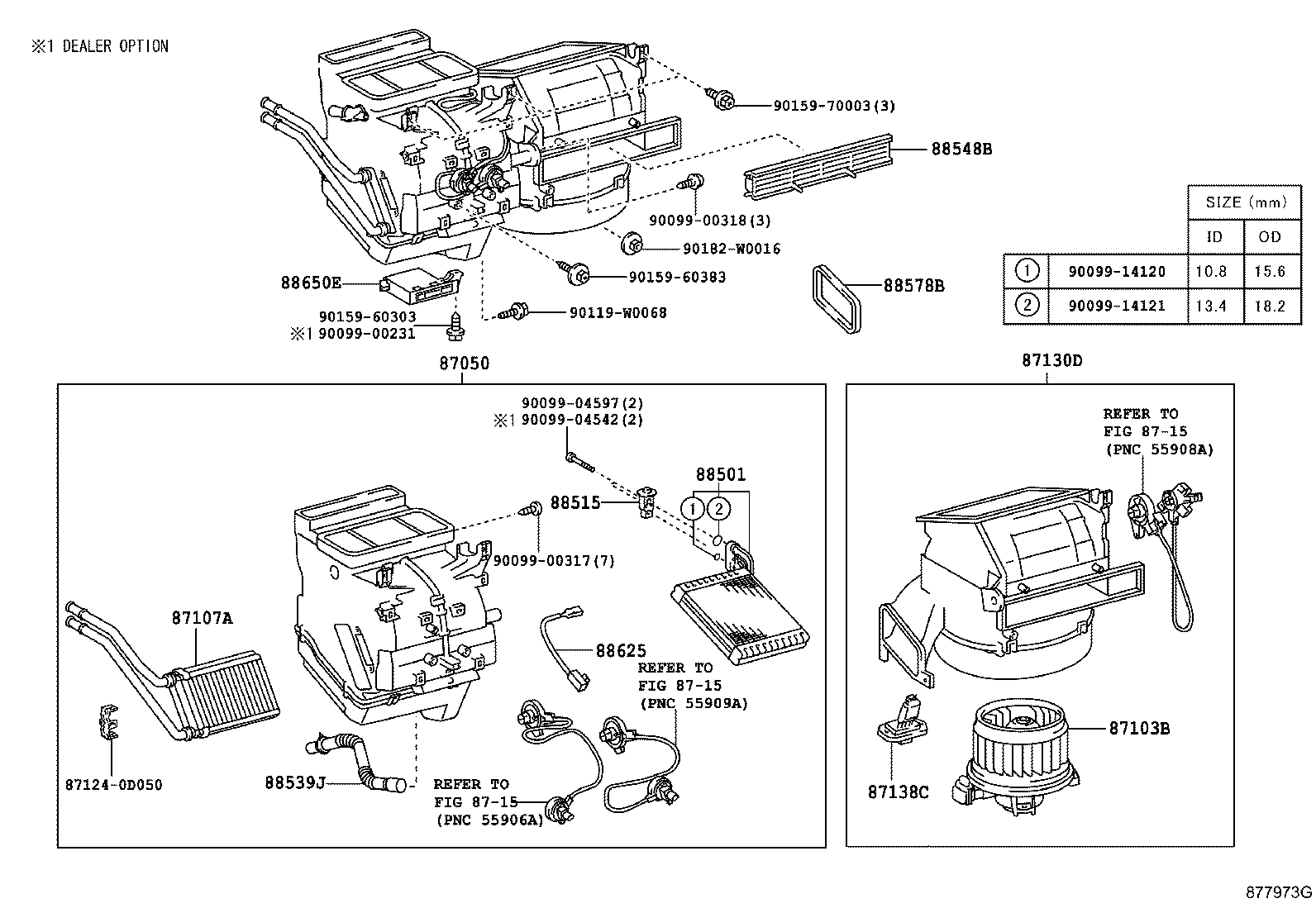

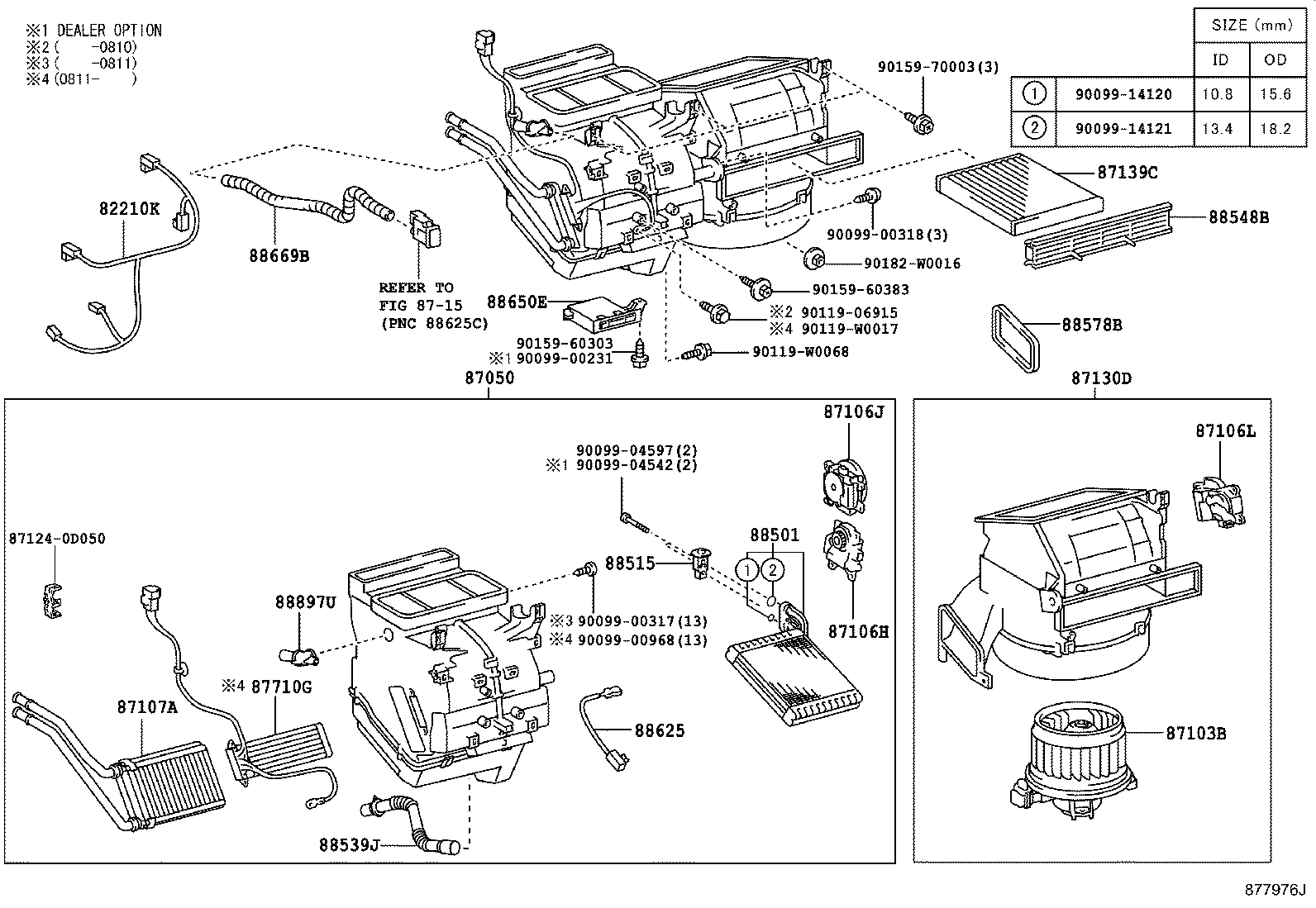

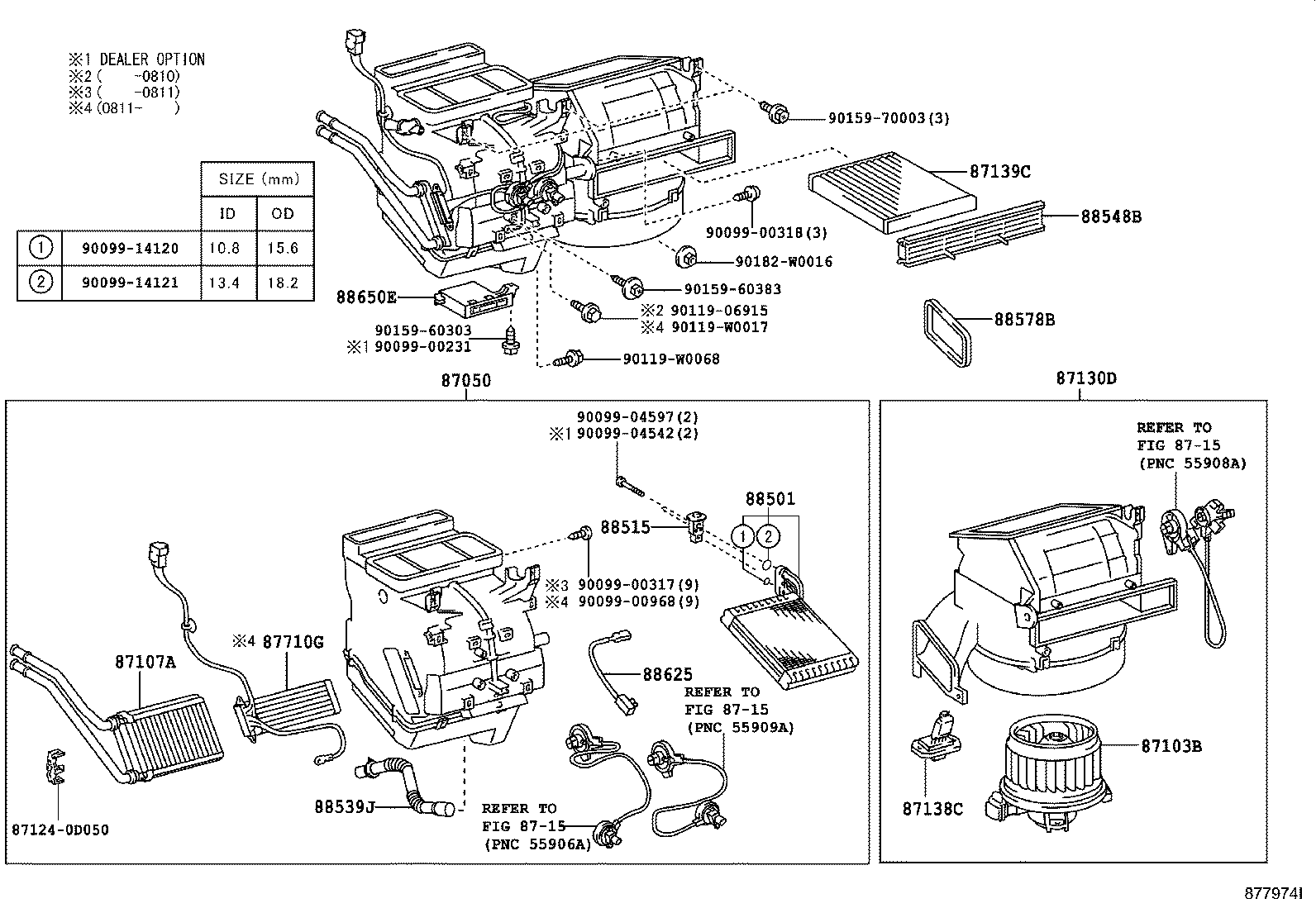

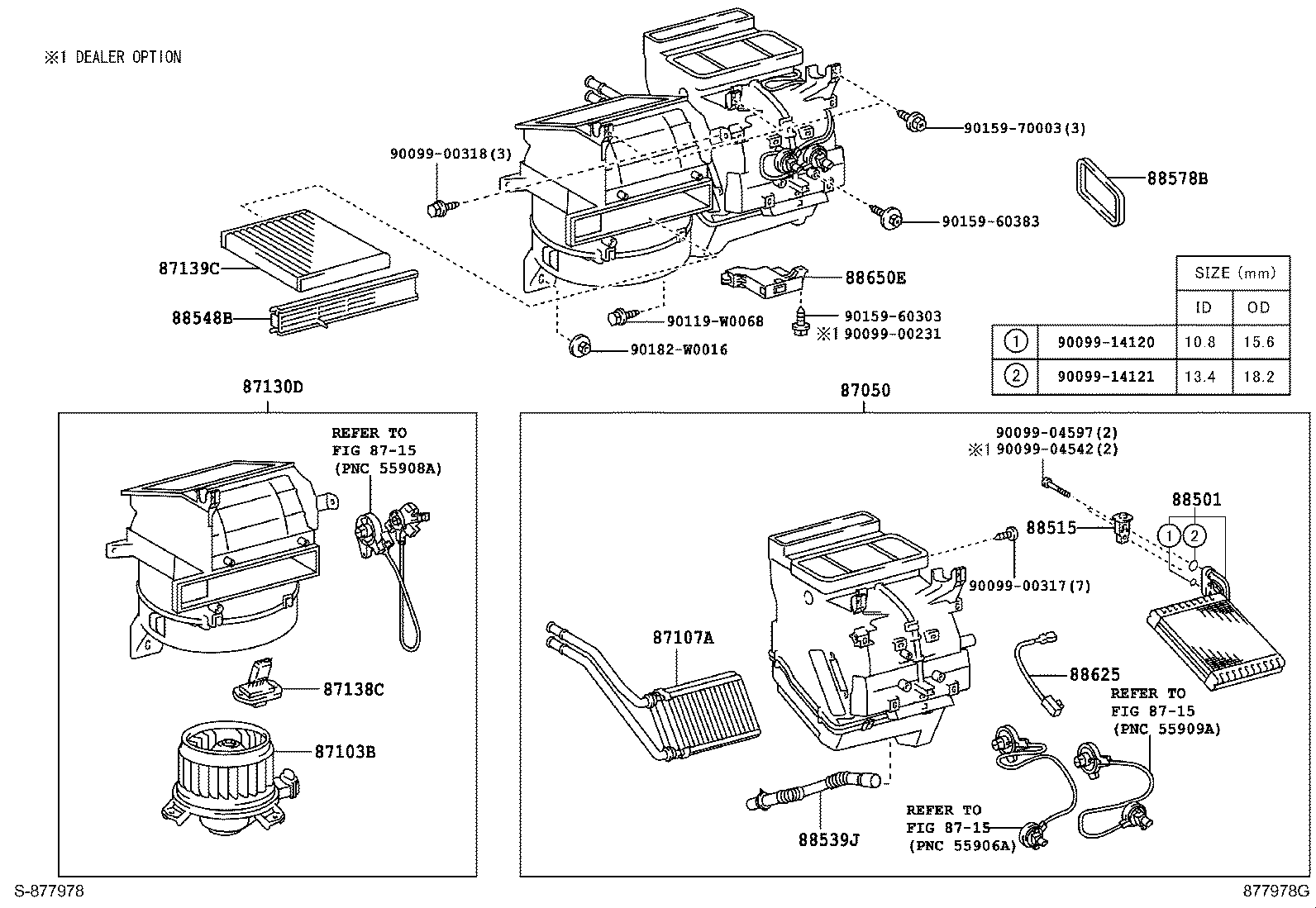

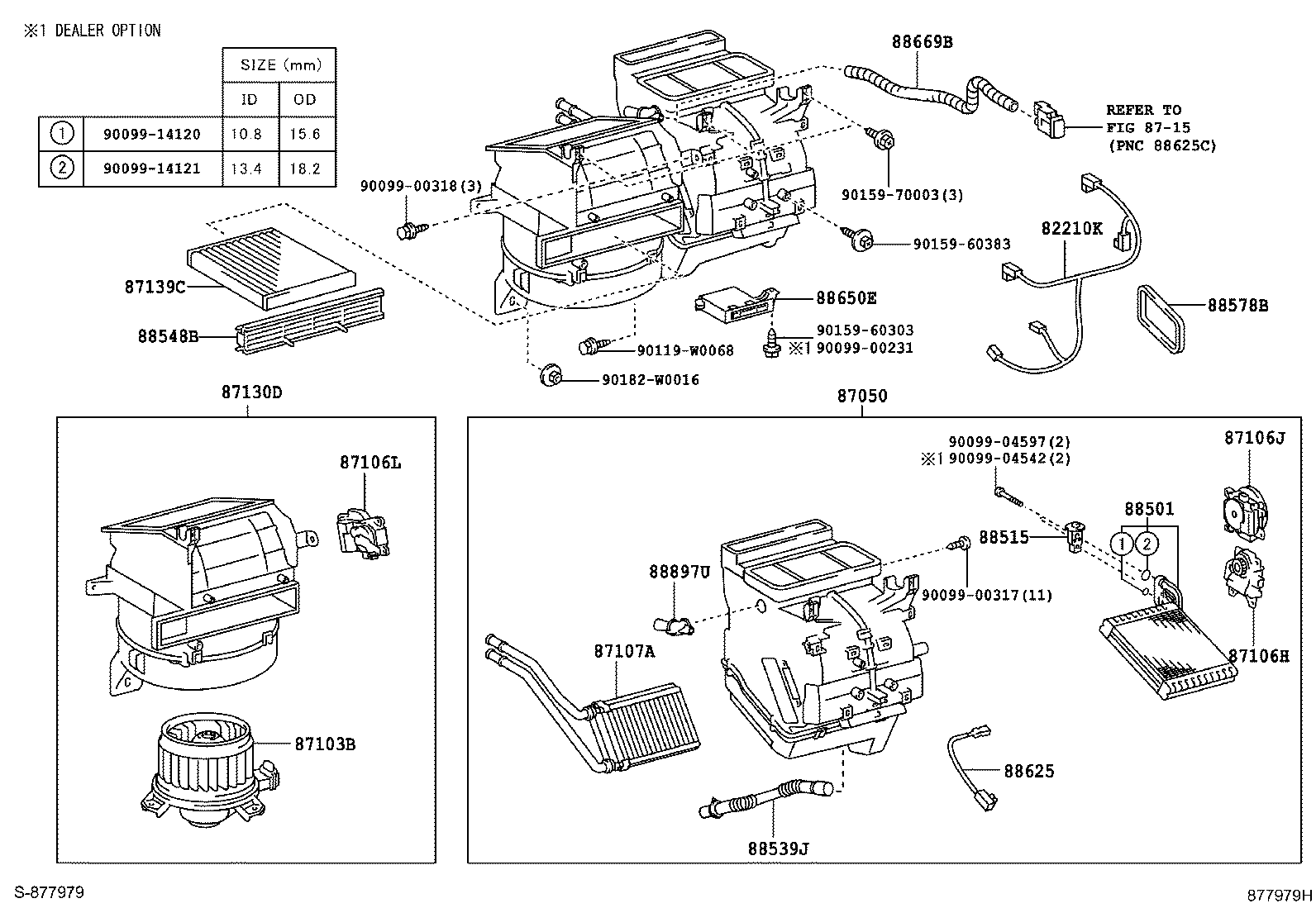

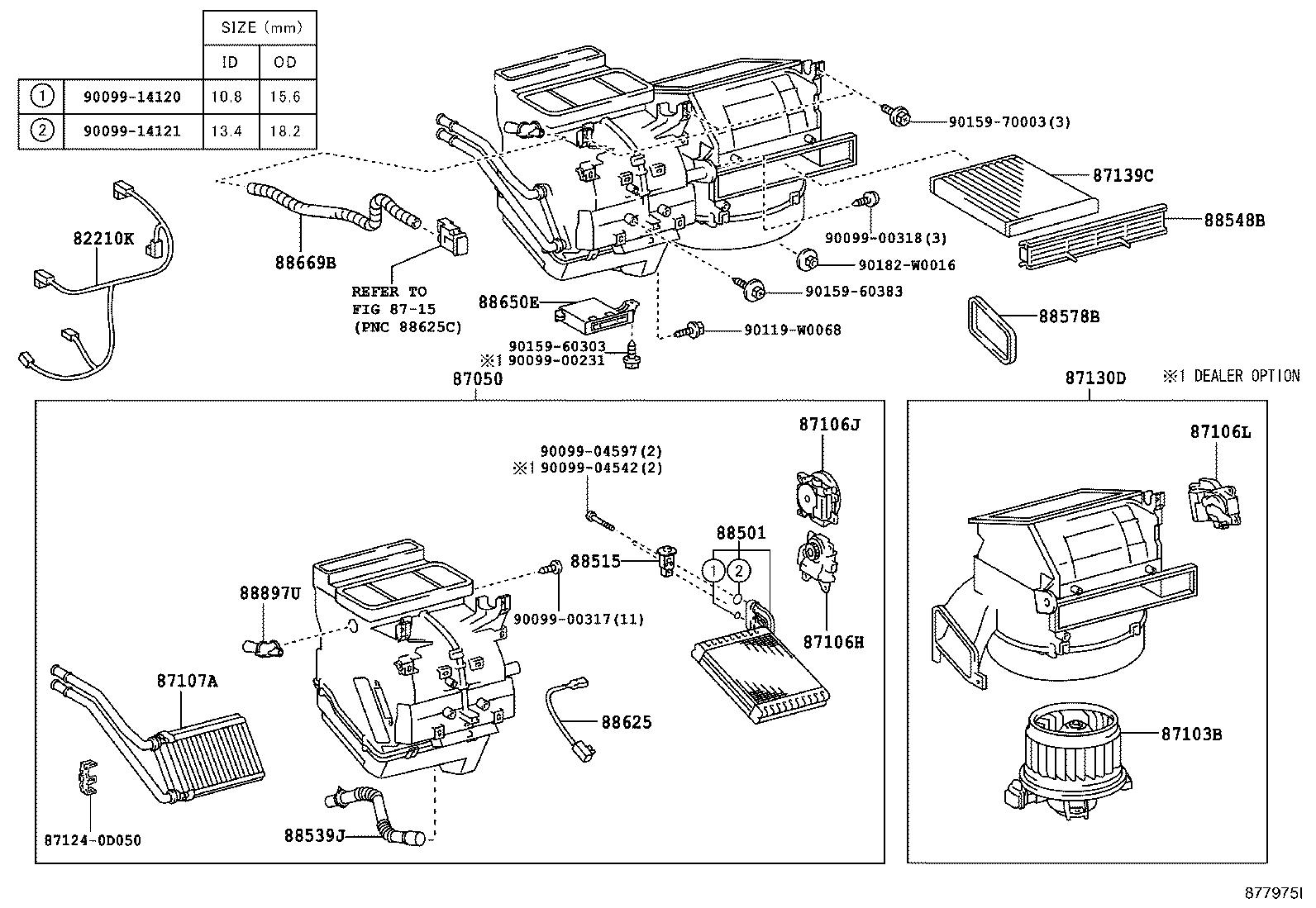

Figure 877971D 877971D 2005-11 → — Figure 877972F 877972F 2005-11 → — Figure 877973G 877973G 2005-11 → — Figure 877974I 877974I 2005-11 → — Figure 877975I 877975I 2005-11 → — Figure 877975I 877975I 2005-11 → — Figure 877976J 877976J 2005-11 → — Figure 877976J 877976J 2005-11 → — Figure 877977E 877977E 2005-11 → — Figure 877978G 877978G 2005-11 → — Figure 877979H 877979H 2005-11 → 2008-11 Figure 877979H 877979H 2008-11 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106L Servo Sub-assy, Damper
87107A Unit Sub-assy, Heater Radiator
87121L Bracket, Heater
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87174G Guide, Air Heater
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88897U Pipe, Aspirator
