Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

34 part groups · 8 illustrations

Illustrations

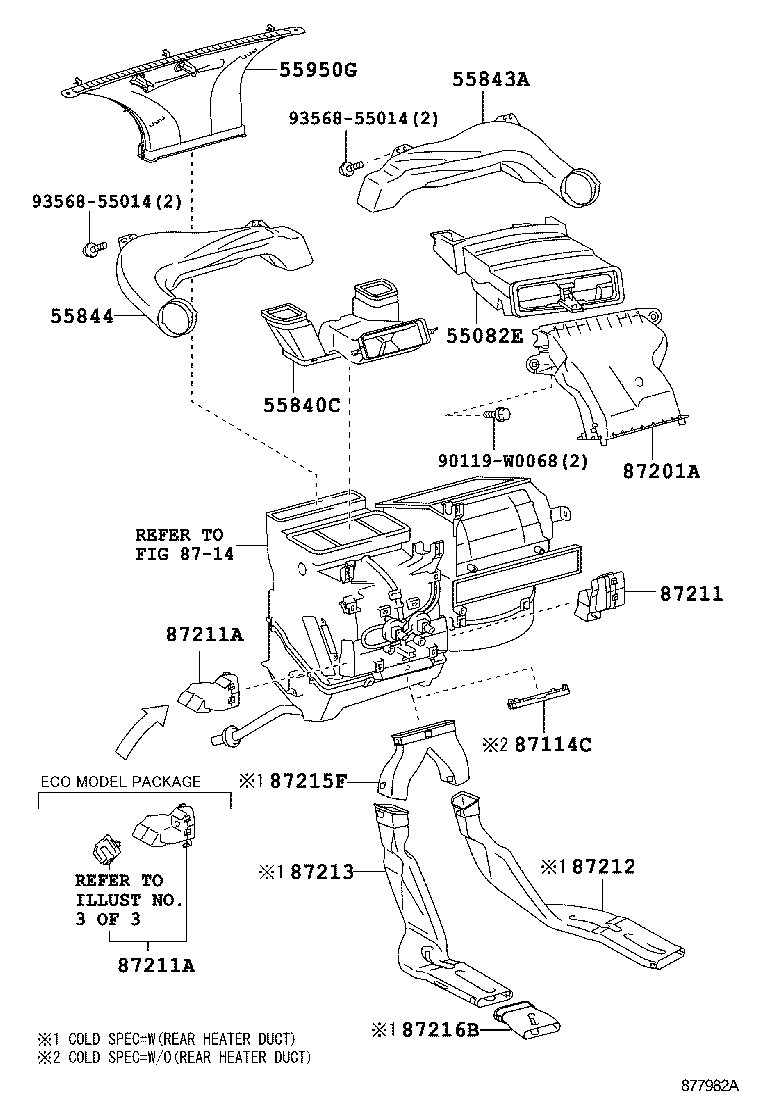

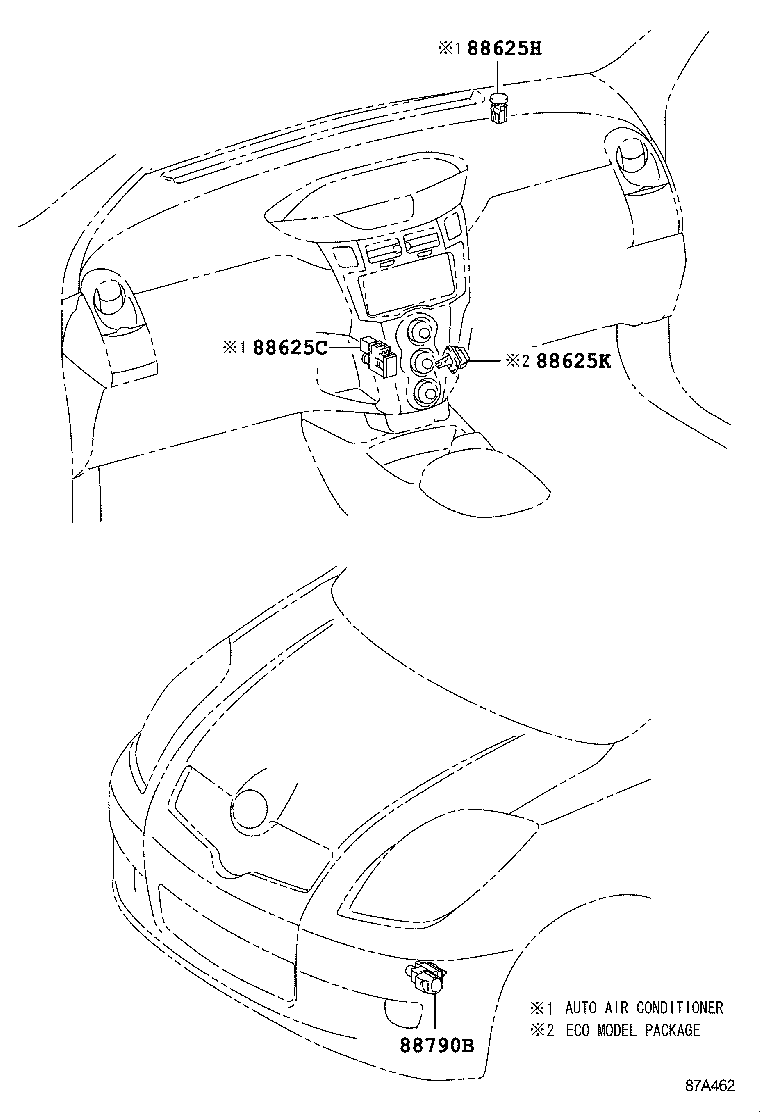

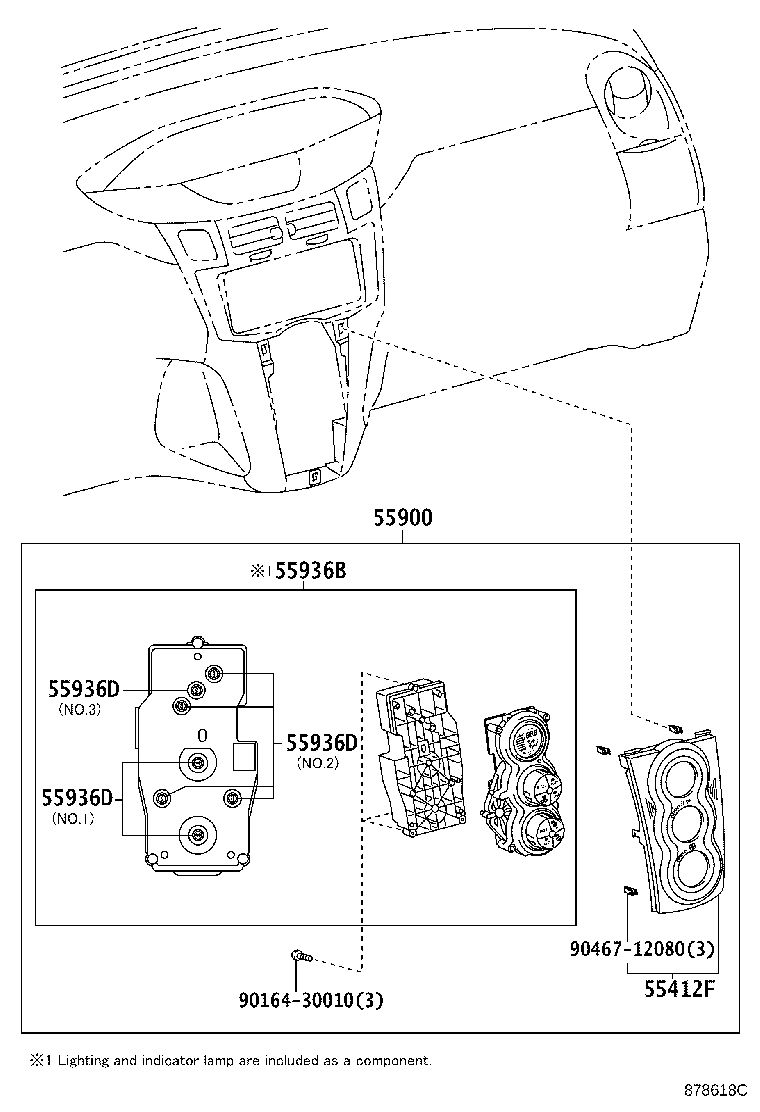

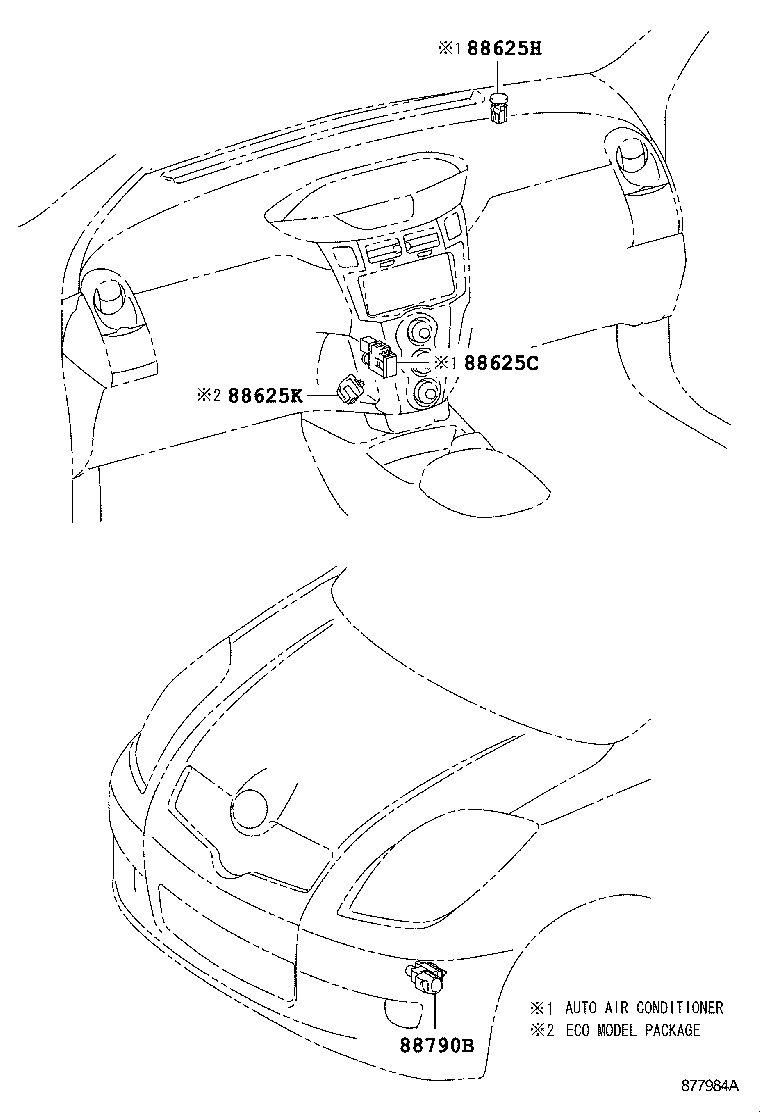

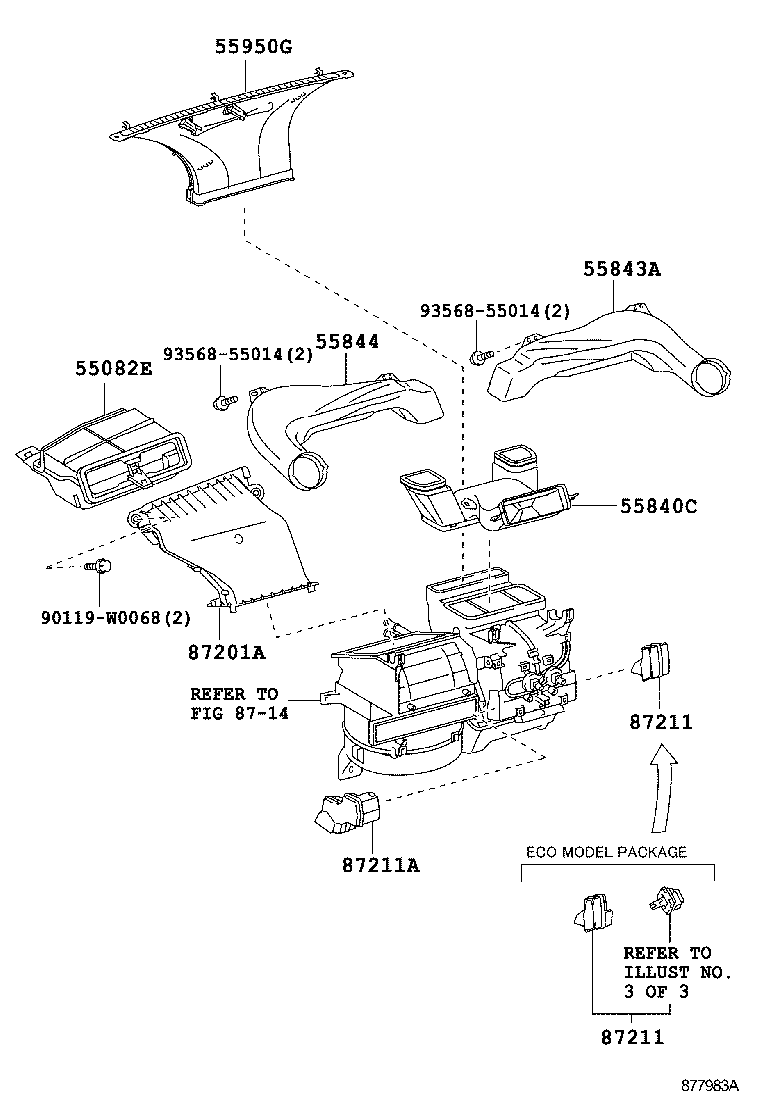

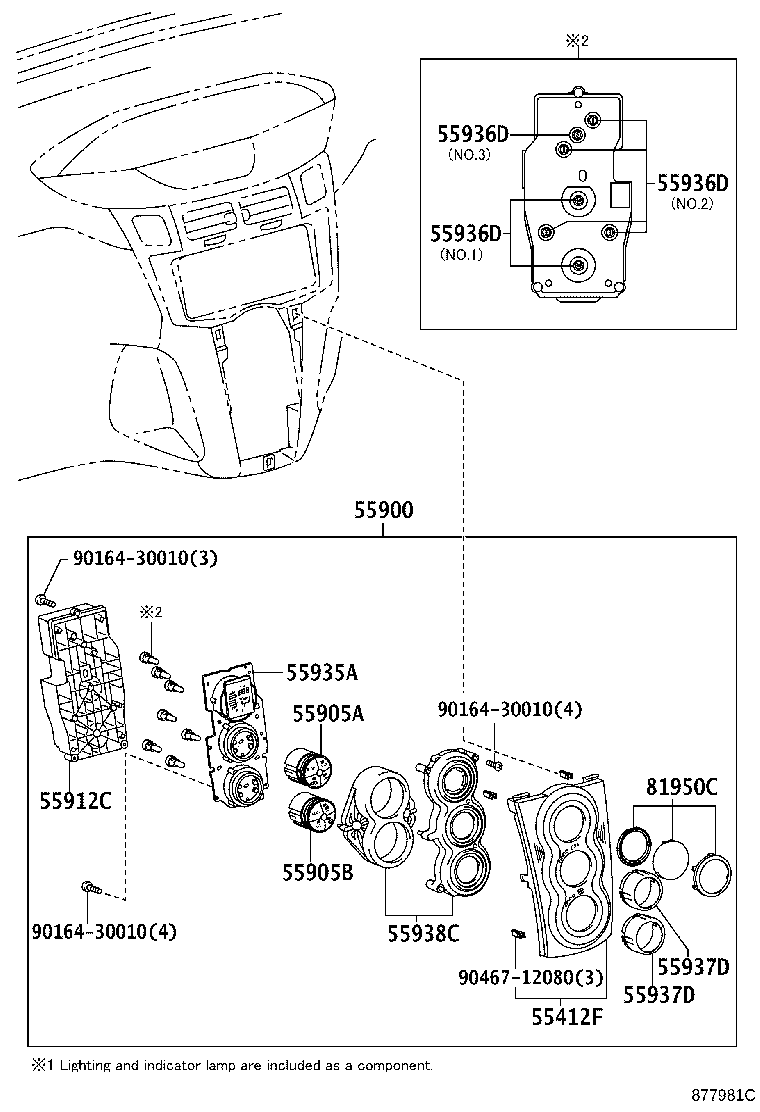

Figure 87F474A 87F474A 2005-11 → — Figure 877981C 877981C 2005-11 → 2006-03 Figure 878618C 878618C 2006-03 → — Figure 878618C 878618C 2009-03 → — Figure 877982A 877982A 2005-11 → — Figure 877983A 877983A 2005-11 → — Figure 877984A 877984A 2005-11 → — Figure 87A462 87A462 2005-11 → —

Part groups

PNCDescription
55082E Duct Sub-assy, Cowl TO Register, NO.2
55412F Panel, Instrument Cluster Finish, Center
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55912C Housing, Heater Control
55935A Circuit, Center Cluster Module
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937D Knob, Center Cluster Module, NO.1
55938C Lens, Center Cluster Module
55950G Nozzle Assy, Defroster
81950C Lens Assy, Center Cluster Module Indicator
87114C Cover, Heater
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
