Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

12 part groups · 9 illustrations

Illustrations

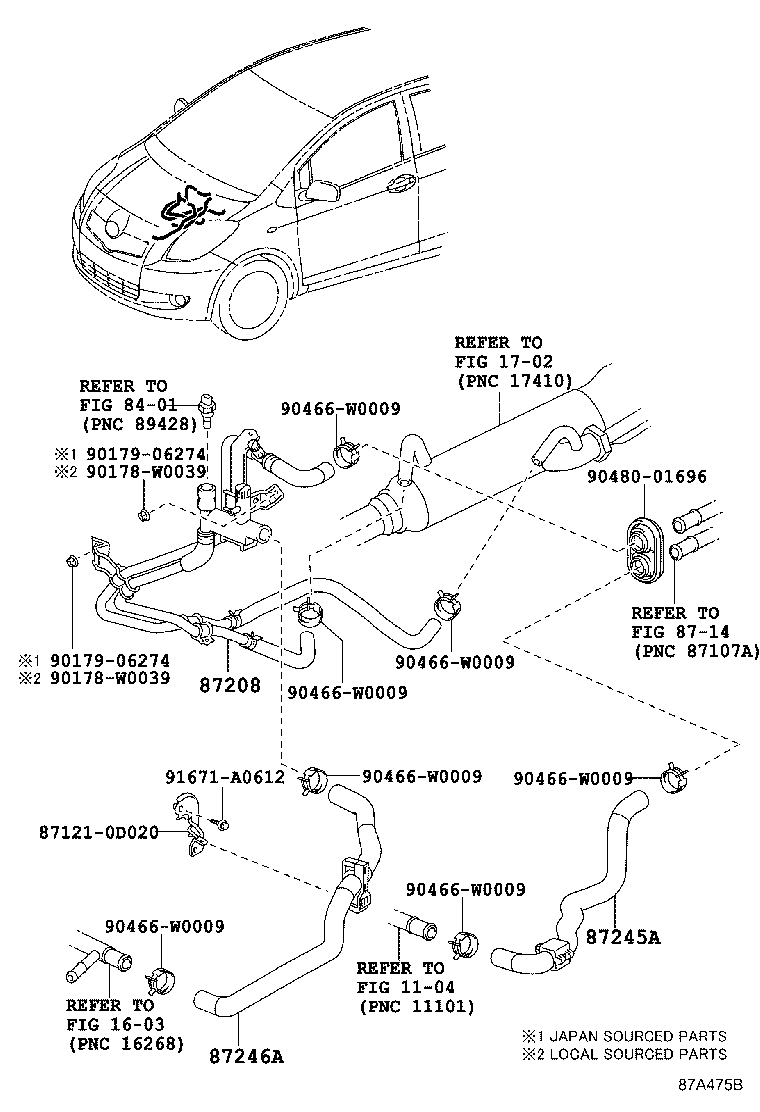

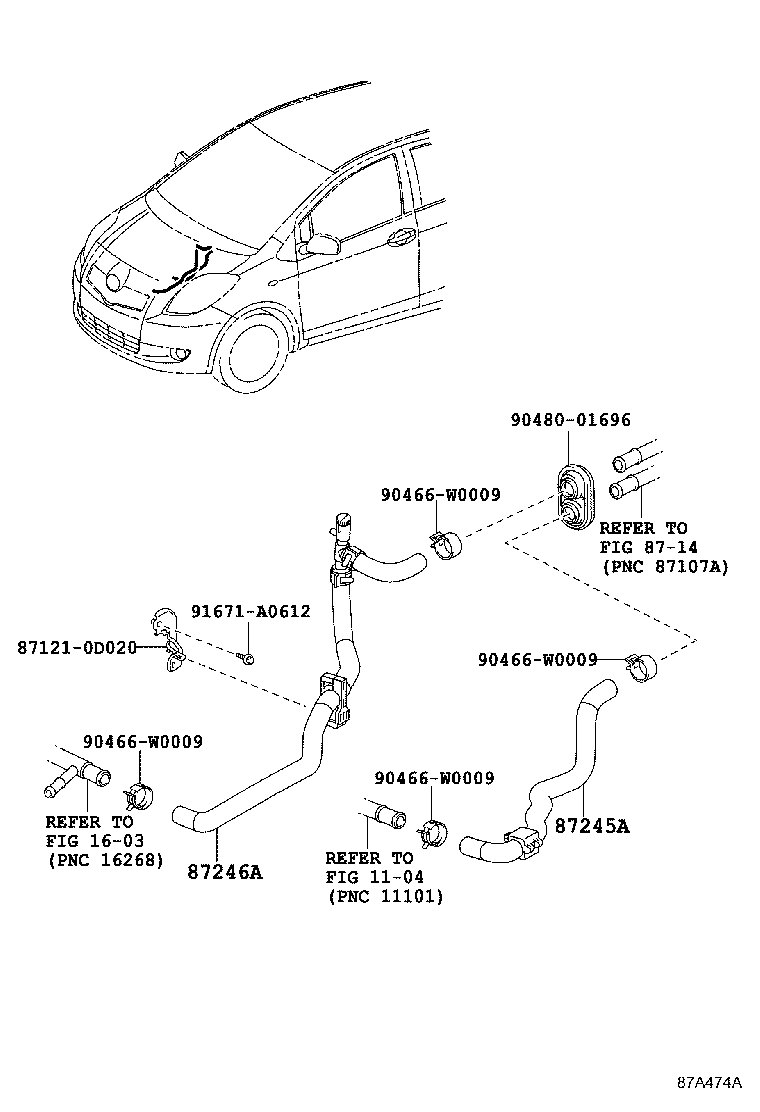

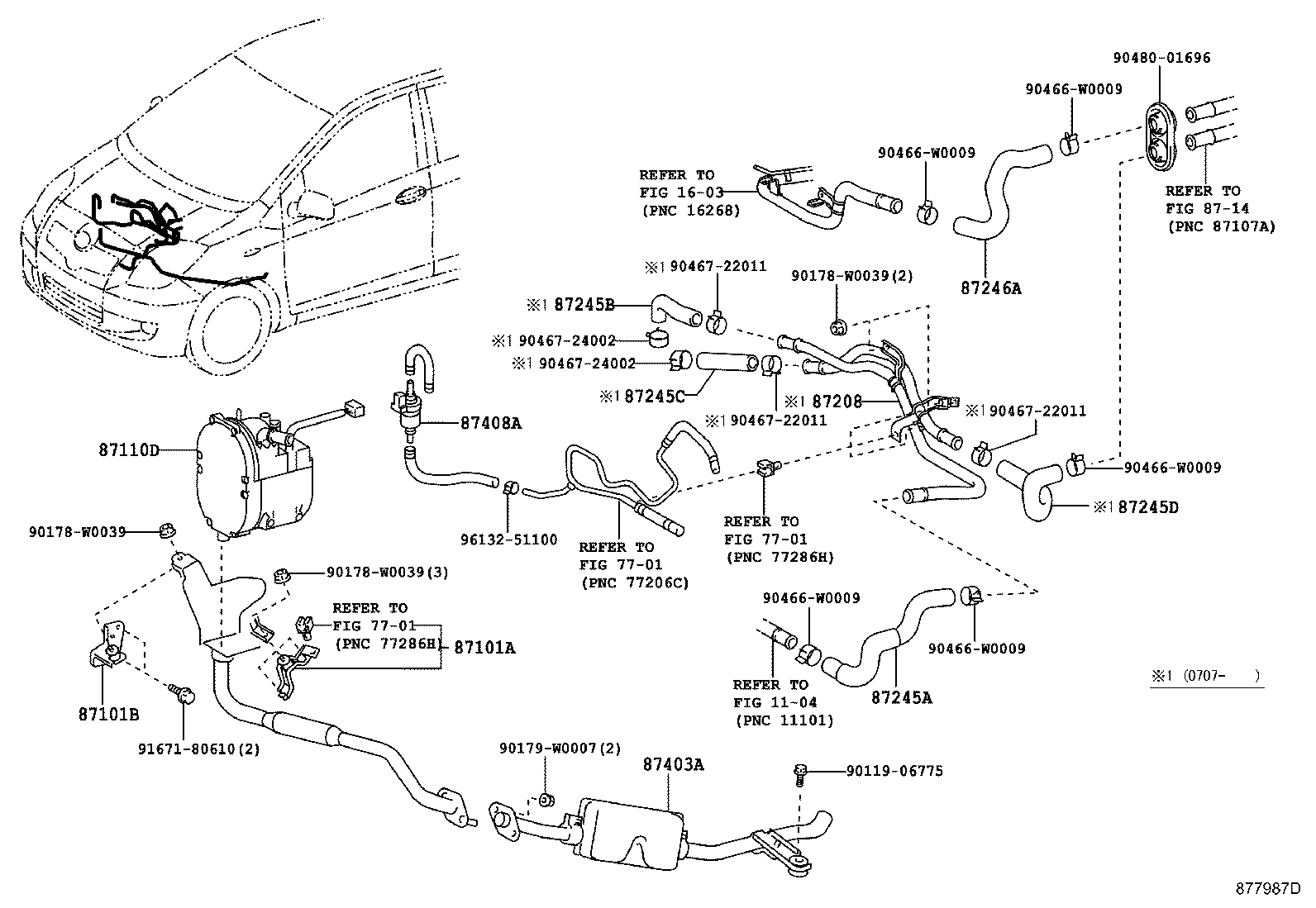

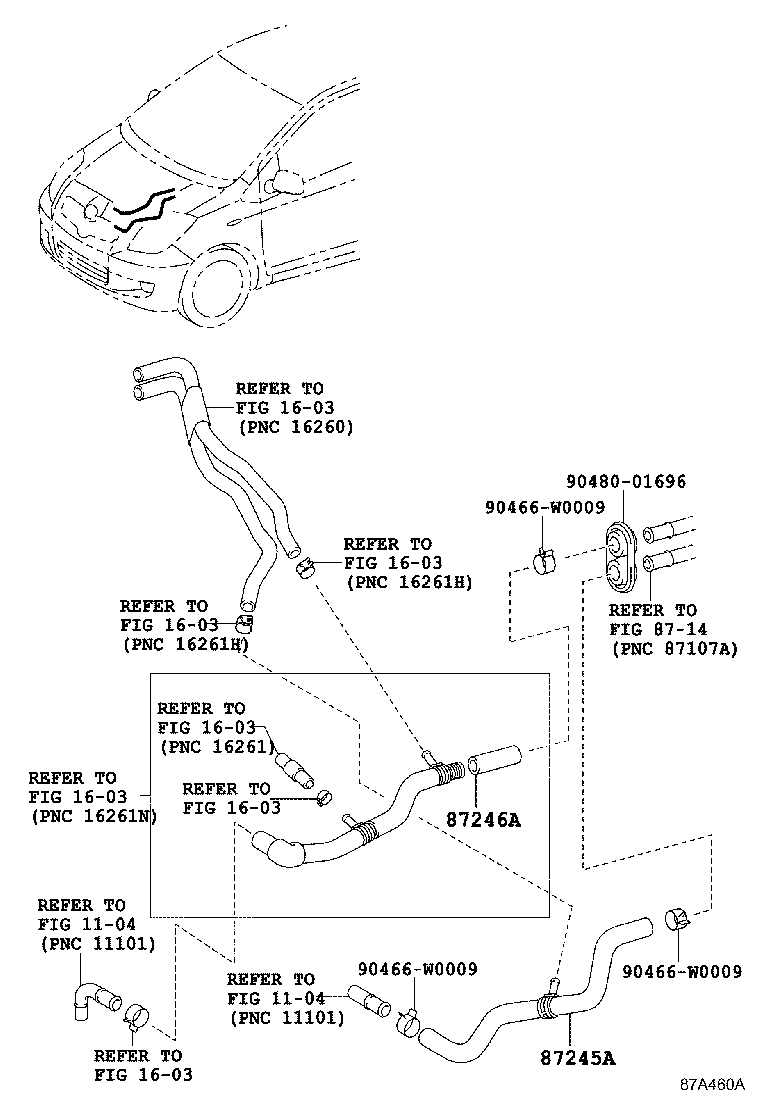

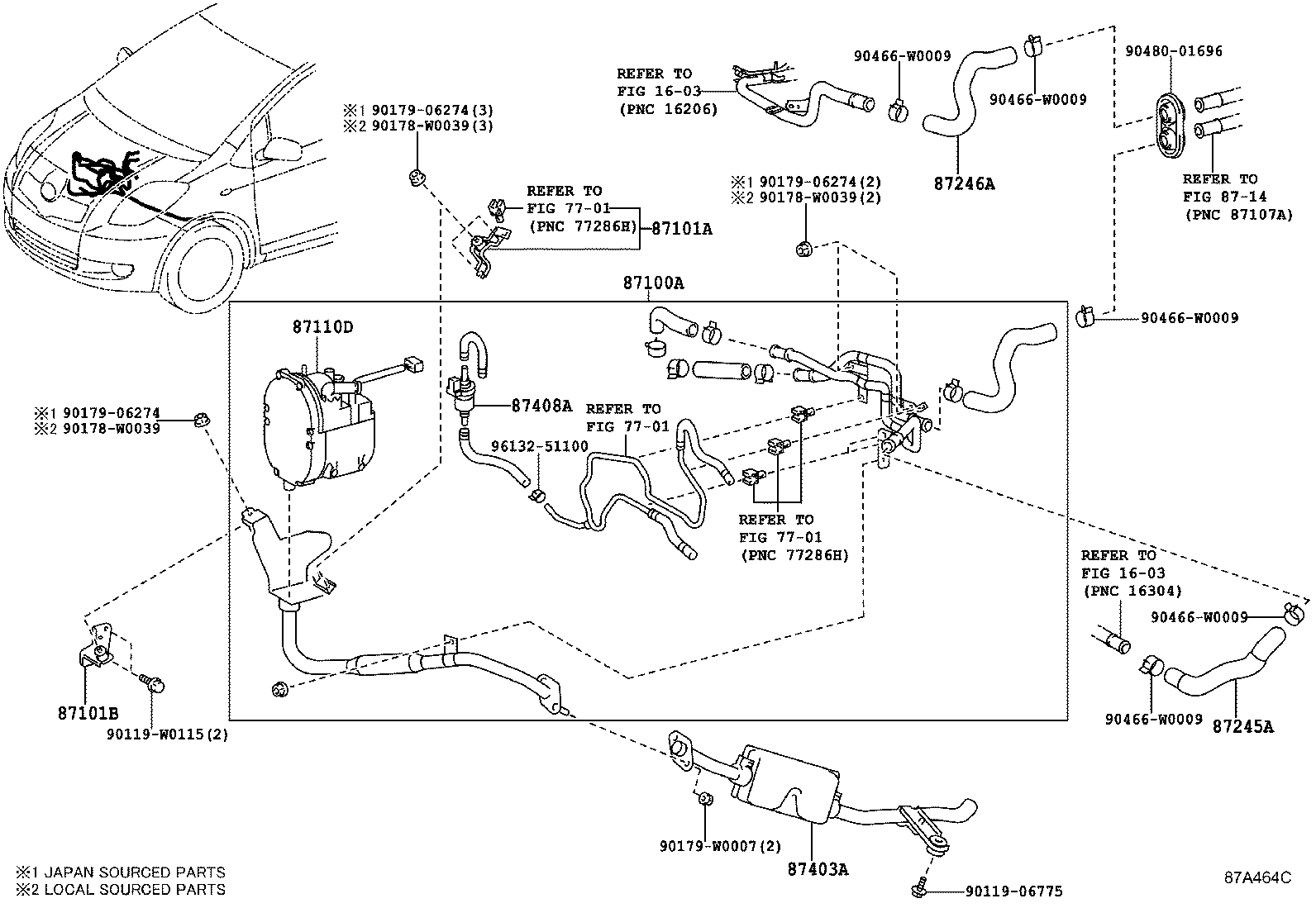

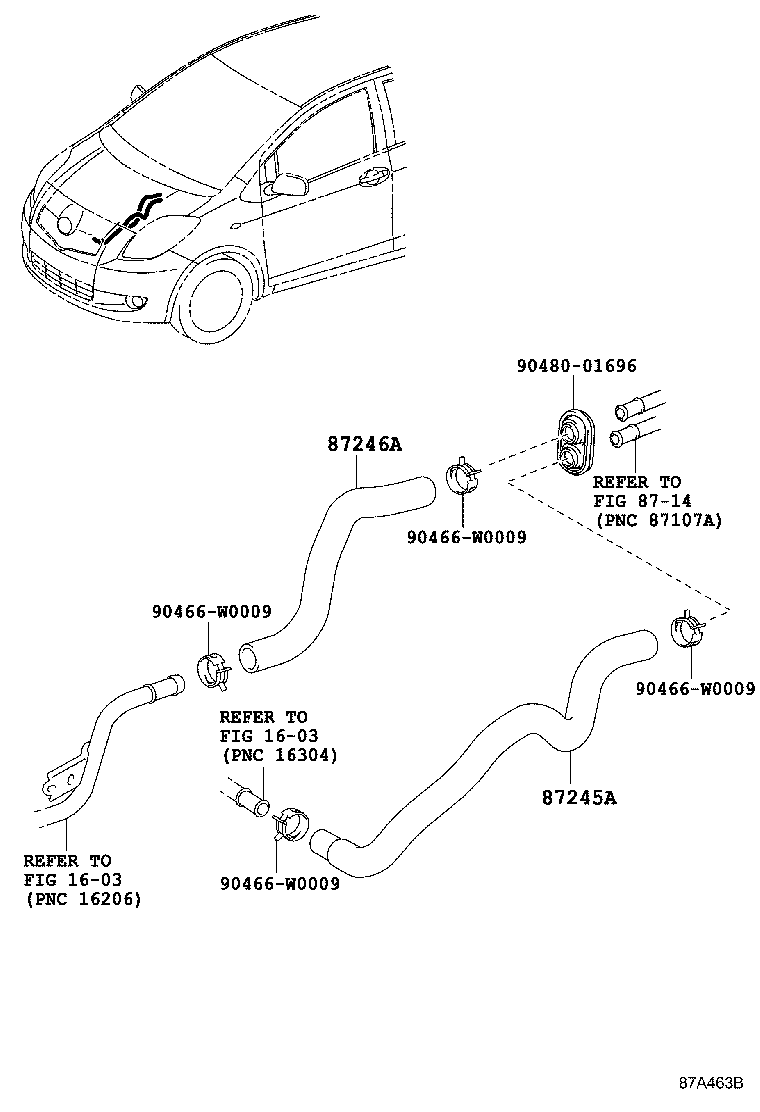

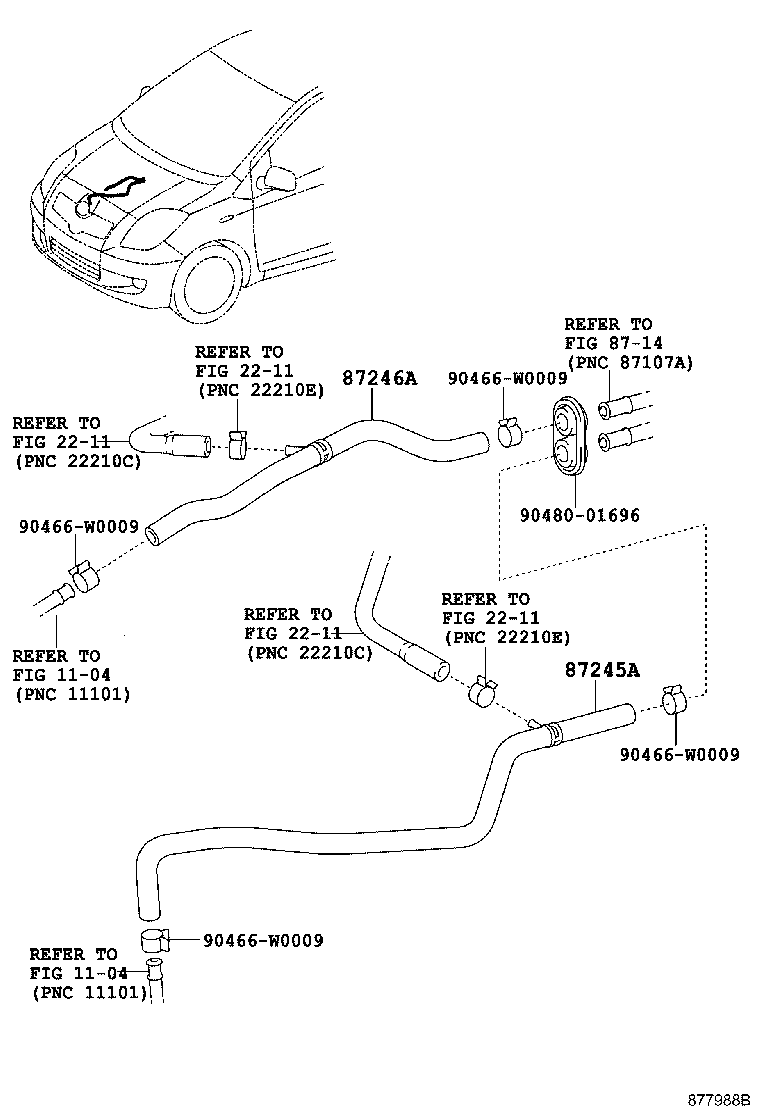

Figure 87A461A 87A461A 2005-11 → 2008-11 Figure 87A460A 87A460A 2008-11 → — Figure 877986B 877986B 2005-11 → 2008-11 Figure 87A463B 87A463B 2008-11 → — Figure 877987D 877987D 2005-11 → 2008-11 Figure 87A464C 87A464C 2008-11 → — Figure 877988B 877988B 2005-11 → 2008-11 Figure 87A474A 87A474A 2008-11 → — Figure 87A475B 87A475B 2008-11 → —

Part groups

PNCDescription
87100A Heater & Accessory Assy
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87110D Heater Assy
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246A Hose, Heater Water, Outlet A
87403A Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
