Heating & Air Conditioning - Cooler Piping

19 part groups · 14 illustrations

Illustrations

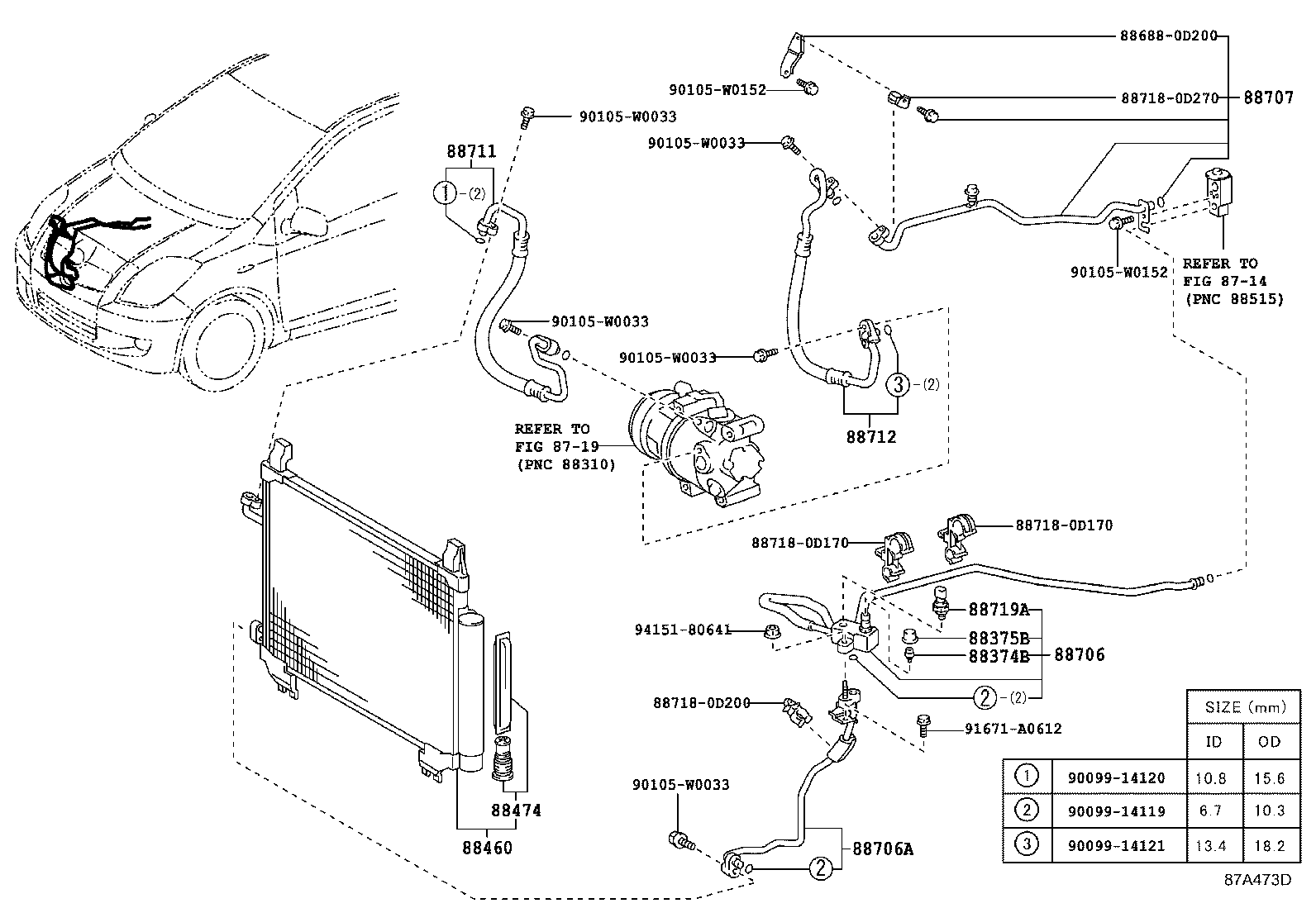

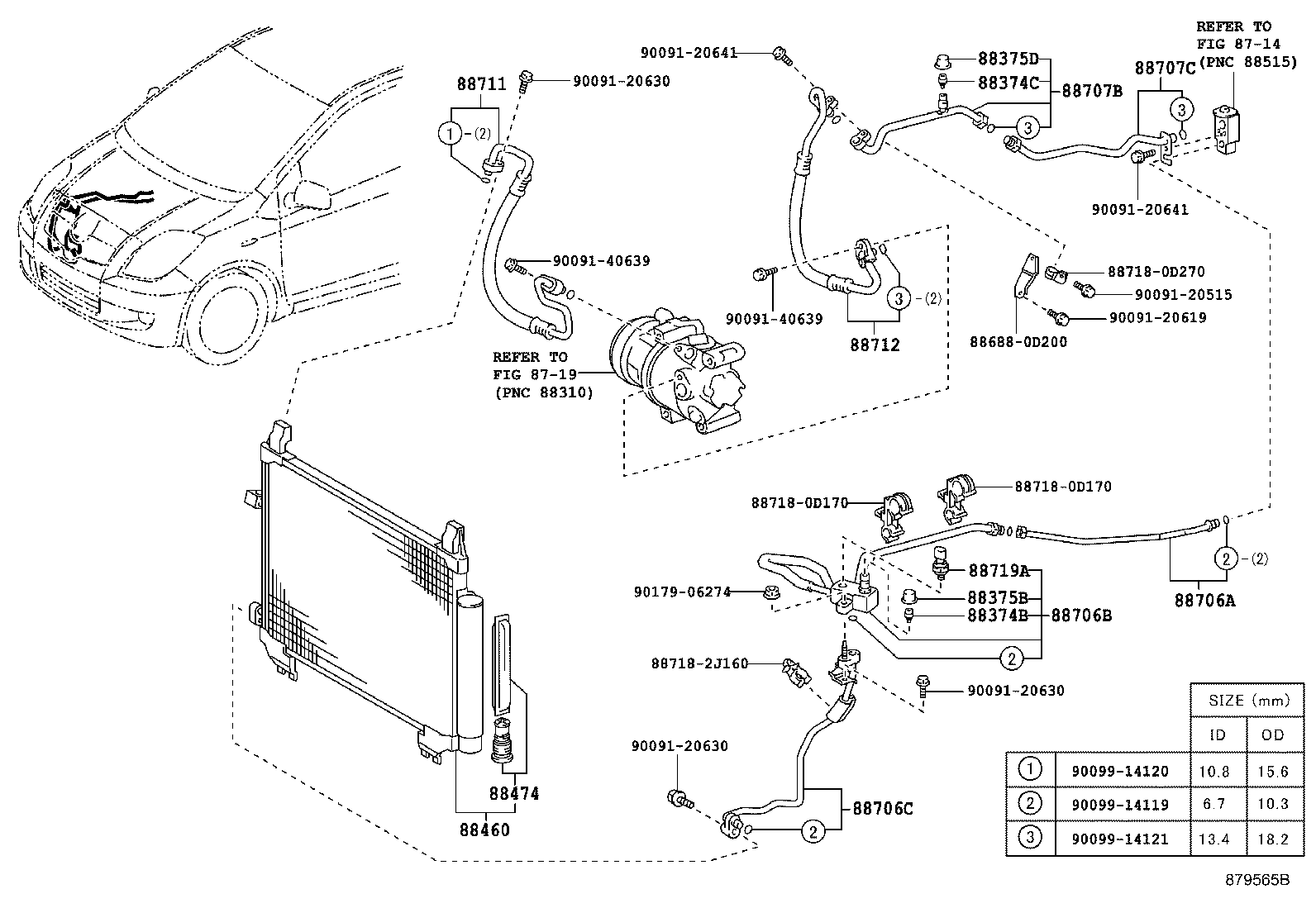

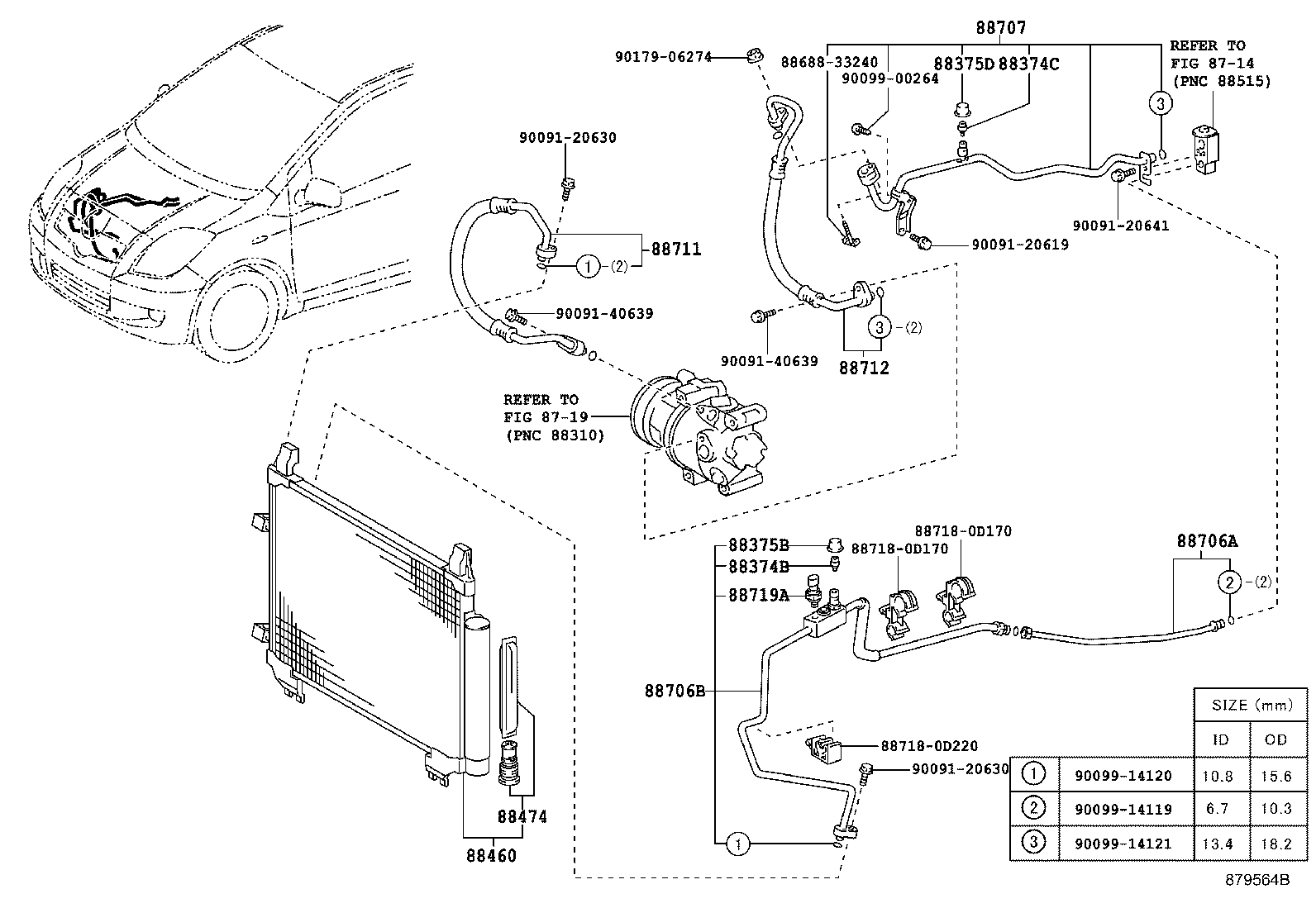

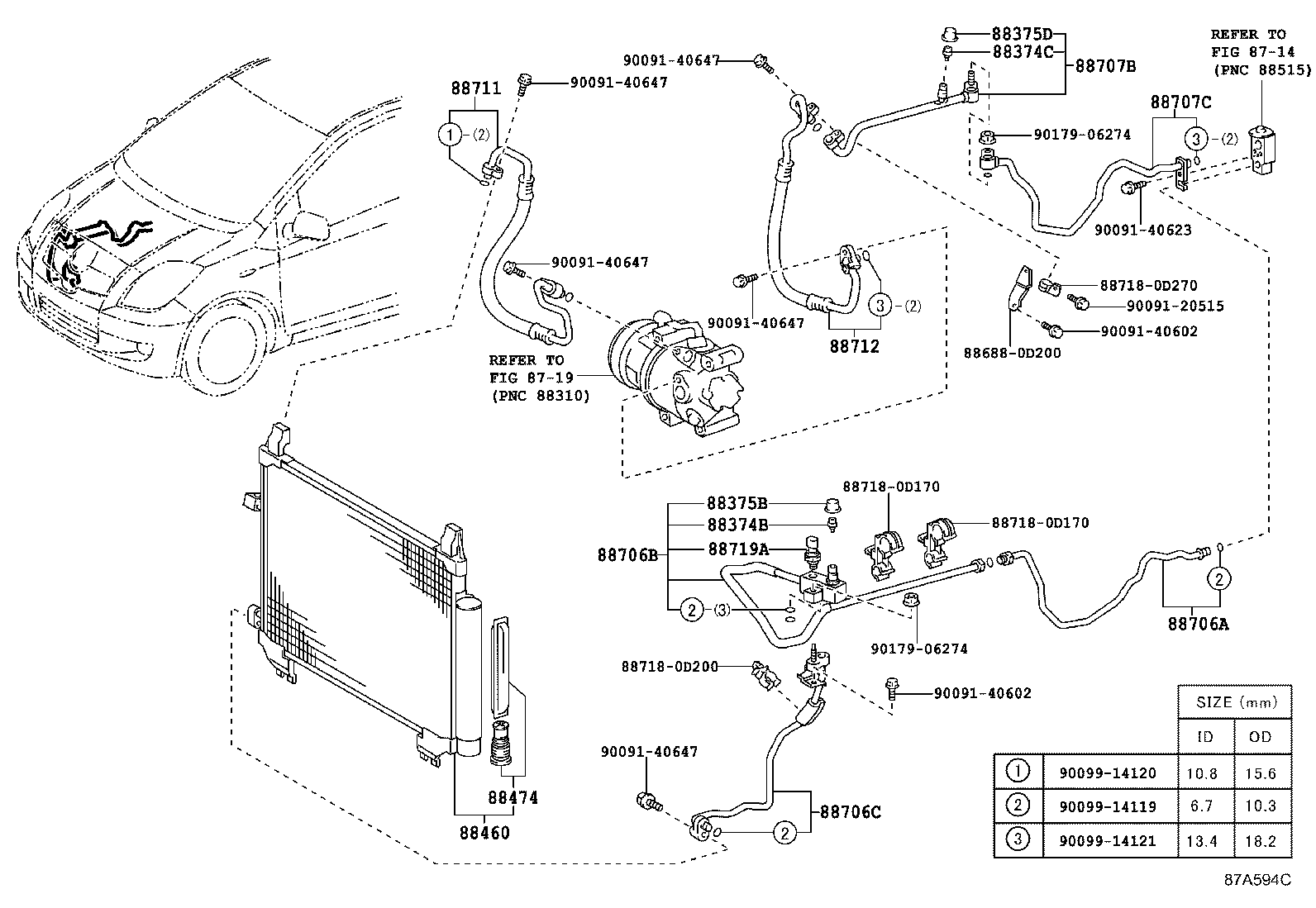

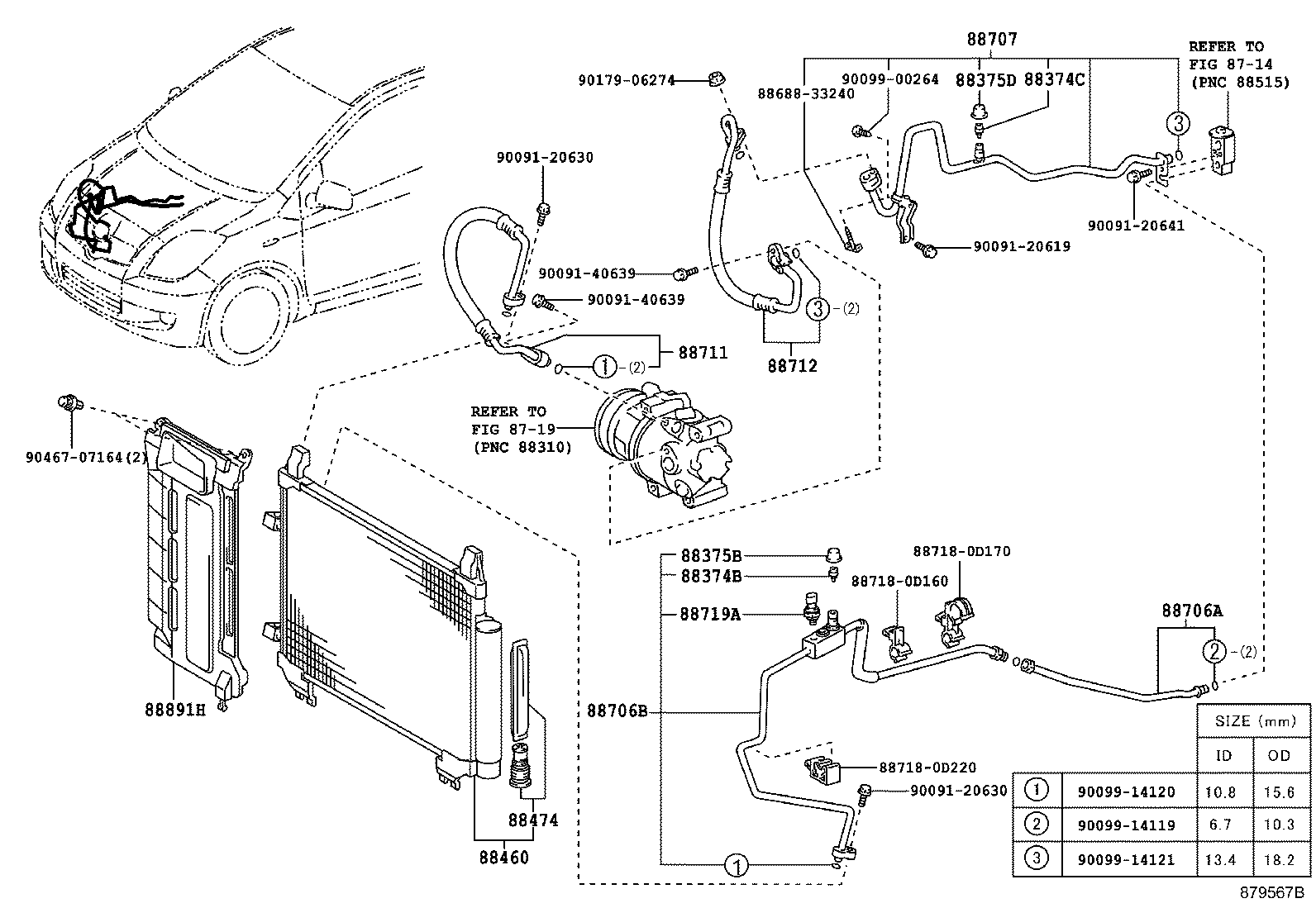

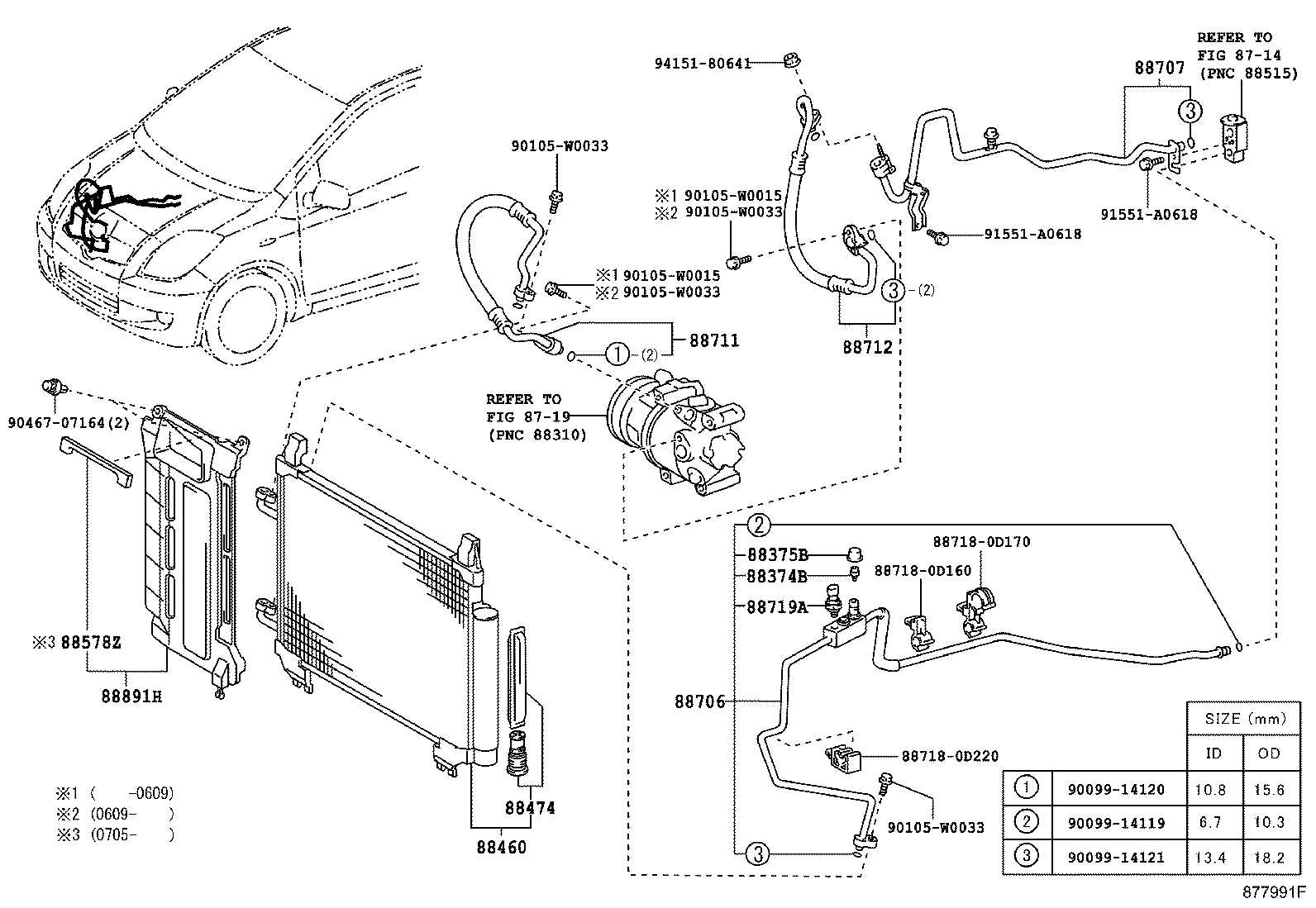

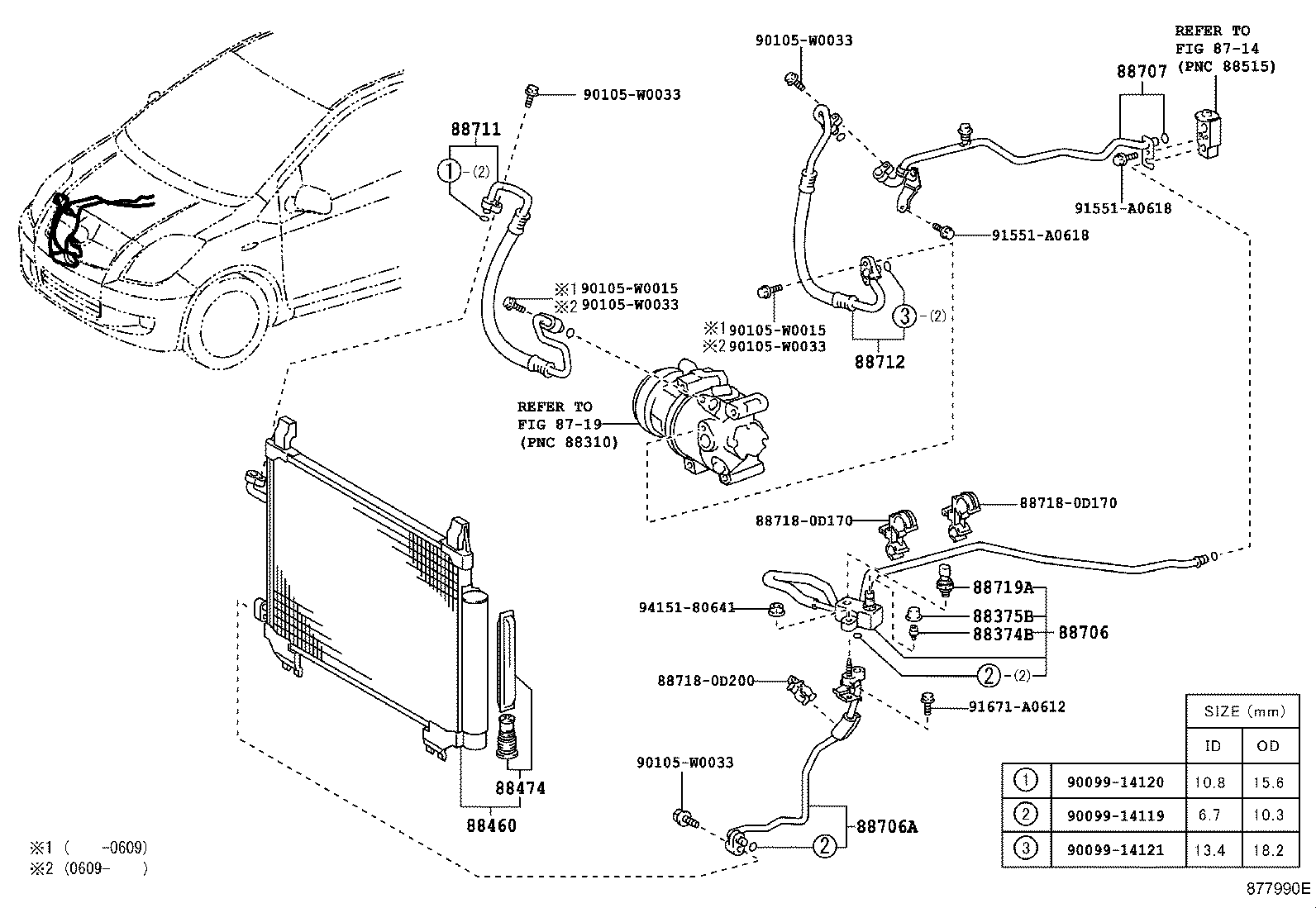

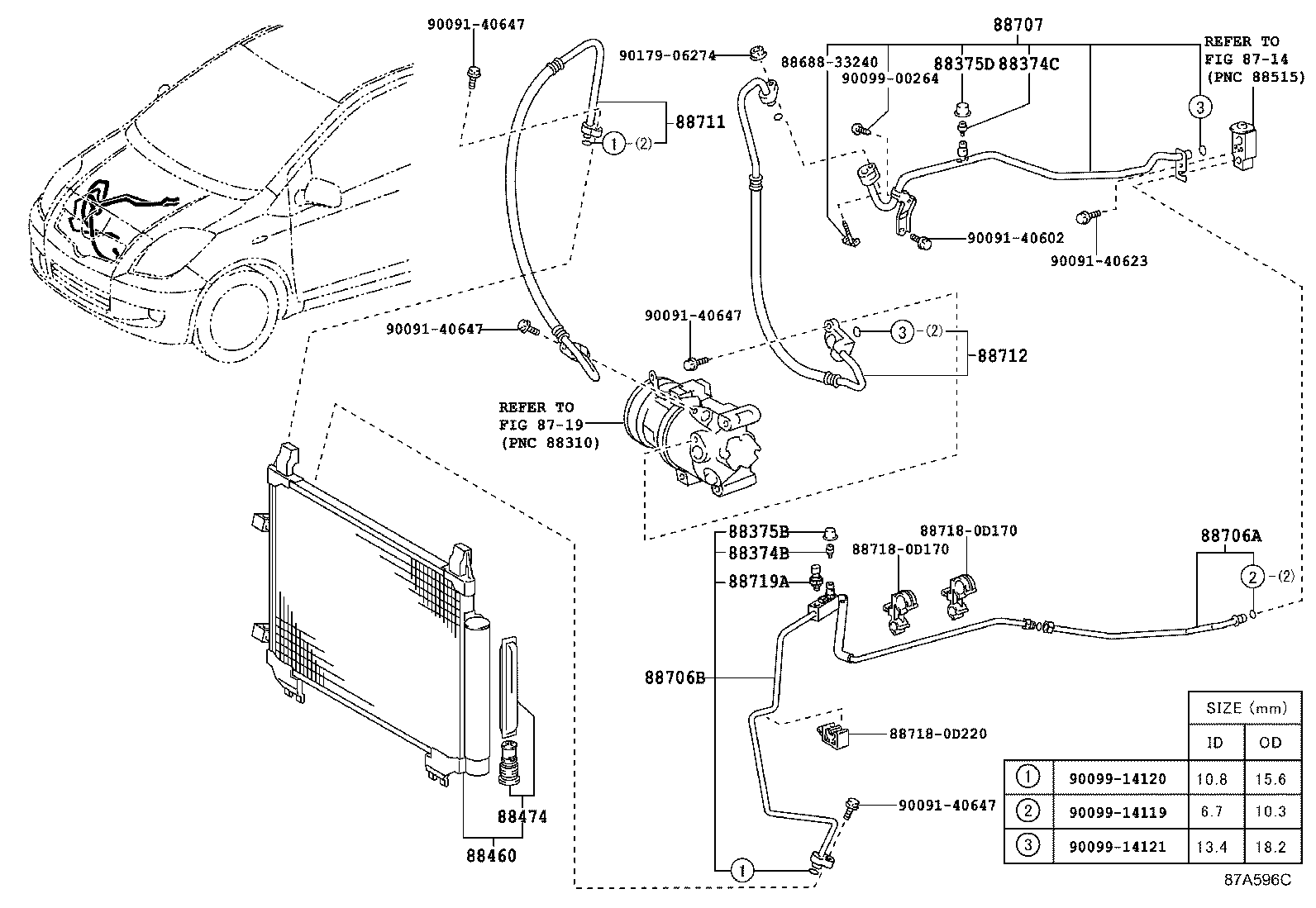

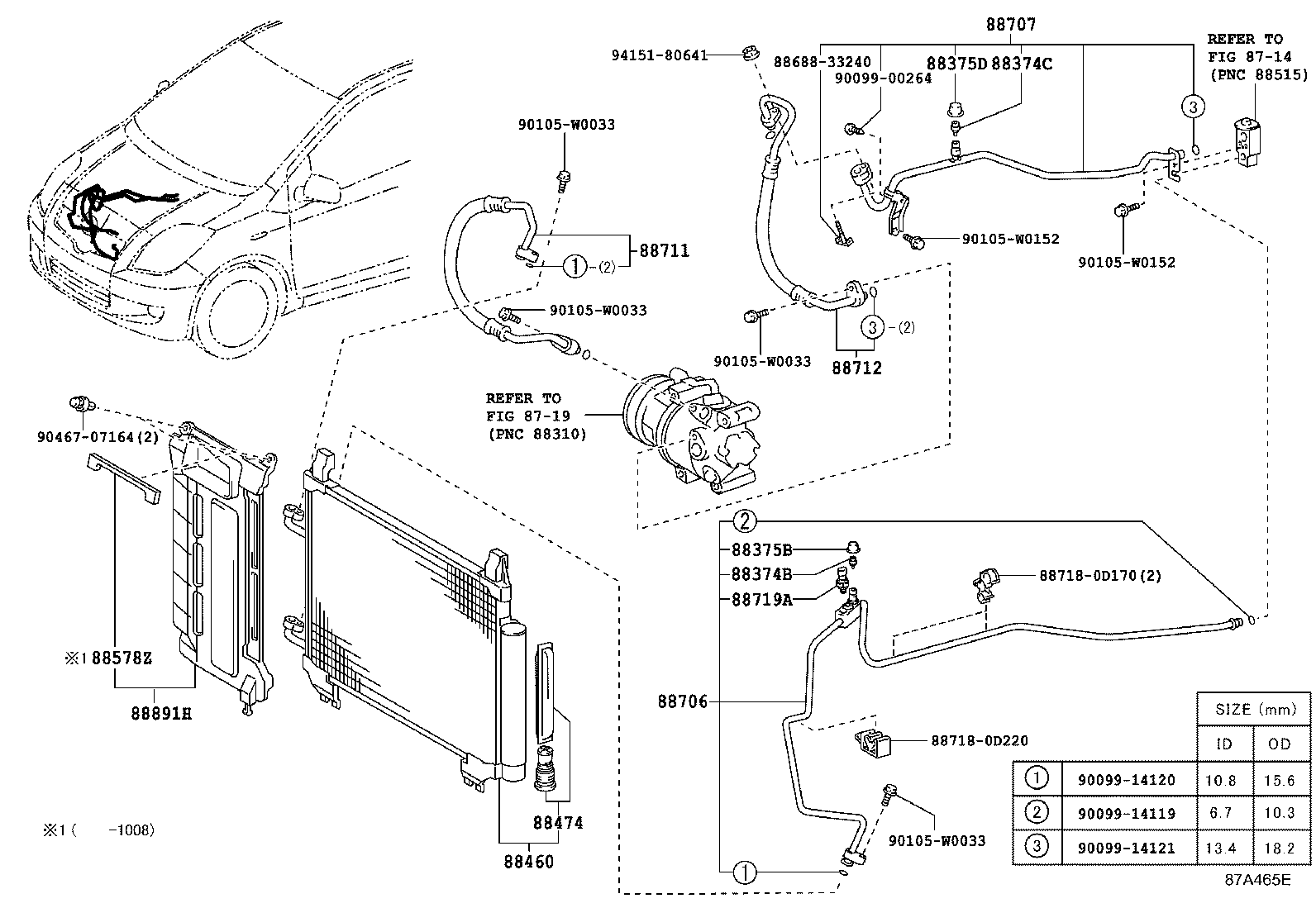

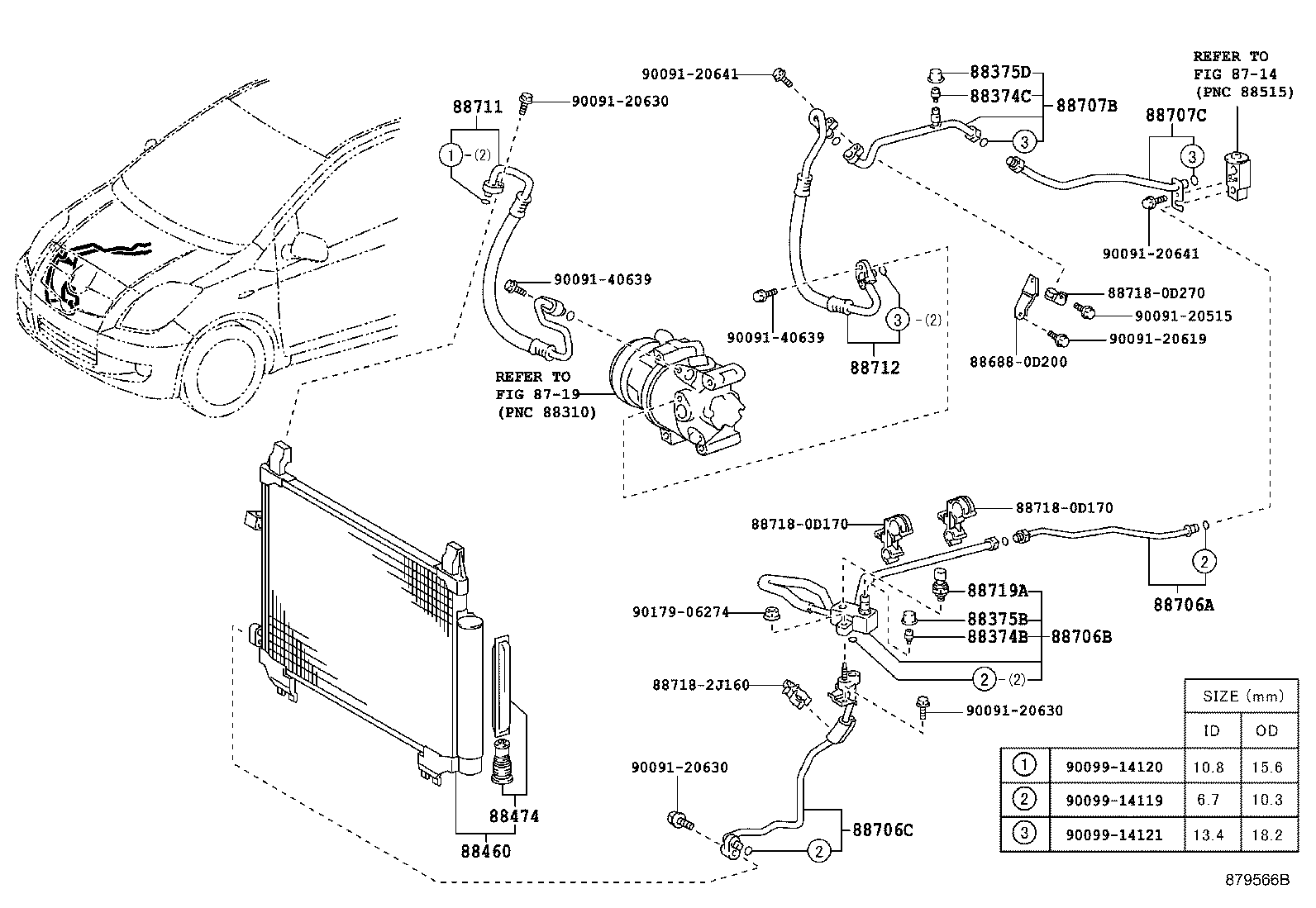

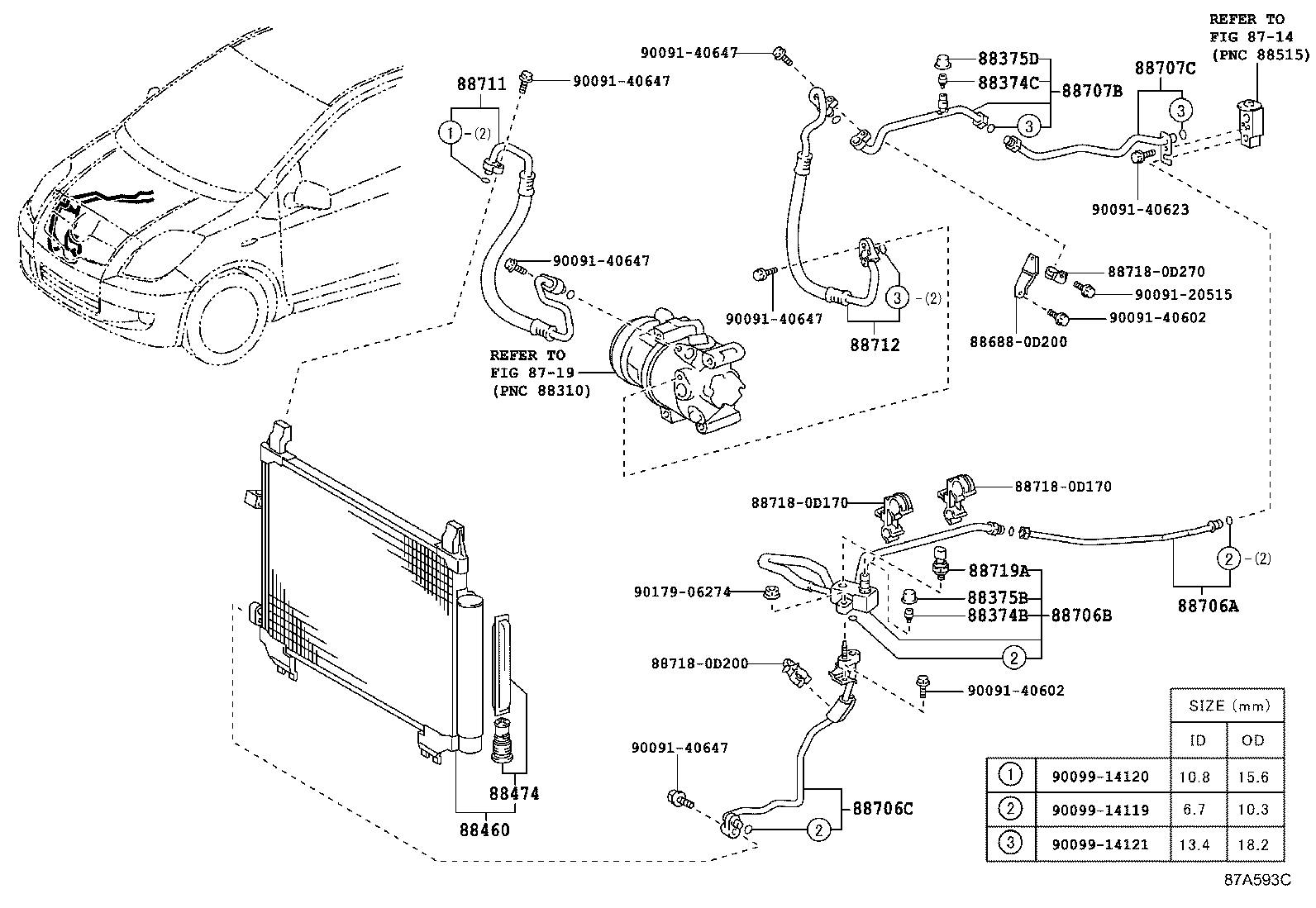

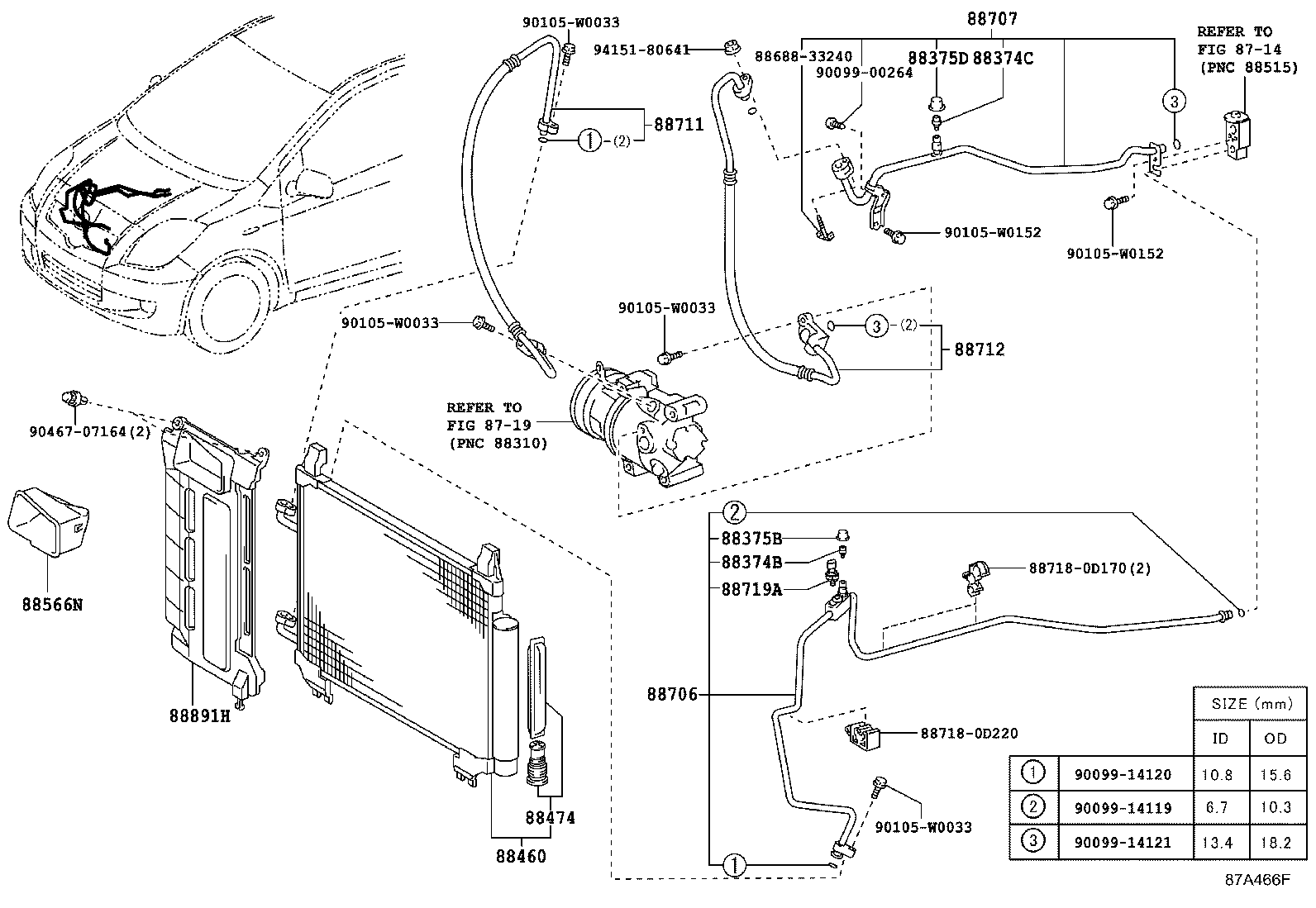

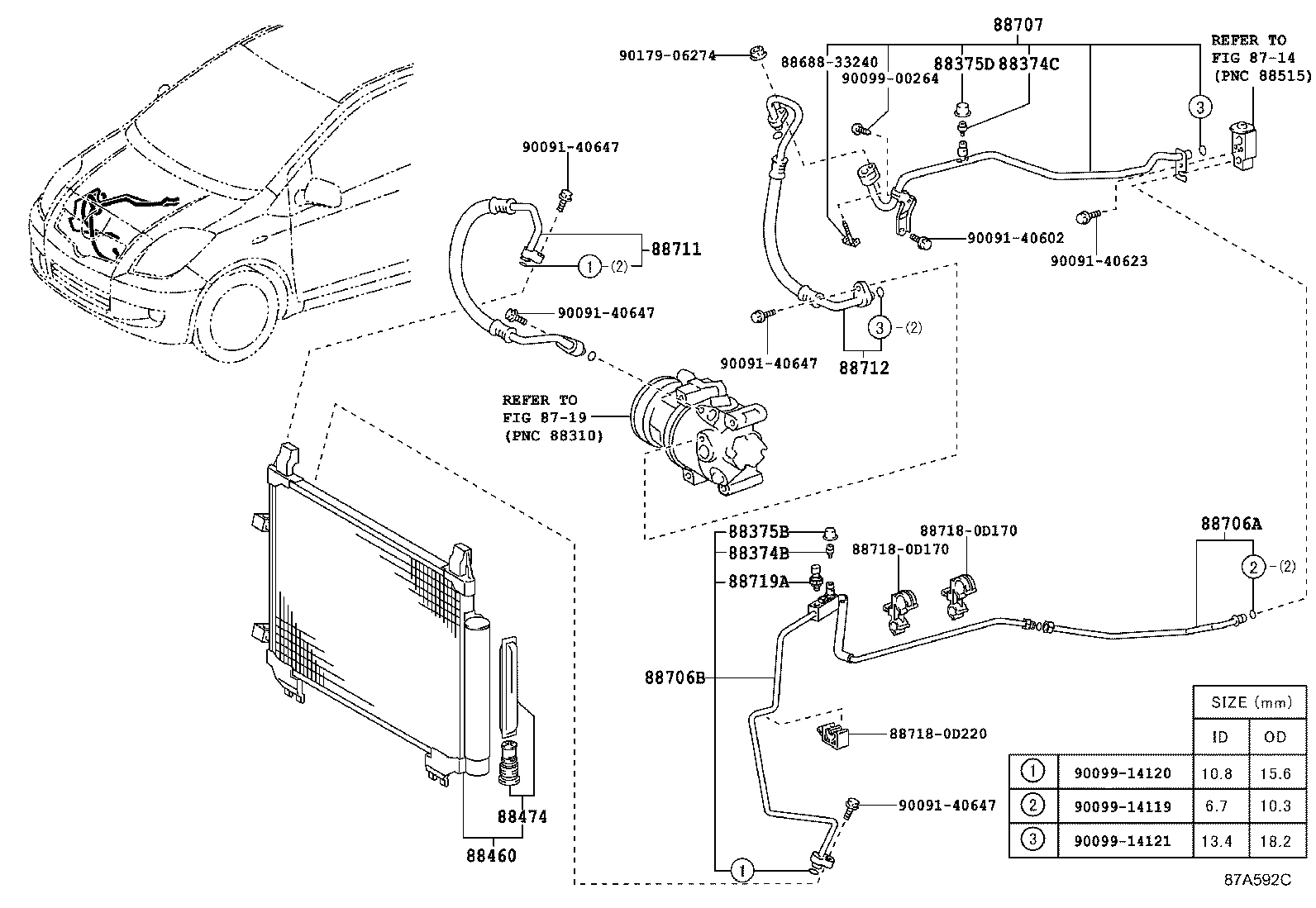

Figure 877989G 877989G 2005-11 → 2008-11 Figure 87A465E 87A465E 2008-11 → — Figure 879564B 879564B 2005-11 → 2008-11 Figure 87A592C 87A592C 2008-11 → — Figure 877990E 877990E 2005-11 → 2008-11 Figure 879565B 879565B 2005-11 → 2008-11 Figure 879566B 879566B 2005-11 → 2008-11 Figure 87A473D 87A473D 2008-11 → — Figure 87A593C 87A593C 2008-11 → — Figure 87A594C 87A594C 2008-11 → — Figure 877991F 877991F 2005-11 → 2008-11 Figure 879567B 879567B 2005-11 → — Figure 87A466F 87A466F 2008-11 → — Figure 87A596C 87A596C 2008-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88578Z Packing, Cooler, NO.1
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
