Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 5 illustrations

Illustrations

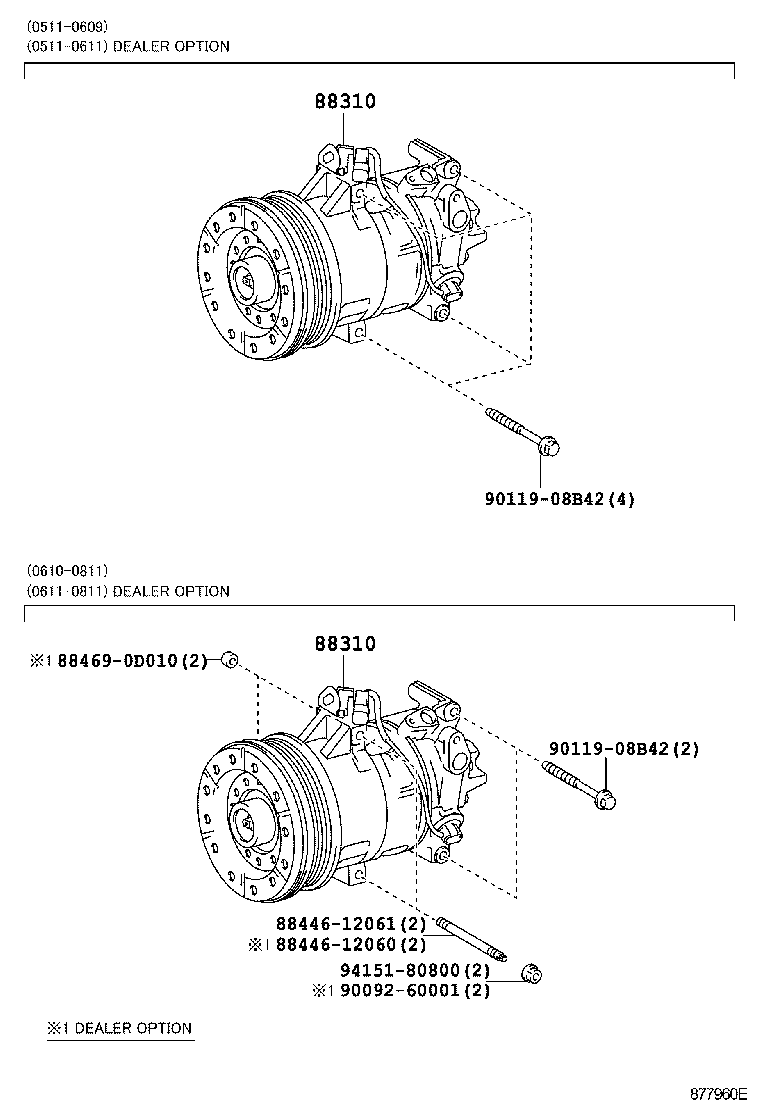

Figure 877959 877959 2005-11 → 2008-11 Figure 877959 877959 2005-11 → — Figure 877960E 877960E 2005-11 → 2008-11 Figure 87A468E 87A468E 2008-11 → — Figure 87A467E 87A467E 2008-11 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88446D Bolt, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
