Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

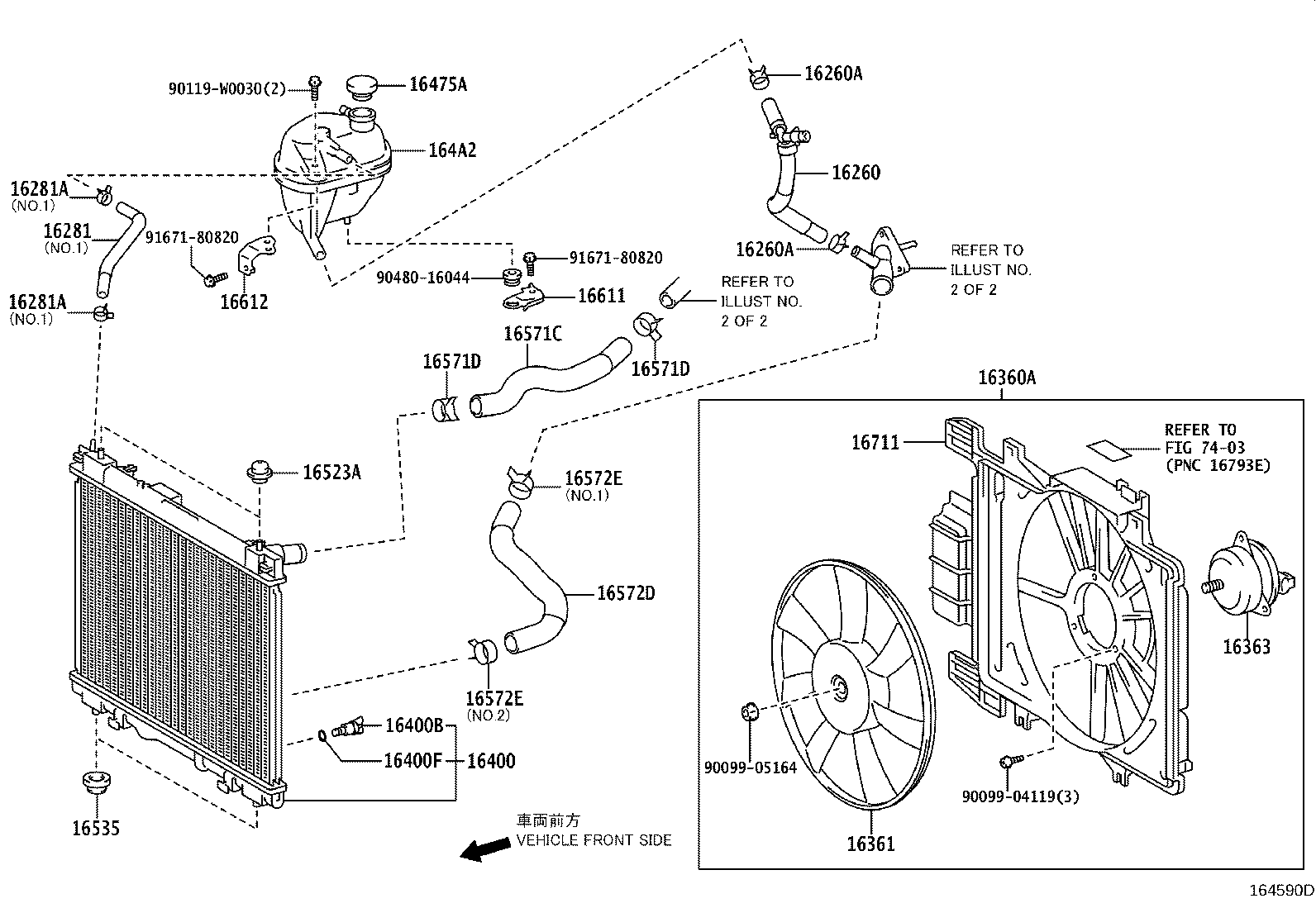

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16260 — Hose Assy, Water By-pass | ||||
| 16260-0Q080 |
Hose Assy, Water By-pass
2011-07 → 2014-07
ended
|
1KRFE KSP130 | — | |
| 16260-0Y030 |
Hose Assy, Water By-pass
2011-07 → 2014-07
ended
|
1NRFE NSP130 CVFC | — | |
| 16260-33100 |
Hose Assy, Water By-pass
2011-07 → 2014-07
ended
|
1NDTV NLP130 | — | |
| 16260A — Clip(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-W0007 |
Clip(FOR WATER BY-PASS HOSE ASSY)
2012-06 → —
|
1NDTV NLP130 | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE ASSY)
2011-07 → 2012-05
ended
|
1NDTV NLP130 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0N070 note |
Hose, Water By-pass, NO.4
2011-07 → —
|
1NDTV NLP130 | — | |
| 16281-21050 |
Hose, Water By-pass, NO.4
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16281-33030 note |
Hose, Water By-pass, NO.4
2011-07 → —
|
1NDTV NLP130 | — | |
| 16281-33060 note |
Hose, Water By-pass, NO.4
2011-07 → —
|
1NDTV NLP130 | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2011-07 → —
|
1NDTV NLP130 | — | |
| 96136-52101 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2011-07 → —
|
1NDTV NLP130 | — | |
| 96137-41901 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16360A — Fan Assy, W/Motor | ||||
| 16360-0N051 |
Fan Assy, W/Motor
2011-07 → —
|
1NDTV NLP130 | — | |
| 16360-0Q031 note |
Fan Assy, W/Motor
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16360-0Q031 note |
Fan Assy, W/Motor
2011-07 → —
|
1KRFE KSP130 | — | |
| 16360-0Q040 |
Fan Assy, W/Motor
2011-07 → —
|
1KRFE KSP130 | — | |
| 16360-0Y040 |
Fan Assy, W/Motor
2011-07 → —
|
1NRFE NSP130 | — | |
| 16361 — Fan | ||||
| 16361-0M100 |
Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16361-0N030 |
Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16361-0Q030 note |
Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16361-0Q030 |
Fan
2011-07 → —
|
1NRFE NSP130 | — | |
| 16361-0Q030 note |
Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16361-0Q040 |
Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-0D090 note |
Motor, Cooling Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16363-0D090 |
Motor, Cooling Fan
2011-07 → —
|
1NRFE NSP130 | — | |
| 16363-0D090 note |
Motor, Cooling Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16363-0G050 |
Motor, Cooling Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16363-0M060 |
Motor, Cooling Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16363-23010 |
Motor, Cooling Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16400 — Radiator Assy | ||||
| 16400-0N050 |
Radiator Assy
2011-07 → —
|
1NDTV NLP130 | — | |
| 16400-0Q040 |
Radiator Assy
2011-07 → —
|
1KRFE KSP130 | — | |
| 16400-0Q060 note |
Radiator Assy
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16400-0Y060 |
Radiator Assy
2011-07 → —
|
1NRFE NSP130 | — | |
| 16400-0Y070 note |
Radiator Assy
2011-07 → 2013-03
ended
|
1NRFE NSP130 LHD | — | |
| 16400-21330 |
Radiator Assy
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-0Q040 |
Plug, Radiator Drain Cock
2011-07 → —
|
1KRFE KSP130 | — | |
| 16417-0Q040 |
Plug, Radiator Drain Cock
2011-07 → —
|
1NDTV,1NRFE NLP130,NSP130 | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2011-07 → —
|
1KRFE KSP130 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-51010 |
Cap, Reserve Tank
2011-07 → —
|
1NDTV NLP130 | — | |
| 164A2 — Tank, Reserve Sealed W/O Cap | ||||
| 164A2-0N020 |
Tank, Reserve Sealed W/O Cap
2011-07 → —
|
1NDTV NLP130 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-0Q020 |
Cushion, Radiator Support
2011-07 → —
|
1KRFE KSP130 | — | |
| 16523-0Q020 |
Cushion, Radiator Support
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16535 — Support, Radiator, Lower | ||||
| 90480-W0005 |
Support, Radiator, Lower
2011-07 → —
|
1KRFE KSP130 | — | |
| 90480-W0005 |
Support, Radiator, Lower
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-0M060 |
Hose, Radiator, NO.1
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16571-0N060 |
Hose, Radiator, NO.1
2011-07 → —
|
1NDTV NLP130 | — | |
| 16571-0Q021 |
Hose, Radiator, NO.1
2011-07 → —
|
1KRFE KSP130 | — | |
| 16571-47080 |
Hose, Radiator, NO.1
2011-07 → —
|
1NRFE NSP130 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90466-W0011 |
Clip, Radiator Hose, NO.1
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-0M080 |
Hose, Radiator, NO.2
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16572-0Q040 |
Hose, Radiator, NO.2
2011-07 → —
|
1KRFE KSP130 | — | |
| 16572-33080 |
Hose, Radiator, NO.2
2011-07 → —
|
1NDTV NLP130 | — | |
| 16572-47070 |
Hose, Radiator, NO.2
2011-07 → —
|
1NRFE NSP130 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90466-W0011 |
Clip, Radiator Hose, NO.2
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-0N010 |
Bracket, Radiator Reserve Tank
2011-07 → —
|
1NDTV NLP130 | — | |
| 16612 — Bracket, Radiator Reserve Tank, NO.2 | ||||
| 16612-0N010 |
Bracket, Radiator Reserve Tank, NO.2
2011-07 → —
|
1NDTV NLP130 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-0M100 |
Shroud, Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16711-0N031 |
Shroud, Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16711-0Q030 note |
Shroud, Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16711-0Q030 note |
Shroud, Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16711-0Q040 |
Shroud, Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16711-0Y040 |
Shroud, Fan
2011-07 → —
|
1NRFE NSP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
