Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

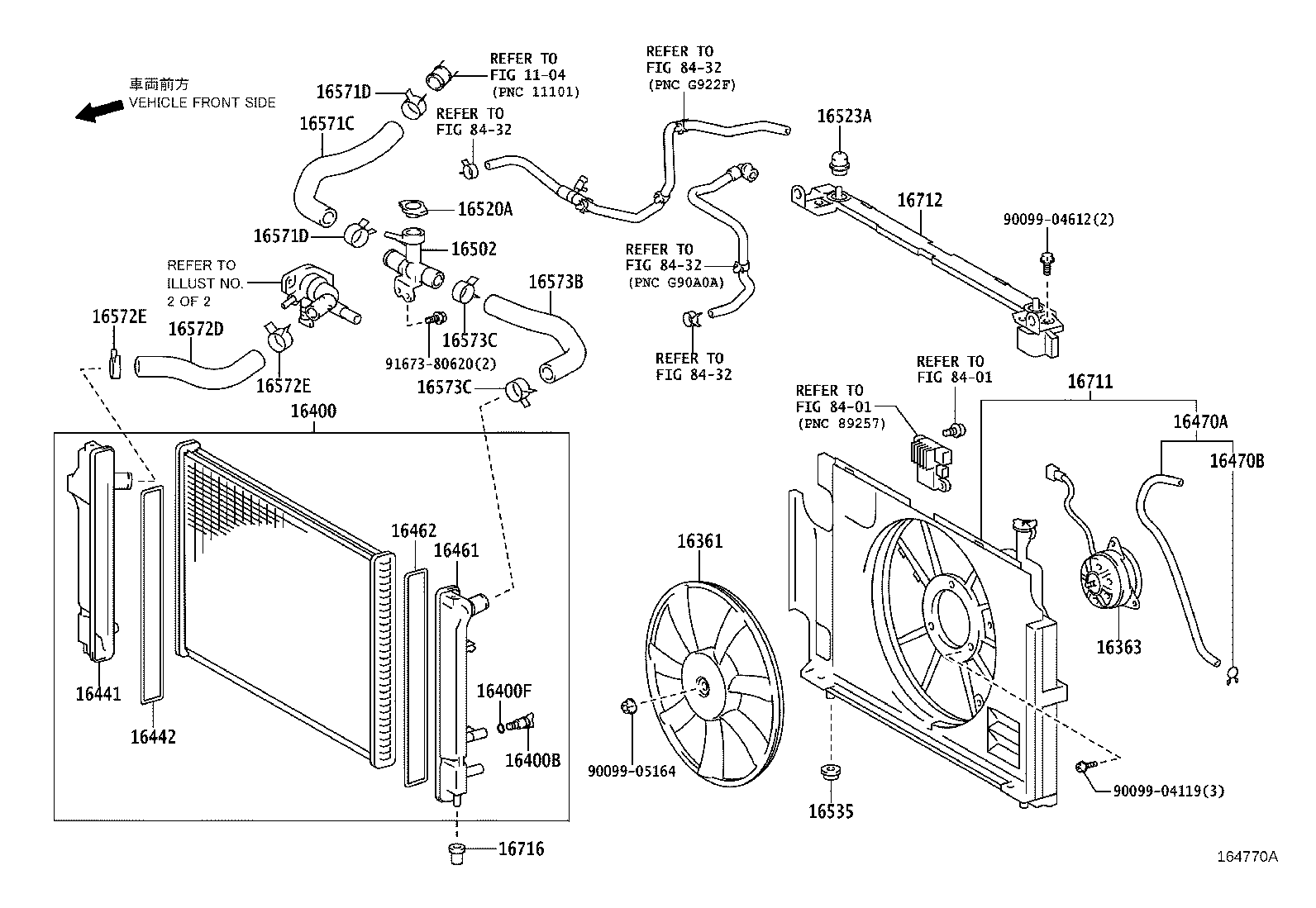

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16361 — Fan | ||||
| 16361-0M100 |
Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16361-0N030 |
Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16361-0Q030 note |
Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16361-0Q030 |
Fan
2011-07 → —
|
1NRFE NSP130 | — | |
| 16361-0Q030 note |
Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16361-0Q040 |
Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-0D090 note |
Motor, Cooling Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16363-0D090 |
Motor, Cooling Fan
2011-07 → —
|
1NRFE NSP130 | — | |
| 16363-0D090 note |
Motor, Cooling Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16363-0G050 |
Motor, Cooling Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16363-0M060 |
Motor, Cooling Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16363-23010 |
Motor, Cooling Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16400 — Radiator Assy | ||||
| 16400-0N050 |
Radiator Assy
2011-07 → —
|
1NDTV NLP130 | — | |
| 16400-0Q040 |
Radiator Assy
2011-07 → —
|
1KRFE KSP130 | — | |
| 16400-0Q060 note |
Radiator Assy
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16400-0Y060 |
Radiator Assy
2011-07 → —
|
1NRFE NSP130 | — | |
| 16400-0Y070 note |
Radiator Assy
2011-07 → 2013-03
ended
|
1NRFE NSP130 LHD | — | |
| 16400-21330 |
Radiator Assy
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-0Q040 |
Plug, Radiator Drain Cock
2011-07 → —
|
1KRFE KSP130 | — | |
| 16417-0Q040 |
Plug, Radiator Drain Cock
2011-07 → —
|
1NDTV,1NRFE NLP130,NSP130 | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2011-07 → —
|
1KRFE KSP130 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16441 — Tank, Radiator, Upper | ||||
| 16441-21330 |
Tank, Radiator, Upper
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16442 — Ring, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-21330 |
Ring, O(FOR RADIATOR UPPER TANK)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16461 — Tank, Radiator, Lower | ||||
| 16461-21330 |
Tank, Radiator, Lower
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16462 — Ring, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-21330 |
Ring, O(FOR RADIATOR LOWER TANK)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 16378-21180 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 90445-12067 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2011-07 → —
|
1KRFE KSP130 | — | |
| 90445-12067 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2011-07 → —
|
1KRFE KSP130 | — | |
| 90445-12067 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2011-07 → —
|
1NRFE NSP130 | — | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2011-07 → 2013-03
ended
|
1NRFE NSP130 LHD | — | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2011-07 → —
|
1KRFE KSP130 | — | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2011-07 → —
|
1NZFXE,1NRFE NHP130,NSP130 | — | |
| 16502 — Filler Sub-assy, Water | ||||
| 16502-0Q010 |
Filler Sub-assy, Water
2011-07 → —
|
1KRFE KSP130 | — | |
| 16502-21090 |
Filler Sub-assy, Water
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16520A — Cap Sub-assy, Water Filler | ||||
| 16401-31520 |
Cap Sub-assy, Water Filler
2011-07 → —
|
1KRFE KSP130 | — | |
| 16401-31520 |
Cap Sub-assy, Water Filler
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-0Q020 |
Cushion, Radiator Support
2011-07 → —
|
1KRFE KSP130 | — | |
| 16523-0Q020 |
Cushion, Radiator Support
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16535 — Support, Radiator, Lower | ||||
| 90480-W0005 |
Support, Radiator, Lower
2011-07 → —
|
1KRFE KSP130 | — | |
| 90480-W0005 |
Support, Radiator, Lower
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-0M060 |
Hose, Radiator, NO.1
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16571-0N060 |
Hose, Radiator, NO.1
2011-07 → —
|
1NDTV NLP130 | — | |
| 16571-0Q021 |
Hose, Radiator, NO.1
2011-07 → —
|
1KRFE KSP130 | — | |
| 16571-47080 |
Hose, Radiator, NO.1
2011-07 → —
|
1NRFE NSP130 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90466-W0011 |
Clip, Radiator Hose, NO.1
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-0M080 |
Hose, Radiator, NO.2
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16572-0Q040 |
Hose, Radiator, NO.2
2011-07 → —
|
1KRFE KSP130 | — | |
| 16572-33080 |
Hose, Radiator, NO.2
2011-07 → —
|
1NDTV NLP130 | — | |
| 16572-47070 |
Hose, Radiator, NO.2
2011-07 → —
|
1NRFE NSP130 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90466-W0011 |
Clip, Radiator Hose, NO.2
2011-07 → —
|
1N# NHP130,NLP130,NSP130 | — | |
| 16573B — Hose, Radiator, NO.3 | ||||
| 16573-0M060 |
Hose, Radiator, NO.3
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16573-0Q010 |
Hose, Radiator, NO.3
2011-07 → —
|
1KRFE KSP130 | — | |
| 16573C — Clamp OR Clip, Radiator Hose, NO.3 | ||||
| 90466-W0011 |
Clamp OR Clip, Radiator Hose, NO.3
2011-07 → —
|
1KRFE KSP130 | — | |
| 90466-W0011 |
Clamp OR Clip, Radiator Hose, NO.3
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-0M100 |
Shroud, Fan
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16711-0N031 |
Shroud, Fan
2011-07 → —
|
1NDTV NLP130 | — | |
| 16711-0Q030 note |
Shroud, Fan
2011-07 → 2013-03
ended
|
1KRFE KSP130 LHD | — | |
| 16711-0Q030 note |
Shroud, Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16711-0Q040 |
Shroud, Fan
2011-07 → —
|
1KRFE KSP130 | — | |
| 16711-0Y040 |
Shroud, Fan
2011-07 → —
|
1NRFE NSP130 | — | |
| 16712 — Shroud, Fan, NO.2 | ||||
| 16712-0M030 |
Shroud, Fan, NO.2
2012-04 → —
|
1NZFXE NHP130 | — | |
| 16716 — Cushion, Fan Shroud | ||||
| 16716-37010 |
Cushion, Fan Shroud
2012-04 → 2014-07
ended
|
1NZFXE NHP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
