Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

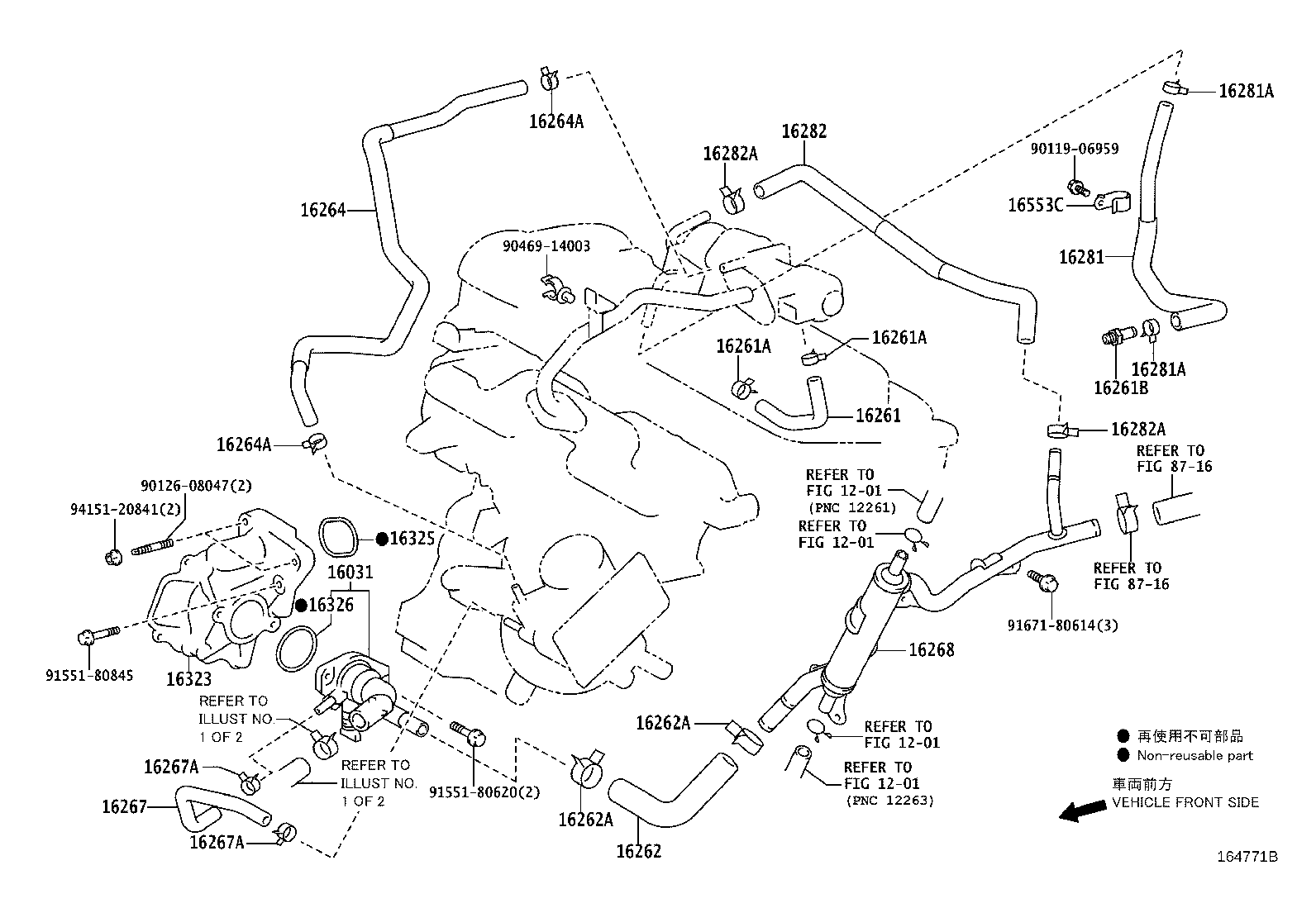

55 parts on this figure

Part number	Description	Fitment	Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-21010	Water Inlet Sub-assy, W/Thermostat 2012-04 → —	1NZFXE NHP130	—
16261 — Hose, Water By-pass
16261-0N050 note	Hose, Water By-pass 2011-07 → —	1NDTV NLP130	—
16261-21100	Hose, Water By-pass 2012-04 → —	1NZFXE NHP130	—
16261-33050 note	Hose, Water By-pass 2011-07 → —	1NDTV NLP130	—
16261-40061 note	Hose, Water By-pass 2011-07 → 2014-07 ended	1KRFE KSP130	—
16261-40111 note	Hose, Water By-pass 2011-07 → 2014-07 ended	1KRFE KSP130	—
16261-47010	Hose, Water By-pass 2011-07 → —	1NRFE NSP130	—
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16581-40010	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 2011-07 → 2014-07 ended	1KRFE KSP130	—
96136-41501	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 2011-07 → —	1NRFE NSP130	—
96136-41501	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 2012-04 → —	1NZFXE NHP130	—
96137-41701 note	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 2011-07 → —	1NDTV NLP130	—
96137-41901 note	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 2011-07 → —	1NDTV NLP130	—
16261B — Union(FOR WATER BY-PASS HOSE)
90404-52042	Union(FOR WATER BY-PASS HOSE) 2012-04 → —	1NZFXE NHP130	—
16262 — Hose, Water Inlet
16262-0N010 note	Hose, Water Inlet 2011-07 → 2012-02 ended	1NDTV NLP130	—
16262-0N011 note	Hose, Water Inlet 2012-02 → —	1NDTV NLP130	—
16262-21060	Hose, Water Inlet 2012-04 → —	1NZFXE NHP130	—
16262-33010 note	Hose, Water Inlet 2011-07 → 2012-02 ended	1NDTV NLP130	—
16262-33011 note	Hose, Water Inlet 2012-02 → —	1NDTV NLP130	—
16263-0N010 note	Hose, Water Inlet 2011-07 → —	1NDTV NLP130	—
16263-33030 note	Hose, Water Inlet 2011-07 → —	1NDTV NLP130	—
16262A — Clip(FOR WATER INLET HOSE)
96136-42501	Clip(FOR WATER INLET HOSE) 2012-04 → —	1NZFXE NHP130	—
96136-52201	Clip(FOR WATER INLET HOSE) 2011-07 → —	1NDTV NLP130	—
16264 — Hose, Water By-pass, NO.2
16264-0N030 note	Hose, Water By-pass, NO.2 2011-07 → —	1NDTV NLP130	—
16264-21100	Hose, Water By-pass, NO.2 2012-04 → —	1NZFXE NHP130	—
16264-33040 note	Hose, Water By-pass, NO.2 2011-07 → —	1NDTV NLP130	—
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
96136-41501	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) 2012-04 → —	1NZFXE NHP130	—
96137-41701 note	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) 2011-07 → —	1NDTV NLP130	—
96137-41901 note	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) 2011-07 → —	1NDTV NLP130	—
16267 — Hose, Water By-pass, NO.3
16267-0N050 note	Hose, Water By-pass, NO.3 2011-07 → —	1NDTV NLP130	—
16267-21050	Hose, Water By-pass, NO.3 2012-04 → —	1NZFXE NHP130	—
16267-33030 note	Hose, Water By-pass, NO.3 2011-07 → —	1NDTV NLP130	—
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96136-41501	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) 2011-07 → —	1NZFXE,1NDTV NHP130,NLP130	—
16268 — Pipe, Water By-pass, NO.1
16268-21100	Pipe, Water By-pass, NO.1 2012-04 → 2012-07 ended	1NZFXE NHP130	—
16268-21101	Pipe, Water By-pass, NO.1 2012-07 → 2014-07 ended	1NZFXE NHP130	—
16268-40050	Pipe, Water By-pass, NO.1 2011-07 → 2014-07 ended	1KRFE KSP130	—
16268-47031	Pipe, Water By-pass, NO.1 2011-07 → 2014-07 ended	1NRFE NSP130	—
16281 — Hose, Water By-pass, NO.4
16281-0N070 note	Hose, Water By-pass, NO.4 2011-07 → —	1NDTV NLP130	—
16281-21050	Hose, Water By-pass, NO.4 2012-04 → —	1NZFXE NHP130	—
16281-33030 note	Hose, Water By-pass, NO.4 2011-07 → —	1NDTV NLP130	—
16281-33060 note	Hose, Water By-pass, NO.4 2011-07 → —	1NDTV NLP130	—
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
96136-41501 note	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) 2011-07 → —	1NDTV NLP130	—
96136-52101 note	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) 2011-07 → —	1NDTV NLP130	—
96137-41901	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) 2012-04 → —	1NZFXE NHP130	—
16282 — Hose, Water By-pass, NO.5
16282-21030	Hose, Water By-pass, NO.5 2012-04 → —	1NZFXE NHP130	—
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
96137-41901	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) 2012-04 → —	1NZFXE NHP130	—
16323 — Housing, Water Inlet
16323-21010	Housing, Water Inlet 2012-04 → —	1NZFXE NHP130	—
16323-33030	Housing, Water Inlet 2011-07 → —	1NDTV NLP130	—
16325 — Gasket, Water Inlet Housing, NO.1
16325-21010	Gasket, Water Inlet Housing, NO.1 2012-04 → —	1NZFXE NHP130	—
16325-33010	Gasket, Water Inlet Housing, NO.1 2011-07 → —	1NDTV NLP130	—
16326 — Gasket, Water Inlet Housing, NO.2
16326-33030	Gasket, Water Inlet Housing, NO.2 2011-07 → —	1NDTV NLP130	—
16326-47010	Gasket, Water Inlet Housing, NO.2 2011-07 → —	1NZFXE,1NRFE NHP130,NSP130	—
16553C — Clamp, Hose
16581-21130	Clamp, Hose 2012-04 → —	1NZFXE NHP130	—
16581-33040 note	Clamp, Hose 2011-07 → —	1NDTV NLP130	—
16581-33050 note	Clamp, Hose 2011-07 → —	1NDTV NLP130	—
16581-33120 note	Clamp, Hose 2011-07 → —	1NDTV NLP130	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
