Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

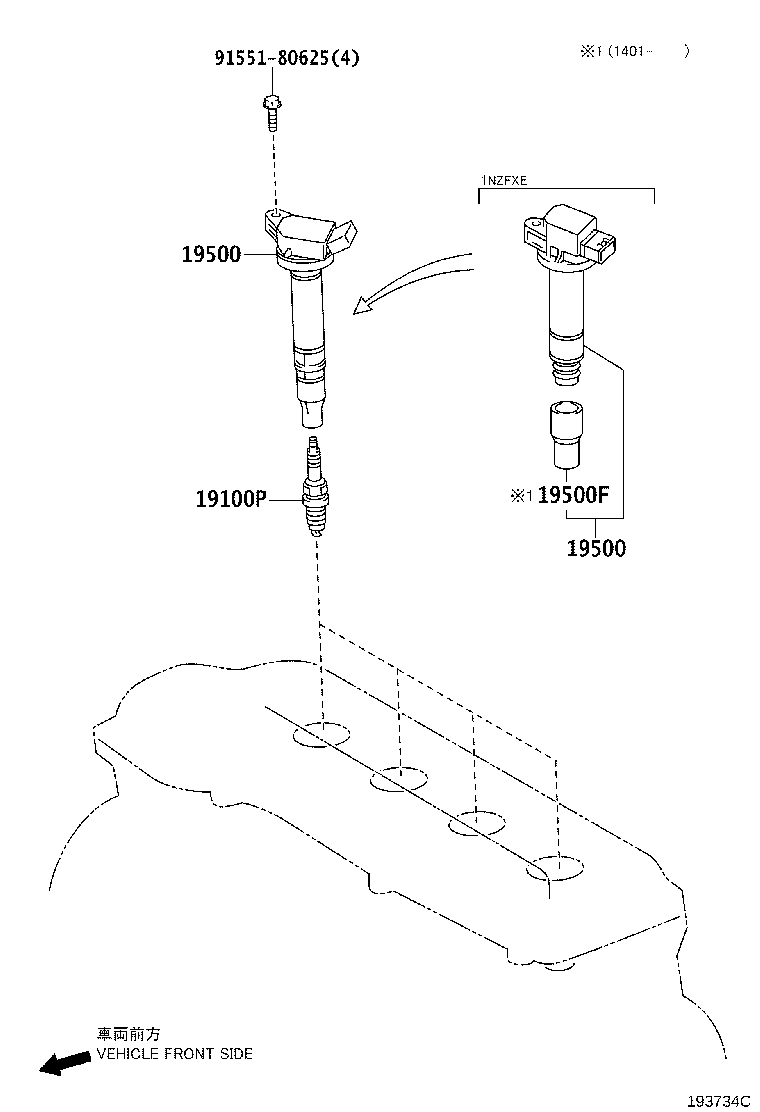

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01233 note |
Plug, Spark
2011-07 → 2014-07
ended
|
1KRFE KSP130 | — | |
| 90919-01253 note |
Plug, Spark
2011-07 → 2013-11
ended
|
1NRFE NSP130 | — | |
| 90919-01265 note |
Plug, Spark
2012-04 → —
|
1NZFXE NHP130 | — | |
| 90919-01275 note |
Plug, Spark
2013-11 → —
|
1NRFE NSP130 | — | |
| 90919-W1003 note |
Plug, Spark
2011-07 → 2014-07
ended
|
1KRFE KSP130 | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90919-02257 |
Coil Assy, Ignition
2011-07 → —
|
1NRFE NSP130 | — | |
| 90919-02265 |
Coil Assy, Ignition
2012-04 → —
|
1NZFXE NHP130 | — | |
| 19500F — Cap, Plug | ||||
| 90919-11009 |
Cap, Plug
2014-01 → —
|
1NZFXE NHP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
