Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

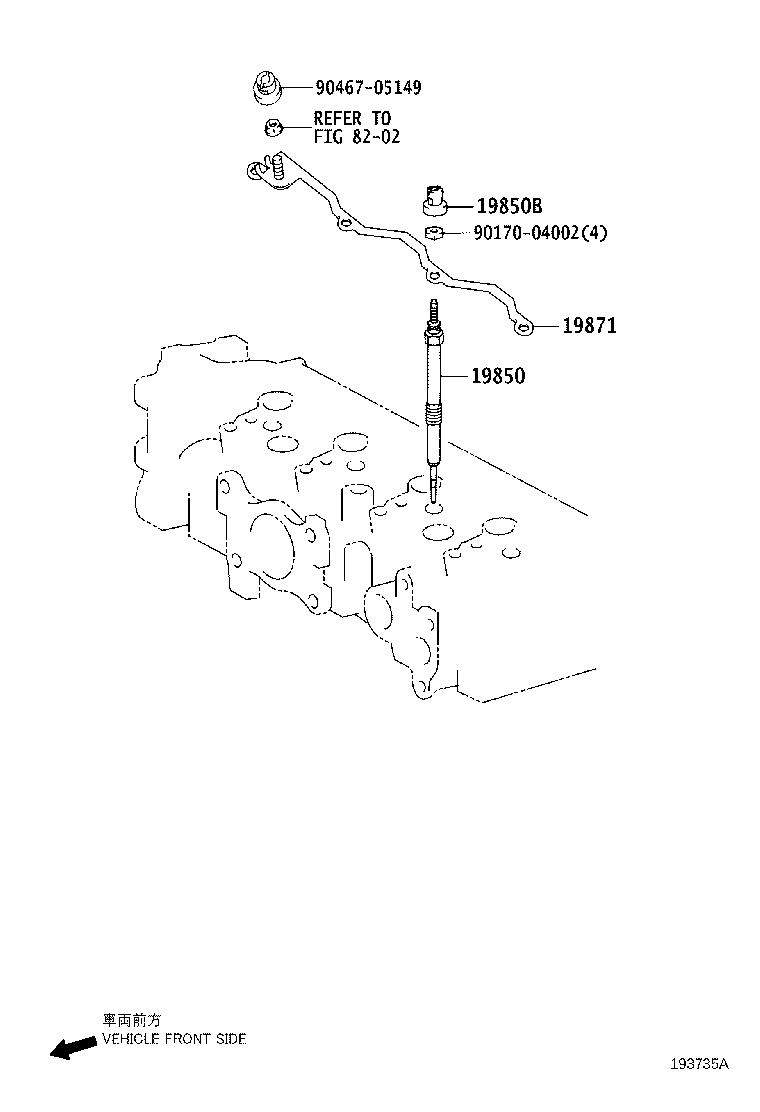

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19850 — Plug Assy, Glow | ||||
| 19850-33020 note |
Plug Assy, Glow
2011-07 → —
|
1NDTV NLP130 | — | |
| 19850B — Grommet, Screw(FOR GLOW PLUG) | ||||
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2011-07 → —
|
1NDTV NLP130 | — | |
| 19871 — Connector, Glow Plug NO.1 | ||||
| 19871-33020 |
Connector, Glow Plug NO.1
2011-07 → —
|
1NDTV NLP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
