Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

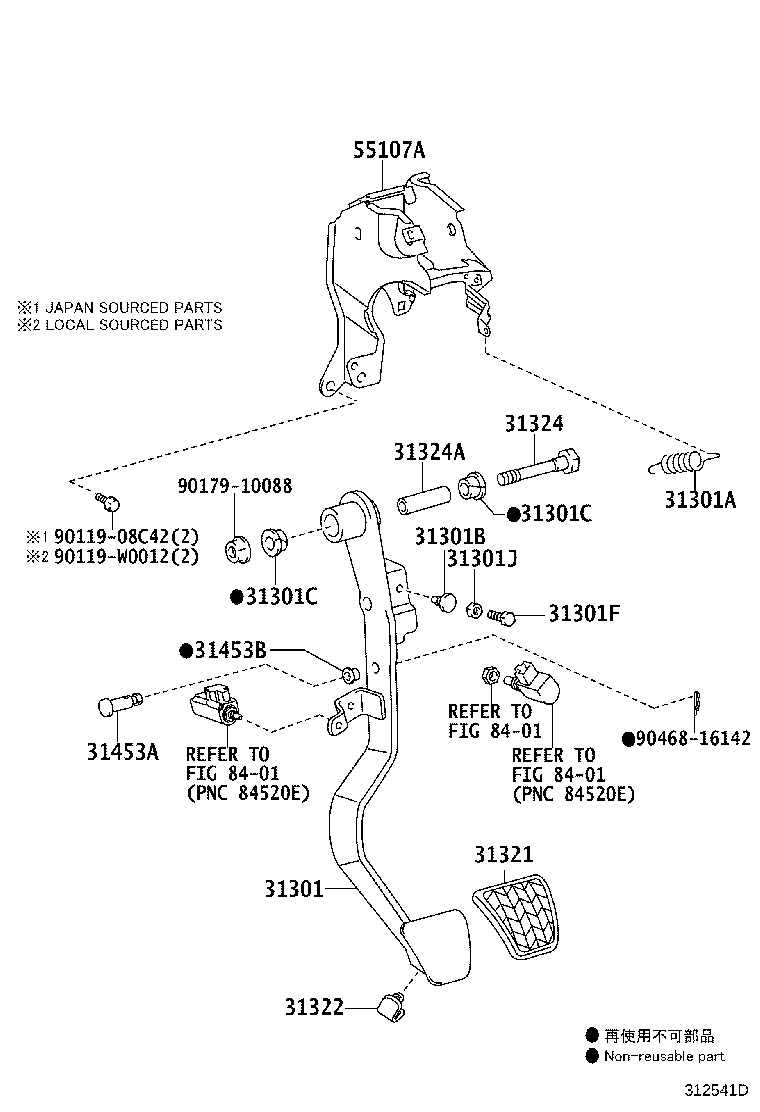

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31301 — Pedal Sub-assy, Clutch | ||||
| 31301-0D160 |
Pedal Sub-assy, Clutch
2011-07 → —
|
KSP130,NSP130 RHD MTM | — | |
| 31301-0D170 |
Pedal Sub-assy, Clutch
2011-07 → —
|
NLP130 RHD | — | |
| 31311-0D110 |
Pedal Sub-assy, Clutch
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F) | — | |
| 31301A — Spring(FOR CLUTCH PEDAL) | ||||
| 90507-14047 |
Spring(FOR CLUTCH PEDAL)
2011-07 → 2012-04
ended
|
NSP130 LHD 6F | — | |
| 90507-14047 |
Spring(FOR CLUTCH PEDAL)
2011-07 → —
|
KSP130 LHD | — | |
| 90507-14055 |
Spring(FOR CLUTCH PEDAL)
2011-07 → —
|
KSP130,NSP130 RHD MTM | — | |
| 31301B — Cushion, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
Cushion, NO.1(FOR CLUTCH PEDAL)
2011-07 → —
|
KSP130,NLP130,NSP130 5F,6F | — | |
| 31301C — Bush(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
Bush(FOR CLUTCH PEDAL)
2011-07 → —
|
KSP130,NLP130,NSP130 5F,6F | — | |
| 31301F — Bolt(FOR CLUTCH PEDAL STOPPER) | ||||
| 91112-61025 |
Bolt(FOR CLUTCH PEDAL STOPPER)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 31301J — Nut(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-W0002 |
Nut(FOR CLUTCH PEDAL STOPPER)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 31321 — Pad, Clutch Pedal | ||||
| 31321-52010 |
Pad, Clutch Pedal
2011-07 → —
|
KSP130,NLP130,NSP130 5F,6F | — | |
| 31322 — Stopper, Clutch Pedal | ||||
| 31322-52010 |
Stopper, Clutch Pedal
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 31324 — Shaft, Clutch Pedal | ||||
| 90105-10444 |
Shaft, Clutch Pedal
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 90105-10563 |
Shaft, Clutch Pedal
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F) | — | |
| 31324A — Collar, Clutch Pedal Shaft | ||||
| 90387-10003 |
Collar, Clutch Pedal Shaft
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 90387-10004 |
Collar, Clutch Pedal Shaft
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F) | — | |
| 31453A — Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08051 note |
Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 31453B — Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD MTM | — | |
| 55107A — Support Sub-assy, Clutch Pedal | ||||
| 55107-0D160 |
Support Sub-assy, Clutch Pedal
2011-07 → —
|
NLP130 LHD 6F | — | |
| 55107-0D170 |
Support Sub-assy, Clutch Pedal
2011-07 → 2012-04
ended
|
NSP130 LHD 6F | — | |
| 55107-0D170 |
Support Sub-assy, Clutch Pedal
2011-07 → —
|
KSP130 LHD | — | |
| 55107-0D220 |
Support Sub-assy, Clutch Pedal
2011-07 → —
|
NLP130 RHD | — | |
| 55107-0D230 |
Support Sub-assy, Clutch Pedal
2011-07 → —
|
KSP130,NSP130 RHD MTM | — | |
| 55107-0D300 |
Support Sub-assy, Clutch Pedal
2012-04 → —
|
NSP130 LHD 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
