Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

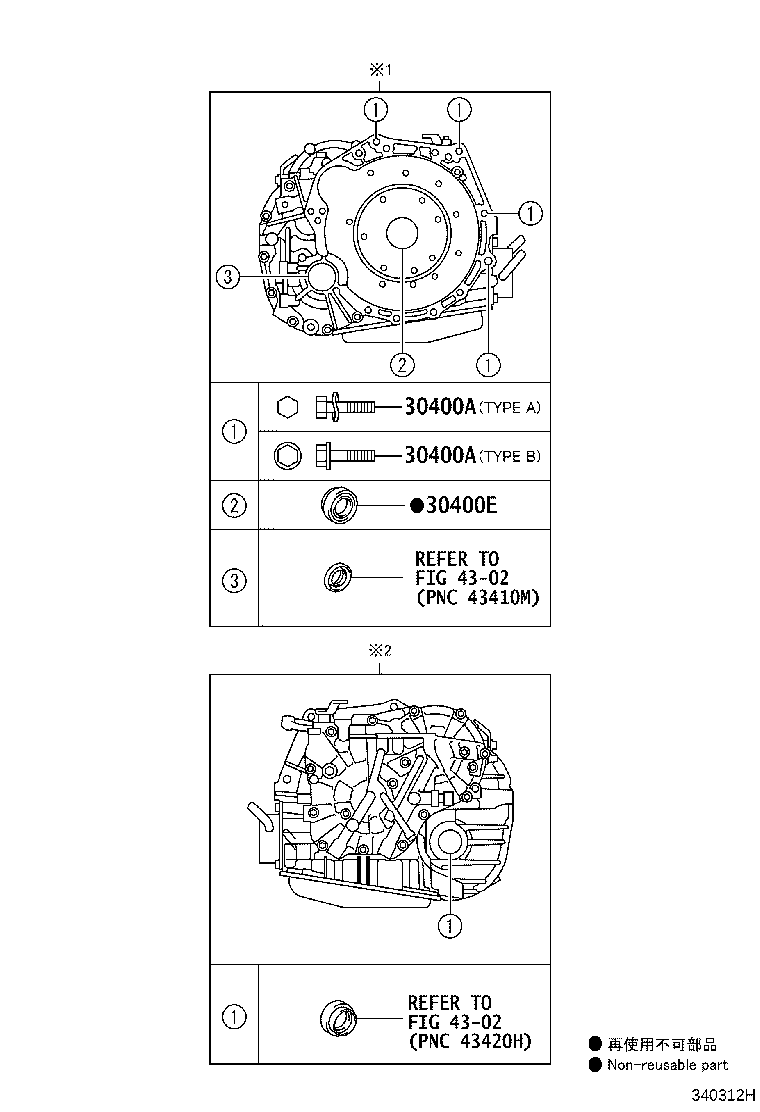

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-W0046 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2013-09 → —
|
NSP130 CVFC | — | |
| 90119-W0097 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2011-07 → —
|
NSP130 CVFC | — | |
| 91552-81245 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2012-06 → —
|
NSP130 CVFC | — | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-42039 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2011-07 → —
|
NSP130 CVFC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
