Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

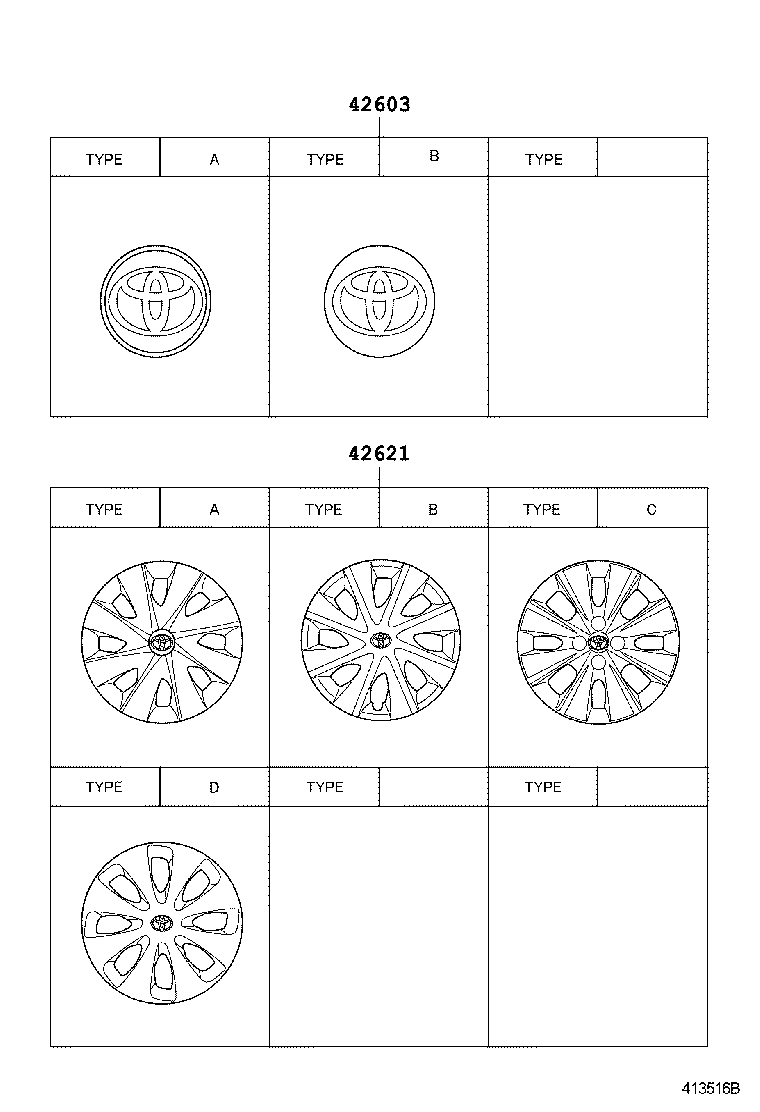

| 42603 — Ornament Sub-assy, Wheel Hub | ||||
| 42603-0D060 note |
Ornament Sub-assy, Wheel Hub
2011-07 → —
|
NLP130,NSP130 ACTIV | — | |
| 42603-0D060 note |
Ornament Sub-assy, Wheel Hub
2011-07 → —
|
NLP130,NSP130 STYLE | — | |
| 42603-0D150 note |
Ornament Sub-assy, Wheel Hub
2013-01 → —
|
NHP130 ACTIV | — | |
| 42603-0D150 note |
Ornament Sub-assy, Wheel Hub
2013-01 → —
|
NHP130 LOUNG;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-04 → —
|
NHP130 LOUNG | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-04 → —
|
NSP130 LHD STD | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-04 → —
|
NHP130 ACTIV | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-04 → —
|
NHP130 ACTIV | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-04 → —
|
NHP130 ACTIV | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2013-03 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2012-02 → —
|
KSP130,NLP130 LHD STD | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2011-07 → —
|
NLP130 6FS (LOUNG,STYLE);KSP130,NLP130,NSP130 (5F,6F,CVFC) +1 | — | |
| 42603-0D170 note |
Ornament Sub-assy, Wheel Hub
2011-07 → —
|
KSP130,NLP130,NSP130 ACTIV,LOUNG | — | |
| 42603-YY190 note |
Ornament Sub-assy, Wheel Hub
2013-01 → —
|
NLP130 STYLE;NSP130 LHD STYLE | — | |
| 42603-YY190 note |
Ornament Sub-assy, Wheel Hub
2013-01 → —
|
KSP130 ACTIV;KSP130 LHD STD;NLP130,NSP130 +1 | — | |
| 42603-YY190 note |
Ornament Sub-assy, Wheel Hub
2012-06 → —
|
NSP130 RHD STYLE | — | |
| 42603-YY190 note |
Ornament Sub-assy, Wheel Hub
2012-06 → —
|
KSP130 RHD STD | — | |
| 42603-YY250 note |
Ornament Sub-assy, Wheel Hub
2013-11 → —
|
KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 42621 — Cap, Wheel | ||||
| 42602-0D190 note |
Cap, Wheel
2011-07 → —
|
KSP130;NLP130,NSP130 STD | — | |
| 42602-0D190 note |
Cap, Wheel
2011-07 → —
|
KSP130 STD | — | |
| 42602-0D200 note |
Cap, Wheel
2011-07 → —
|
KSP130,NLP130,NSP130 STD | — | |
| 42602-0D200 note |
Cap, Wheel
2012-04 → —
|
NHP130 ACTIV | — | |
| 42602-0D210 note |
Cap, Wheel
2011-07 → —
|
KSP130,NLP130,NSP130 ACTIV,LOUNG | — | |
| 42602-0D220 note |
Cap, Wheel
2012-04 → —
|
NHP130 ACTIV | — | |
| 42602-0D220 note |
Cap, Wheel
2012-04 → —
|
NHP130 LOUNG | — | |
| 42602-0D220 note |
Cap, Wheel
2012-04 → —
|
NHP130 LOUNG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
