Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

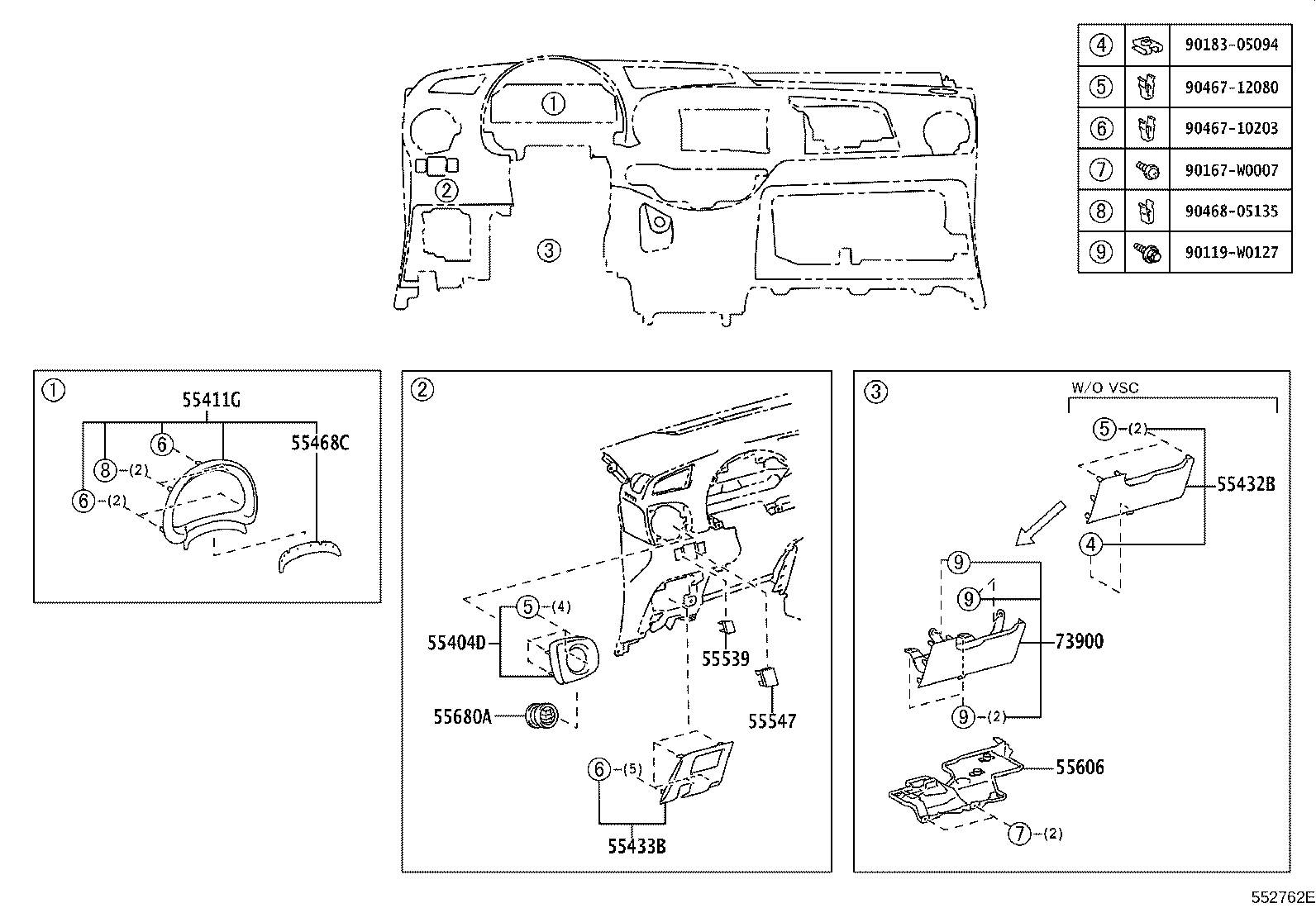

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55404D — Panel Sub-assy, Instrument Cluster Finish | ||||
| 55404-0D010-A0 note |
Panel Sub-assy, Instrument Cluster Finish
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55404-0D010-A0 note |
Panel Sub-assy, Instrument Cluster Finish
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55404-0D010-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
NLP130 SP130 5D 3D +6 | — | |
| 55404-0D010-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55404-0D010-B1 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LOUNG | — | |
| 55404-0D010-B1 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55404-0D010-B1 note |
Panel Sub-assy, Instrument Cluster Finish
2012-04 → 2014-07
ended
|
NHP130 LOUNG | — | |
| 55404-0D010-J0 note |
Panel Sub-assy, Instrument Cluster Finish
2012-04 → 2014-07
ended
|
NHP130 | — | |
| 55404-0D030-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 55404-0D030-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2011-07 → 2014-07
ended
|
NSP130 CVFC ACTIV | — | |
| 55404-0D030-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55404-0D030-B0 note |
Panel Sub-assy, Instrument Cluster Finish
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55411G — Panel, Instrument Cluster Finish, NO.1 | ||||
| 55411-0D140-C0 note |
Panel, Instrument Cluster Finish, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55411-0D150-C0 note |
Panel, Instrument Cluster Finish, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55432B — Panel, Instrument Panel Finish, Lower | ||||
| 55432-0D030-C0 note |
Panel, Instrument Panel Finish, Lower
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD (5F,6F,CVFC) | — | |
| 55432-0D030-C0 note |
Panel, Instrument Panel Finish, Lower
2012-04 → 2014-07
ended
|
NHP130 LHD | — | |
| 55432-0D040-C0 note |
Panel, Instrument Panel Finish, Lower
2011-07 → 2014-07
ended
|
KSP130,NSP130 RHD | — | |
| 55432-0D040-C0 note |
Panel, Instrument Panel Finish, Lower
2012-04 → 2014-07
ended
|
NHP130 RHD | — | |
| 55433B — Panel, Instrument Panel Finish, Lower NO.2 | ||||
| 55433-0D030-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55468C — Seal, Instrument Cluster Finish Panel, NO.1 | ||||
| 55468-0D060 |
Seal, Instrument Cluster Finish Panel, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55468-0D070 |
Seal, Instrument Cluster Finish Panel, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NHP130;KSP130,NLP130,NSP130 LOUNG;KSP130,NLP130,NSP130 LHD (ACTIV,STD,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STD) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NLP130 LHD | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55547 — Cover, Remote Control Mirror Hole | ||||
| 55547-28010-C0 note |
Cover, Remote Control Mirror Hole
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 STD | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-0D050 |
Cover Sub-assy, Instrument Panel Under, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55606-0D060 |
Cover Sub-assy, Instrument Panel Under, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
NSP130 CVFC ACTIV | — | |
| 55680-0D010-C0 note |
Register Assy, Instrument Panel, NO.4
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 55680-0D020-C0 note |
Register Assy, Instrument Panel, NO.4
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2013-03
ended
|
KSP130,NLP130,NSP130 RHD 5D ACTIV | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 55680-0D110 note |
Register Assy, Instrument Panel, NO.4
2013-01 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-0D030-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2011-07 → 2013-06
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 73900-0D031-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2013-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 73900-0D040-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2011-07 → 2013-06
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 73900-0D041-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2013-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
