Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

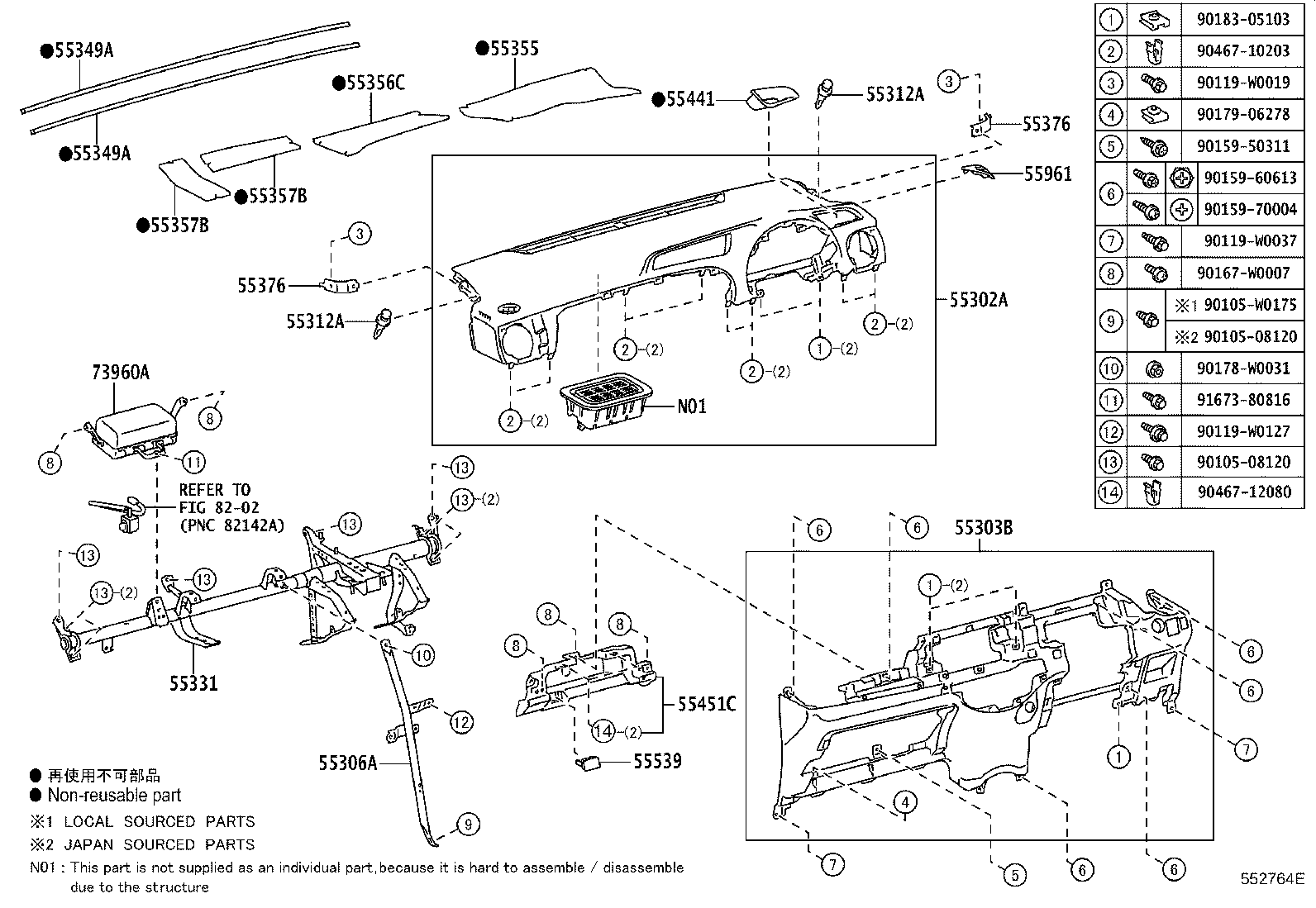

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55302A — Panel Sub-assy, Instrument, Upper | ||||
| 55302-0D160-C0 note |
Panel Sub-assy, Instrument, Upper
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55302-0D170-C0 note |
Panel Sub-assy, Instrument, Upper
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55303B — Panel Sub-assy, Instrument, Lower | ||||
| 55303-0D120-C0 note |
Panel Sub-assy, Instrument, Lower
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55303-0D140-C0 note |
Panel Sub-assy, Instrument, Lower
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55306A — Brace Sub-assy, Instrument Panel, NO.1 | ||||
| 55306-0D170 |
Brace Sub-assy, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55306-0D180 |
Brace Sub-assy, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55306-0D190 note |
Brace Sub-assy, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD (5F,6F,CVFC) | — | |
| 55306-0D190 note |
Brace Sub-assy, Instrument Panel, NO.1
2012-04 → 2014-07
ended
|
NHP130 LHD | — | |
| 55306-0D200 note |
Brace Sub-assy, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NSP130 RHD | — | |
| 55306-0D200 note |
Brace Sub-assy, Instrument Panel, NO.1
2012-04 → 2014-07
ended
|
NHP130 RHD | — | |
| 55312A — Clip, Instrument Panel | ||||
| 52161-16010 |
Clip, Instrument Panel
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55331 — Reinforcement, Instrument Panel | ||||
| 55330-0D290 note |
Reinforcement, Instrument Panel
2011-07 → —
|
KSP130,NSP130 RHD | — | |
| 55330-0D290 note |
Reinforcement, Instrument Panel
2012-04 → —
|
NHP130 RHD | — | |
| 55330-0D400 |
Reinforcement, Instrument Panel
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55330-0D410 note |
Reinforcement, Instrument Panel
2011-07 → —
|
KSP130,NLP130,NSP130 LHD (5F,6F,CVFC) | — | |
| 55330-0D420 |
Reinforcement, Instrument Panel
2011-07 → —
|
KSP130,NLP130,NSP130 LHD | — | |
| 55330-0D430 note |
Reinforcement, Instrument Panel
2012-04 → —
|
NHP130 LHD | — | |
| 55330-0D440 |
Reinforcement, Instrument Panel
2012-04 → —
|
NHP130 LHD | — | |
| 55349A — Cushion, Instrument Panel | ||||
| 55355-0D031 |
Cushion, Instrument Panel
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55355 — Cushion, Instrument Panel, NO.1 | ||||
| 55355-0D120 note |
Cushion, Instrument Panel, NO.1
2012-04 → —
|
NHP130 ACTIV | — | |
| 55355-0D120 |
Cushion, Instrument Panel, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55356C — Cushion, Instrument Panel, NO.2 | ||||
| 55356-0D120 |
Cushion, Instrument Panel, NO.2
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55356-0D120 note |
Cushion, Instrument Panel, NO.2
2012-04 → —
|
NHP130 ACTIV | — | |
| 55357B — Cushion, Instrument Panel, NO.3 | ||||
| 55357-0D150 |
Cushion, Instrument Panel, NO.3
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55357-0D150 note |
Cushion, Instrument Panel, NO.3
2012-04 → —
|
NHP130 ACTIV | — | |
| 55376 — Bracket, Instrument Panel Mounting, NO.1 | ||||
| 55376-0D030 |
Bracket, Instrument Panel Mounting, NO.1
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 55441 — Box, Instrument Panel | ||||
| 55441-0D120-C0 note |
Box, Instrument Panel
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55441-0D160-C0 note |
Box, Instrument Panel
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55451C — Box, Instrument Panel, NO.1 | ||||
| 55451-0D110-C0 note |
Box, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55451-0D120-C0 note |
Box, Instrument Panel, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NHP130;KSP130,NLP130,NSP130 LOUNG;KSP130,NLP130,NSP130 LHD (ACTIV,STD,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STD) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,STYLE) | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD LOUNG | — | |
| 55539-52070-C0 note |
Cover, Spare Switch Hole
2011-07 → 2014-07
ended
|
NLP130 LHD | — | |
| 55961 — Nozzle, Side Defroster, NO.1 | ||||
| 55961-0D010-C0 note |
Nozzle, Side Defroster, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 LHD | — | |
| 55961-0D020-C0 note |
Nozzle, Side Defroster, NO.1
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 RHD | — | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-0D110 |
Airbag Assy, Instrument Panel Passenger W/O Door
2011-07 → 2013-05
ended
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 73960-0D111 |
Airbag Assy, Instrument Panel Passenger W/O Door
2013-05 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
