Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

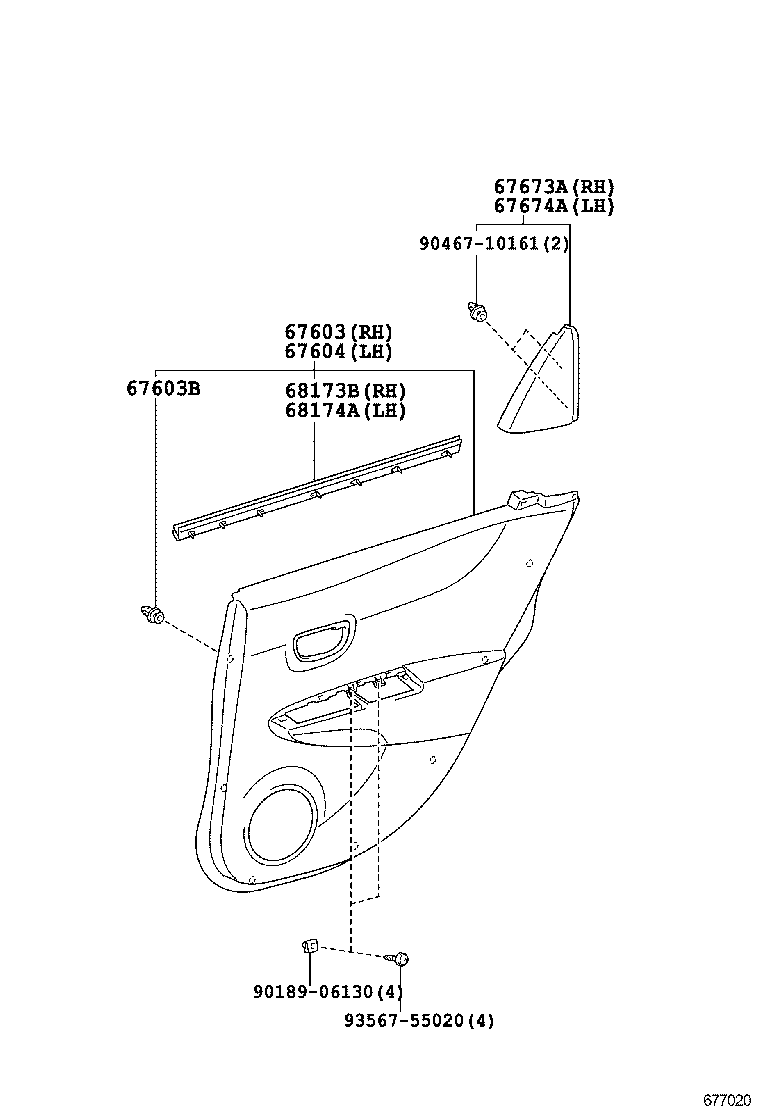

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2014-07
ended
|
KSP130,NSP130 5D STD | — | |
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2011-10
ended
|
NSP130 LHD 5D CVFC +1 | — | |
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-10 → 2014-07
ended
|
NSP130 LHD 5D CVFC +1 | — | |
| 67630-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2014-07
ended
|
NSP130 RHD 5D CVFC +1 | — | |
| 67630-0DB80-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2014-07
ended
|
NLP130 5D (ACTIV,STD,STYLE);KSP130,NHP130,NSP130 5D +1 | — | |
| 67630-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2014-07
ended
|
NHP130 ACTIV;NSP130 RHD 5D +1 | — | |
| 67630-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D LOUNG | — | |
| 67630-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2013-03 → 2014-07
ended
|
NSP130 5D ACTIV;NSP130 LHD +4 | — | |
| 67630-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2013-03 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 67630-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, RH
2013-03 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR REAR DOOR TRIM BOARD)
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 5D | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2014-07
ended
|
KSP130,NSP130 5D STD | — | |
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-10 → 2014-07
ended
|
NSP130 LHD 5D CVFC +1 | — | |
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2014-07
ended
|
NSP130 RHD 5D CVFC +1 | — | |
| 67640-0DB70-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2011-10
ended
|
NSP130 LHD 5D CVFC +1 | — | |
| 67640-0DB80-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2014-07
ended
|
NLP130 5D (ACTIV,STD,STYLE);KSP130,NHP130,NSP130 5D +1 | — | |
| 67640-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D LOUNG | — | |
| 67640-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2011-07 → 2014-07
ended
|
NHP130 ACTIV;NSP130 RHD 5D +1 | — | |
| 67640-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2013-03 → 2014-07
ended
|
NSP130 5D ACTIV;NSP130 LHD +4 | — | |
| 67640-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2013-03 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD 5D (5F,6F,CVFC) +1 | — | |
| 67640-0DB90-C0 note |
Board Sub-assy, Rear Door Trim, LH
2013-03 → 2014-07
ended
|
KSP130,NLP130,NSP130 5D (5F,6F,CVFC) ACTIV | — | |
| 67673A — Garnish, Rear Door Frame, RH | ||||
| 67673-0D030-C0 note |
Garnish, Rear Door Frame, RH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D | — | |
| 67674A — Garnish, Rear Door Frame, LH | ||||
| 67674-0D030-C0 note |
Garnish, Rear Door Frame, LH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D | — | |
| 68173B — Weatherstrip, Rear Door Glass, Inner RH | ||||
| 68173-0D110 |
Weatherstrip, Rear Door Glass, Inner RH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D | — | |
| 68174A — Weatherstrip, Rear Door Glass, Inner LH | ||||
| 68174-0D110 |
Weatherstrip, Rear Door Glass, Inner LH
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 5D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
