Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

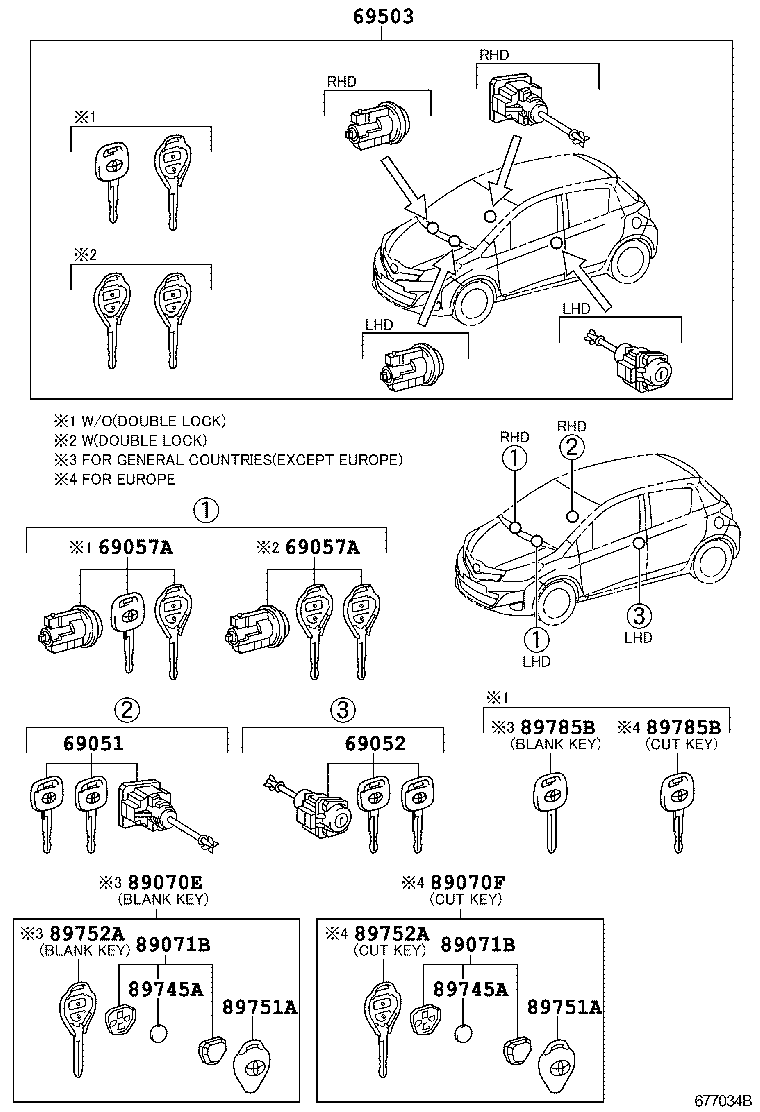

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-0D080 note |
Cylinder & Key Set, Door Lock, RH
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69051-0D080 note |
Cylinder & Key Set, Door Lock, RH
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 69051-0D080 note |
Cylinder & Key Set, Door Lock, RH
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 69051-0D080 |
Cylinder & Key Set, Door Lock, RH
2011-07 → —
|
NHP130 RHD ACTIV;KSP130,NLP130,NSP130 STD | — | |
| 69051-0D140 |
Cylinder & Key Set, Door Lock, RH
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69051-0D140 note |
Cylinder & Key Set, Door Lock, RH
2011-07 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 69051-0D140 note |
Cylinder & Key Set, Door Lock, RH
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-0D080 |
Cylinder & Key Set, Door Lock, LH
2011-07 → —
|
NLP130 LHD LHD;NLP130 (ACTIV,LOUNG,STYLE) +5 | — | |
| 69052-0D080 note |
Cylinder & Key Set, Door Lock, LH
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 69052-0D080 note |
Cylinder & Key Set, Door Lock, LH
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-02530 note |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 69057-02530 |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 69057-02540 |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69057-02540 note |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 69057-02540 note |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 69057-02590 |
Cylinder & Key Set, Ignition Switch Lock
2012-03 → —
|
KSP130,NLP130,NSP130 STD | — | |
| 69057-02590 note |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
NHP130 ACTIV | — | |
| 69057-02590 note |
Cylinder & Key Set, Ignition Switch Lock
2012-04 → —
|
NHP130 ACTIV | — | |
| 69057-0D260 |
Cylinder & Key Set, Ignition Switch Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 69057-0D270 |
Cylinder & Key Set, Ignition Switch Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 69057-0D270 note |
Cylinder & Key Set, Ignition Switch Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 69057-0D280 |
Cylinder & Key Set, Ignition Switch Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69057-0D280 note |
Cylinder & Key Set, Ignition Switch Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-0D280 |
Cylinder Set, Lock
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 69005-0D470 note |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD | — | |
| 69005-0D470 |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0D480 |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69005-0D480 note |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 69005-0D480 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0D490 note |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 69005-0D500 |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
NHP130 LHD ACTIV;KSP130,NLP130,NSP130 LHD +1 | — | |
| 69005-0D500 note |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD STD | — | |
| 69005-0D510 note |
Cylinder Set, Lock
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 69005-0D570 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0D570 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0D570 |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD LOUNG | — | |
| 69005-0D580 |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 LHD LOUNG | — | |
| 69005-0D580 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 69005-0D580 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 69005-0DA60 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0DA60 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 69005-0DA60 note |
Cylinder Set, Lock
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 69005-0DA60 |
Cylinder Set, Lock
2012-03 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 89070E — Transmitter Assy, Door Control | ||||
| 89070-02570 note |
Transmitter Assy, Door Control
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02570 note |
Transmitter Assy, Door Control
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89070F — Transmitter Assy, Door Control (CUT KEY) | ||||
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2012-04 → —
|
NHP130 ACTIV | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2012-04 → —
|
NHP130 ACTIV | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2012-04 → —
|
NHP130 ACTIV | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89070-02550 note |
Transmitter Assy, Door Control (CUT KEY)
2011-07 → —
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 89071B — Module Set, Transmitter Sub-assy, Door Control | ||||
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2012-04 → —
|
NHP130 ACTIV | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2012-04 → —
|
NHP130 ACTIV | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2012-04 → —
|
NHP130 ACTIV | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89071-0F060 |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89071-0F060 |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89071-0F060 note |
Module Set, Transmitter Sub-assy, Door Control
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-0D020 note |
Battery, Transmitter
2011-07 → —
|
KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89745-0H010 note |
Battery, Transmitter
2012-04 → —
|
NHP130 ACTIV | — | |
| 89745-0H010 note |
Battery, Transmitter
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 89745-0H010 note |
Battery, Transmitter
2012-04 → —
|
NHP130 ACTIV | — | |
| 89745-0H010 note |
Battery, Transmitter
2012-04 → —
|
NHP130 ACTIV | — | |
| 89745-0H010 note |
Battery, Transmitter
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89745-0H010 note |
Battery, Transmitter
2011-07 → —
|
KSP130,NLP130,NSP130 STD | — | |
| 89745-0H010 note |
Battery, Transmitter
2011-07 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89745-0H010 note |
Battery, Transmitter
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89745-0H010 |
Battery, Transmitter
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89745-50020 |
Battery, Transmitter
2012-04 → —
|
NHP130 LOUNG | — | |
| 89745-50020 note |
Battery, Transmitter
2012-04 → —
|
NHP130 ACTIV | — | |
| 89745-50020 note |
Battery, Transmitter
2012-04 → —
|
NHP130 RHD LOUNG | — | |
| 89745-50020 note |
Battery, Transmitter
2012-04 → —
|
NHP130 ACTIV | — | |
| 89751A — Cover, Transmitter Housing | ||||
| 89751-05010 note |
Cover, Transmitter Housing
2012-04 → —
|
NHP130 LHD ACTIV | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2012-04 → —
|
NHP130 RHD ACTIV | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2012-04 → —
|
NHP130 ACTIV | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2012-04 → —
|
NHP130 ACTIV | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2012-04 → —
|
NHP130 ACTIV | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89751-05010 |
Cover, Transmitter Housing
2011-07 → —
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2011-07 → —
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 89751-05010 |
Cover, Transmitter Housing
2011-07 → —
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89751-05010 note |
Cover, Transmitter Housing
2011-07 → —
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89752A — Case, Transmitter Housing | ||||
| 89752-02230 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 89752-02230 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 89752-02230 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02230 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02230 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD;KSP130,NLP130,NSP130 LHD STD | — | |
| 89752-02230 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02250 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 LHD ACTIV | — | |
| 89752-02250 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02250 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02250 note |
Case, Transmitter Housing
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89752-02250 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89752-02250 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 STD | — | |
| 89752-02250 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD STD | — | |
| 89752-02250 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89752-02250 note |
Case, Transmitter Housing
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 ACTIV,LOUNG,STYLE | — | |
| 89785B — Transmitter, Transponder Key Master | ||||
| 89785-02230 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
NLP130 (ACTIV,LOUNG,STYLE) LHD;NHP130 ACTIV;NLP130 +4 | — | |
| 89785-02230 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
| 89785-02230 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
NHP130 ACTIV;KSP130,NLP130,NSP130 LHD (ACTIV,LOUNG,STYLE) | — | |
| 89785-02230 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
NHP130 RHD ACTIV;KSP130,NLP130,NSP130 RHD +1 | — | |
| 89785-02230 note |
Transmitter, Transponder Key Master
2012-04 → 2014-07
ended
|
NHP130 RHD ACTIV | — | |
| 89785-02230 note |
Transmitter, Transponder Key Master
2012-04 → 2014-07
ended
|
NHP130 ACTIV | — | |
| 89785-02250 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
NLP130 (ACTIV,LOUNG,STYLE) LHD;NHP130 ACTIV;NLP130 +4 | — | |
| 89785-02250 note |
Transmitter, Transponder Key Master
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 RHD (ACTIV,LOUNG,STYLE) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
