Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

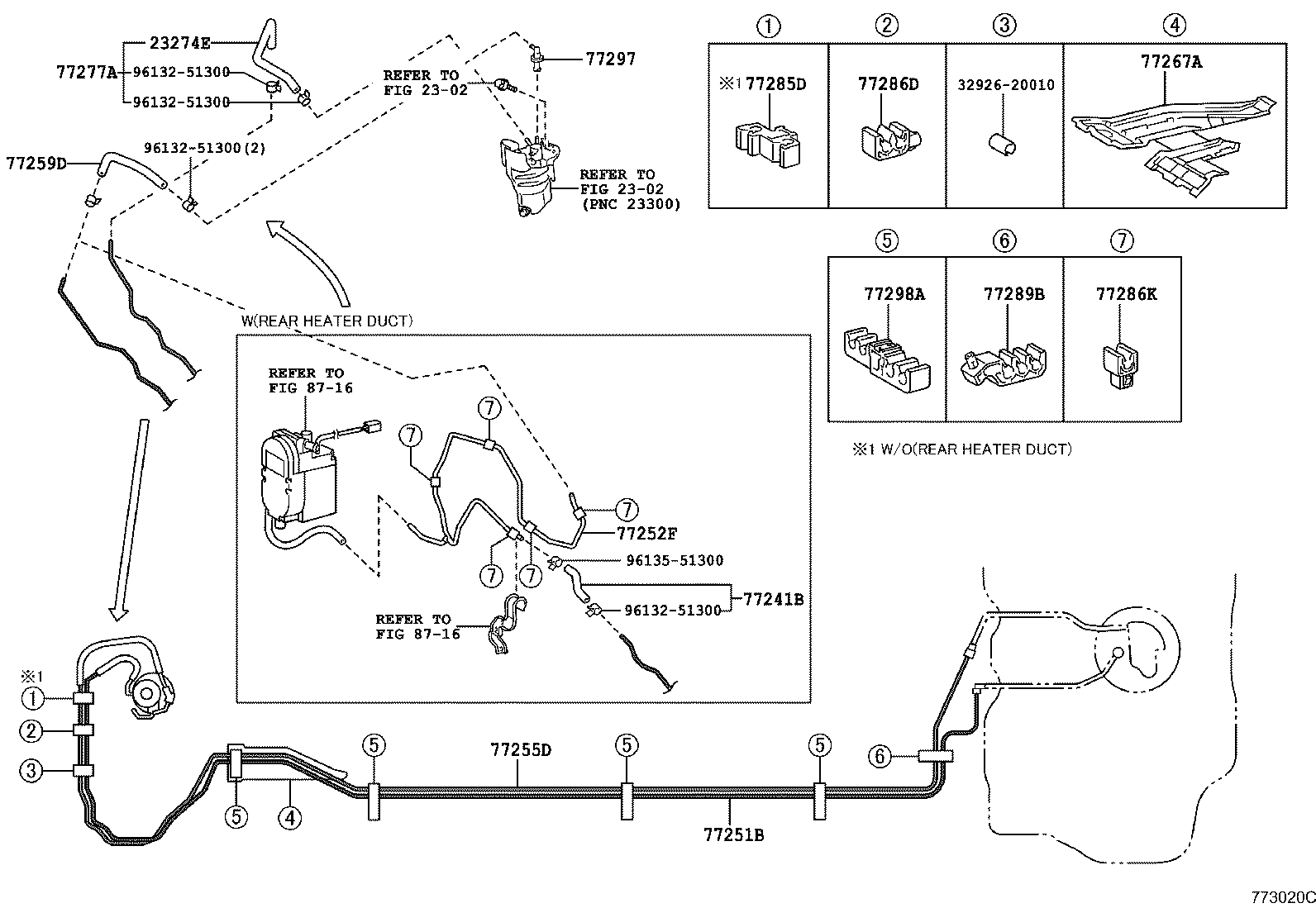

24 parts on this figure

Part number	Description	Fitment	Price
23274E — Hose, Fuel, NO.3
23274-0N030	Hose, Fuel, NO.3 2011-07 → —	1NDTV NLP130	—
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77049-52010 note	Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) 2011-07 → —	NLP130 LHD	—
77251B — Tube, Fuel Main
77251-0D270	Tube, Fuel Main 2011-07 → —	KSP130,NSP130	—
77251-0D290	Tube, Fuel Main 2011-07 → —	NLP130	—
77251-0D300 note	Tube, Fuel Main 2011-07 → —	NLP130 LHD	—
77251-0D310	Tube, Fuel Main 2012-04 → —	NHP130	—
77252F — Tube, Fuel Main, Rear
77252-0D080 note	Tube, Fuel Main, Rear 2011-07 → —	NLP130 LHD	—
77255D — Tube, Fuel Return
77255-0D070	Tube, Fuel Return 2011-07 → —	NLP130	—
77255-0D080 note	Tube, Fuel Return 2011-07 → —	NLP130 LHD	—
77259D — Hose, Fuel, NO.1
77259-0D090	Hose, Fuel, NO.1 2011-07 → —	NLP130	—
77267A — Protector, Fuel Tube, NO.2
77267-52050	Protector, Fuel Tube, NO.2 2011-07 → —	KSP130,NLP130,NSP130	—
77267-52060	Protector, Fuel Tube, NO.2 2012-04 → 2013-12 ended	NHP130	—
77267-52061	Protector, Fuel Tube, NO.2 2013-12 → —	NHP130	—
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23802-0N040 note	Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) 2011-07 → 2014-07 ended	NLP130 LHD	—
23802-0N040	Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) 2011-07 → —	NLP130	—
77285D — Clamp, Fuel Tube, NO.1
77285-52060	Clamp, Fuel Tube, NO.1 2011-07 → —	KSP130,NSP130	—
77285-52120	Clamp, Fuel Tube, NO.1 2011-07 → —	NLP130	—
77286D — Clamp, Fuel Tube, NO.2
77286-20190	Clamp, Fuel Tube, NO.2 2012-04 → —	NHP130	—
77286-52100	Clamp, Fuel Tube, NO.2 2011-07 → —	KSP130,NSP130	—
77286-52130	Clamp, Fuel Tube, NO.2 2011-07 → —	NLP130	—
77286K — Clamp, Fuel Tube, NO.2
77286-52110 note	Clamp, Fuel Tube, NO.2 2011-07 → 2014-07 ended	NLP130 LHD	—
77289B — Clamp, Fuel Tube, NO.3
77289-52060	Clamp, Fuel Tube, NO.3 2011-07 → 2014-07 ended	KSP130,NLP130,NSP130	—
77297 — Connector, Fuel Tube
77297-52030	Connector, Fuel Tube 2011-07 → —	NLP130	—
77298A — Clamp, Fuel Tube, NO.4
77298-52070	Clamp, Fuel Tube, NO.4 2011-07 → 2014-07 ended	KSP130,NLP130,NSP130	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
