Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

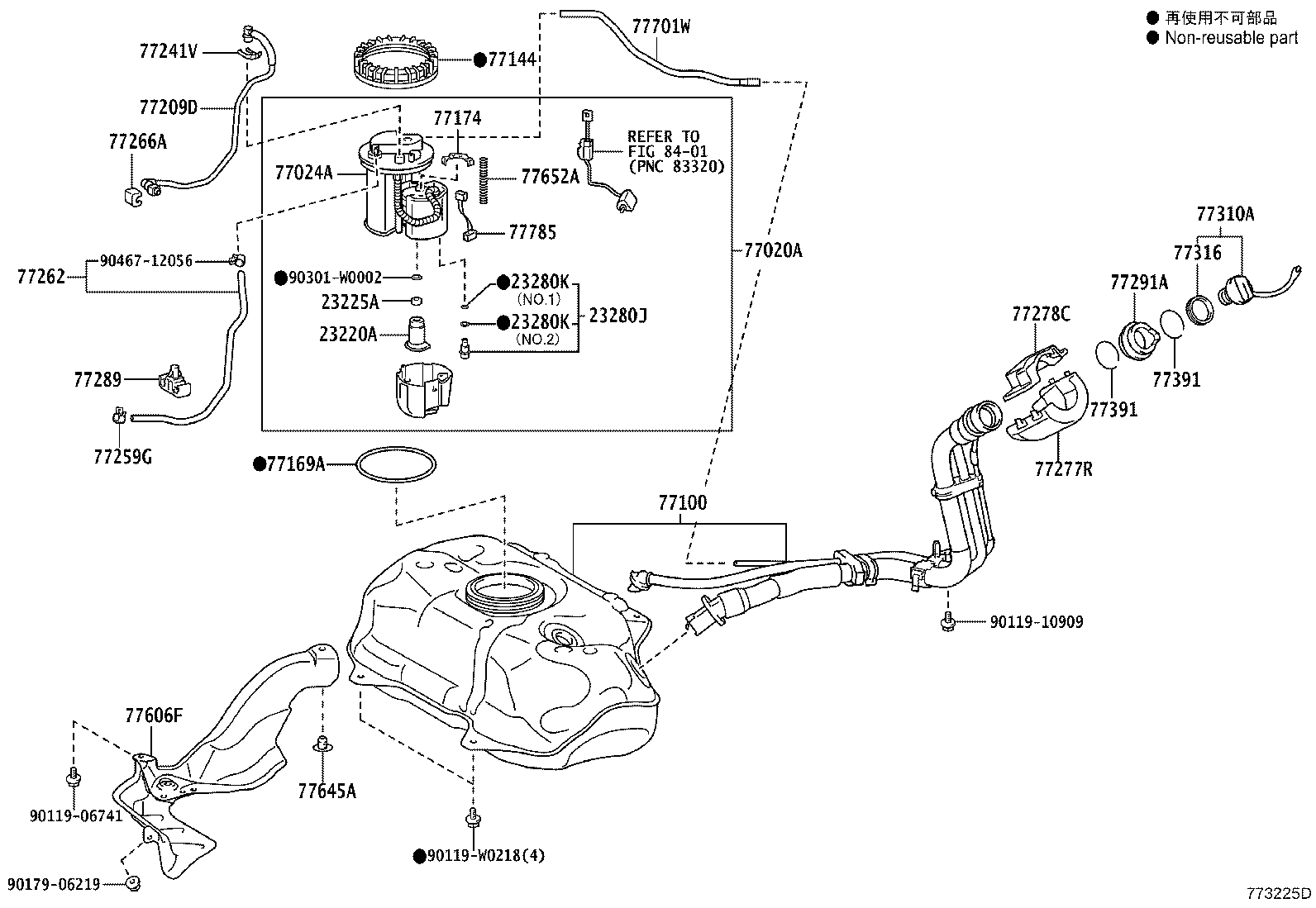

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23220A — Pump Assy, Fuel W/Filter | ||||
| 23220-0Q040 |
Pump Assy, Fuel W/Filter
2012-04 → 2012-05
ended
|
1NZFXE NHP130 | — | |
| 23220-0Q041 |
Pump Assy, Fuel W/Filter
2012-05 → —
|
1NZFXE NHP130 | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-0T010 |
Spacer, Fuel Pump
2011-07 → —
|
1KRFE,1NZFXE,1NRFE KSP130,NHP130,NSP130 | — | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-21010 |
Regulator Assy, Fuel Pressure
2012-04 → —
|
1NZFXE NHP130 | — | |
| 23280-22010 |
Regulator Assy, Fuel Pressure
2011-07 → —
|
1KRFE,1NRFE KSP130,NSP130 | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 90301-07020 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2011-07 → —
|
1KRFE,1NRFE KSP130,NSP130 | — | |
| 90301-15024 note |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2012-04 → —
|
1NZFXE NHP130 | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-0D160 |
Tube Assy, Fuel Suction W/Pump & Gage
2012-04 → 2014-03
ended
|
NHP130 | — | |
| 77020-0D161 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-03 → —
|
NHP130 | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-0D120 |
Plate Sub-assy, Fuel Suction
2012-04 → —
|
NHP130 | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-0D160 |
Tank Assy, Fuel
2011-07 → —
|
KSP130,NSP130 | — | |
| 77001-0D170 note |
Tank Assy, Fuel
2011-07 → 2012-02
ended
|
NSP130 LHD | — | |
| 77001-0D170 note |
Tank Assy, Fuel
2011-07 → 2012-02
ended
|
KSP130 LHD | — | |
| 77001-0D180 |
Tank Assy, Fuel
2011-07 → —
|
NLP130 | — | |
| 77001-0D200 |
Tank Assy, Fuel
2012-04 → —
|
NHP130 | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-0D050 |
Retainer, Fuel Pump Gauge
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 | — | |
| 77144-0D070 |
Retainer, Fuel Pump Gauge
2012-03 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-0D060 |
Gasket, Fuel Suction Tube Set
2011-07 → 2012-03
ended
|
KSP130,NLP130,NSP130 | — | |
| 77169-0D070 |
Gasket, Fuel Suction Tube Set
2012-03 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77174 — Support, Fuel Suction, NO.1 | ||||
| 77174-0D050 |
Support, Fuel Suction, NO.1
2012-04 → —
|
NHP130 | — | |
| 77174-0D070 |
Support, Fuel Suction, NO.1
2011-07 → —
|
KSP130,NSP130 | — | |
| 77209D — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-0D100 |
Tube Sub-assy, Fuel Tank Main
2011-07 → —
|
KSP130,NSP130 | — | |
| 77209-0D110 |
Tube Sub-assy, Fuel Tank Main
2011-07 → —
|
NLP130 | — | |
| 77209-0D120 |
Tube Sub-assy, Fuel Tank Main
2012-04 → —
|
NHP130 | — | |
| 77241V — Clip, Tube Joint | ||||
| 77241-32060 |
Clip, Tube Joint
2011-07 → —
|
NLP130 | — | |
| 77241-32060 |
Clip, Tube Joint
2011-07 → —
|
KSP130,NHP130,NSP130 | — | |
| 77259G — Clip, Fuel Hose | ||||
| 90466-13004 |
Clip, Fuel Hose
2012-04 → —
|
KSP130,NHP130,NSP130 | — | |
| 96132-51300 |
Clip, Fuel Hose
2011-07 → 2012-04
ended
|
KSP130,NSP130 | — | |
| 77262 — Tube, Fuel Emission, NO.2 | ||||
| 77028-0D090 |
Tube, Fuel Emission, NO.2
2011-07 → —
|
KSP130,NSP130 | — | |
| 77028-0D110 |
Tube, Fuel Emission, NO.2
2012-04 → —
|
NHP130 | — | |
| 77266A — Protector, Fuel Tube, NO.1 | ||||
| 77266-52110 |
Protector, Fuel Tube, NO.1
2012-04 → —
|
NHP130 | — | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-52090 |
Protector, Fuel Tank Filler Pipe
2012-04 → —
|
NHP130 | — | |
| 77278C — Protector, Fuel Tank Filler Pipe, NO.2 | ||||
| 77278-12070 |
Protector, Fuel Tank Filler Pipe, NO.2
2014-03 → —
|
NHP130 | — | |
| 77278-52040 |
Protector, Fuel Tank Filler Pipe, NO.2
2012-04 → 2014-03
ended
|
NHP130 | — | |
| 77289 — Holder, Fuel Tank Pipe Setting | ||||
| 77289-52130 |
Holder, Fuel Tank Pipe Setting
2012-04 → —
|
NHP130 | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-0D130 |
Shield, Fuel Tank Filler Pipe
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-20020 |
Cap Assy, Fuel Tank
2011-07 → —
|
NLP130 | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2011-07 → —
|
KSP130,NHP130,NSP130 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2011-07 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77606F — Case Sub-assy, Fuel Tank Cover Vent | ||||
| 77606-0D050 |
Case Sub-assy, Fuel Tank Cover Vent
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 | — | |
| 77606-0D070 |
Case Sub-assy, Fuel Tank Cover Vent
2012-04 → 2014-07
ended
|
NHP130 | — | |
| 77645A — Retainer, Fuel Tank Protector | ||||
| 77645-52020 |
Retainer, Fuel Tank Protector
2011-07 → 2013-03
ended
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77645-52040 |
Retainer, Fuel Tank Protector
2013-04 → —
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 77652A — Cushion, Fuel Tank, NO.2 | ||||
| 77652-0D040 |
Cushion, Fuel Tank, NO.2
2012-04 → —
|
NHP130 | — | |
| 77701W — Hose Sub-assy, Canister Outlet, NO.1 | ||||
| 77701-0D060 |
Hose Sub-assy, Canister Outlet, NO.1
2011-07 → —
|
KSP130,NSP130 | — | |
| 77701-0D070 |
Hose Sub-assy, Canister Outlet, NO.1
2012-04 → —
|
NHP130 | — | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-0D030 |
Harness, Fuel Pump
2012-04 → 2012-05
ended
|
NHP130 | — | |
| 77785-0D070 |
Harness, Fuel Pump
2011-07 → 2012-05
ended
|
KSP130,NSP130 | — | |
| 77785-0D071 |
Harness, Fuel Pump
2012-05 → —
|
KSP130,NSP130 | — | |
| 77785-0D080 |
Harness, Fuel Pump
2012-05 → —
|
NHP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
