Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

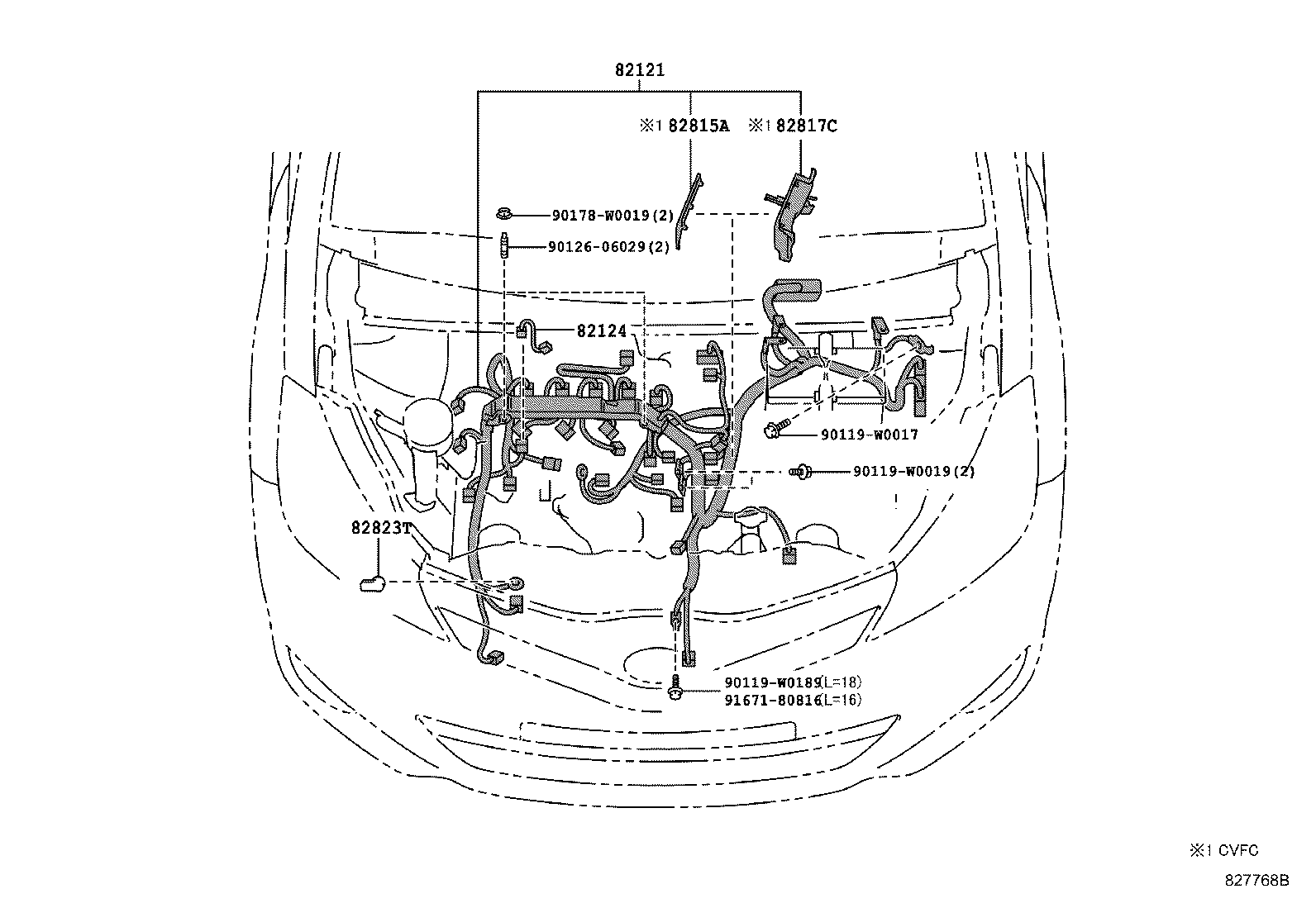

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0DC30 |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 LHD 6F | — | |
| 82121-0DE20 |
Wire, Engine
2011-07 → 2014-07
ended
|
KSP130 LHD | — | |
| 82121-0DE30 note |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 LHD 6F | — | |
| 82121-0DE40 note |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 LHD CVFC | — | |
| 82121-0DE50 |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 LHD CVFC | — | |
| 82121-0DE80 note |
Wire, Engine
2011-07 → 2012-01
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE80 note |
Wire, Engine
2011-07 → 2012-01
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE81 note |
Wire, Engine
2012-02 → 2013-01
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE81 note |
Wire, Engine
2012-02 → 2013-01
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE81 note |
Wire, Engine
2013-01 → 2013-03
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE81 note |
Wire, Engine
2013-01 → 2013-03
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE82 note |
Wire, Engine
2013-03 → 2014-07
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE82 note |
Wire, Engine
2013-03 → 2014-07
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE90 |
Wire, Engine
2011-07 → 2012-03
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE91 |
Wire, Engine
2013-01 → 2013-03
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE91 |
Wire, Engine
2012-04 → 2013-01
ended
|
NLP130 LHD 6F | — | |
| 82121-0DE92 |
Wire, Engine
2013-03 → 2014-07
ended
|
NLP130 LHD 6F | — | |
| 82121-0DF00 |
Wire, Engine
2011-07 → 2012-03
ended
|
NLP130 6FS | — | |
| 82121-0DF01 |
Wire, Engine
2013-01 → 2013-03
ended
|
NLP130 6FS | — | |
| 82121-0DF01 |
Wire, Engine
2012-04 → 2013-01
ended
|
NLP130 6FS | — | |
| 82121-0DF02 |
Wire, Engine
2013-03 → 2014-07
ended
|
NLP130 6FS | — | |
| 82121-0DF10 |
Wire, Engine
2011-07 → 2014-07
ended
|
KSP130 RHD | — | |
| 82121-0DF20 note |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 RHD 6F | — | |
| 82121-0DF30 |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 RHD 6F | — | |
| 82121-0DF40 note |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 RHD CVFC | — | |
| 82121-0DF50 |
Wire, Engine
2011-07 → 2014-07
ended
|
NSP130 RHD CVFC | — | |
| 82121-0DF60 |
Wire, Engine
2011-07 → 2014-07
ended
|
NLP130 RHD | — | |
| 82121-0DG60 |
Wire, Engine
2012-04 → 2013-05
ended
|
NHP130 LHD | — | |
| 82121-0DG61 |
Wire, Engine
2013-06 → 2014-07
ended
|
NHP130 LHD | — | |
| 82121-0DG70 |
Wire, Engine
2012-04 → 2013-05
ended
|
NHP130 RHD | — | |
| 82121-0DG71 |
Wire, Engine
2013-06 → 2014-07
ended
|
NHP130 RHD | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-0D040 |
Wire, Engine, NO.4
2011-07 → —
|
NLP130 6FS | — | |
| 82124-12150 |
Wire, Engine, NO.4
2011-07 → —
|
NSP130 | — | |
| 82124-52020 |
Wire, Engine, NO.4
2012-04 → —
|
NHP130 | — | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-0D220 |
Cover, Wiring Harness Protector
2012-04 → —
|
NHP130 | — | |
| 82815-52160 |
Cover, Wiring Harness Protector
2011-07 → —
|
NSP130 RHD CVFC | — | |
| 82815-52170 |
Cover, Wiring Harness Protector
2011-07 → —
|
NSP130 LHD CVFC | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-52870 |
Protector, Wiring Harness, NO.4
2011-07 → —
|
NSP130 RHD CVFC | — | |
| 82817-52880 |
Protector, Wiring Harness, NO.4
2011-07 → —
|
NSP130 LHD CVFC | — | |
| 82817-52D30 |
Protector, Wiring Harness, NO.4
2012-04 → —
|
NHP130 RHD | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2011-07 → 2014-07
ended
|
KSP130,NLP130,NSP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
