Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

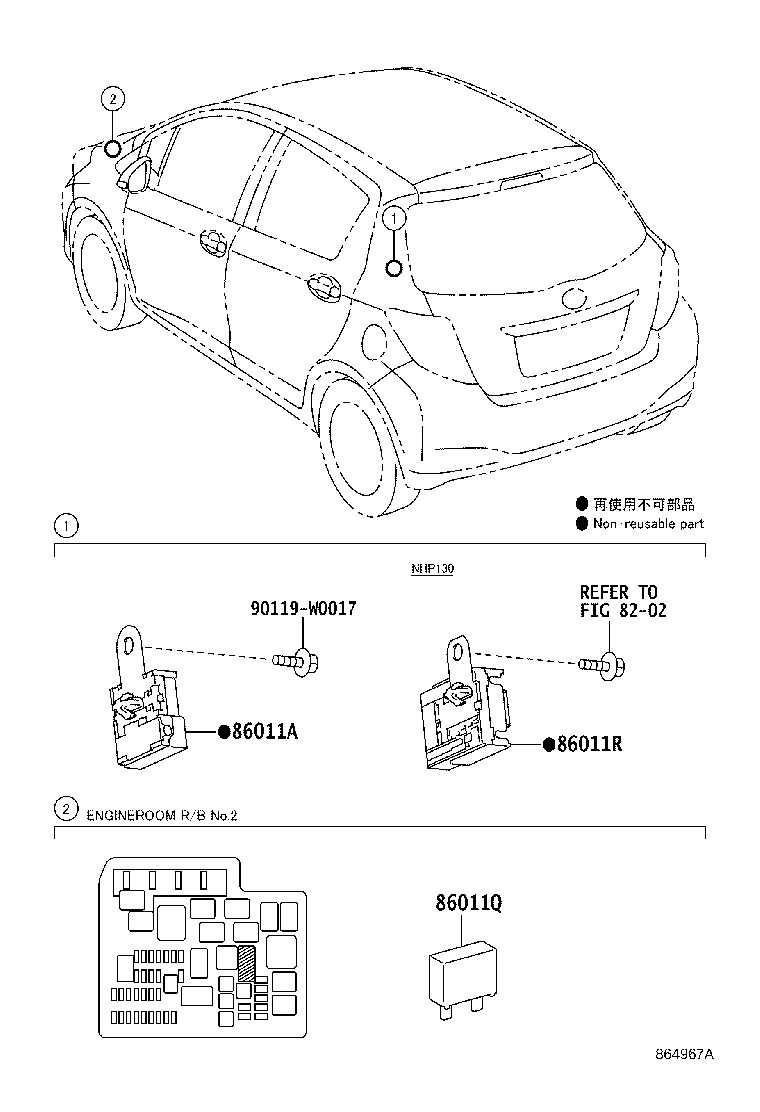

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04189 |
Condenser, Radio Setting
2011-07 → 2014-07
ended
|
KSP130,NHP130,NLP130,NSP130 | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04161 |
Condenser, Radio Setting
2012-04 → 2014-07
ended
|
NHP130 | — | |
| 86011R — Condenser, Radio Setting | ||||
| 90980-04204 |
Condenser, Radio Setting
2012-04 → —
|
NHP130 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
