Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

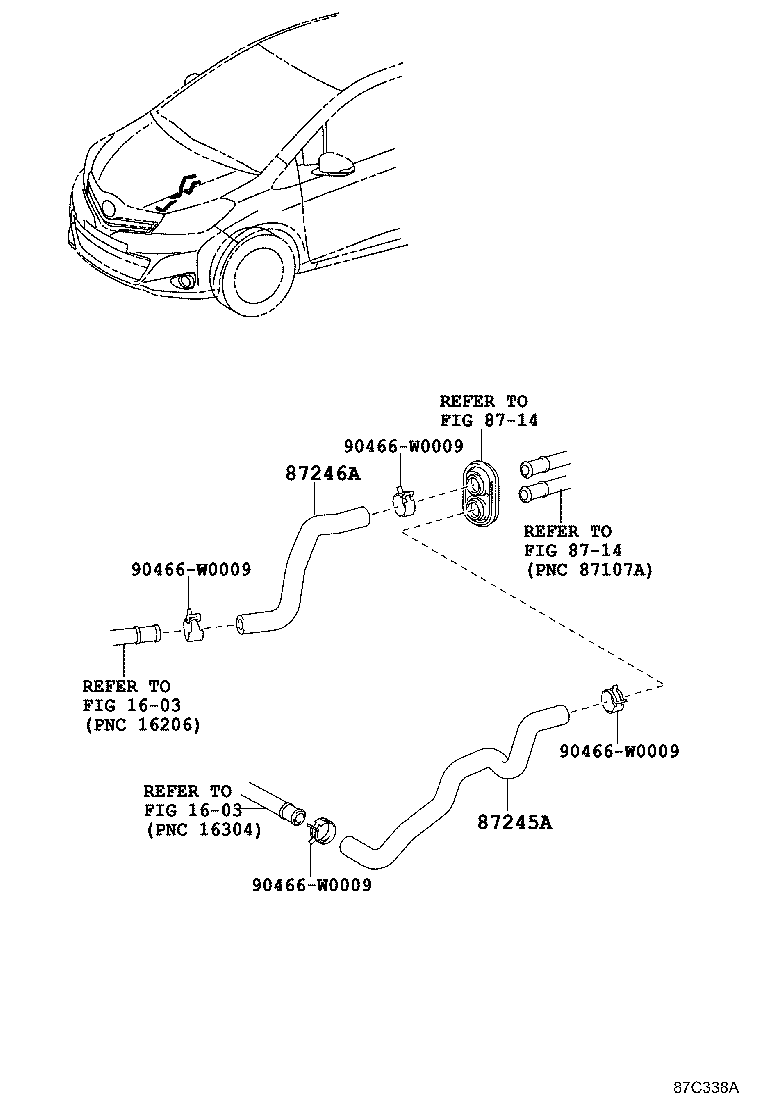

Exploded illustration 87C338A 87245A — HOSE, HEATER WATER, INLET A (4 parts) 87246A — HOSE, HEATER WATER, OUTLET A (4 parts) 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue
87C338A · 2 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
8 parts on this figure
Part number Description Fitment Price
87245A — Hose, Heater Water, Inlet A
87209-0D081 Hose, Heater Water, Inlet A
2011-07 → 2014-07 ended
KSP130 —
87209-0D230 Hose, Heater Water, Inlet A
2012-04 → 2014-07 ended
NHP130 —
87245-0D430 Hose, Heater Water, Inlet A
2011-07 → 2014-07 ended
NLP130 —
87245-0D450 note Hose, Heater Water, Inlet A
2011-07 → 2014-07 ended
NLP130 LHD —
87246A — Hose, Heater Water, Outlet A
87245-0D440 Hose, Heater Water, Outlet A
2011-07 → 2014-07 ended
NLP130 —
87245-0D440 note Hose, Heater Water, Outlet A
2011-07 → 2014-07 ended
NLP130 LHD —
87245-0D470 Hose, Heater Water, Outlet A
2012-04 → 2014-07 ended
NHP130 —
87245-52190 Hose, Heater Water, Outlet A
2011-07 → 2014-07 ended
KSP130 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
