Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

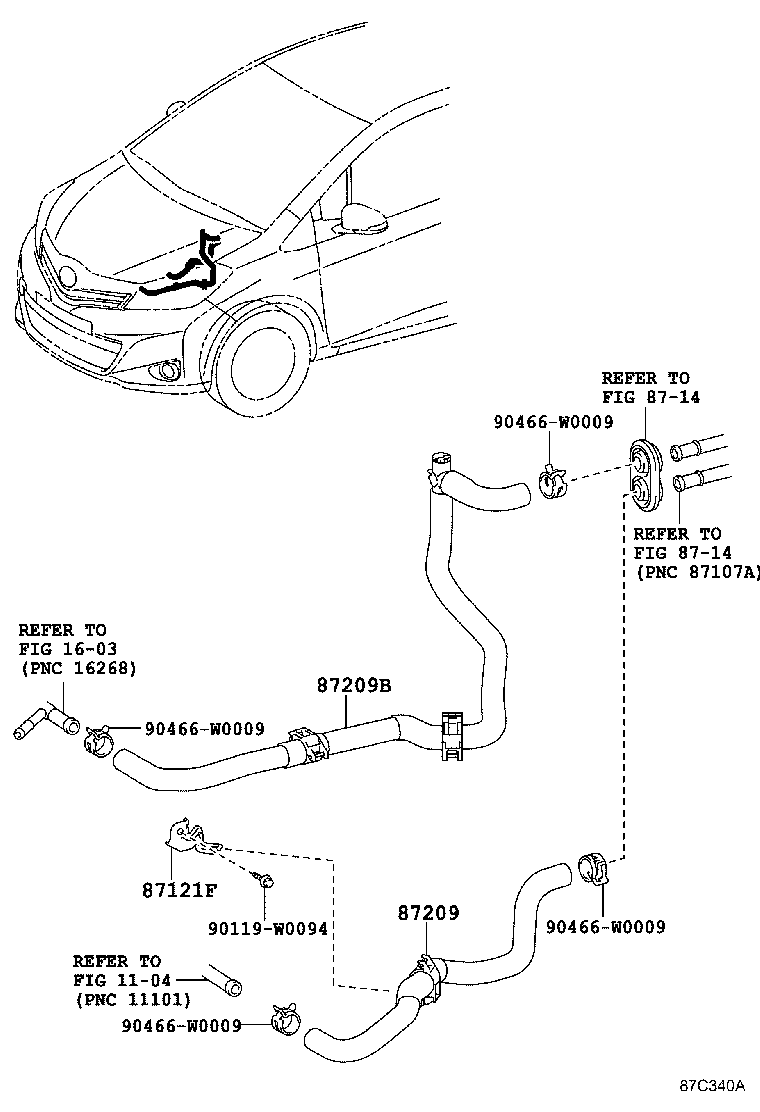

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87121F — Bracket, Heater | ||||
| 87121-0D050 |
Bracket, Heater
2011-07 → —
|
NSP130 | — | |
| 87209 — Hose Sub-assy, Water | ||||
| 87209-0D190 |
Hose Sub-assy, Water
2011-07 → —
|
NSP130 | — | |
| 87209B — Hose Sub-assy, Water, B | ||||
| 87209-0D200 |
Hose Sub-assy, Water, B
2011-07 → —
|
NSP130 6F | — | |
| 87209-0D210 |
Hose Sub-assy, Water, B
2011-07 → —
|
NSP130 CVFC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
