Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

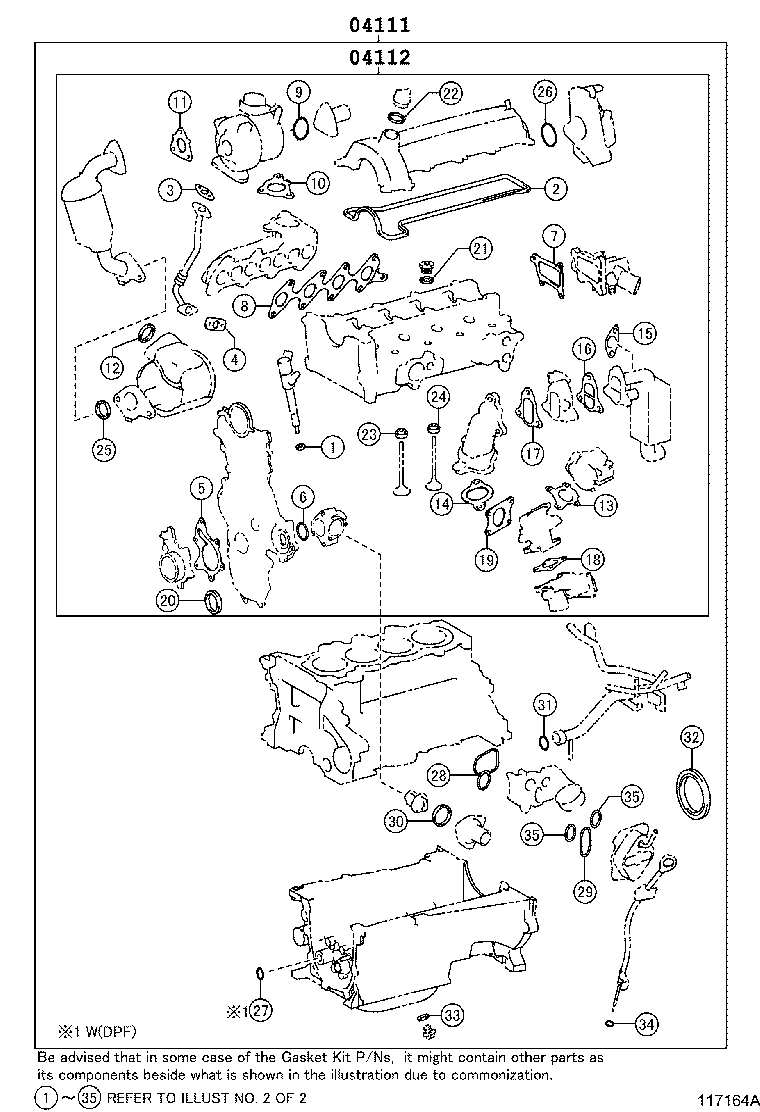

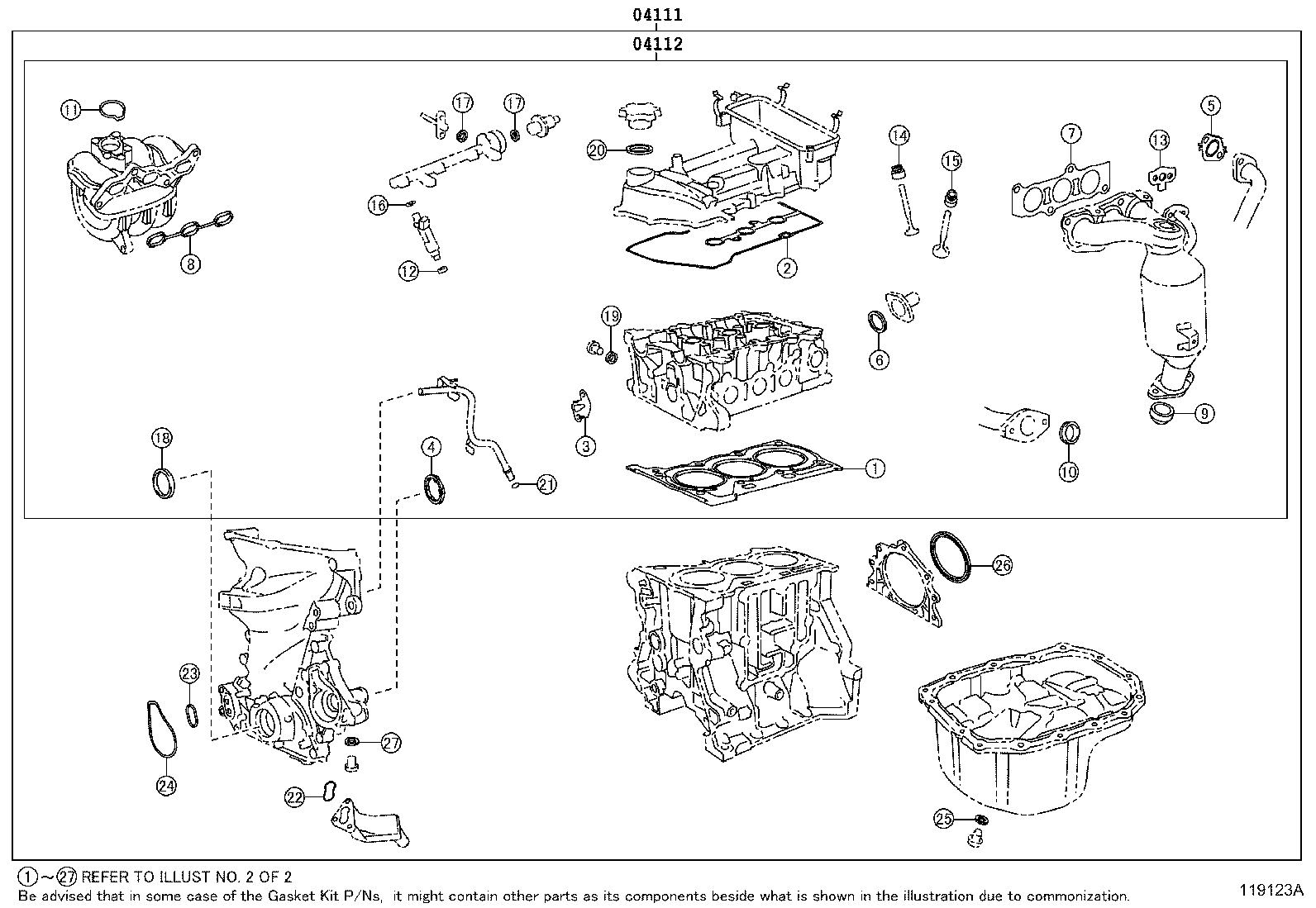

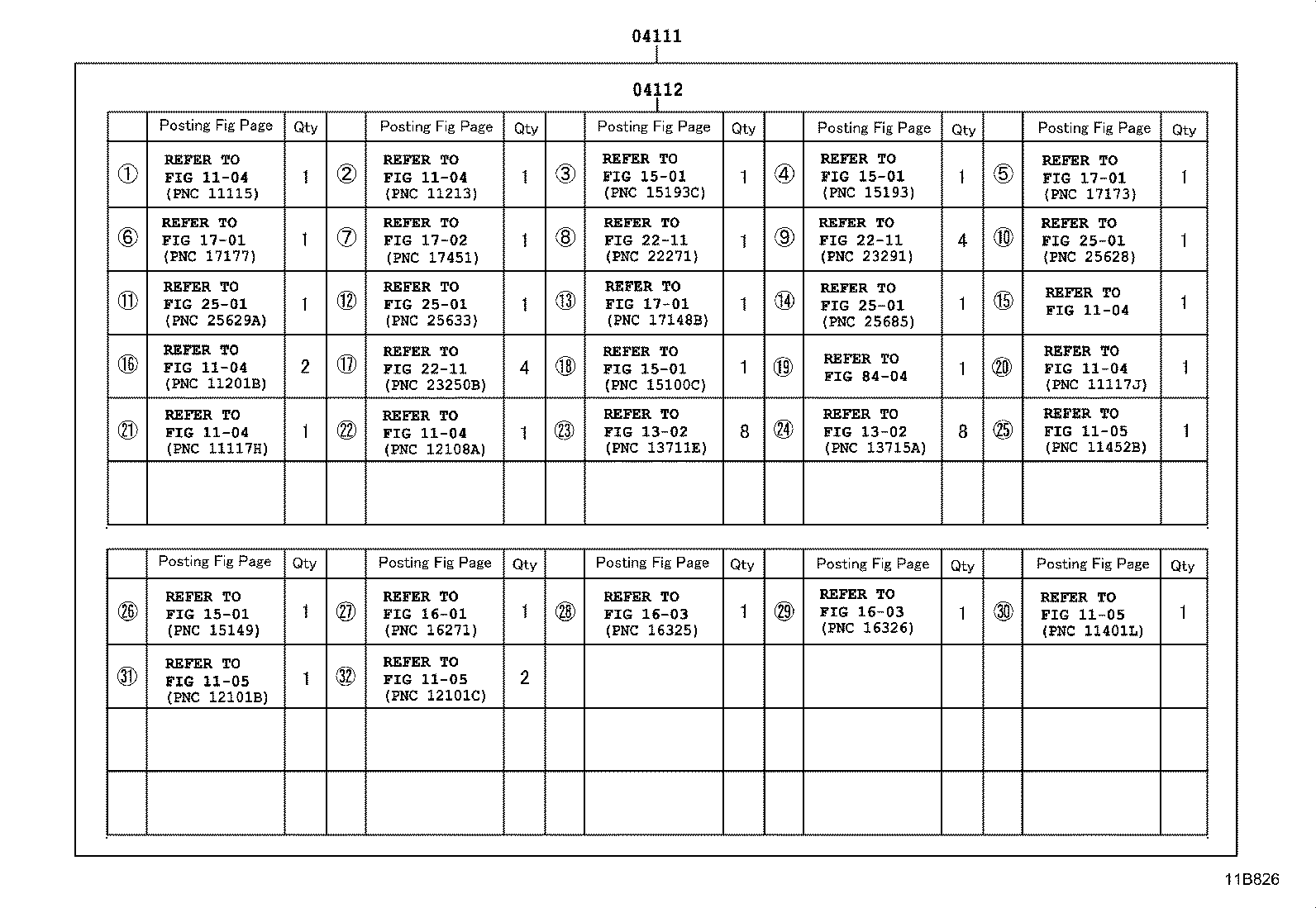

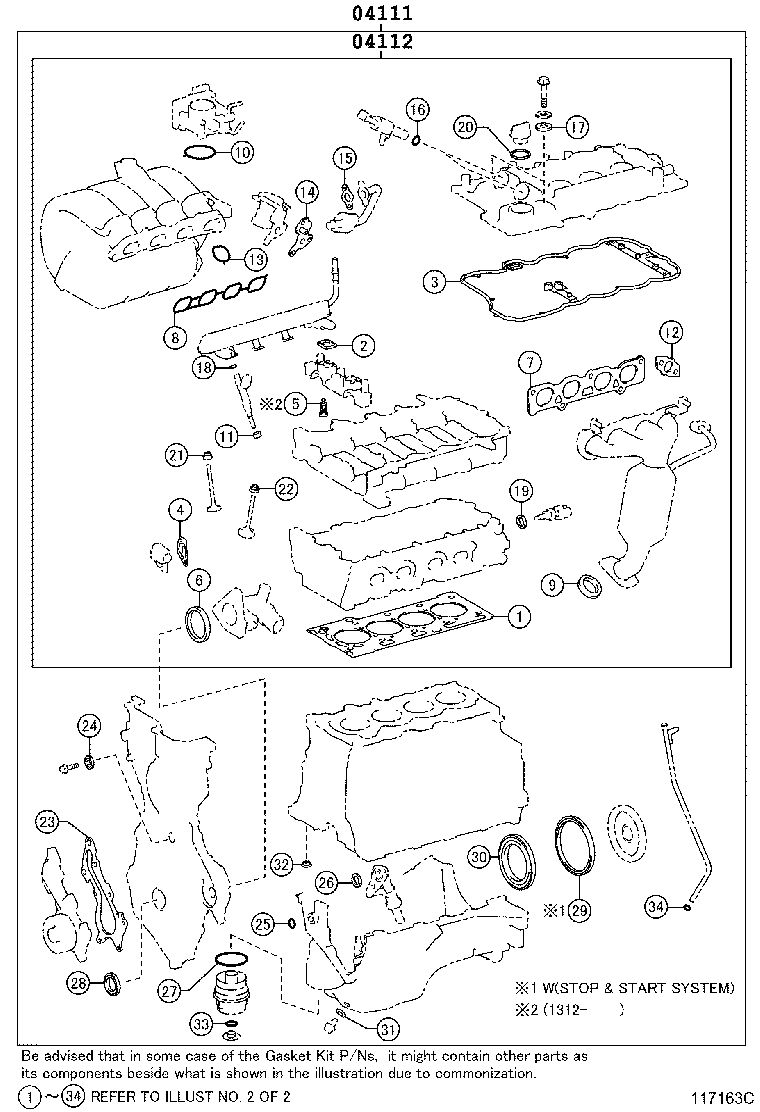

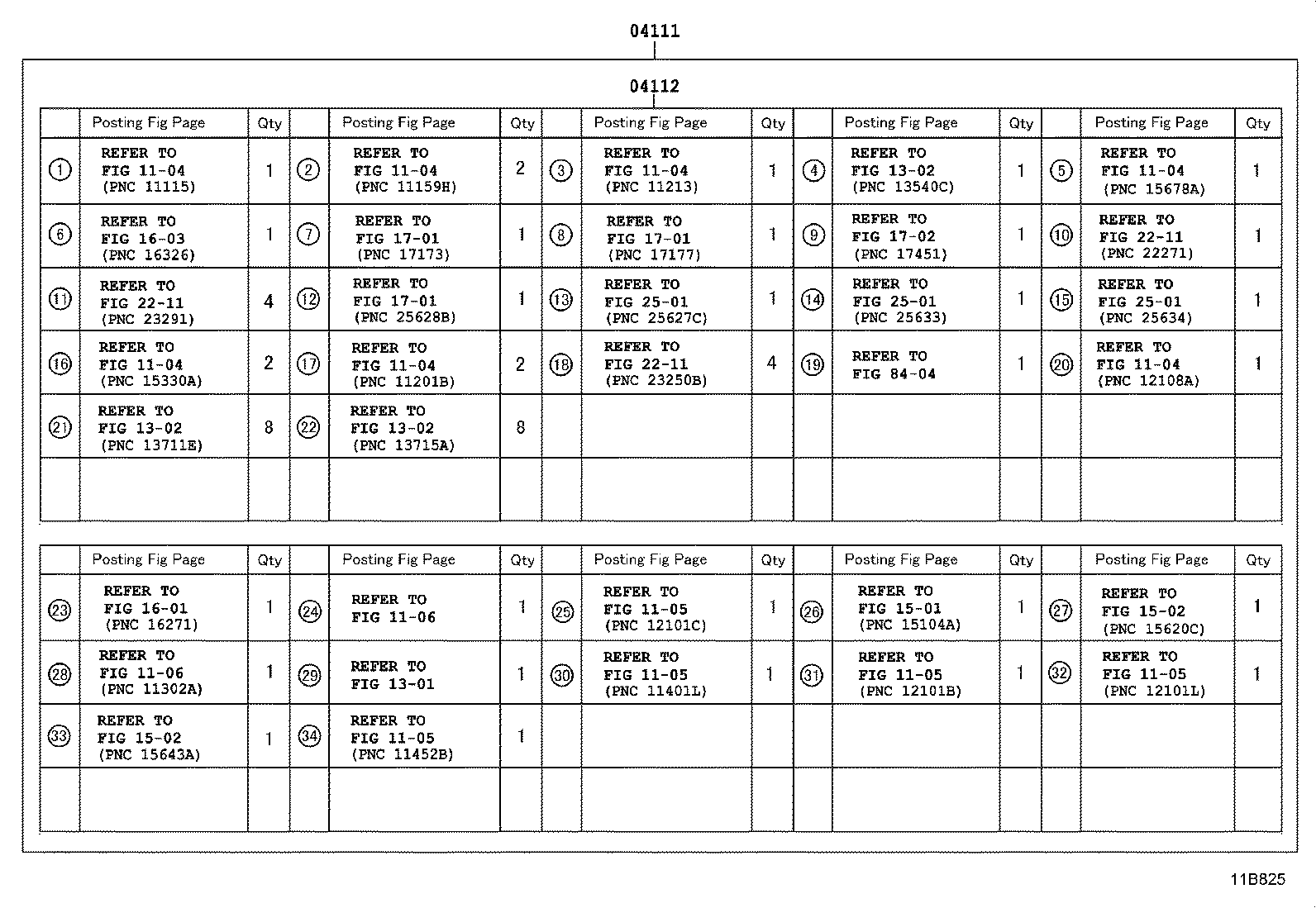

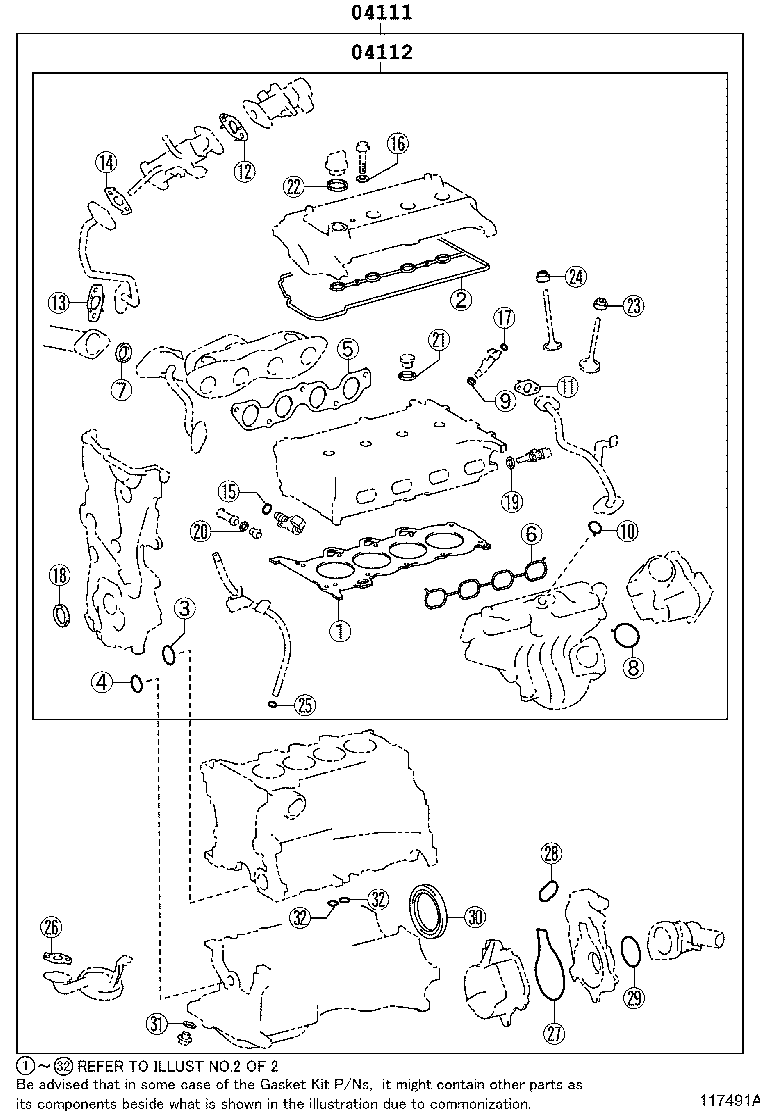

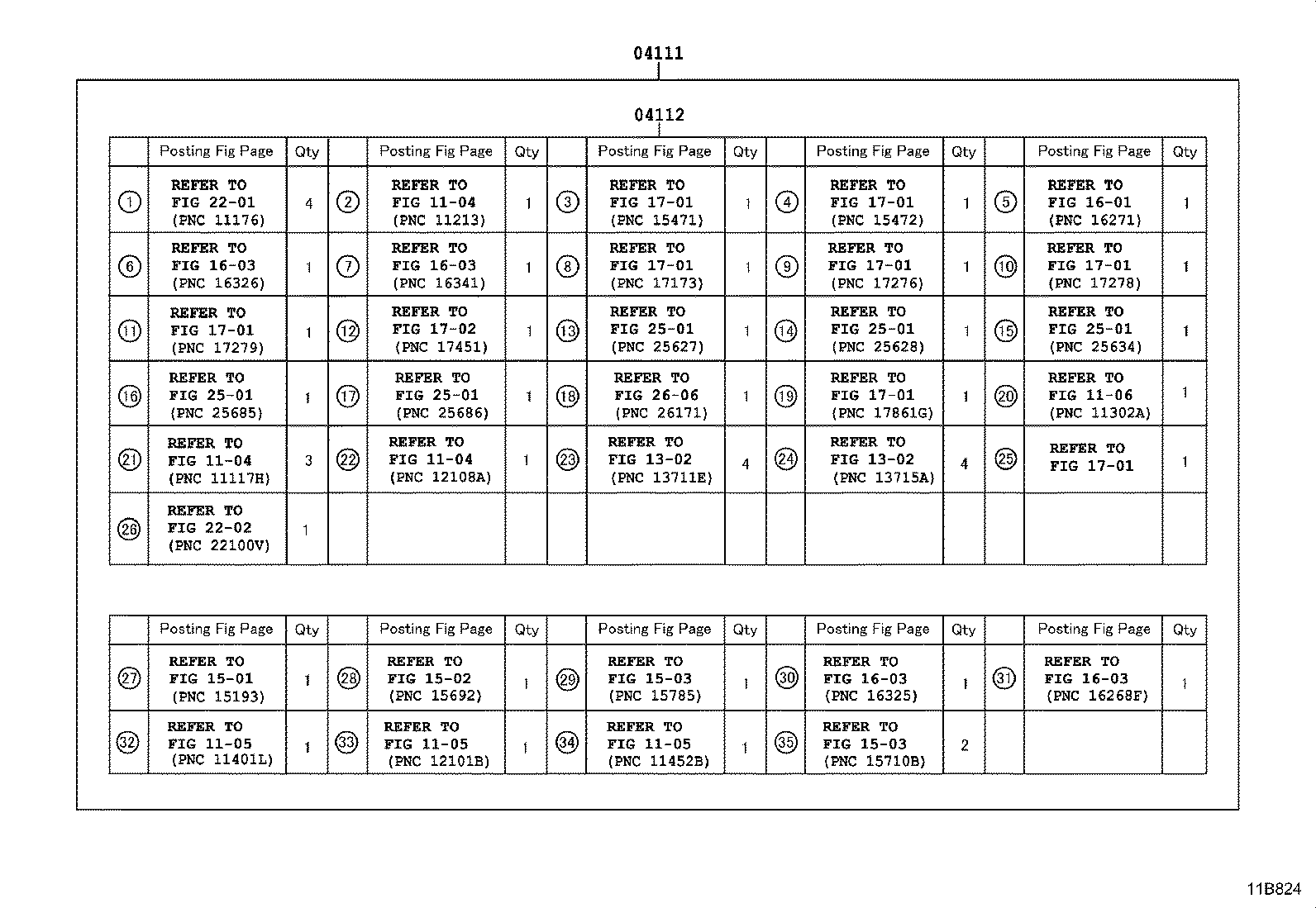

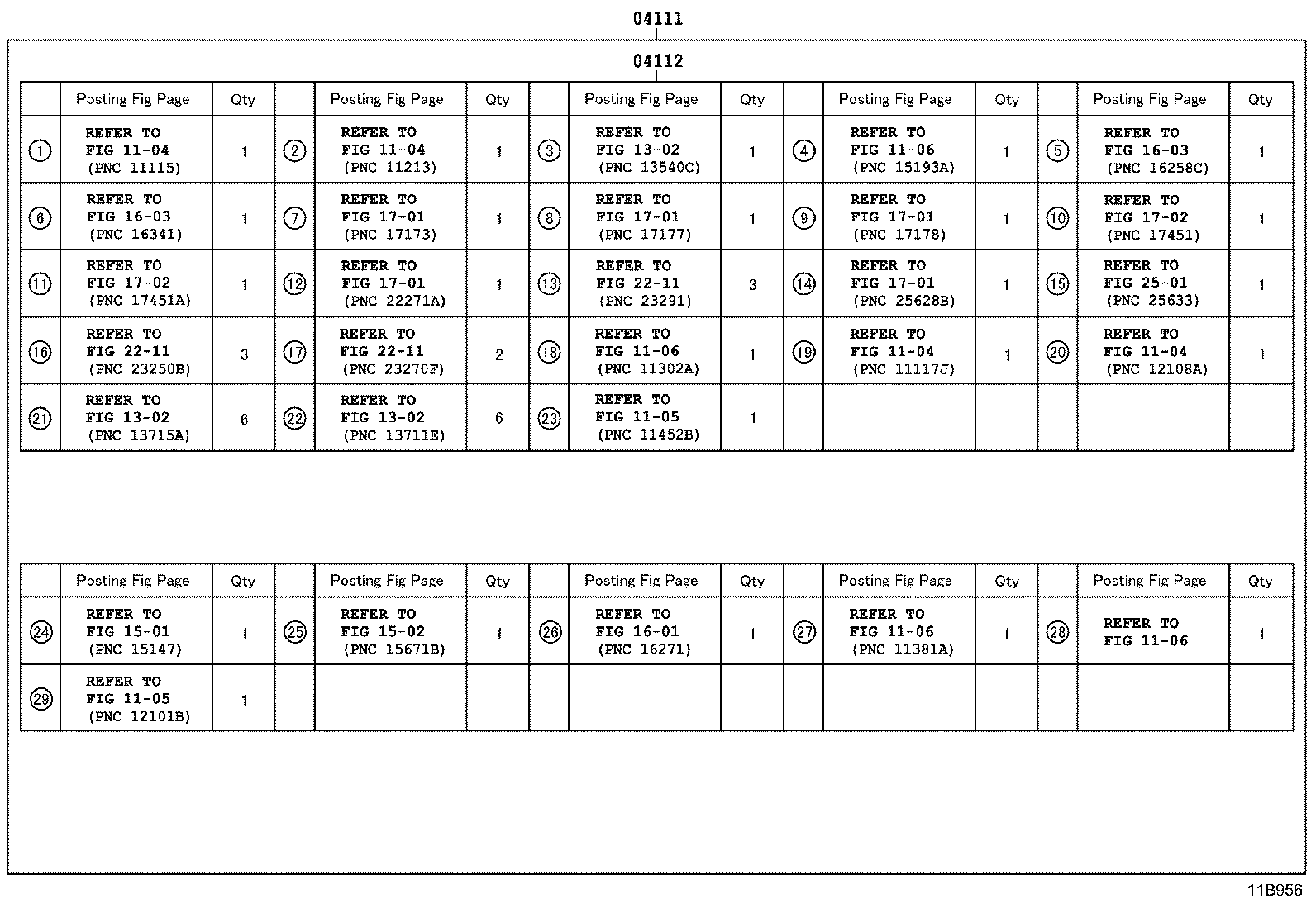

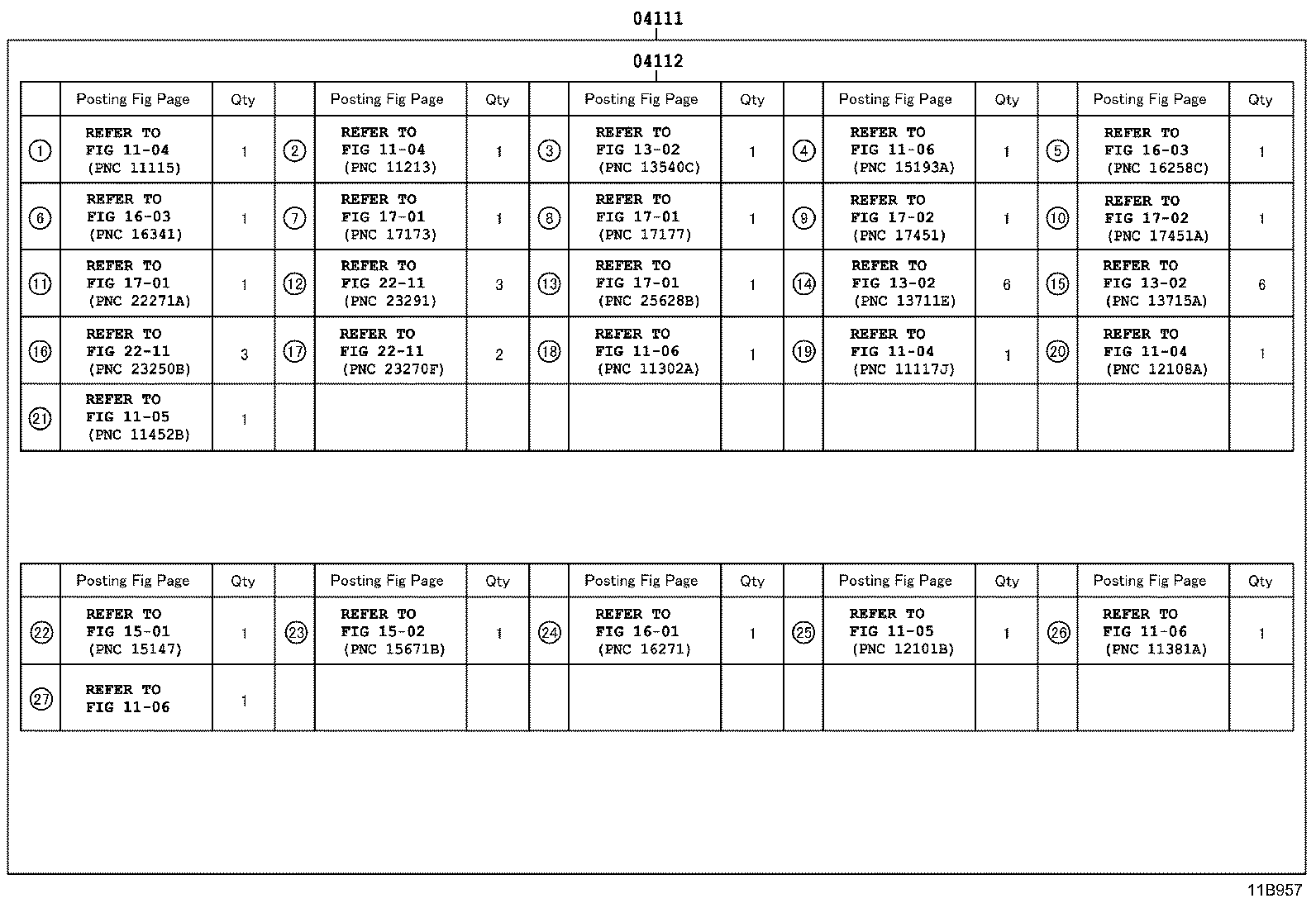

Figure 116789C 116789C 2011-07 → — Figure 11B956 11B956 2011-07 → — Figure 119123A 119123A 2011-07 → — Figure 11B957 11B957 2011-07 → — Figure 117163C 117163C 2011-07 → — Figure 11B825 11B825 2011-07 → — Figure 117164A 117164A 2011-07 → — Figure 11B824 11B824 2011-07 → — Figure 117491A 117491A 2012-04 → — Figure 11B826 11B826 2012-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
