Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

13 part groups · 4 illustrations

Illustrations

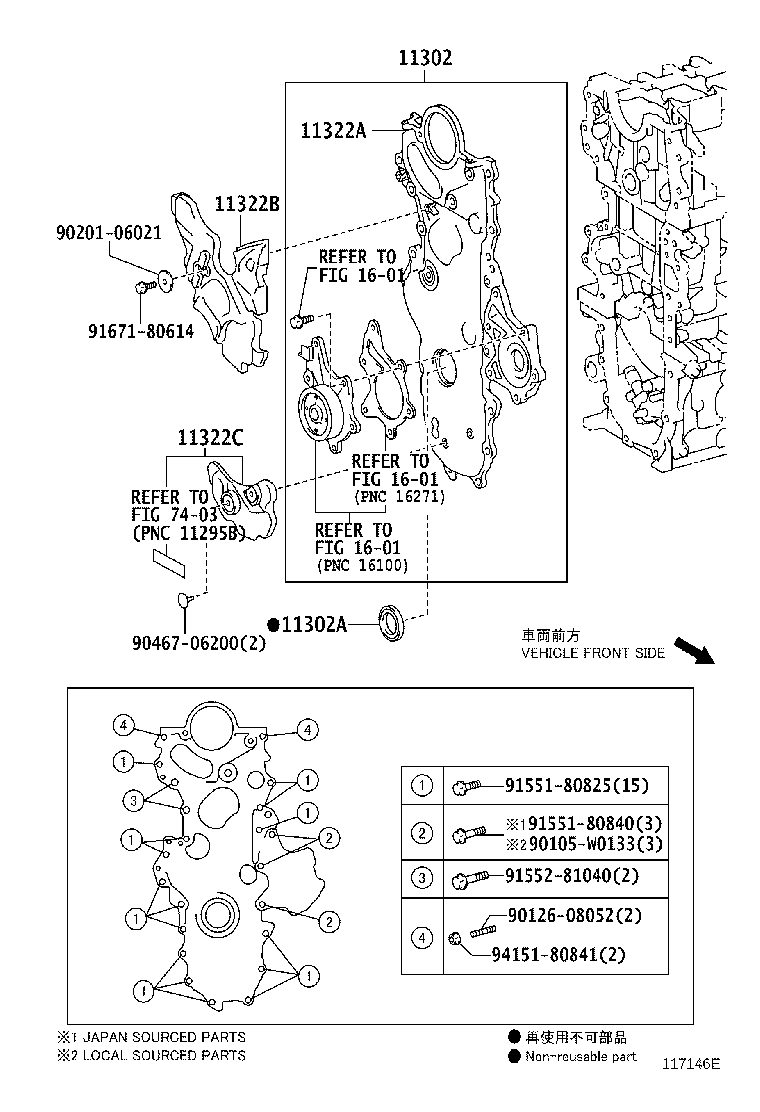

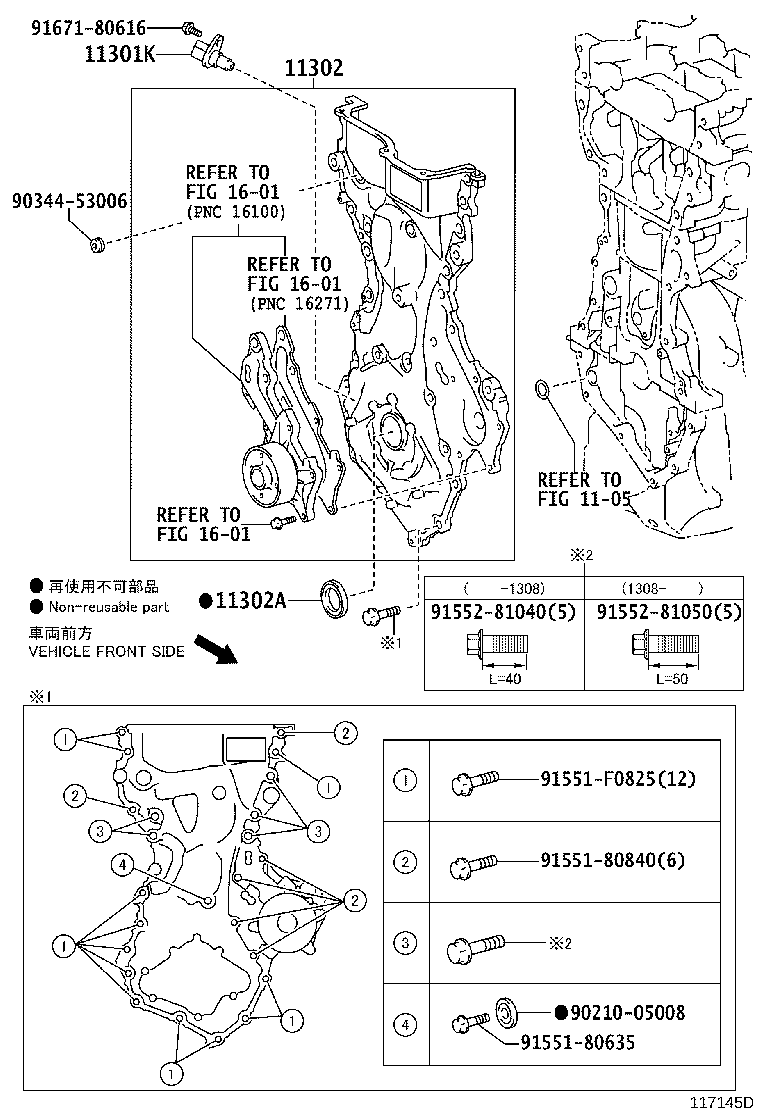

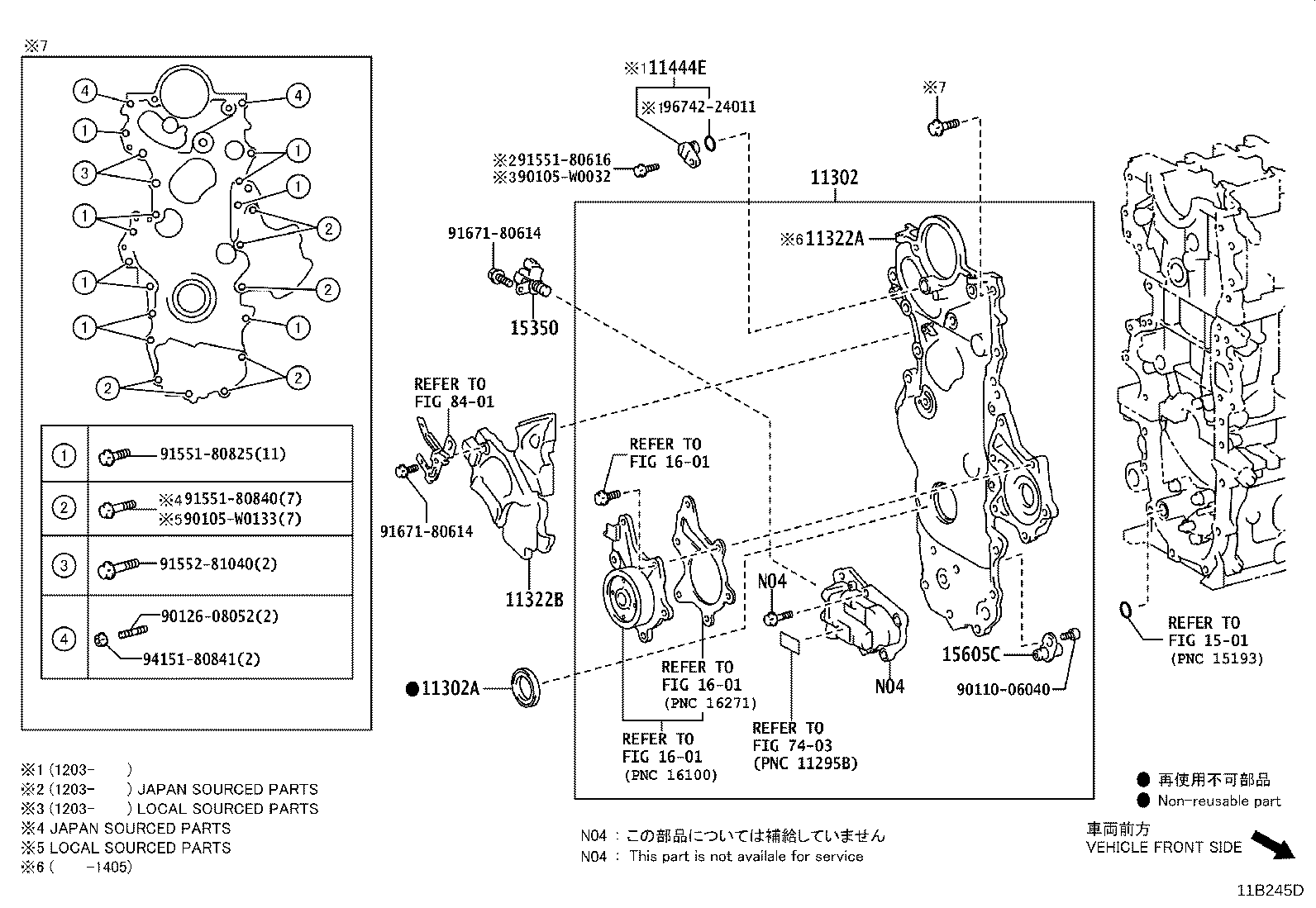

Figure 117127G 117127G 2011-07 → — Figure 117145D 117145D 2011-07 → — Figure 117146E 117146E 2011-07 → — Figure 11B245D 11B245D 2011-07 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11444E Plug, Hole
15193A Gasket, Oil Pump
15350 Valve Assy, Oil Pressure Switching
15605C Valve Sub-assy, Oil Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
