Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 5 illustrations

Illustrations

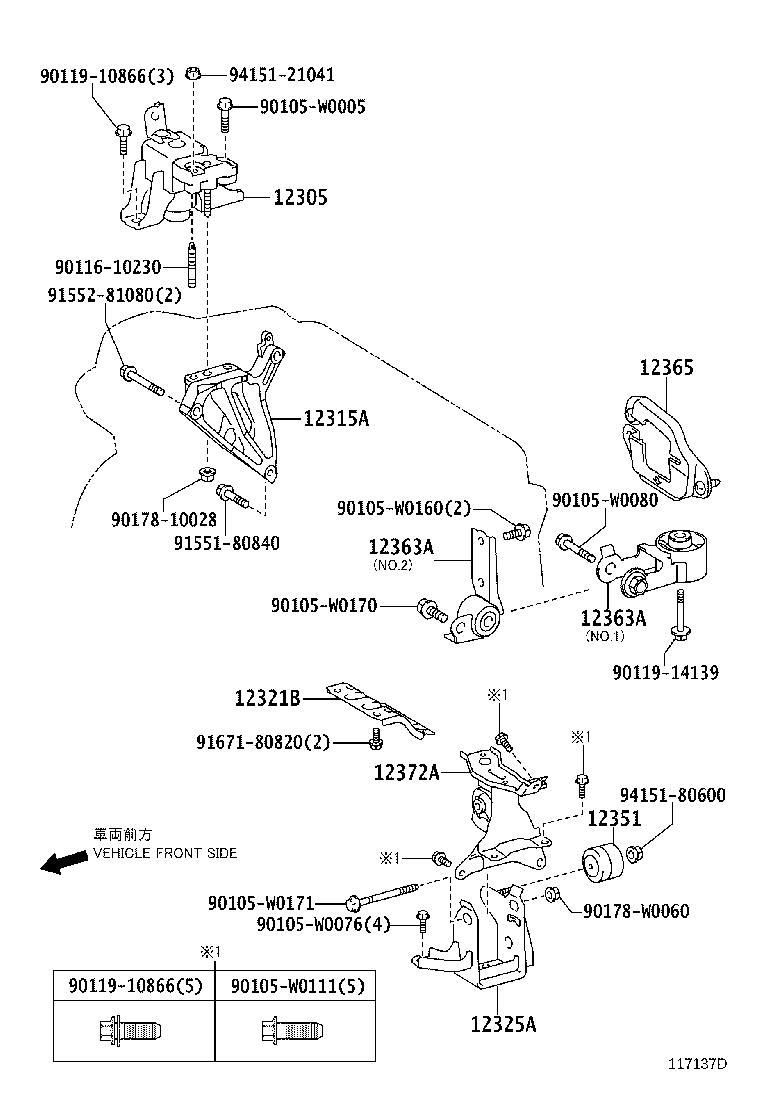

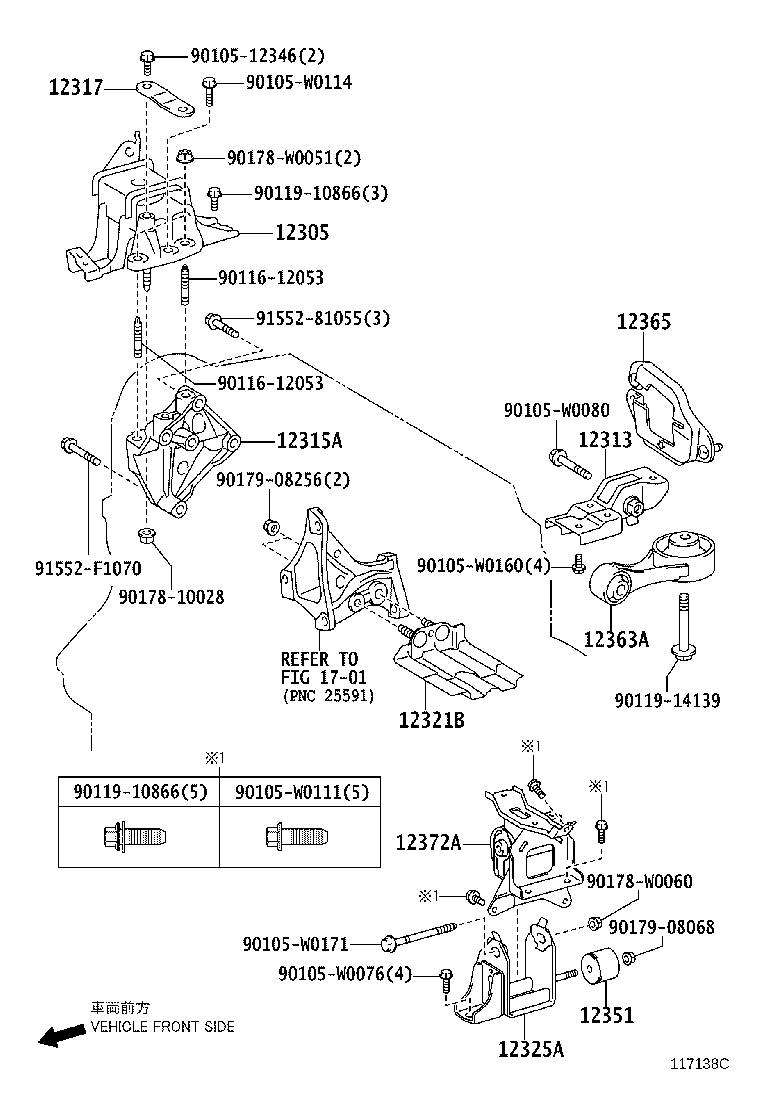

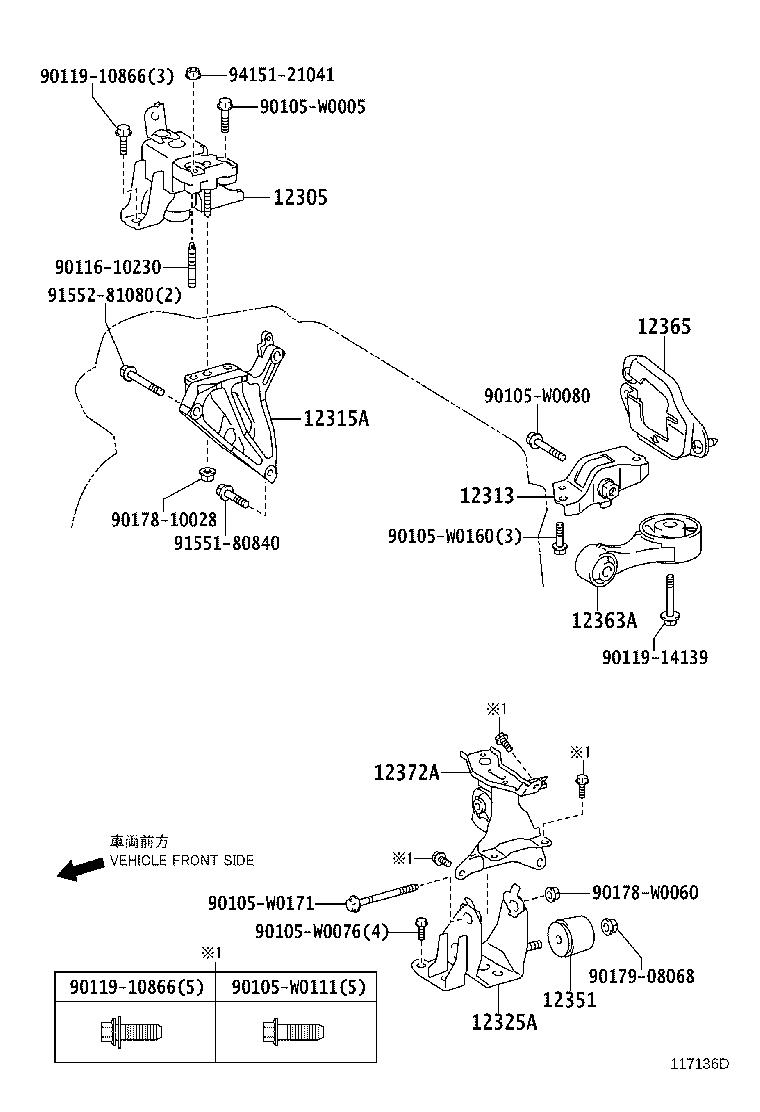

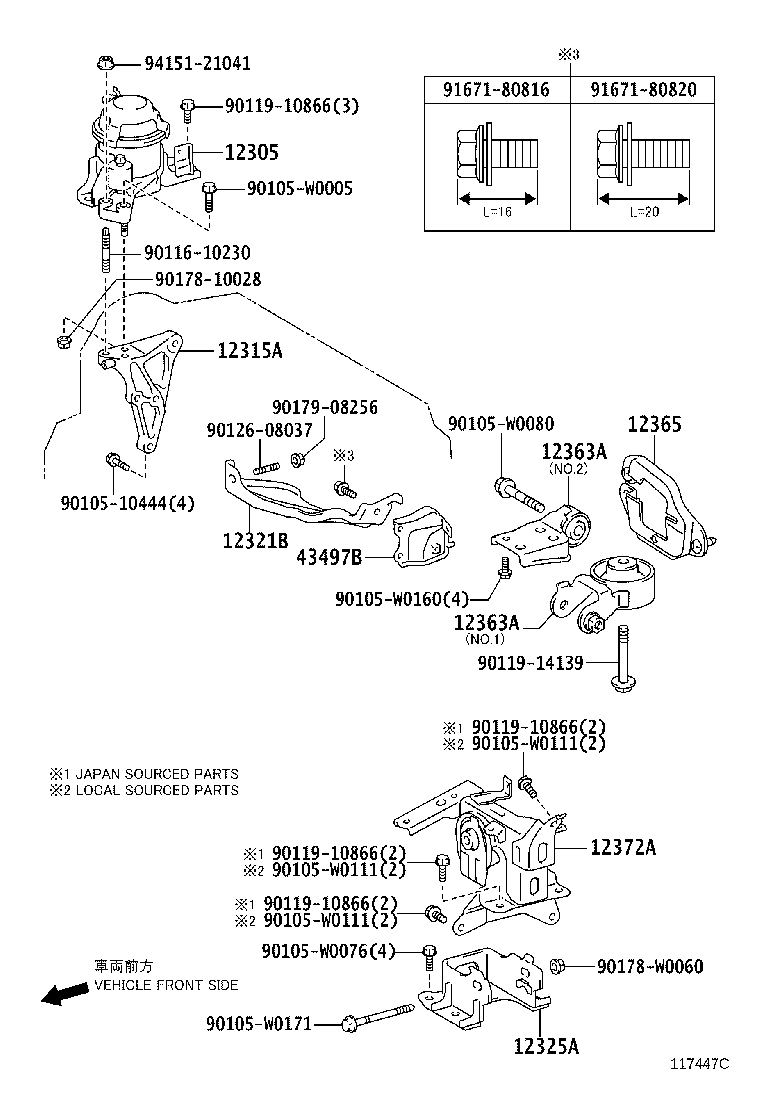

Figure 117135D 117135D 2011-07 → — Figure 117136D 117136D 2011-07 → — Figure 117137D 117137D 2011-07 → — Figure 117138C 117138C 2011-07 → — Figure 117447C 117447C 2012-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351B Damper, Engine Mounting
12363A Rod, Engine Moving Control
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
43497B Bracket, Drive Shaft Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
