Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

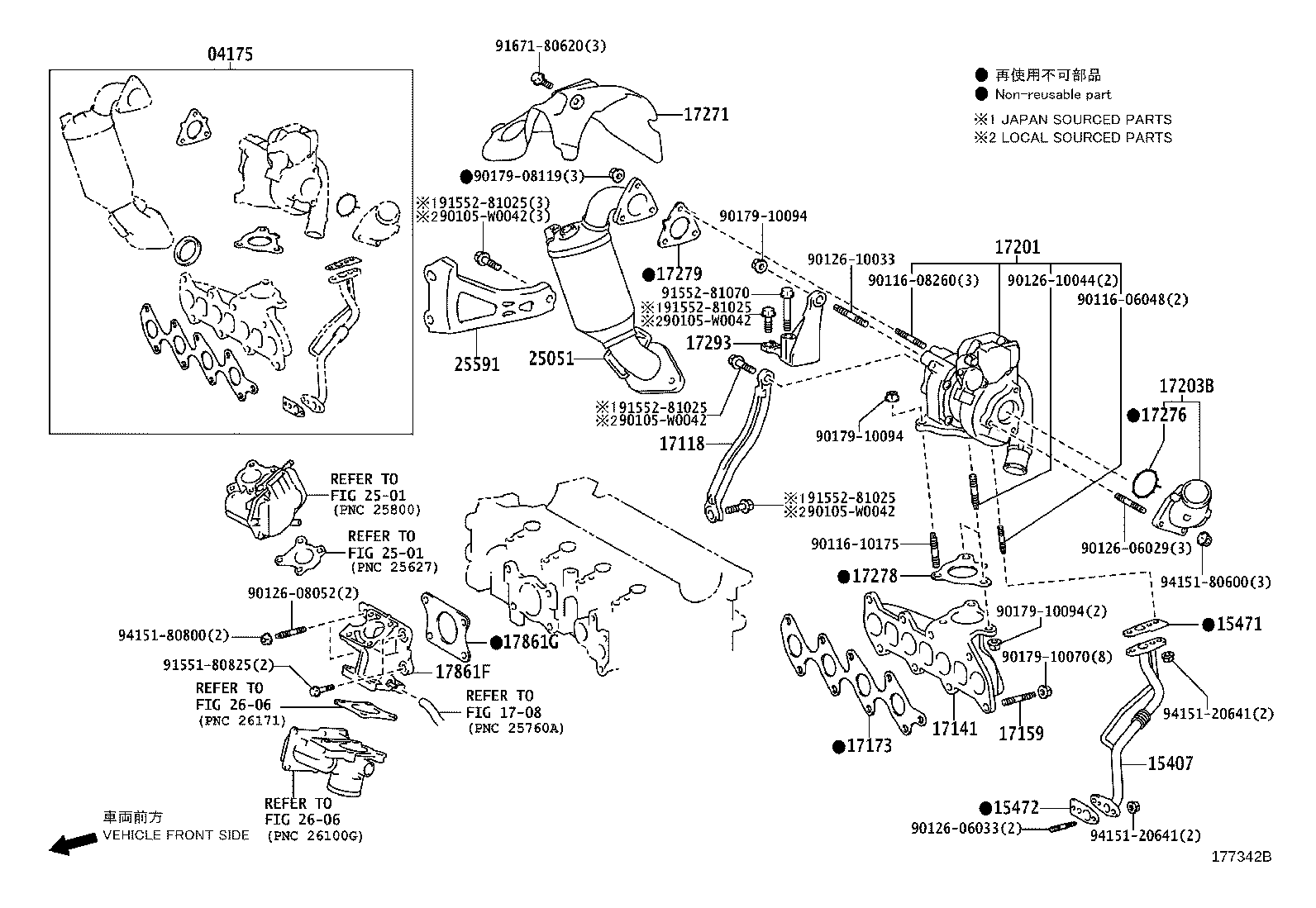

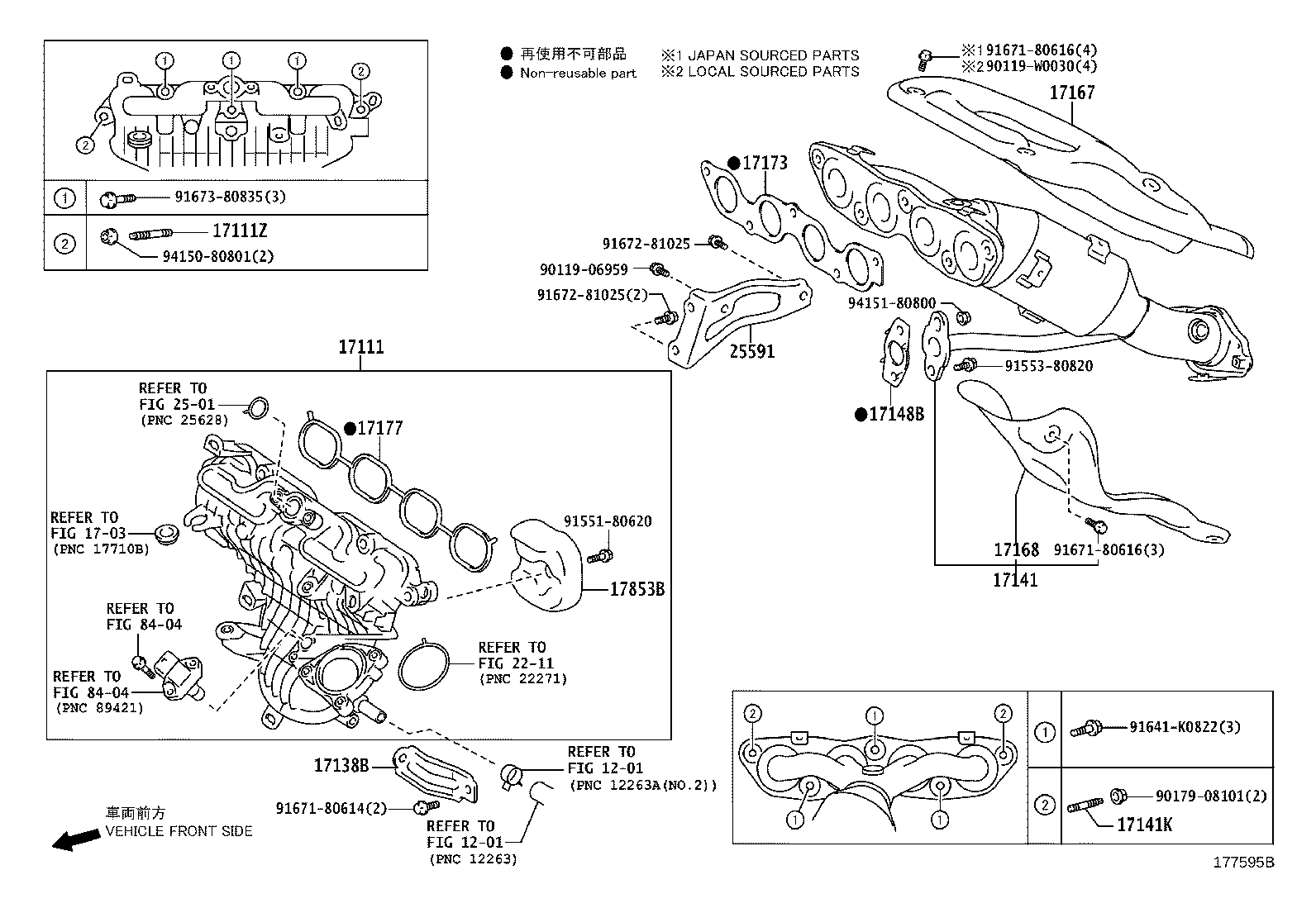

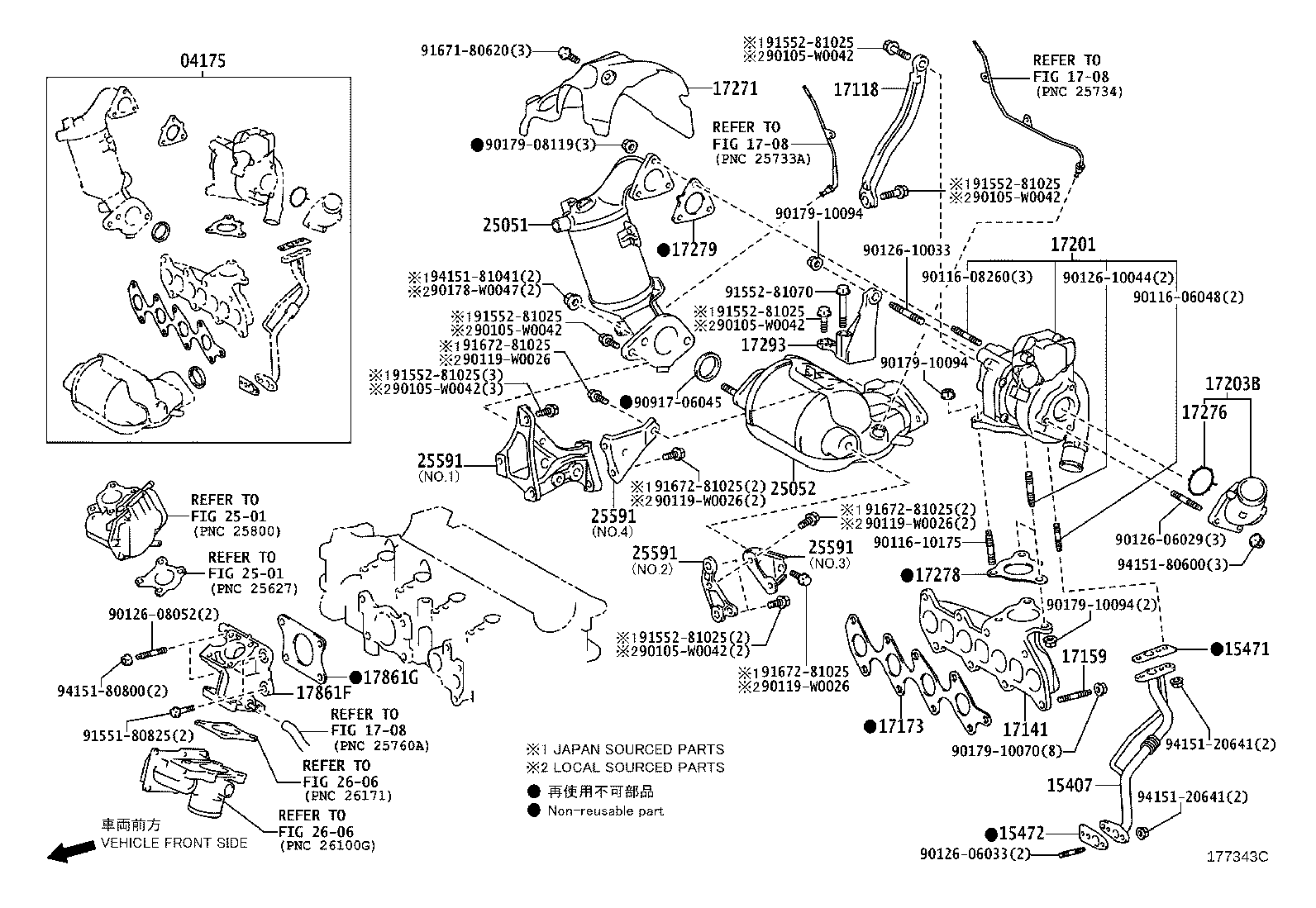

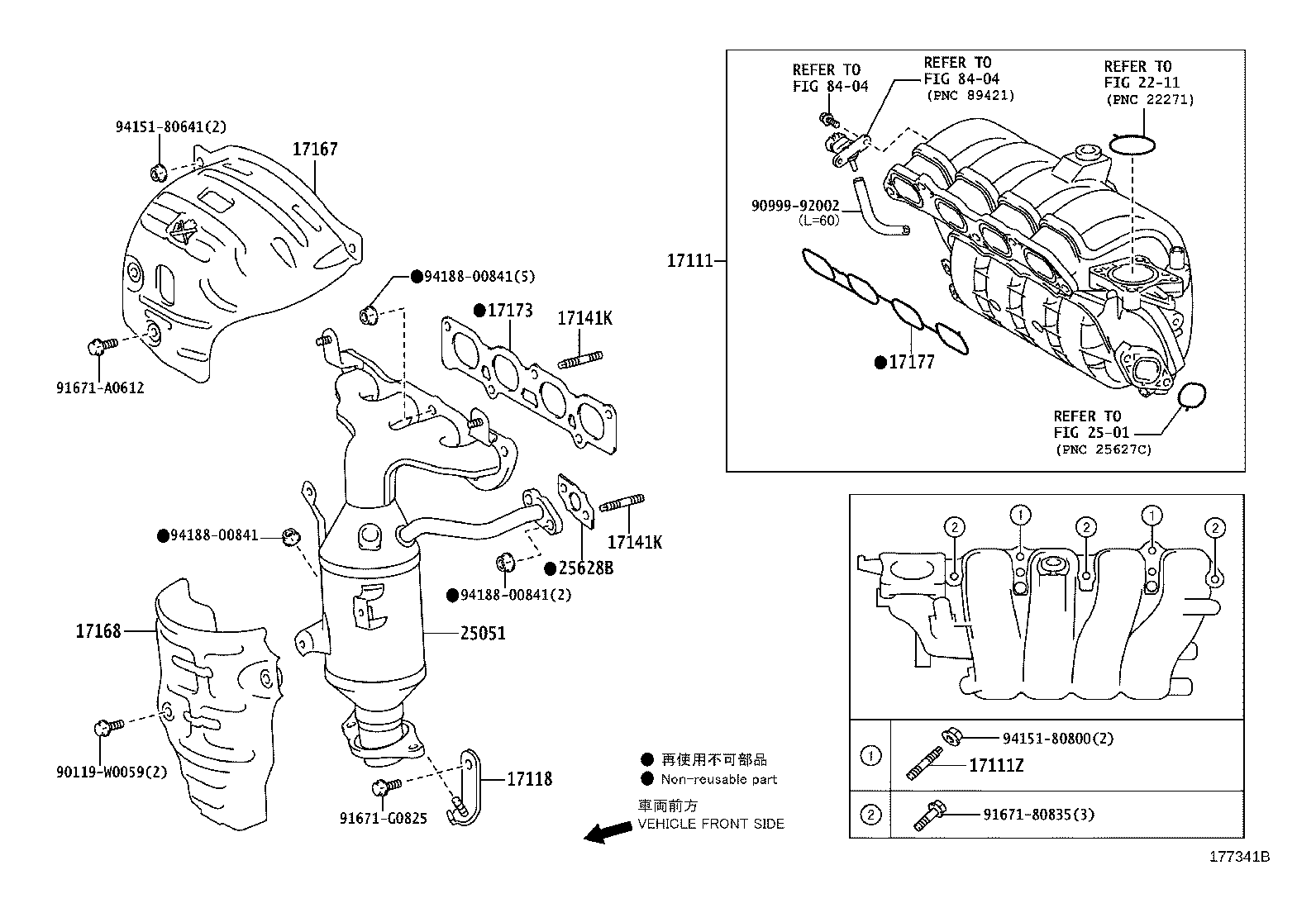

Manifold
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17138B | Stay, Intake Manifold |
| 17141 | Manifold, Exhaust |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17148B | Gasket, Egr Inlet |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17201 | Turbocharger Sub-assy |
| 17203B | Elbow Sub-assy, Compressor Inlet |
| 17271 | Insulator, Turbo, NO.1 |
| 17276 | Gasket, Compressor Inlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17293 | Stay, Turbocharger |
| 17853B | Insulator, Intake Manifold |
| 17861F | Connector, Intake Air |
| 17861G | Gasket, Intake Air Connector |
| 22271A | Gasket, Throttle Body |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25052 | Converter Sub-assy, Exhaust Manifold, NO.2 |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25591 | Bracket, Manifold Support |
| 25628B | Gasket, Egr Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
