Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

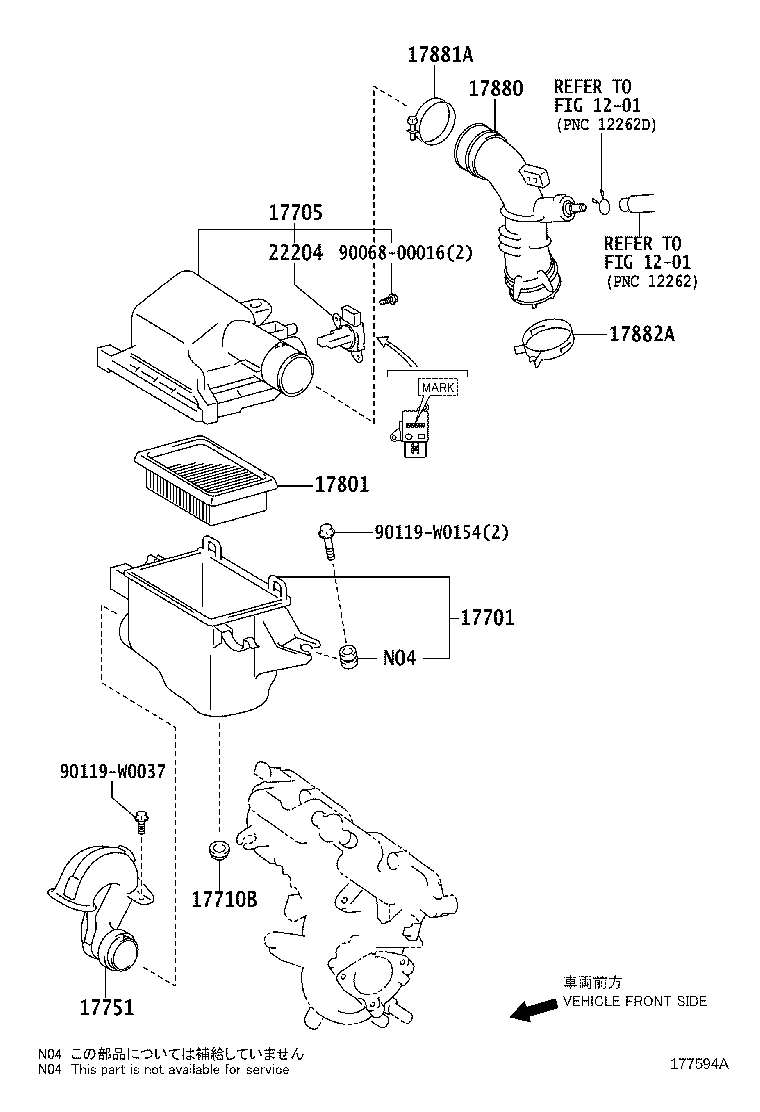

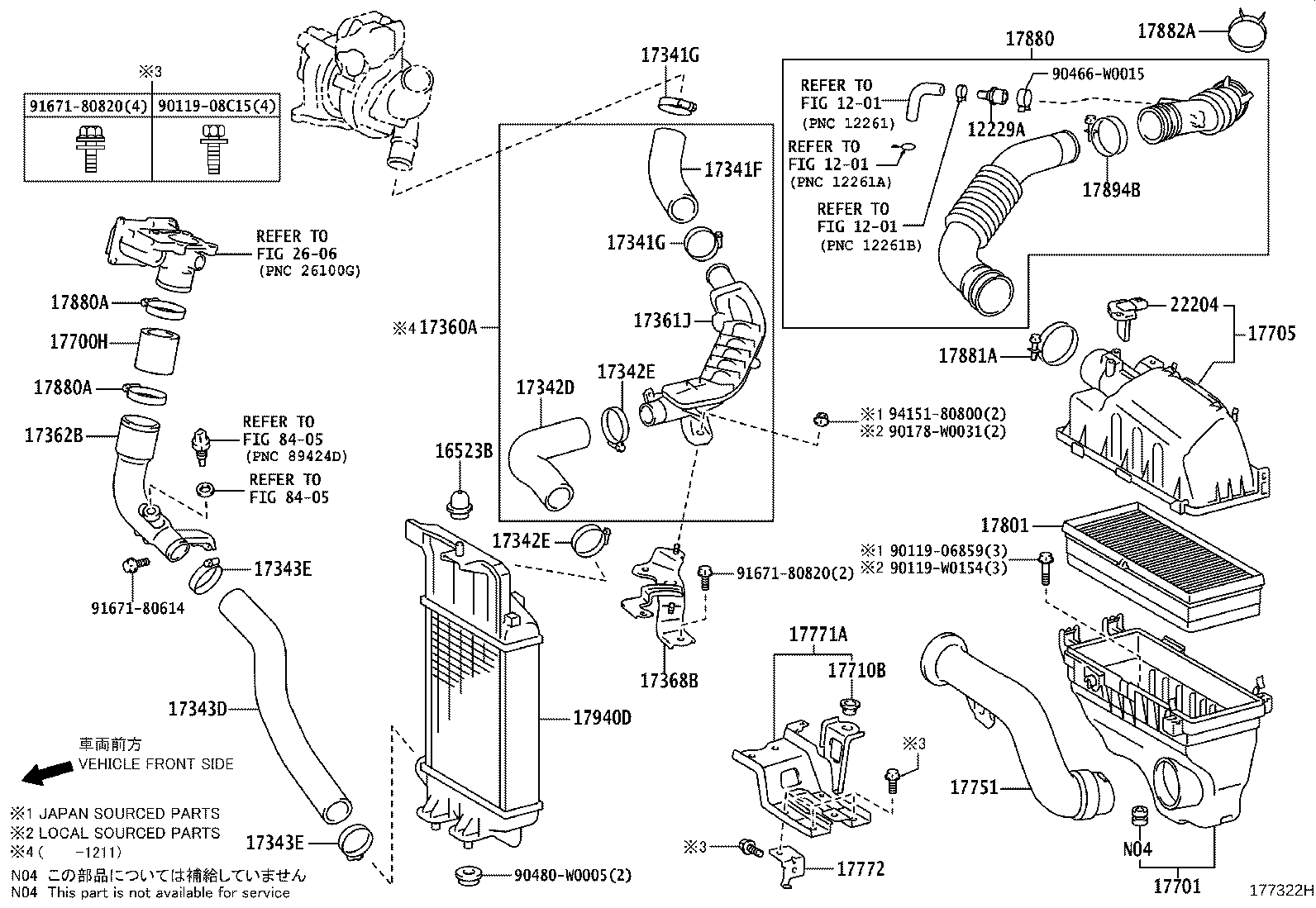

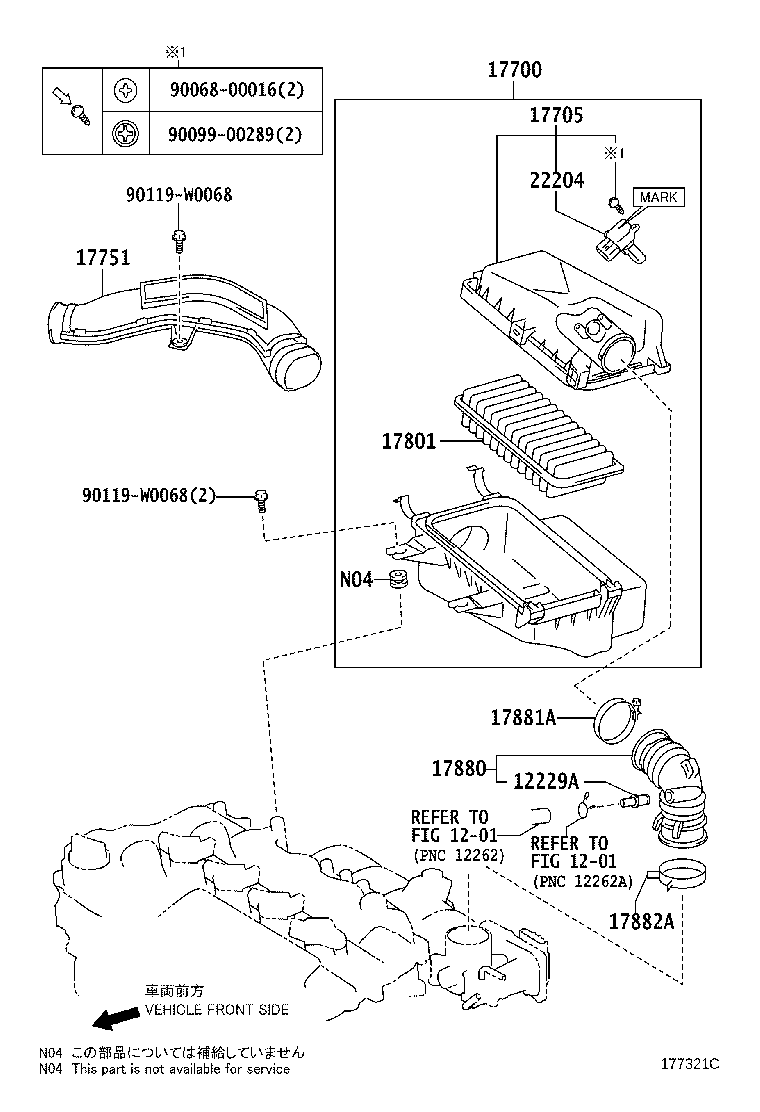

Air Cleaner
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12229A | Pipe, Ventilation |
| 16523B | Cushion, Radiator Support |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17360A | Tube Assy, Air |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17368B | Support, Air Tube |
| 17700 | Cleaner Assy, Air |
| 17700H | Hose, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17716 | Support,Air Cleaner Cap |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17771A | Bracket, Air Cleaner |
| 17772 | Bracket, Intake Air Connector, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17880A | Clamp, Hose |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
