Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

21 part groups · 6 illustrations

Illustrations

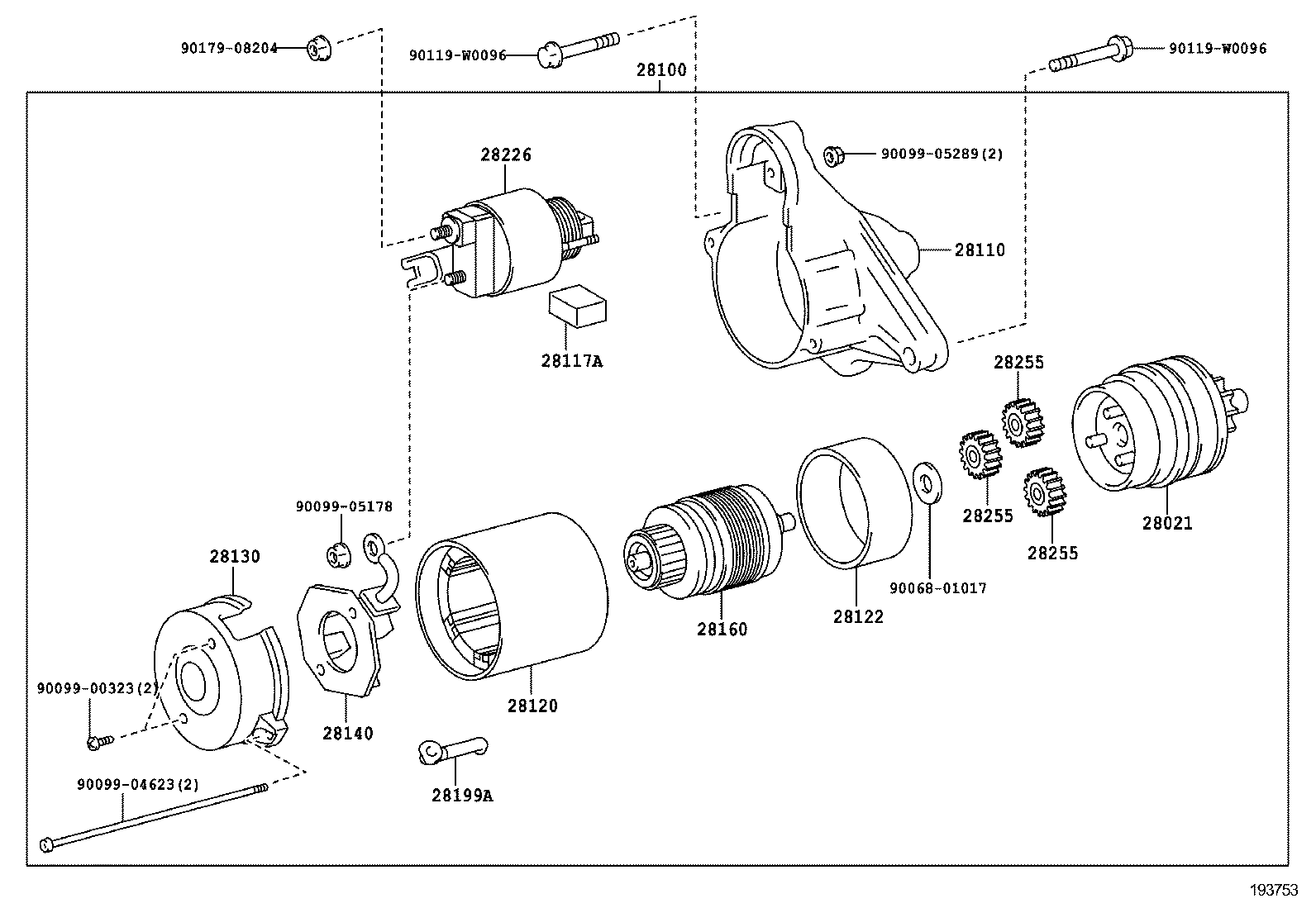

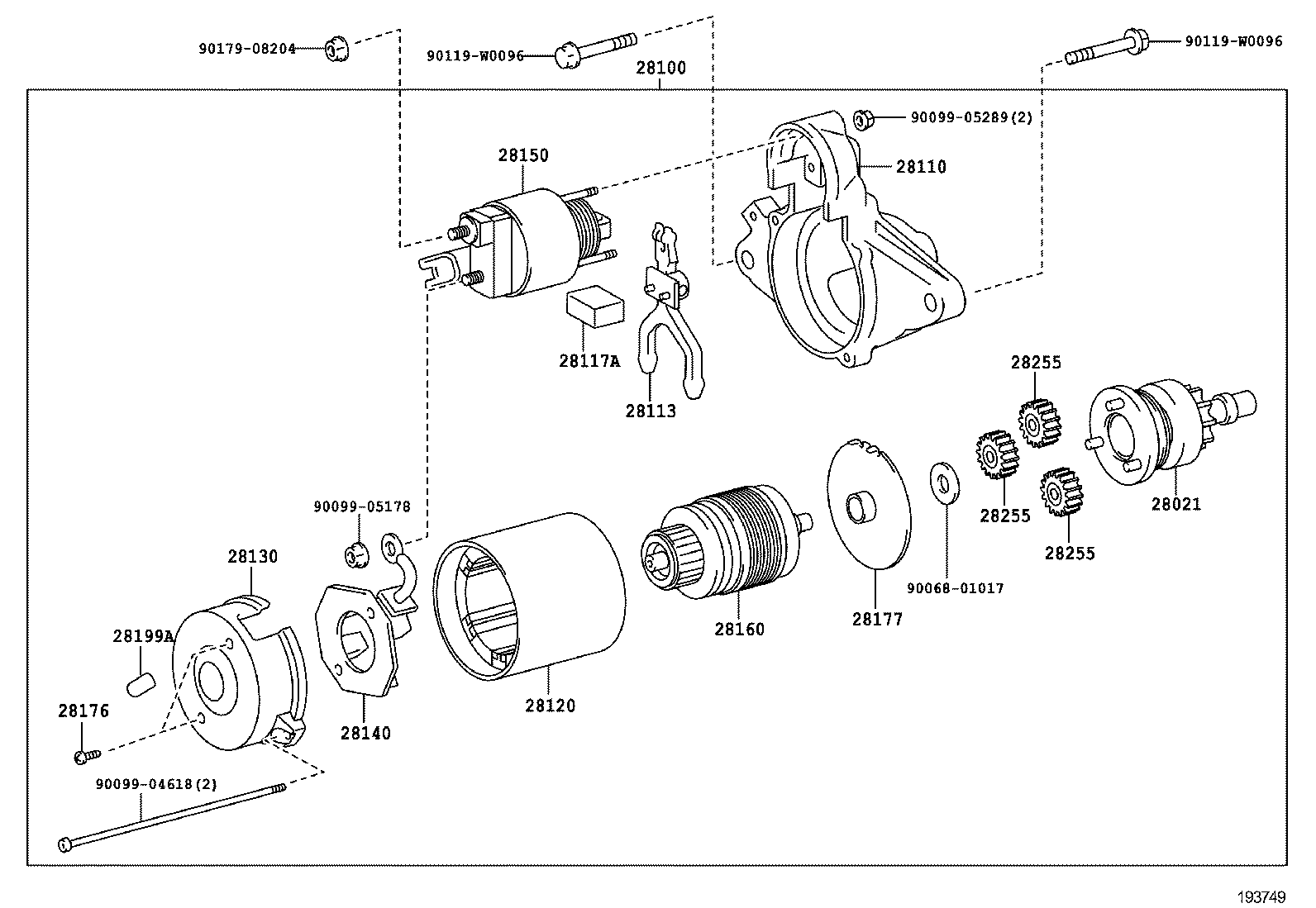

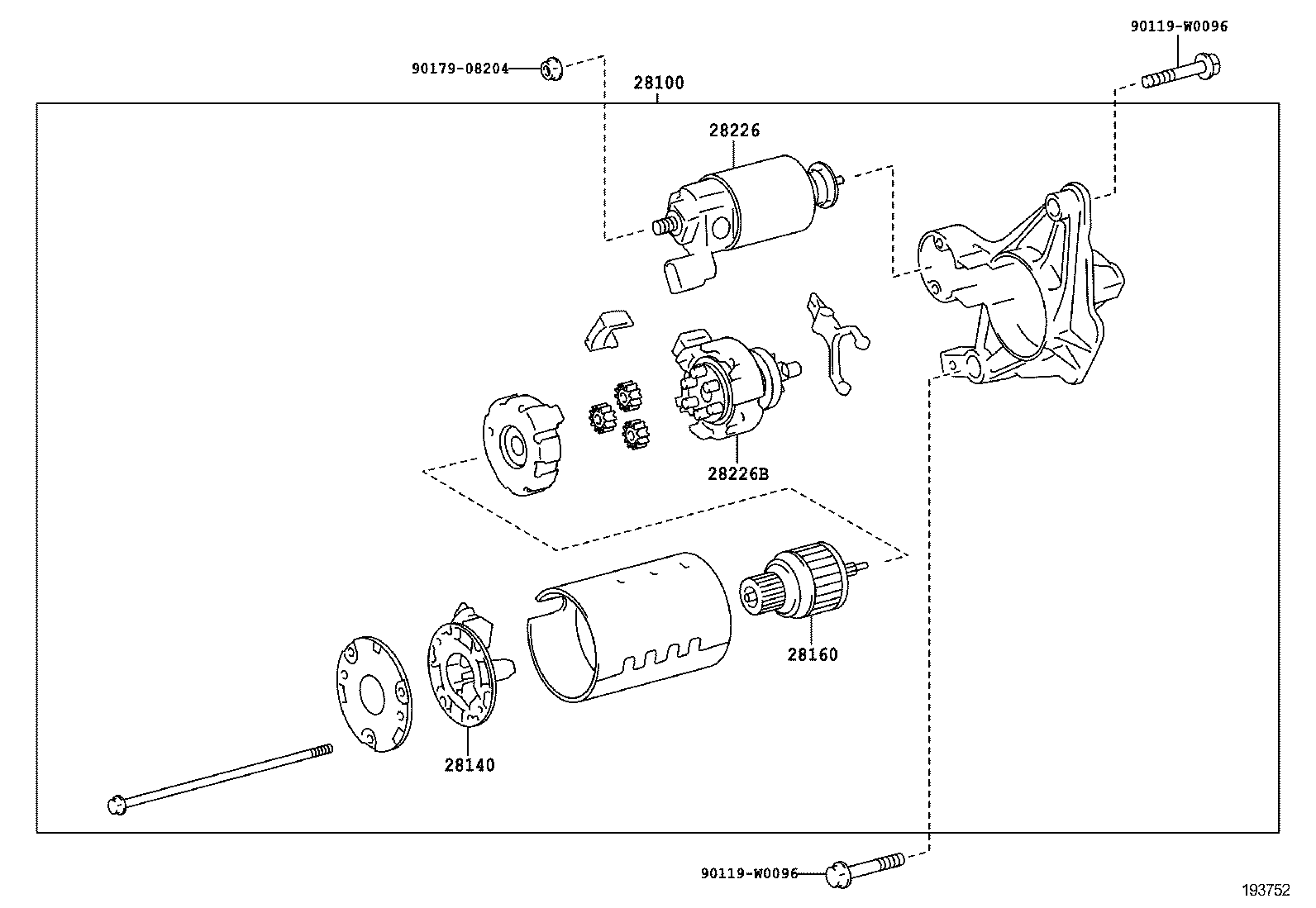

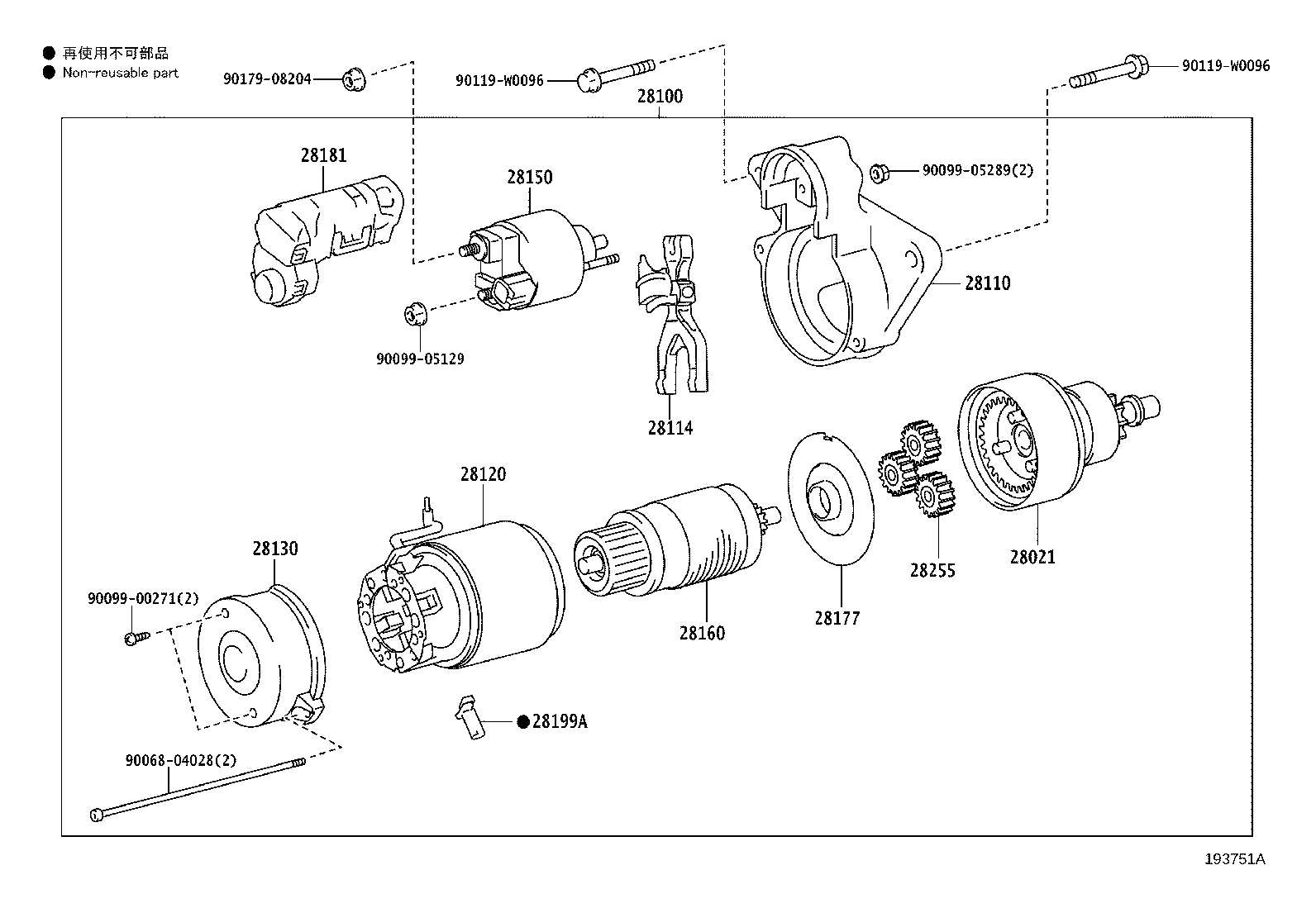

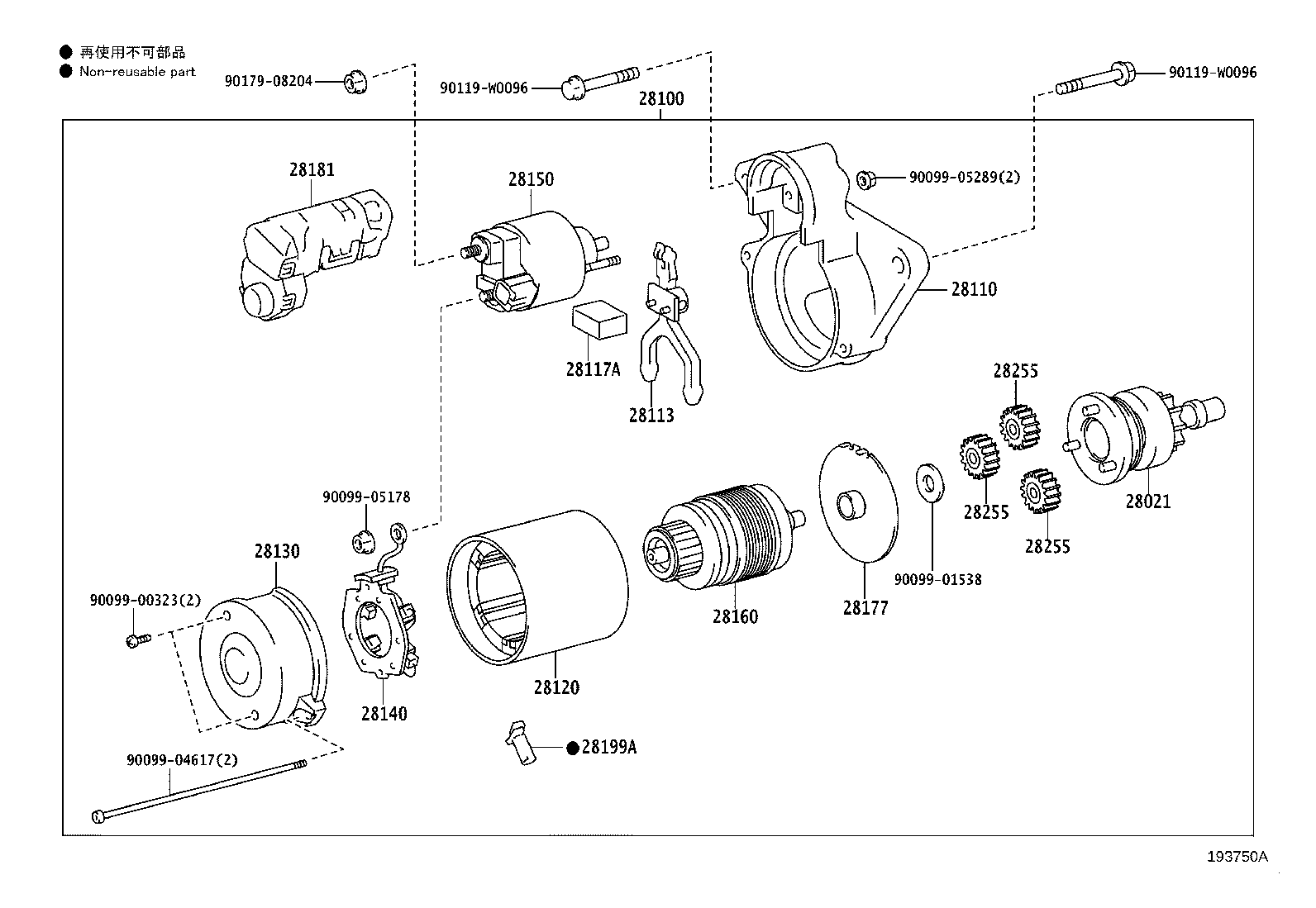

Figure 193748 193748 2011-07 → — Figure 193749 193749 2011-07 → — Figure 193750A 193750A 2011-07 → — Figure 193751A 193751A 2011-07 → — Figure 193752 193752 2011-07 → — Figure 193753 193753 2011-07 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28122 Collar, Space
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28176 Screw, Starter
28177 Plate(FOR STARTER ARMATURE)
28181 Terminal, Starter
28199A Protector, Dust Starter
28226 Starter Kit, Battery Terminal
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
