Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

15 part groups · 3 illustrations

Illustrations

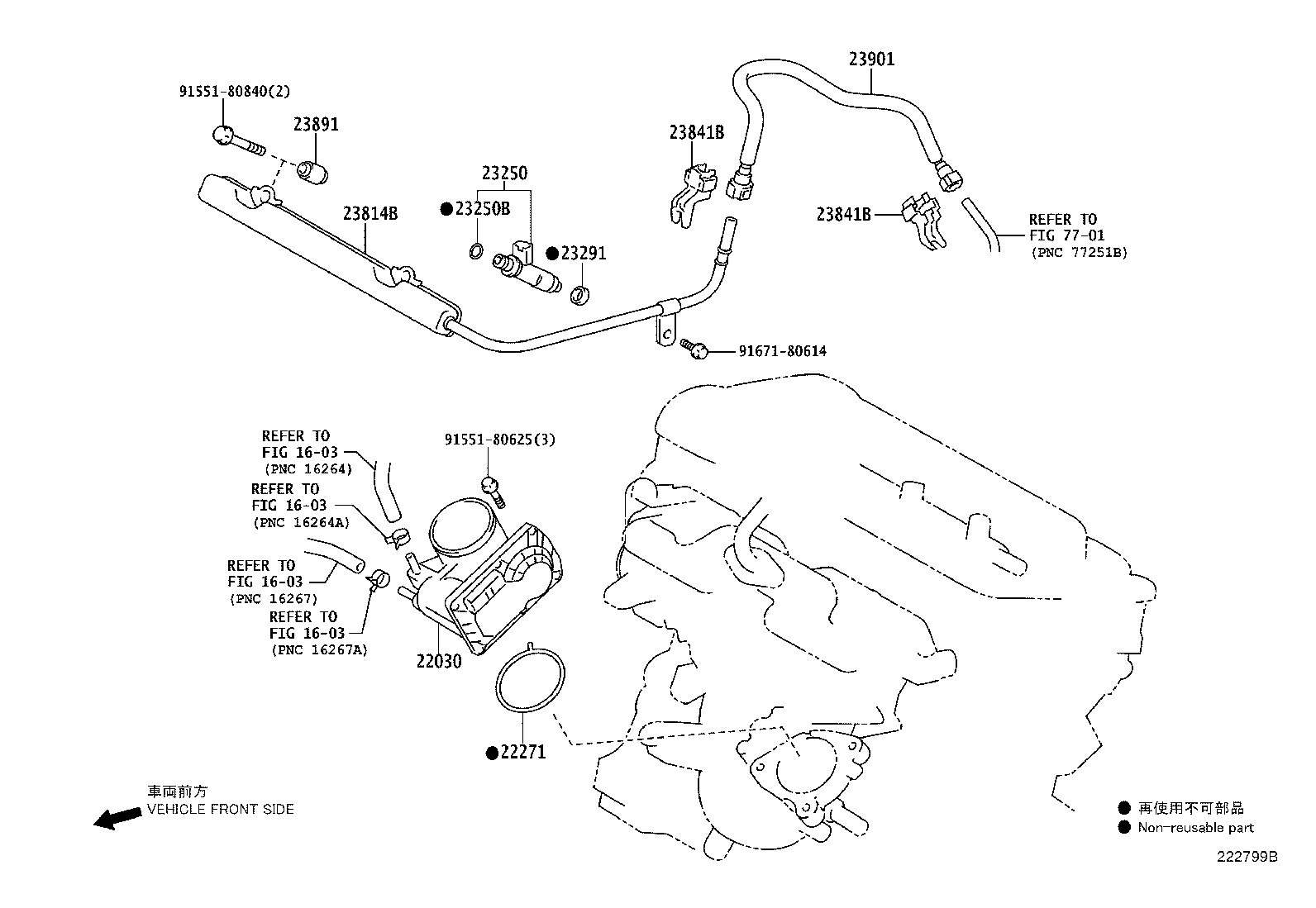

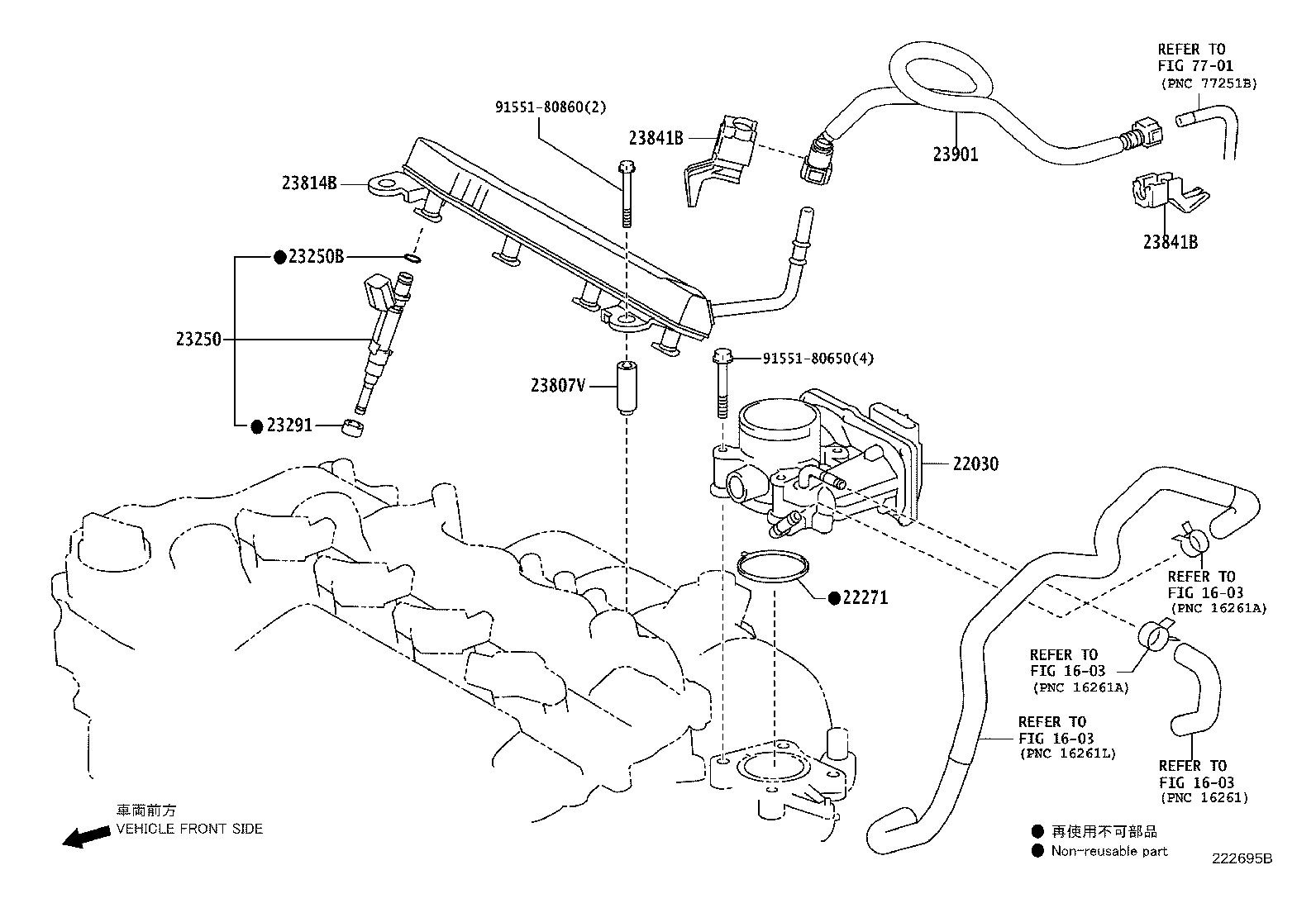

Figure 221838F 221838F 2011-07 → — Figure 222695B 222695B 2011-07 → — Figure 222799B 222799B 2012-04 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23804 Pipe Sub-assy, Fuel, NO.4
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23891 Spacer, Fuel Delivery
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
