Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

26 part groups · 7 illustrations

Illustrations

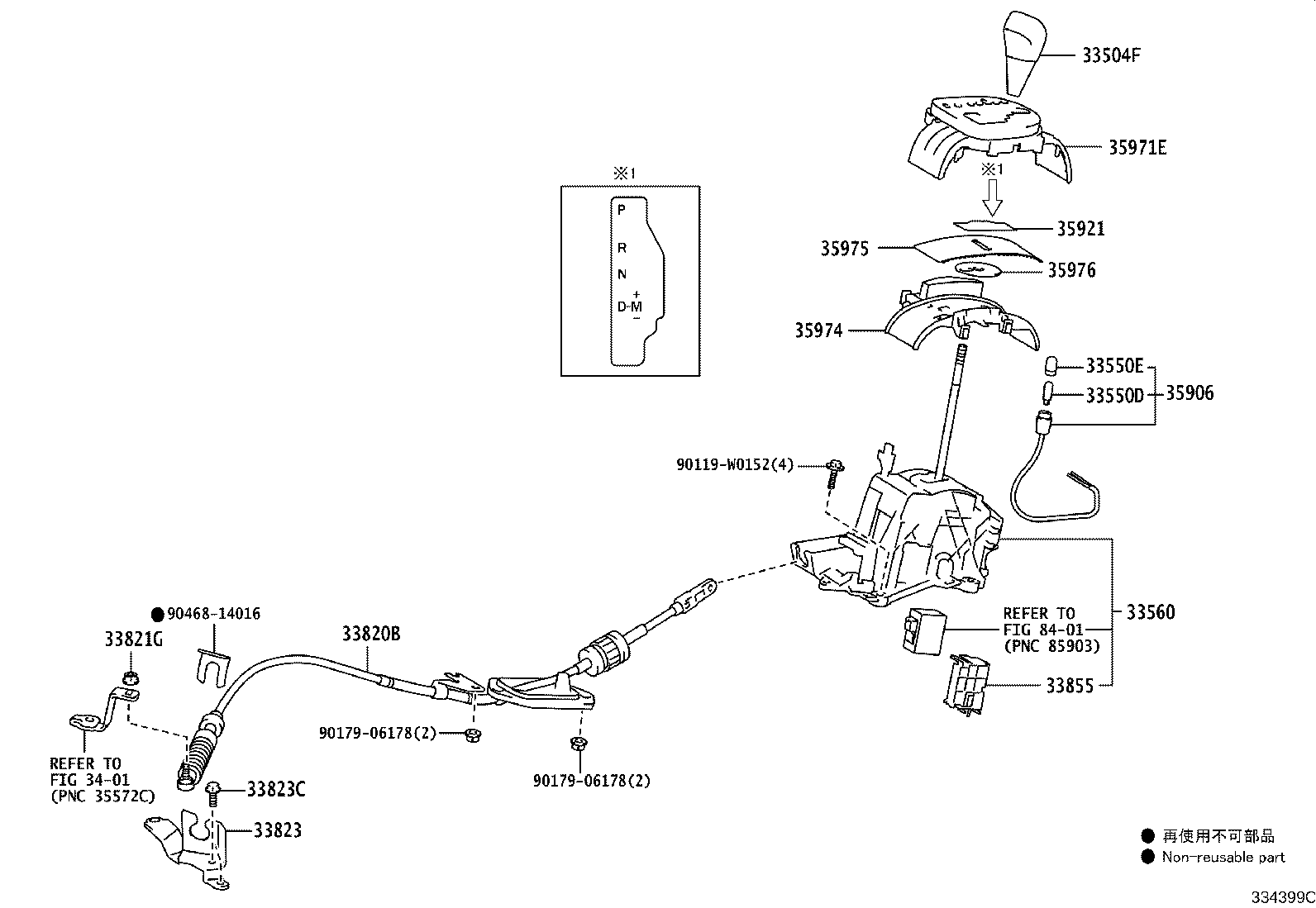

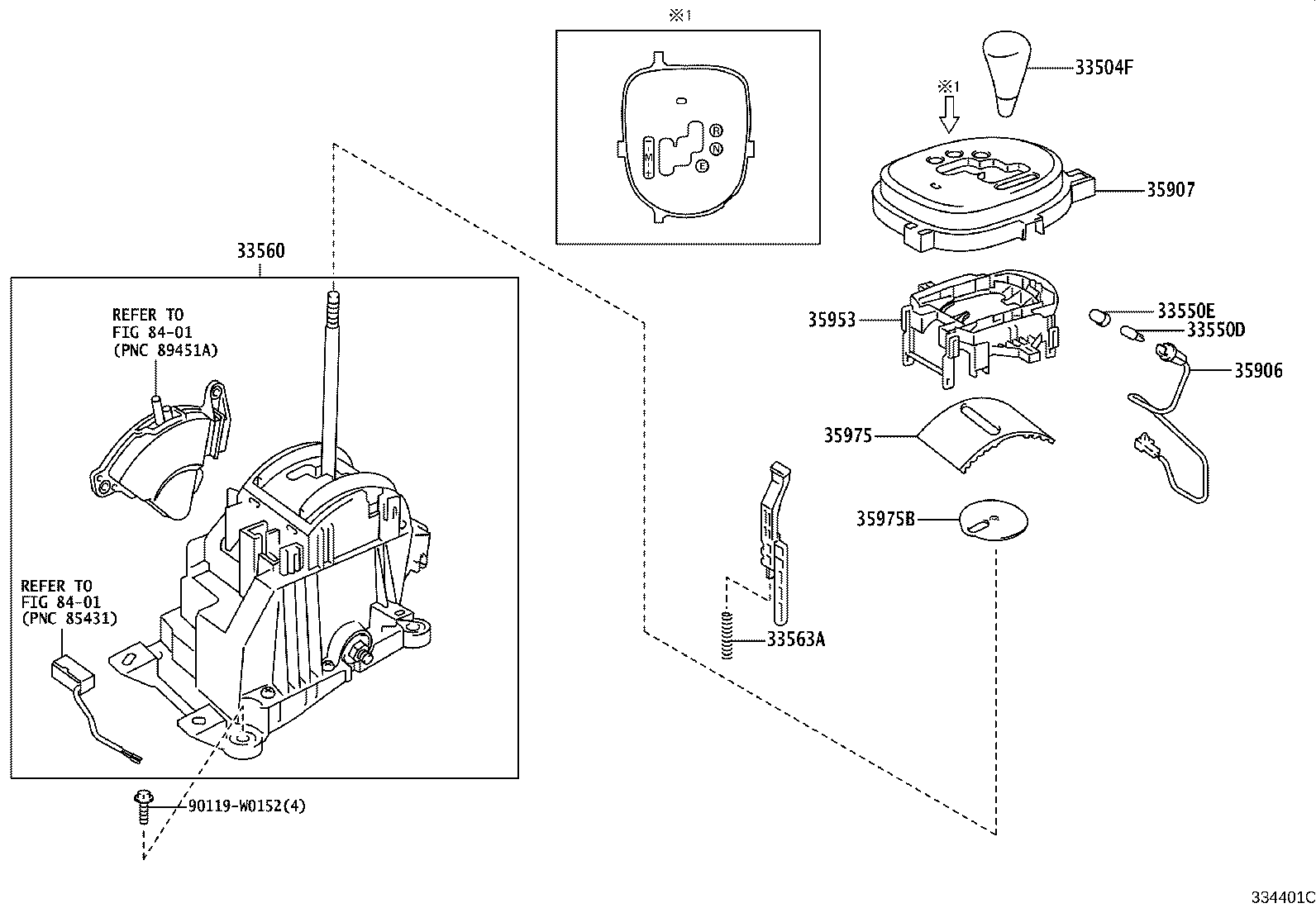

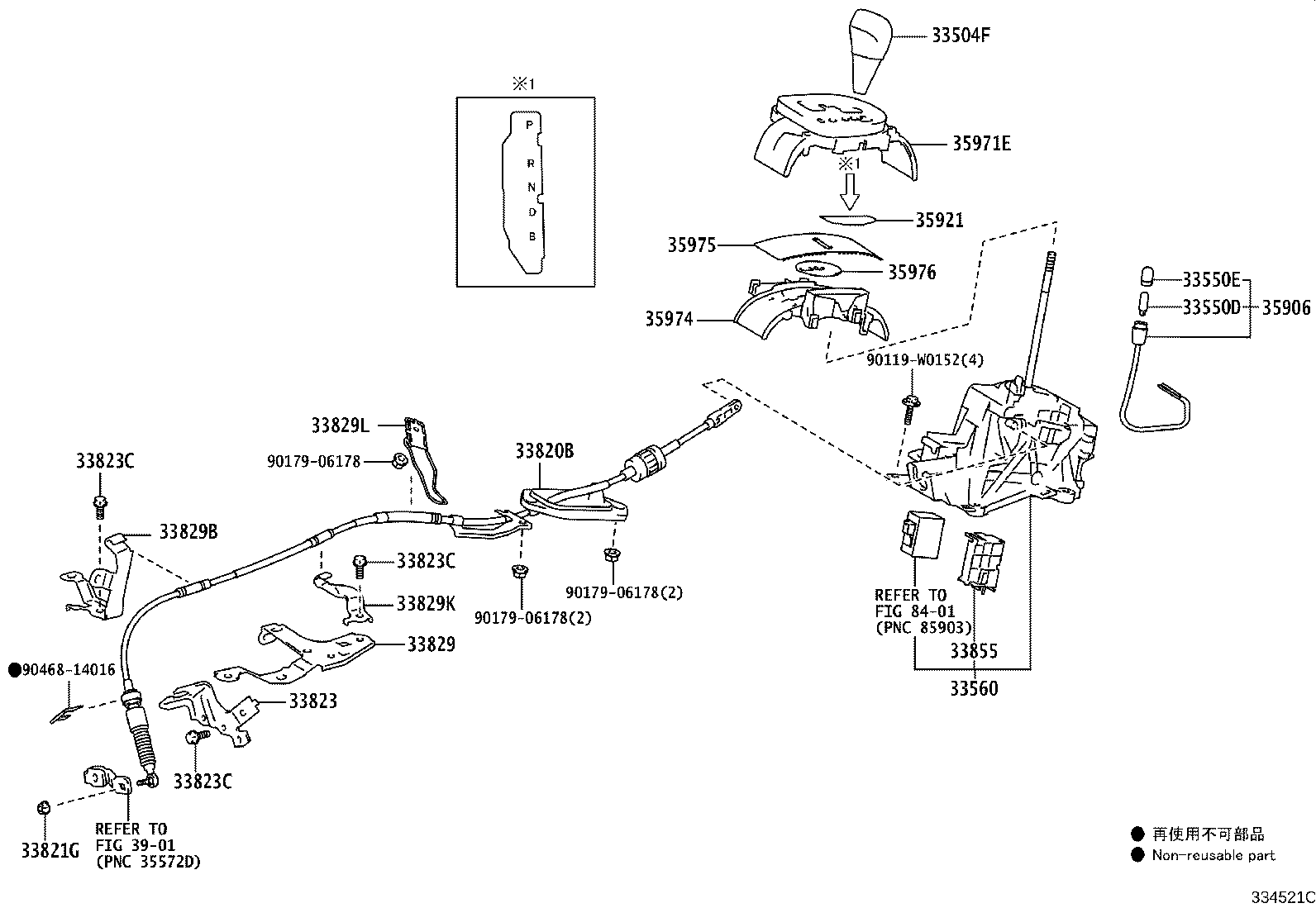

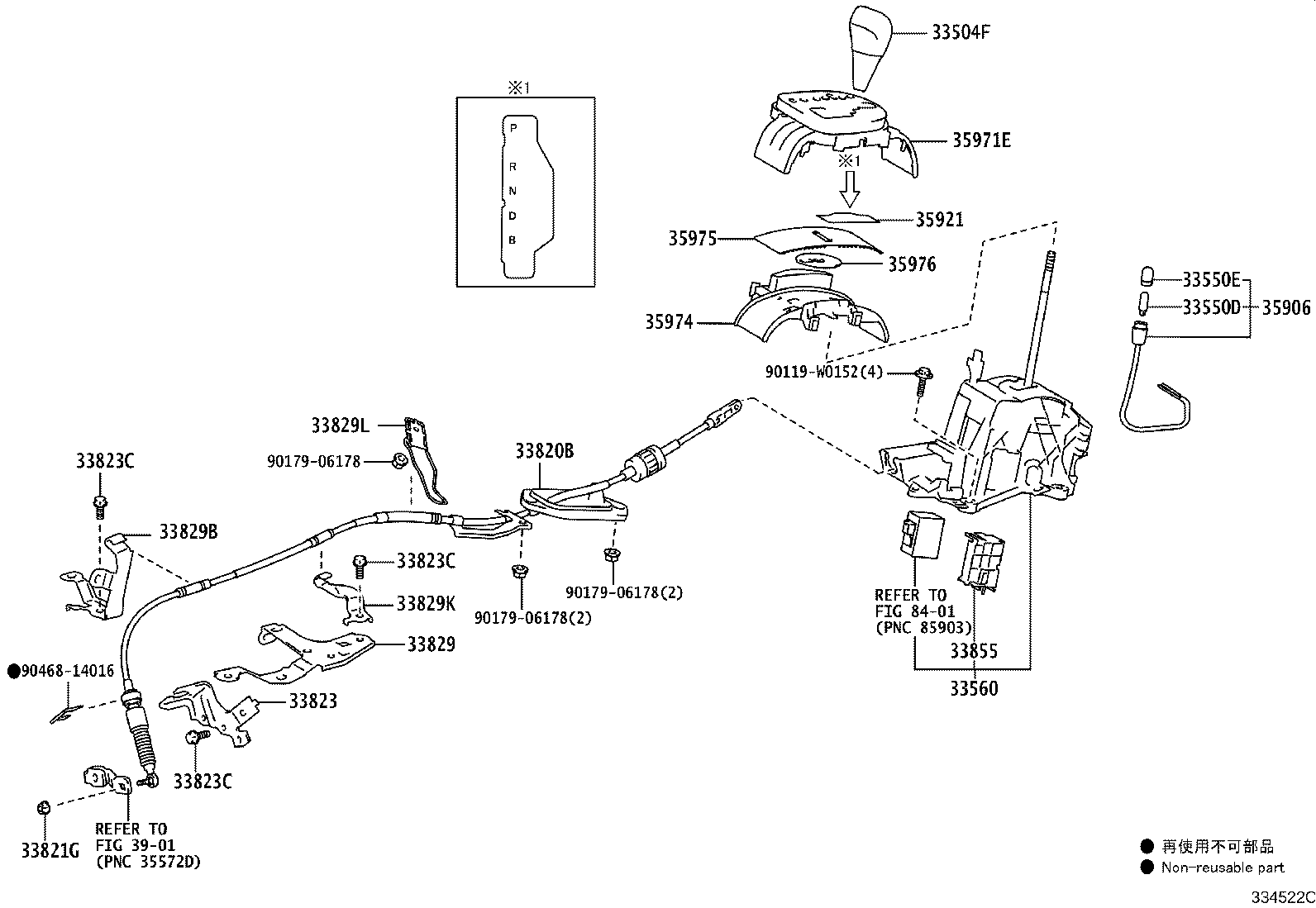

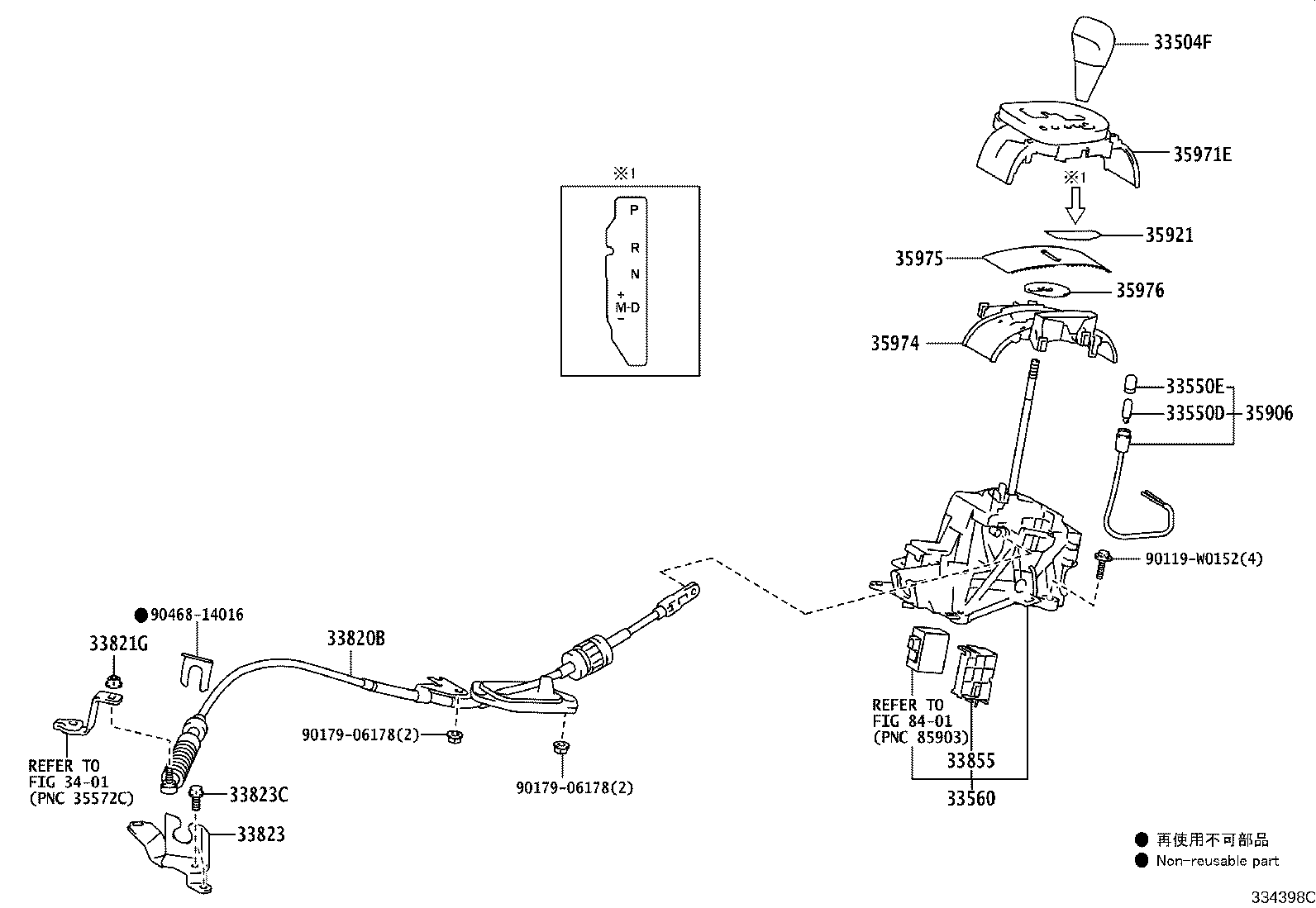

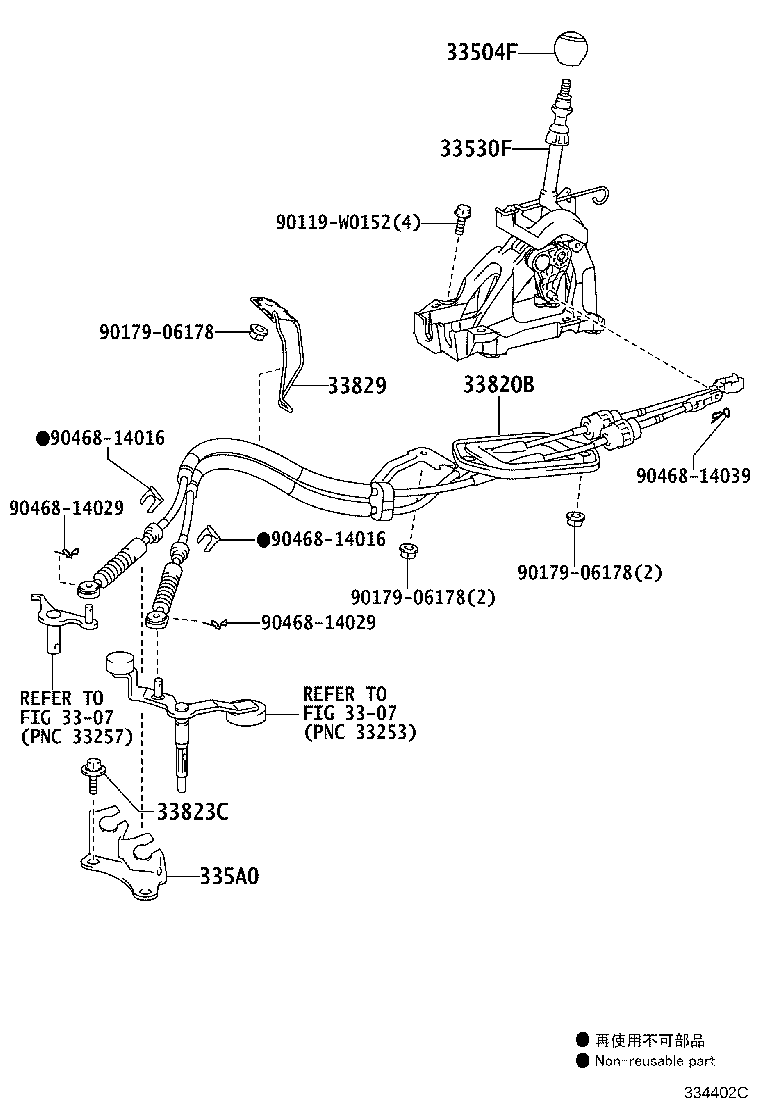

Figure 334397C 334397C 2011-07 → — Figure 334402C 334402C 2011-07 → — Figure 334401C 334401C 2011-07 → — Figure 334398C 334398C 2011-07 → — Figure 334399C 334399C 2011-07 → — Figure 334521C 334521C 2012-04 → — Figure 334522C 334522C 2012-04 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524F Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560 Unit Assy, Shift Lock Control
33563A Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
33829K Clamp, Transmission Control Cable, NO.2
33829L Clamp, Transmission Control Cable, NO.3
33855 Cover, Shift Lock Unit
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35921 Plate, Control Position Indicator
35953 Guide, Position Indicator Light
35971E Housing, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35975B Cover, Slide, NO.2(FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
