Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

38 part groups · 9 illustrations

Illustrations

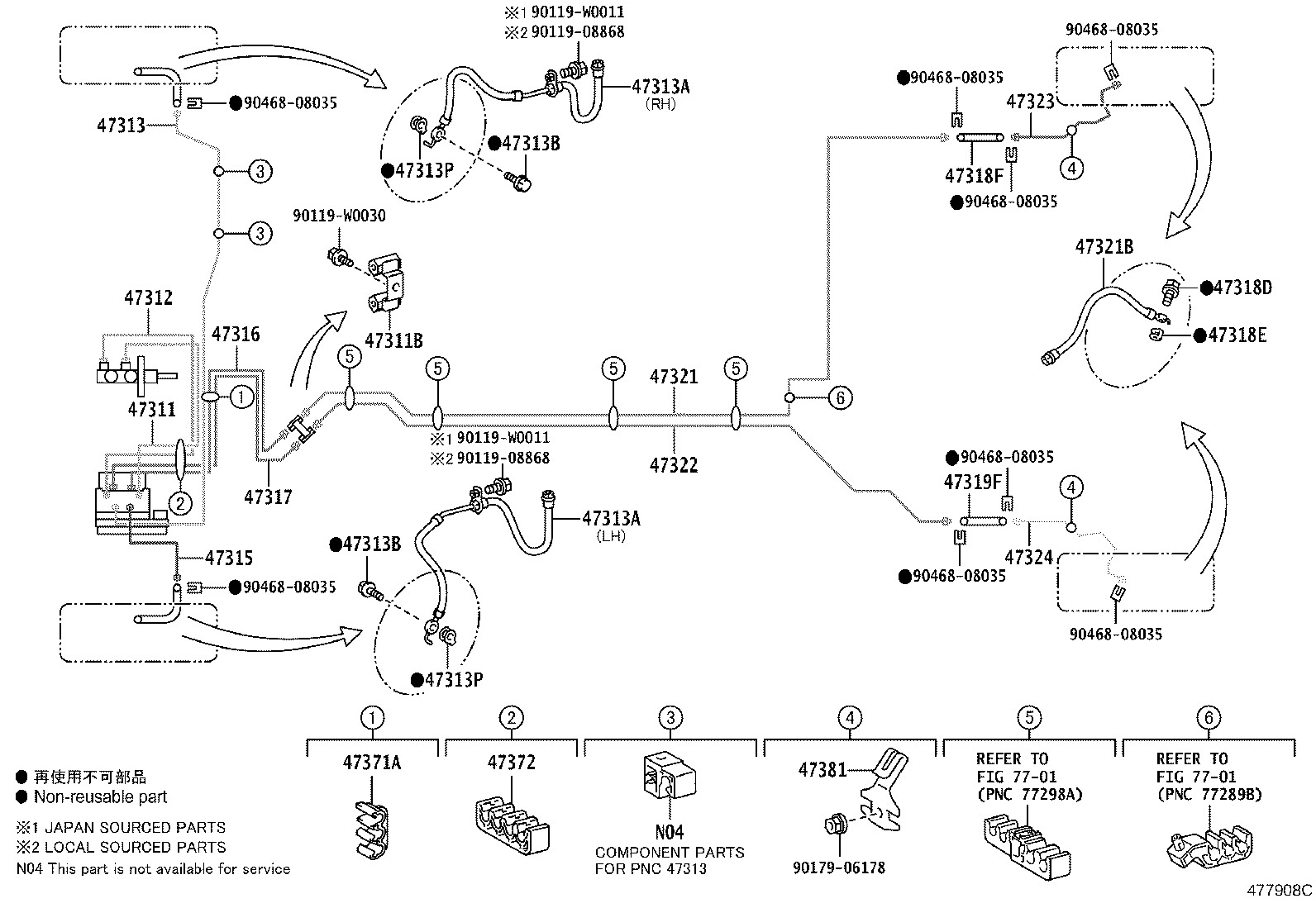

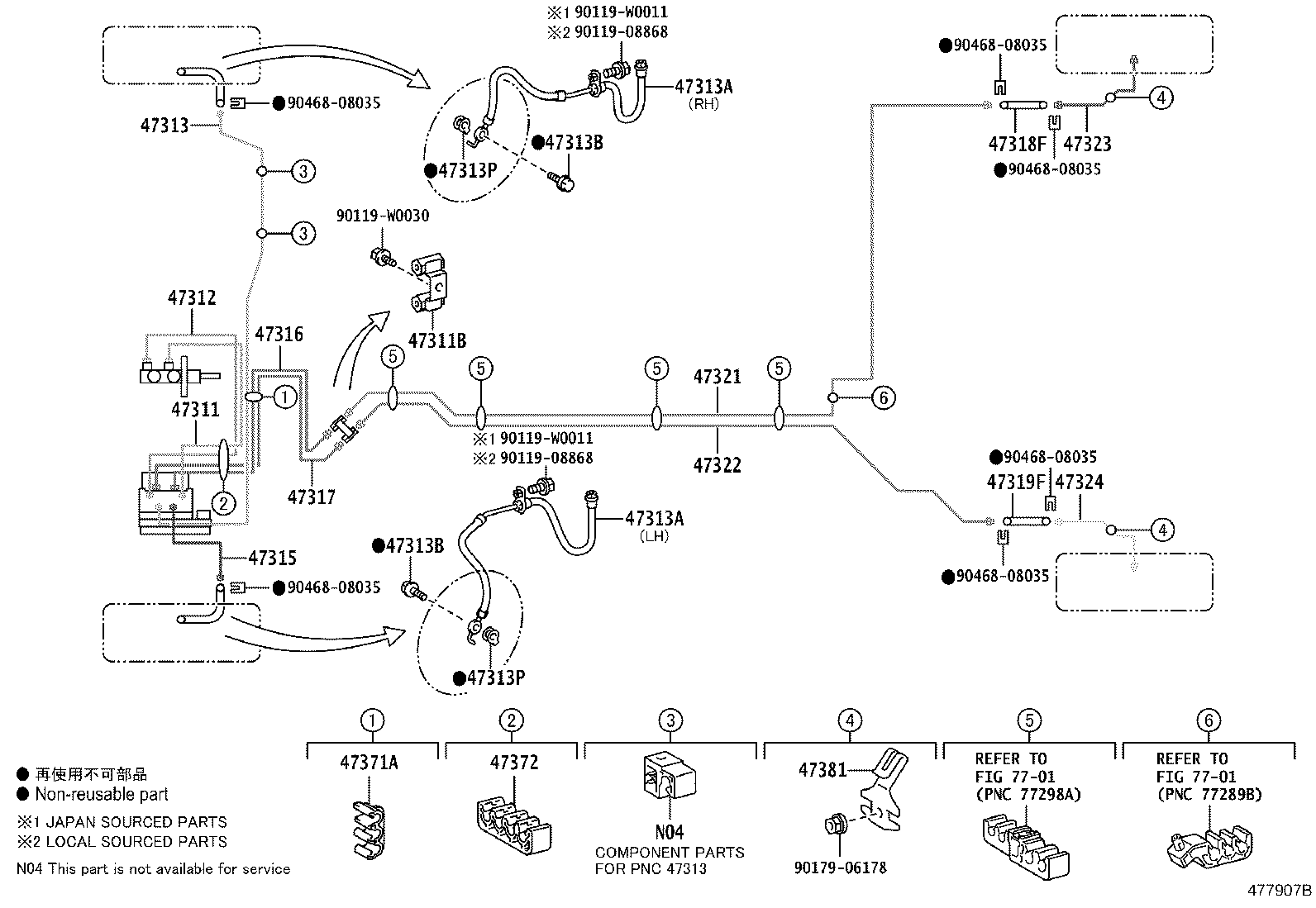

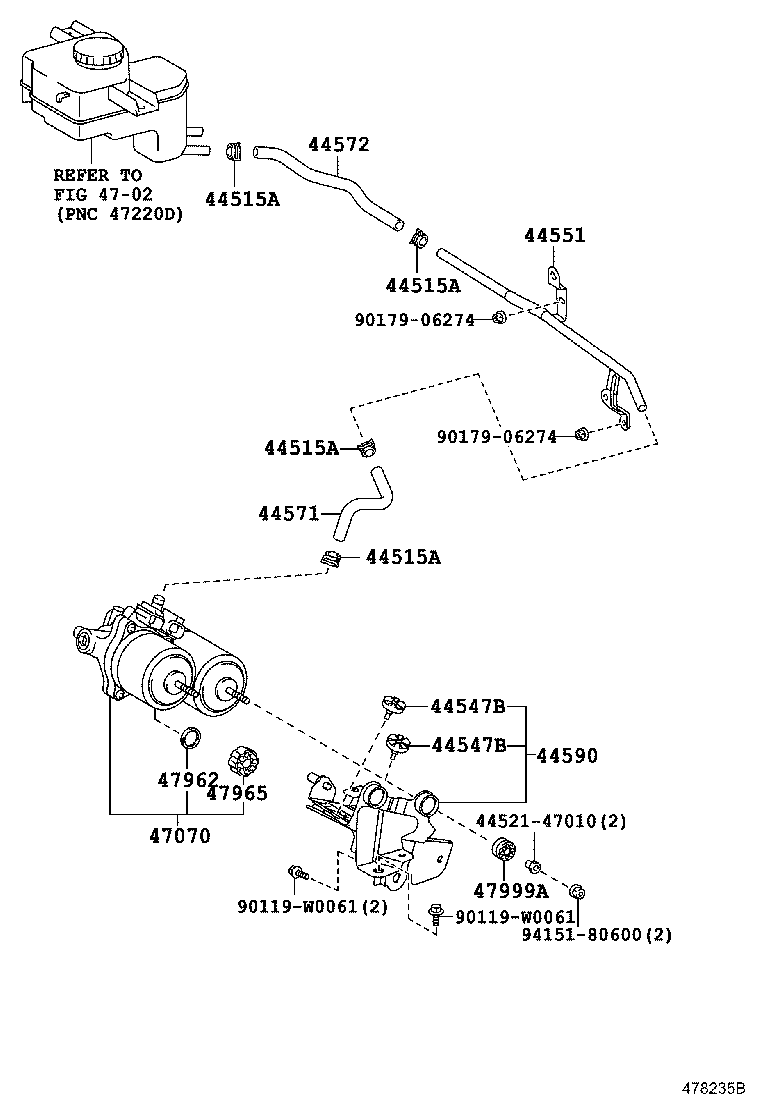

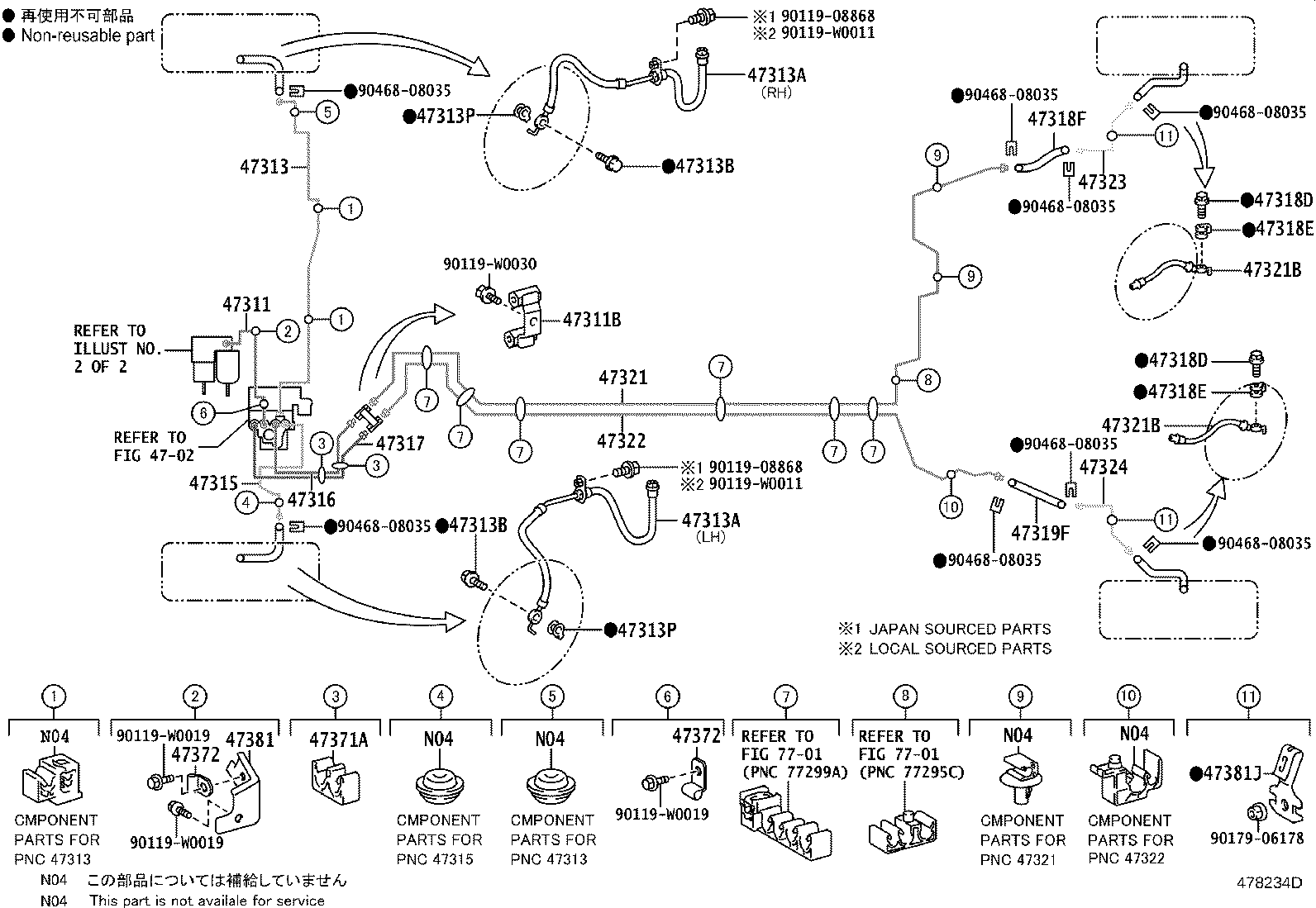

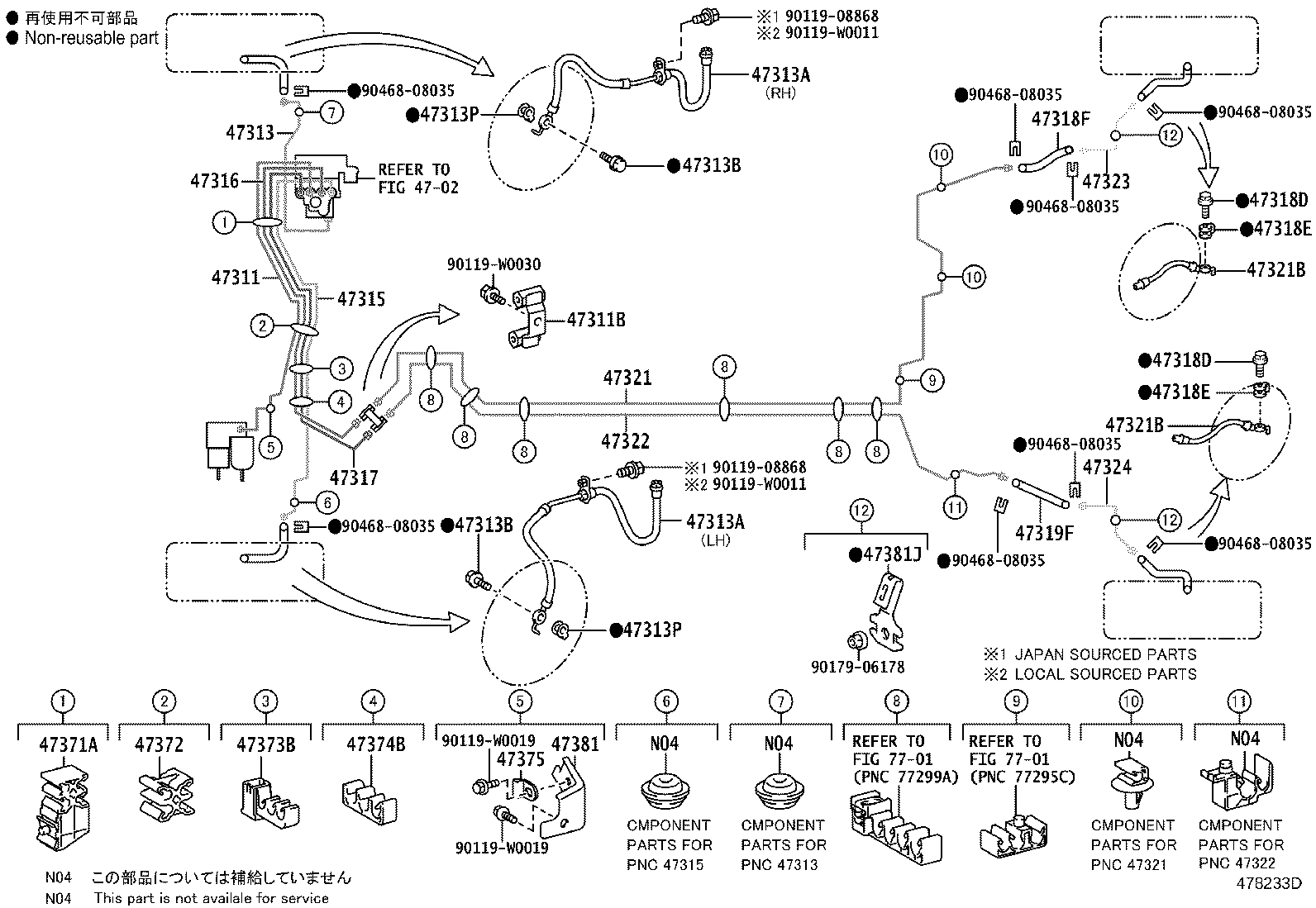

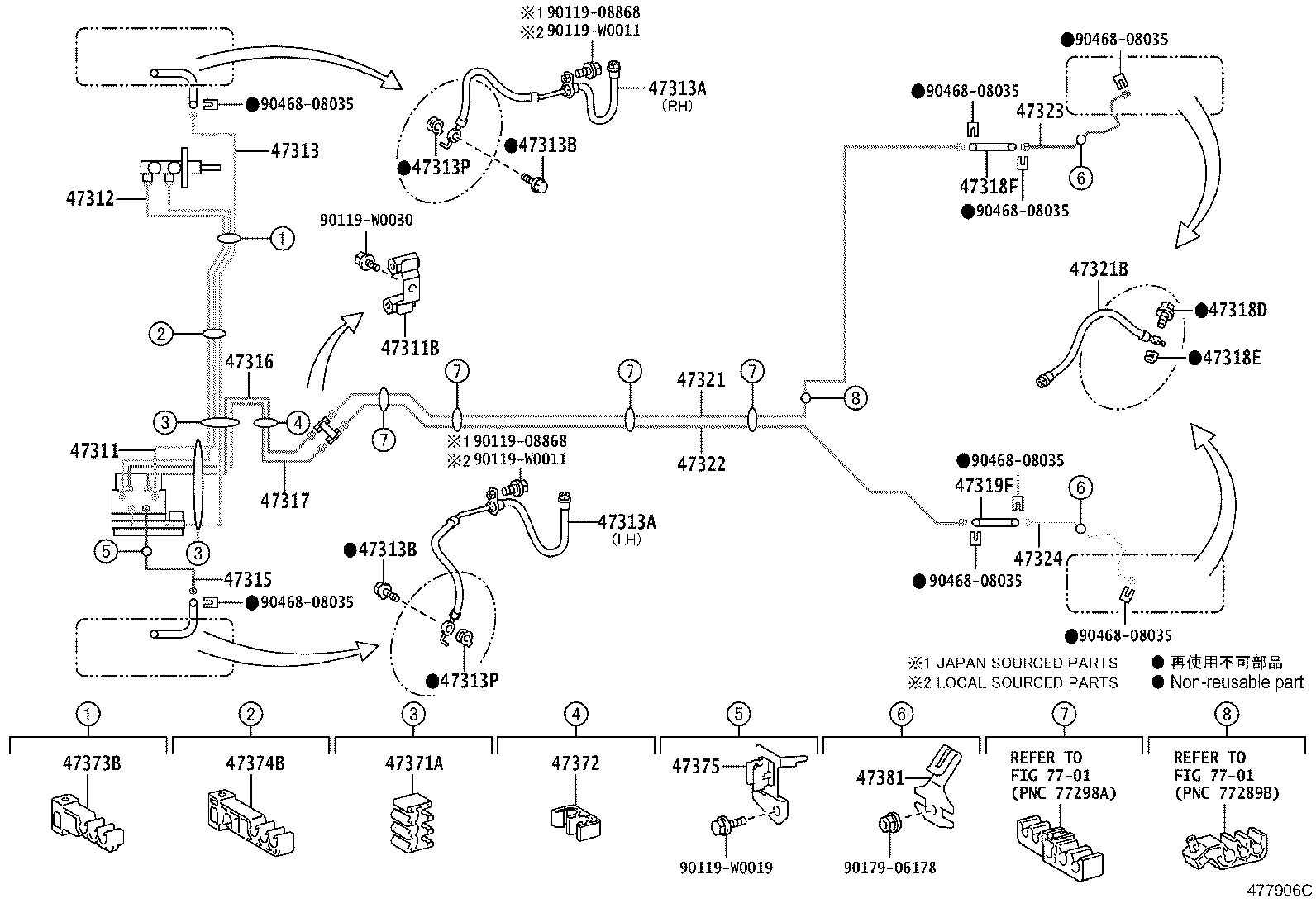

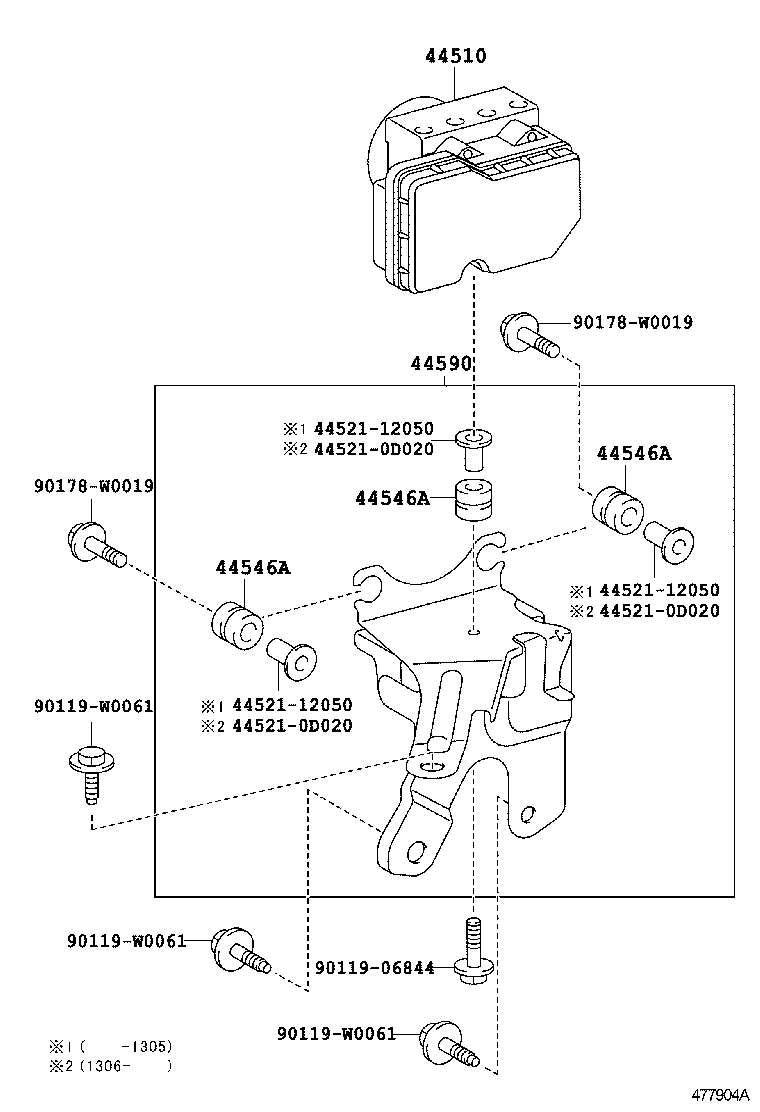

Figure 477905C 477905C 2011-07 → — Figure 477906C 477906C 2011-07 → — Figure 477907C 477907C 2011-07 → — Figure 477908C 477908C 2011-07 → — Figure 477904A 477904A 2011-07 → — Figure 478233D 478233D 2012-04 → — Figure 478234D 478234D 2012-04 → — Figure 478235B 478235B 2012-04 → — Figure 478236B 478236B 2012-04 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44515A Clip(FOR BRAKE ACTUATOR HOSE)
44546A Cushion, Brake Actuator Bolt
44547B Cushion, Brake Actuator Bracket
44551 Tube, Brake Actuator, NO.1
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44590 Bracket Assy, Brake Actuator
47070 Pump Assy, Brake Booster
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
47381J Bracket, Brake Tube Clamp, NO.2
47962 Collar, Brake Booster Pump
47965 Bush, Brake Booster Pump
47999A Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
