Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

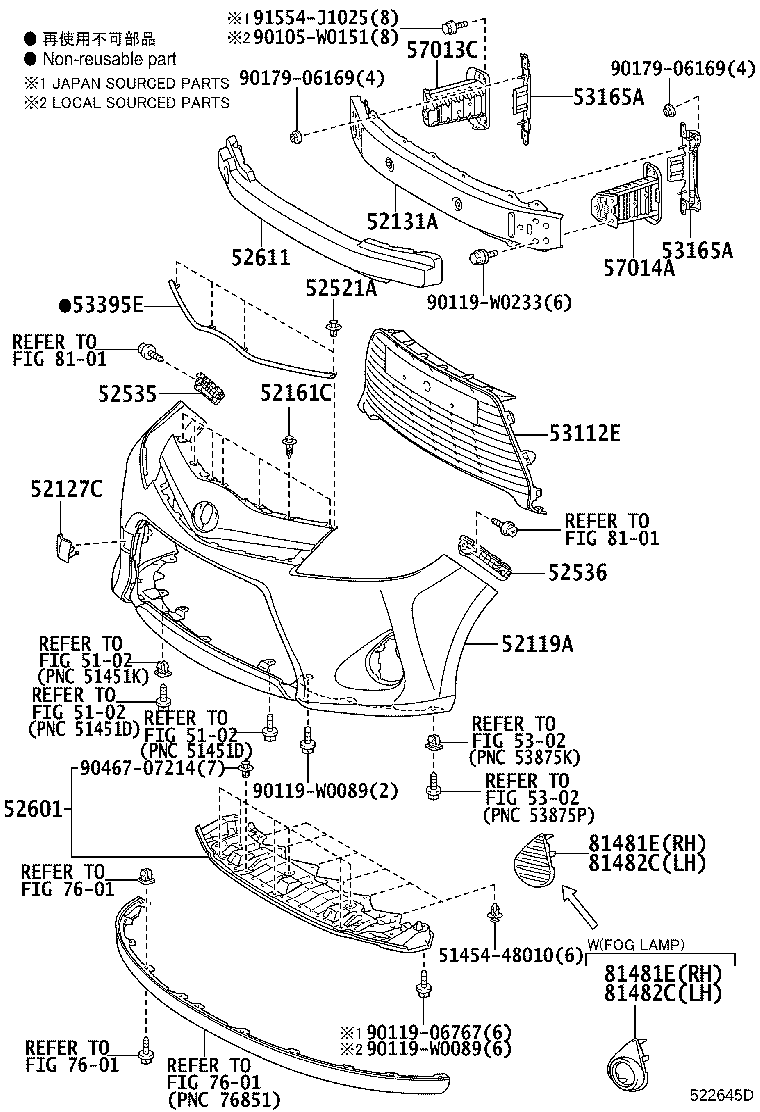

Front Bumper & Bumper Stay
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52543 | Seal, Front Bumper Side, RH |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52611 | Absorber, Front Bumper Energy |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53165A | Bracket, Front Bumper Stone Deflector, NO.1 |
| 53395E | Seal, Hood TO Front End Panel |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
