Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

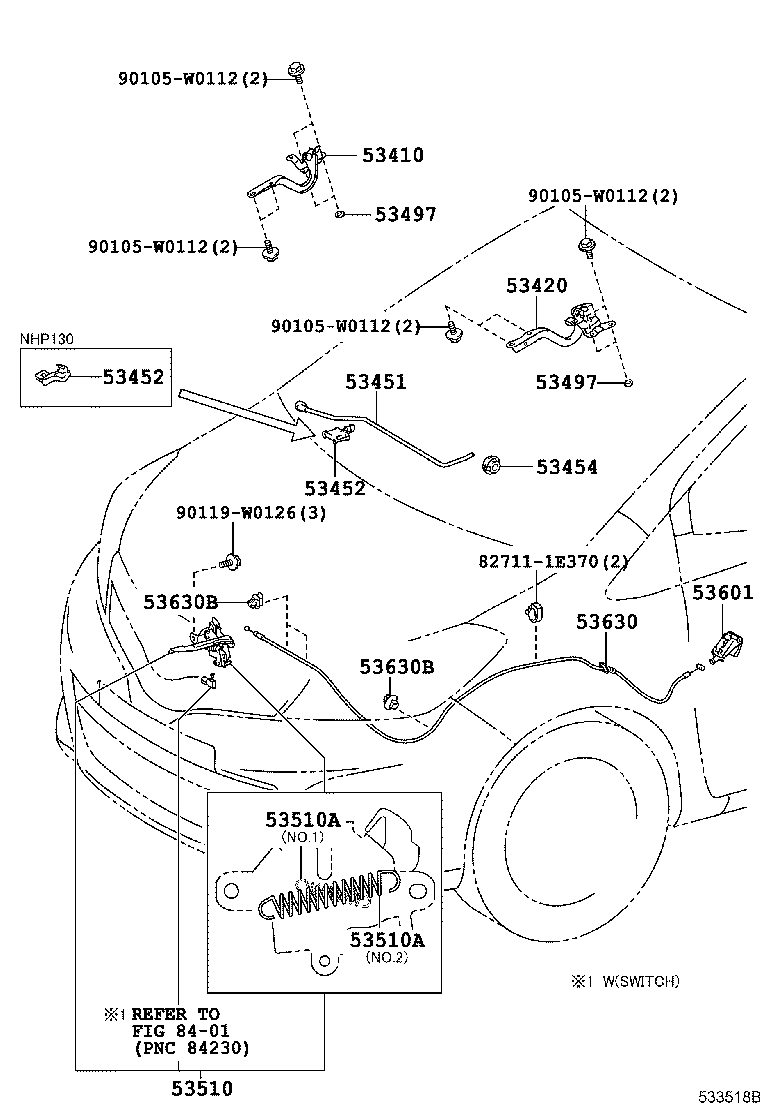

Hood Lock & Hinge
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53451 | Rod, Hood Support |
| 53452 | Holder, Hood Stay |
| 53454 | Clip, Hood Support Rod |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
