Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

Figure 584216A

584216A 2011-07 → —

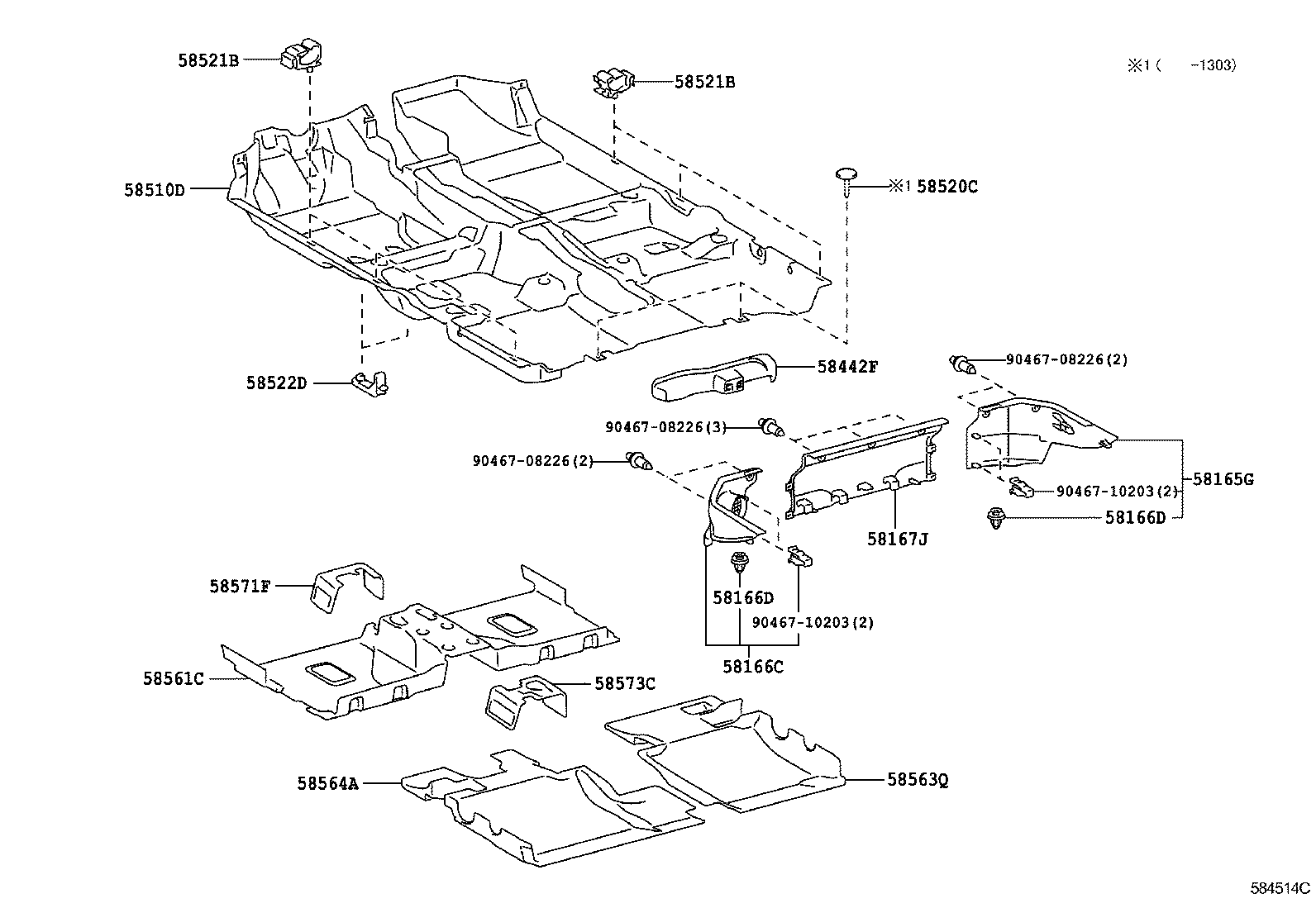

Figure 584514C

584514C 2012-04 → —

Part groups

PNC	Description
58165G	Cover, Front Floor, RH
58166C	Cover, Front Floor, LH
58166D	Clip, Floor Cover
58167J	Cover, Front Floor, Center
58442F	Cover, Jack
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58521B	Hook, Floor Carpet
58522D	Hook, Floor Carpet, NO.2
58561C	Silencer, Front Floor, NO.1
58563Q	Silencer, Front Floor, NO.3
58564A	Silencer, Front Floor, NO.4
58571F	Pad, Front Floor, Front
58573C	Pad, Front Floor Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
