Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 4 illustrations

Illustrations

Figure 642883C

642883C 2011-07 → —

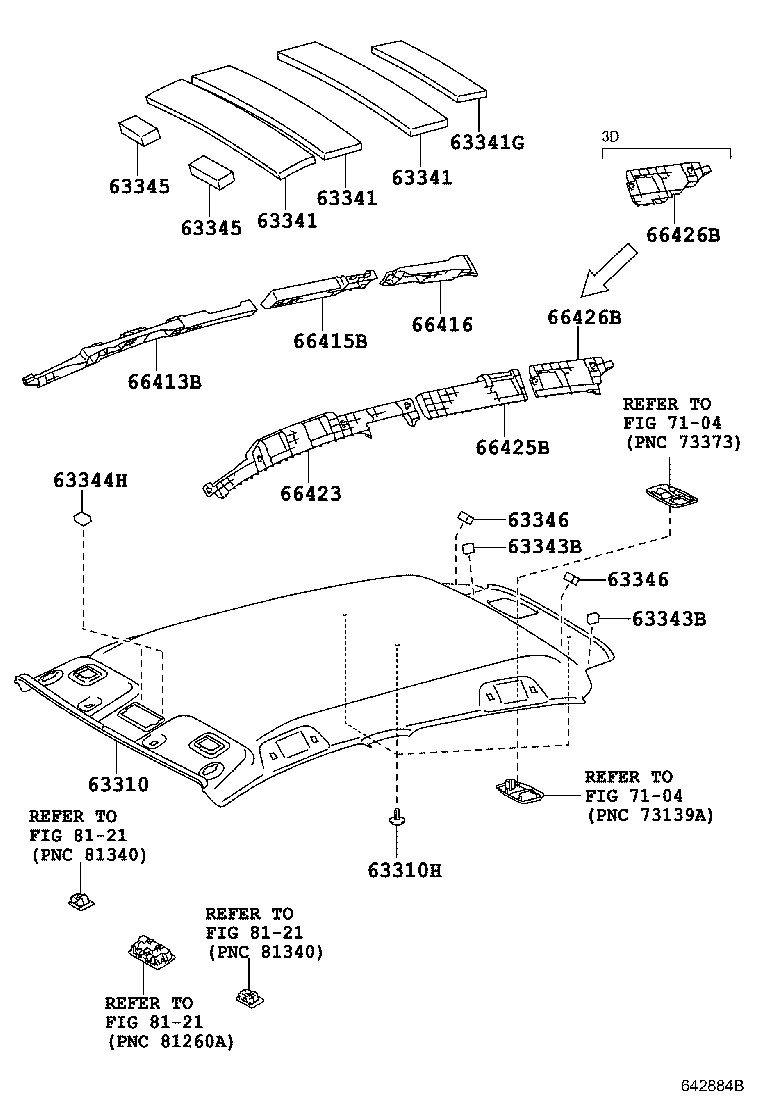

Figure 642884B

642884B 2011-07 → —

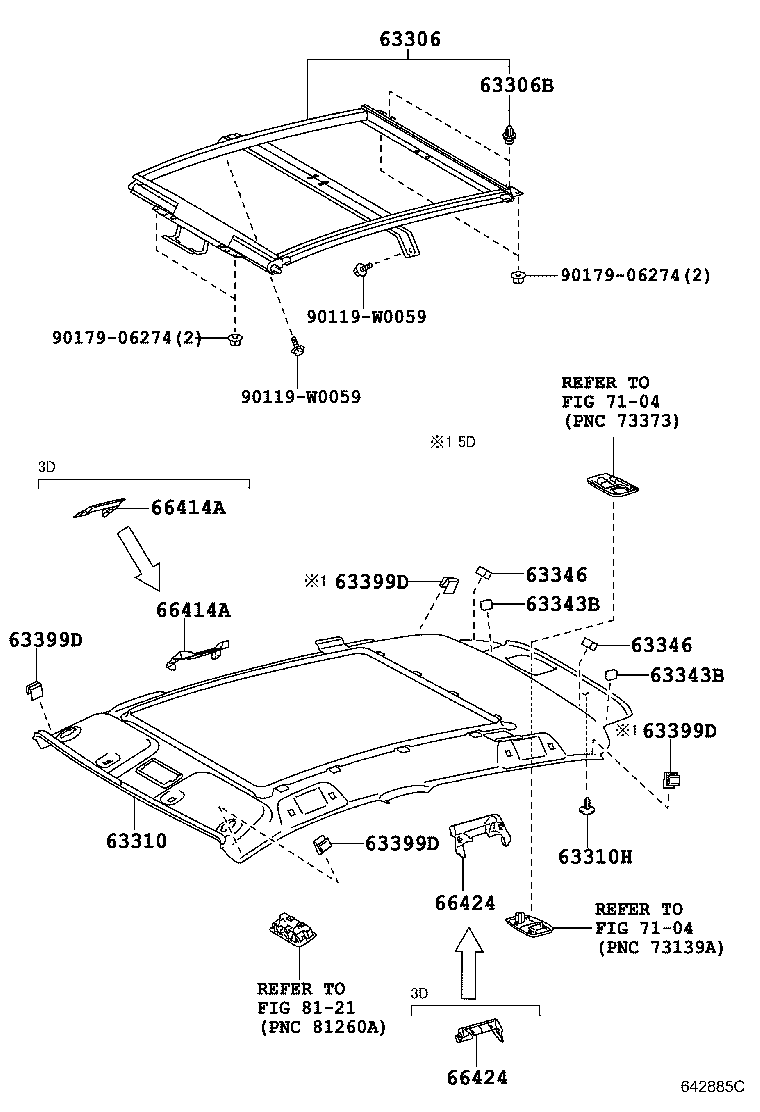

Figure 642885C

642885C 2011-07 → —

Figure 642885C

642885C 2012-04 → —

Part groups

PNC	Description
63306	Trim Sub-assy, Sunshade
63306B	Clip(FOR SUNSHADE TRIM)
63310	Headlining Assy, Roof
63310H	Clip(FOR ROOF HEADLINING)
63341	Pad, Roof Silencer, NO.1
63341G	Pad, Roof Silencer
63343B	Pad, Roof Silencer, Rear
63344H	Pad, Roof Silencer, NO.4
63345	Pad, Roof Silencer, NO.5
63346	Pad, Roof Silencer, NO.6
63399D	Clip, Roof Headlining
66413B	Spacer, Side Rail, Front RH
66414A	Spacer, Side Rail, Rear RH
66415B	Spacer, Side Rail, Rear NO.2 RH
66416	Spacer, Side Rail, Rear NO.3 RH
66423	Spacer, Side Rail, Front LH
66424	Spacer, Side Rail, Rear LH
66425B	Spacer, Side Rail, Rear NO.2 LH
66426B	Spacer, Side Rail, Rear NO.3 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
