Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

16 part groups · 7 illustrations

Illustrations

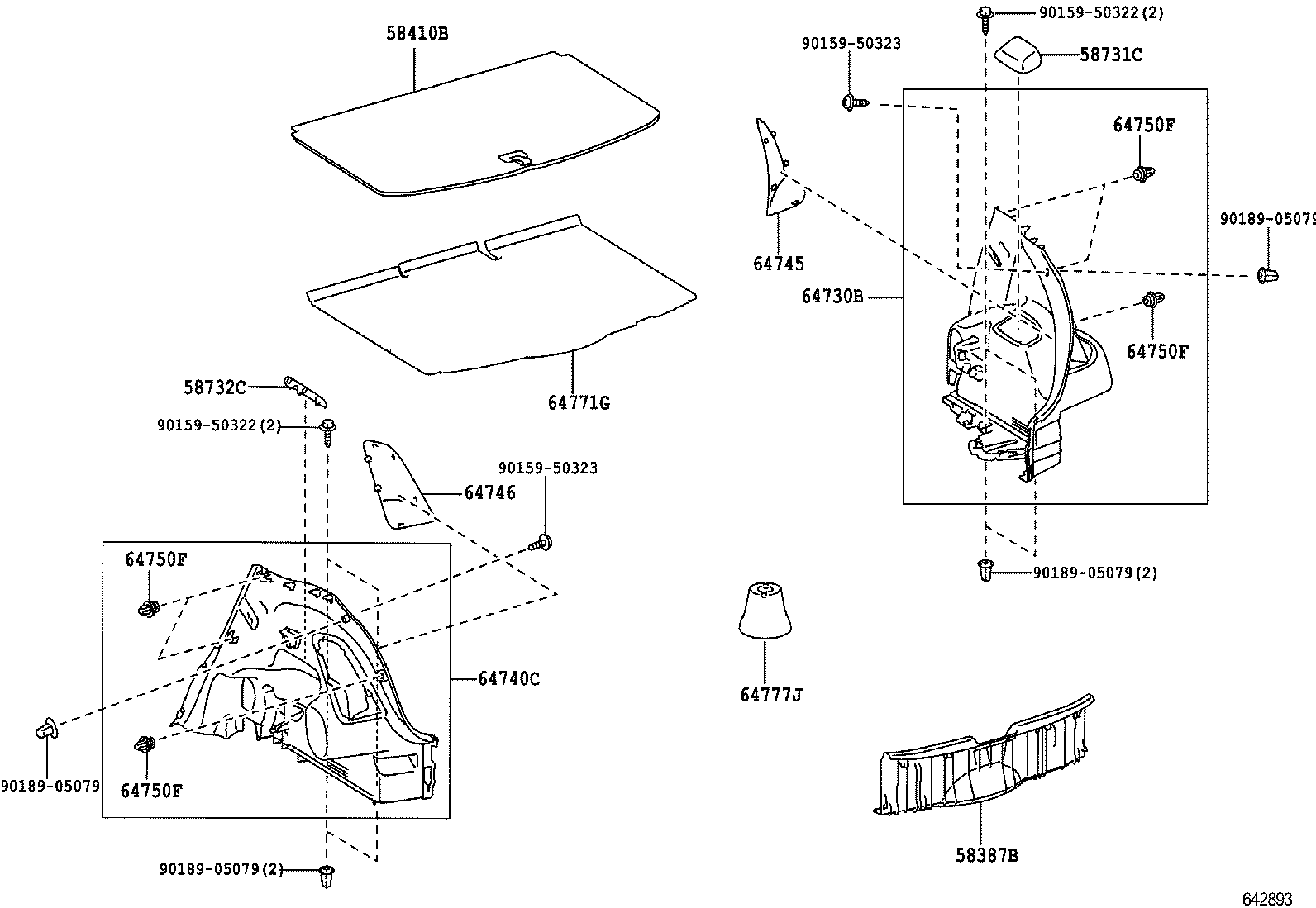

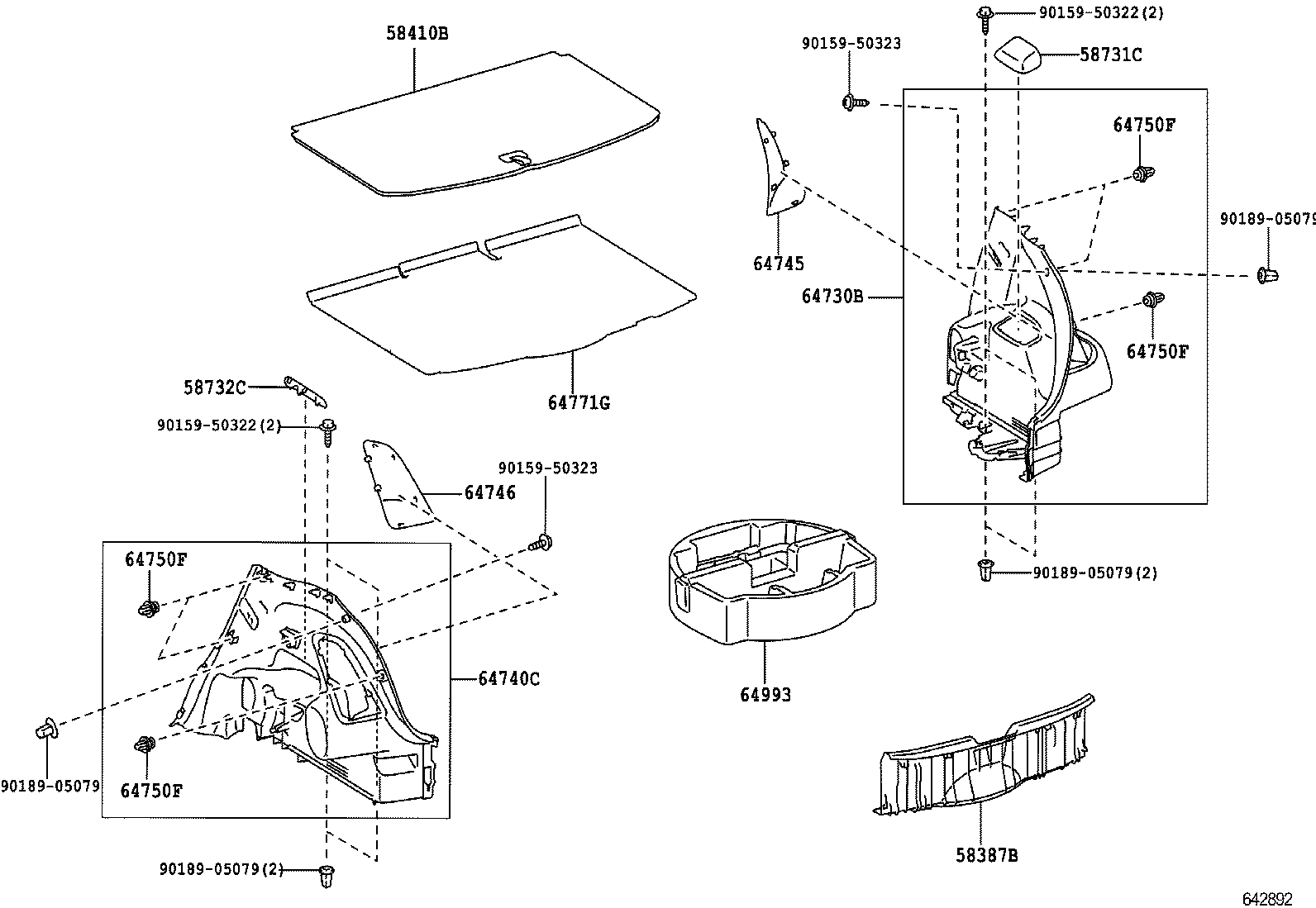

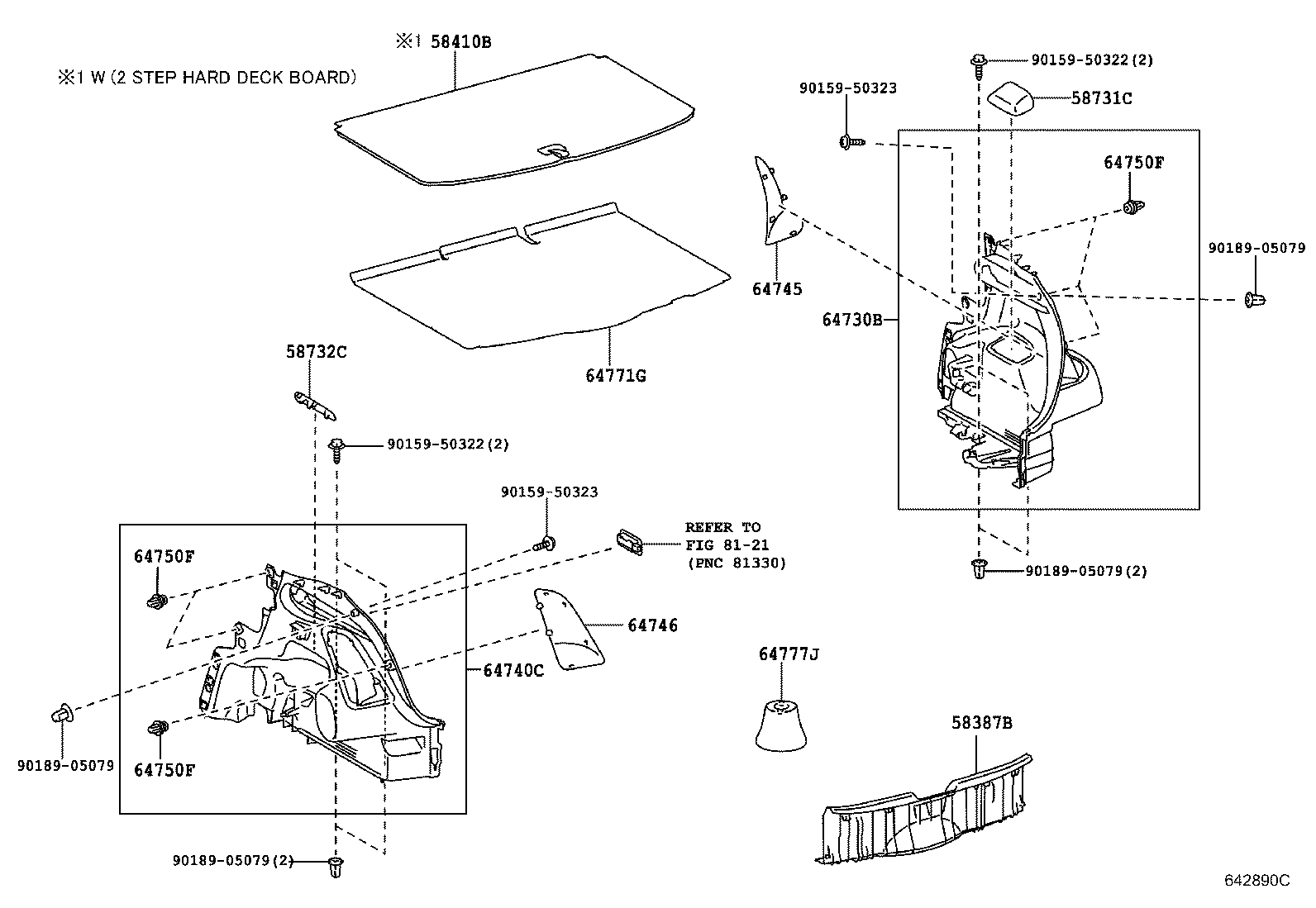

Figure 642887B 642887B 2011-07 → — Figure 642887B 642887B 2013-01 → — Figure 642890C 642890C 2011-07 → — Figure 642892 642892 2011-07 → — Figure 642892 642892 2013-01 → — Figure 642893 642893 2011-07 → — Figure 642895A 642895A 2011-07 → —

Part groups

PNCDescription
58387B Plate, Rear Floor Finish
58410B Board Assy, Deck
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64381A Hanger, Package Tray Trim
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64771G Cover, Spare Wheel
64777J Cushion, Spare Wheel
64993 Box, Deck Floor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
